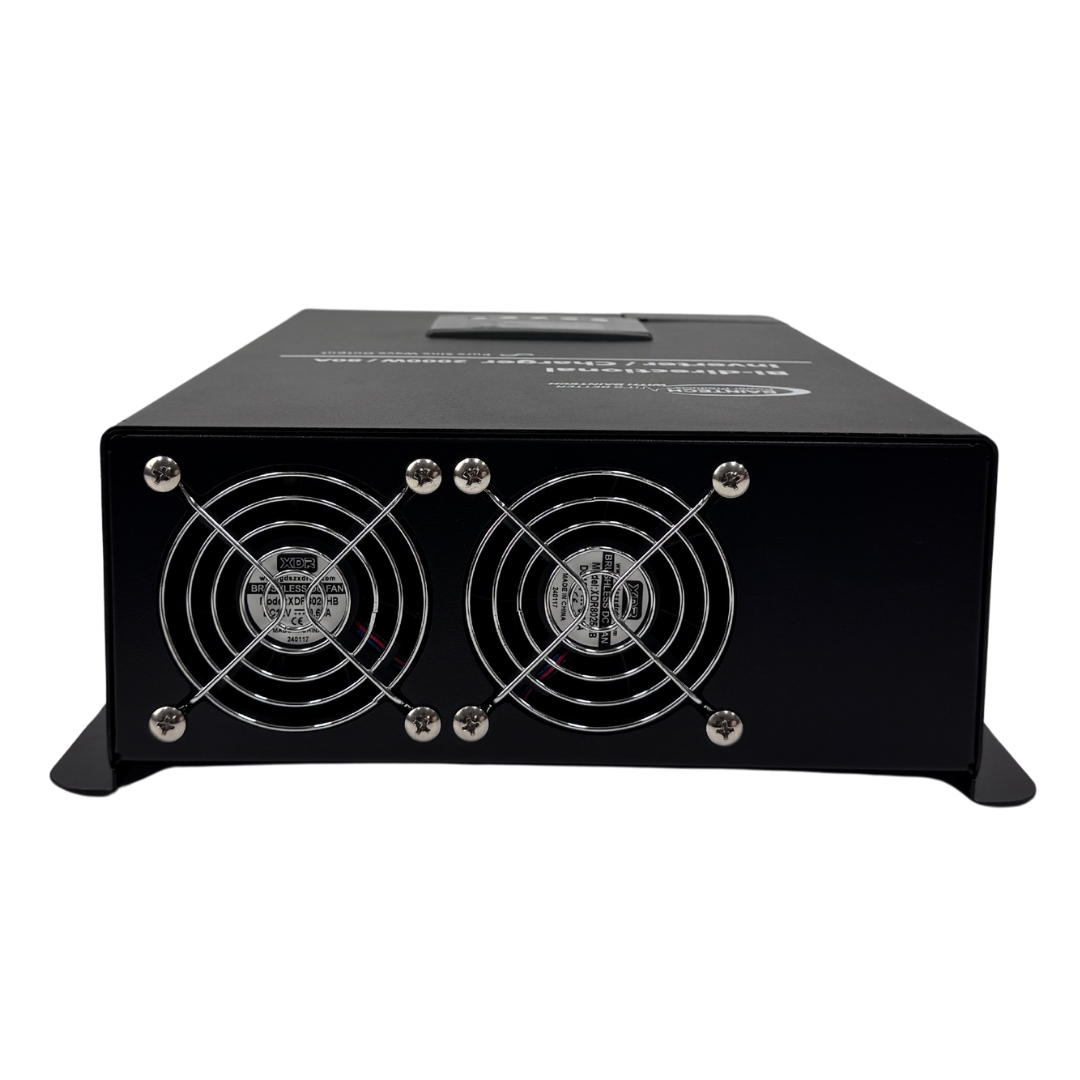

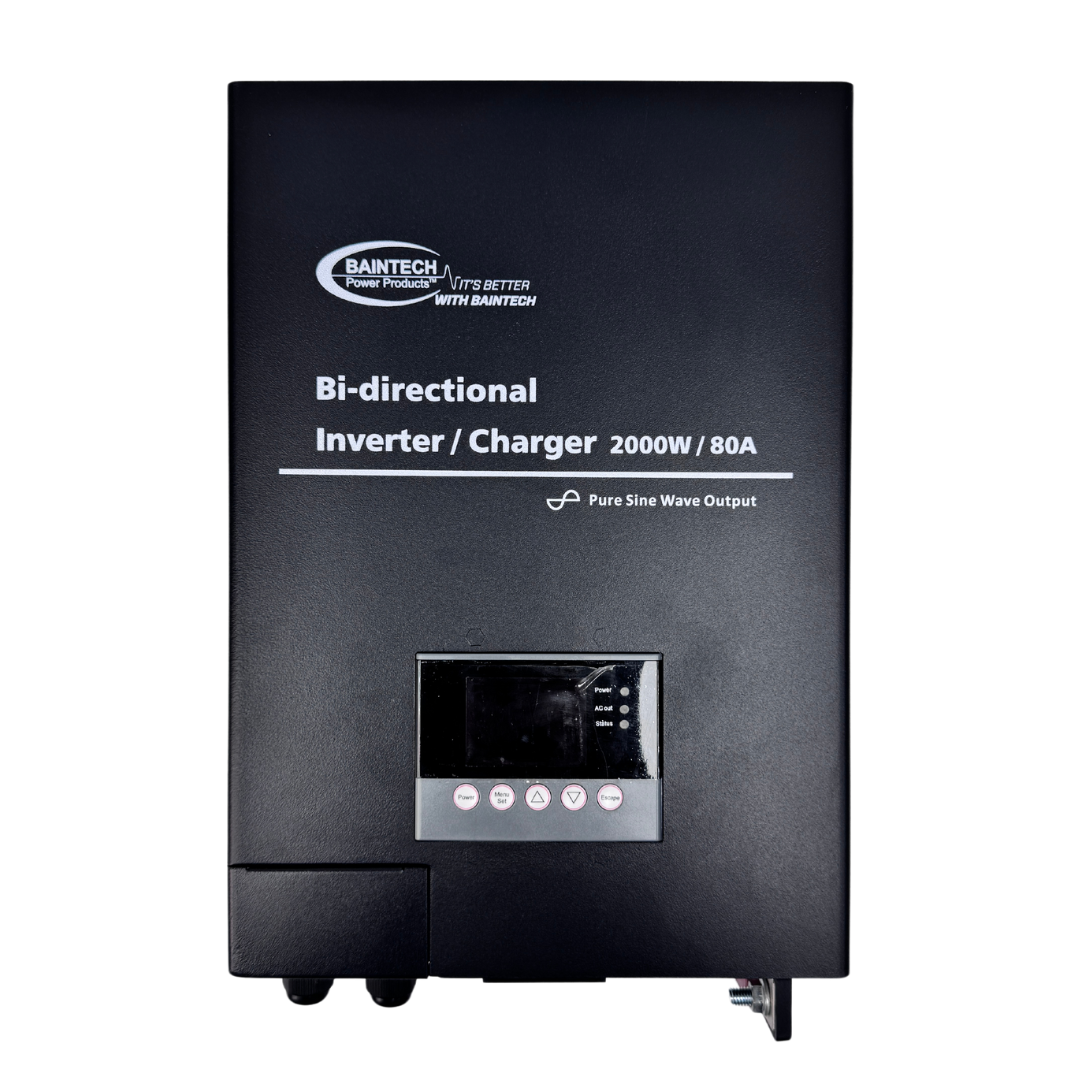

Baintech BT2000W 2000W Inverter Charger with Remote Control

Two-in-one solution—powers your gear and charges your batteries from mains or generator when available.

Product Overview

The Baintech BT2000W is a 2000-watt inverter charger that combines AC power conversion with intelligent battery charging in one compact unit. Unlike standalone inverters that only convert DC to AC, this unit automatically switches between inverter mode when running off batteries and charger mode when connected to mains power or a generator, seamlessly managing power flow in both directions without manual intervention.

Built around pure sine wave technology, the BT2000W delivers grid-quality 240V AC power suitable for sensitive electronics including laptops, medical devices, audio equipment, and appliances with microprocessor controls. The 4000W surge capacity handles motor starting loads from fridges, pumps, and power tools that require brief high-current draws on startup.

The integrated battery charger supports four-stage charging (Bulk, Absorption, Float, Recharge) across multiple battery chemistries including AGM, flooded lead-acid, gel, and lithium. The included remote controller allows convenient power management and monitoring from accessible locations without accessing the main unit. Ideal for caravan installations, off-grid cabins, marine systems, and mobile workshops where both reliable AC power and efficient battery charging are essential.

Key Specifications

• Continuous AC output: 2000W pure sine wave
• Peak surge power: 4000W
• AC output current: 16.6A at 240V
• Output voltage/frequency: 240V AC, 50Hz (Australian standard)
• Waveform: Pure sine wave (<3% THD)
• Nominal DC input voltage: 12.5V DC
• Input voltage operating range: 10.5–16.5V DC
• Efficiency: >87%
• Battery charging modes: Bulk, Absorption, Float, Recharge
• Recharge voltage range: 12.8–13.6V DC
• Charging voltage range: 13.8–14.8V DC
• Battery chemistry compatibility: Gel, flooded, AGM, lithium (LiFePO4)
• No-load current (inverter mode): <3.5A DC
• Dimensions: 387.9mm × 287mm × 110mm (15.3" × 11.3" × 4.3")
• Weight: 5.9kg (13.0 lbs)
• Remote controller: Included
• Safety certifications: UL 458, CSA C22.2 No. 107.2-01

Features & Benefits

Dual Function Inverter/Charger: Eliminates the need for separate inverter and battery charger units, saving space, weight, and wiring complexity. When connected to mains power or generator, it automatically switches to charge mode and passes AC through to loads while simultaneously charging batteries. When mains power disconnects, it instantly switches to inverter mode drawing from batteries. Perfect for caravan sites with intermittent power or workshops alternating between generator and battery operation.

2000W Pure Sine Wave Output: Delivers clean, grid-quality power suitable for all equipment including sensitive electronics, audio systems, laser printers, variable speed tools, and medical devices. The pure sine wave prevents the buzzing, overheating, and premature failure that modified sine wave inverters cause in motorized loads and microprocessor-controlled equipment.

4000W Surge Capacity: Handles brief high-current draws from equipment startup. Fridges, air compressors, pumps, and circular saws require 2–3× their running wattage for motor starting. The 4000W surge capability covers these startup loads without tripping protection circuits, allowing equipment to start reliably even when running at full 2000W continuous load.

Multi-Chemistry Battery Charging: The intelligent four-stage charging system adapts to gel, flooded lead-acid, AGM, and lithium batteries. Each chemistry requires different voltage profiles and charging algorithms—the BT2000W handles this automatically, protecting battery investment and maximizing lifespan regardless of your battery choice. Critical for systems upgrading from lead-acid to lithium without replacing charging infrastructure.

Remote Controller Included: Mount the remote control panel in accessible locations—inside the cabin, at the camp kitchen, or anywhere convenient. Monitor input/output voltage, battery status, charging progress, and power mode without accessing the main unit installed in battery compartments or under-seat locations. Switch between inverter/charger modes and adjust settings from the driver's seat.

Automatic Transfer Switching: Seamlessly switches between mains/generator power and battery power with no manual intervention. When you plug into powered sites, it automatically charges batteries and passes AC through to appliances. When you unplug, it instantly switches to inverter mode. No gap in power to equipment, no manual changeover switches to operate.

Advanced Battery Management: Four-stage charging (Bulk, Absorption, Float, Recharge) optimizes battery charging regardless of chemistry. Bulk mode delivers maximum current until batteries reach approximately 80% charge, Absorption mode completes charging at controlled voltage, Float mode maintains full charge without overcharging, and Recharge mode detects when batteries need topping up. This prevents the overcharging damage common with basic chargers.

High Efficiency at 87%+: Minimizes battery drain and heat generation. At 87% efficiency, only 13% of power is lost as heat during conversion, critical for installations in enclosed spaces where heat dissipation is limited. More efficient operation means longer battery runtime and less load on cooling systems.

Comprehensive Safety Protection: Over-voltage protection prevents damage from alternator voltage spikes or incorrect charging sources. Under-voltage protection prevents deep battery discharge that damages cells. Overload protection prevents damage from excessive current draw. Over-temperature protection prevents thermal damage during sustained high loads. Short-circuit protection prevents catastrophic failure from wiring faults.

Technical Specs

AC Output Specifications:

• Continuous power: 2000W
• Peak surge power: 4000W (brief duration)
• Output current: 16.6A at 240V AC
• Output voltage: 240V AC ±10%
• Output frequency: 50Hz ±0.5Hz
• Waveform: Pure sine wave
• Total harmonic distortion (THD): <3%

DC Input Specifications:

• Nominal input voltage: 12.5V DC
• Operating voltage range: 10.5–16.5V DC
• No-load current draw: <3.5A DC
• Efficiency: >87% at rated load

Battery Charging Specifications:

• Charging modes: Bulk, Absorption, Float, Recharge
• Recharge voltage: 12.8–13.6V DC
• Charging voltage: 13.8–14.8V DC
• Compatible chemistries: Gel, flooded lead-acid, AGM, lithium (LiFePO4)
• Charging current: Not specified (confirm from spec sheet)

Physical Specifications:

• Dimensions: 387.9mm (L) × 287mm (W) × 110mm (H)
• Weight: 5.9kg
• Mounting: Not specified (confirm mounting orientation)
• Cooling: Forced ventilation (assumed, confirm)

Environmental Specifications:

• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Relative humidity: 5–90% non-condensing
• Maximum altitude: 3000m (9843 ft)

Safety & Compliance:

• Certifications: UL 458, CSA C22.2 No. 107.2-01
• Protection features: Over-voltage, under-voltage, overload, over-temperature, short-circuit

Included Accessories:

• Remote control panel with cable
• User manual
• Mounting hardware: Not specified

Compatible With / Goes Well With

• 200–400Ah AGM or gel deep-cycle battery banks
• 150–300Ah lithium (LiFePO4) battery systems
• Mains power connections at powered caravan sites
• Portable generators (2000W+ capacity for charging)
• Heavy-gauge DC cabling (50mm²–70mm² for high current)
• Anderson plugs or hardwired DC connections
• Inline fuses or circuit breakers rated for 200A+ at 12V
• Battery monitoring systems with shunt-based SOC calculation
• Pure sine wave compatible appliances and electronics
• Remote control extension cables (if needed)
• Caravan and 4WD auxiliary battery systems
• Off-grid cabin and tiny house power systems
• Marine battery systems and liveaboard boats
• Mobile workshop and tradie vehicle setups

Note: Ensure adequate battery capacity and DC cabling for high-current draw. Professional installation recommended for permanent installations.

Frequently Asked Questions

What's the difference between an inverter and an inverter charger? A standard inverter only converts 12V DC to 240V AC from batteries.

Can I run my caravan air conditioner on this unit? Check your air conditioner's specifications carefully.

What size battery bank do I need for 2000W loads? At 2000W output from 12V, the inverter draws approximately 175A DC (accounting for efficiency losses).

Does the remote control show battery percentage? The remote control displays input/output voltage and system status.

Can I use this with lithium batteries? Yes, the BT2000W supports lithium (LiFePO4) batteries with adjustable charging voltage parameters
