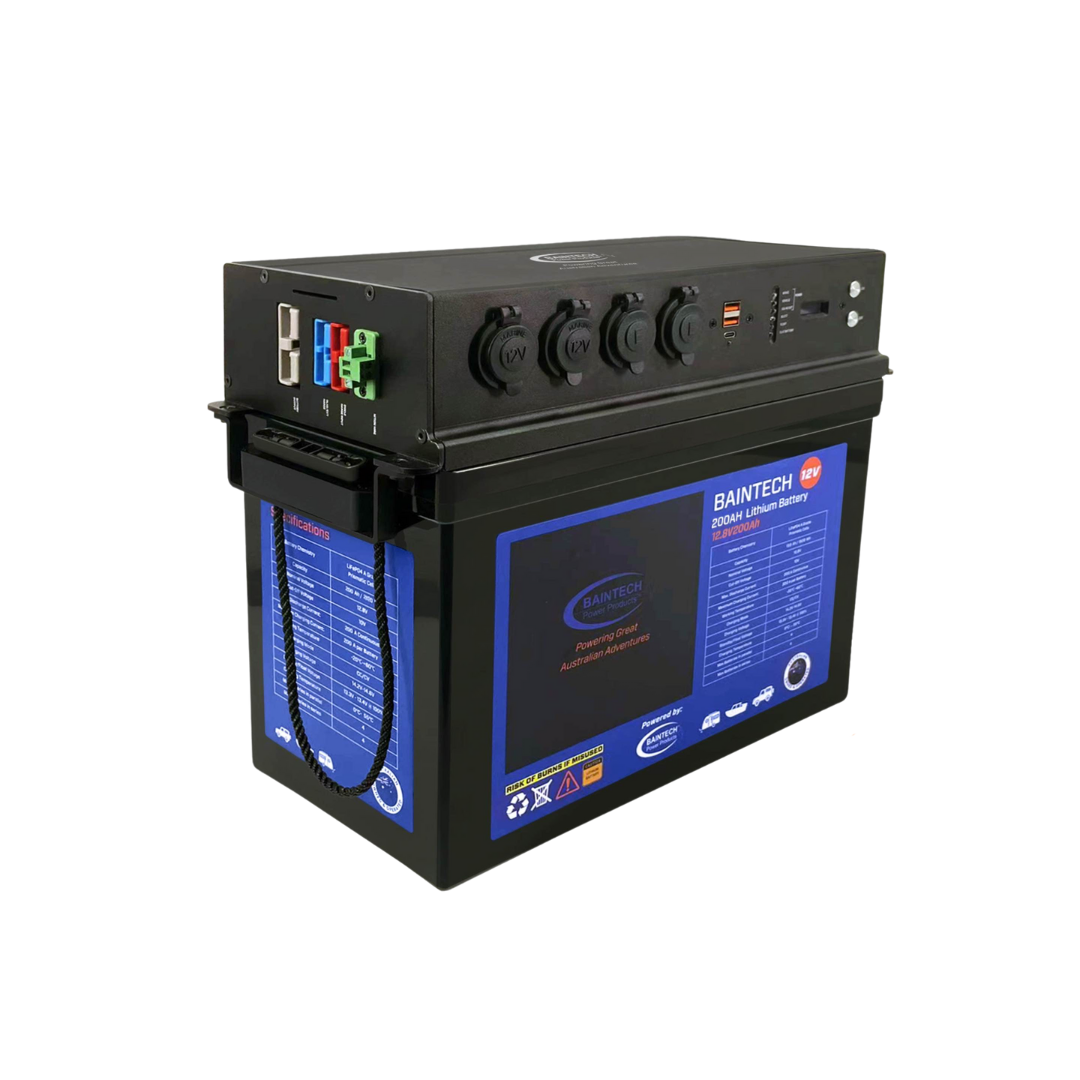

Baintech BT200A-POWERTOP 200Ah Lithium Battery with Power Top

Maximum capacity with integrated distribution—200Ah LiFePO4 delivering 2560Wh for extended off-grid autonomy and serious power demands.

Product Overview

The Baintech BT200A-POWERTOP is a 200Ah LiFePO4 lithium battery with integrated "Power Top" multi-port distribution system, delivering 2560Wh of energy capacity—the highest capacity in Baintech's integrated Power Top range. This isn't just a battery—it's a complete power distribution system combining substantial 200Ah capacity, 200A continuous discharge capability, multiple output options (Anderson plugs in three current ratings, cigarette sockets, Engel socket, USB-C PD, USB-A QC), Bluetooth monitoring, and LED display in one ready-to-deploy package.

The Power Top design eliminates the need for separate distribution panels, circuit breakers, USB adaptors, and Anderson outlet boxes. Every output port is integrated into the battery housing with appropriate current ratings and protection: blue Anderson SOA for high-current DC-DC charging, red 50A Anderson for standard loads, grey 120A Anderson for heavy draws, dual cigarette sockets for 12V accessories, Engel socket for portable fridges, and multiple USB ports for fast-charging devices. This integration creates a clean, professional installation with minimal external wiring.

Built around premium LiFePO4 cells in 4S/2P configuration (4 cells in series, 2 parallel strings) rated for >3000 cycles at 1C discharge and 80% depth of discharge, the BT200A-POWERTOP delivers exceptional longevity with 98%+ efficiency. The 200A continuous discharge (400A pulse) powers substantial loads including large inverters (2400W+), multiple fridges, lighting systems, water pumps, and communication equipment simultaneously. The matching 200A maximum charge current accepts rapid charging from high-output DC-DC chargers, solar arrays, or shore power systems.

At 21.5kg with compact dimensions (384 × 194 × 333.5mm), this battery provides exceptional energy density while remaining manageable for single-person handling. The Bluetooth-enabled BMS with LED display and smartphone app provides real-time monitoring of voltage, current, state of charge, and temperature. Backed by Baintech's 5-year warranty and featuring IP30 housing protection, the BT200A-POWERTOP represents the ultimate complete power solution for extended 4WD expeditions, full-time caravan living, off-grid cabins, and marine liveaboard applications.

Key Specifications

• Nominal voltage: 12.8V (12V system compatible)
• Rated capacity: 200Ah
• Energy capacity: 2560Wh
• Cell configuration: 4S/2P (4 cells in series, 2 parallel strings)
• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Cycle life: >3000 cycles @ 1C discharge, 80% DOD
• Efficiency: ≥98%
• Self-discharge: <5% per month
• Internal resistance: ≤30mΩ
• Continuous discharge current: 200A
• Pulse discharge current: 400A (<1 second)
• Maximum charge current: 200A
• Recommended charge current: 100A
• Weight: 21.5kg

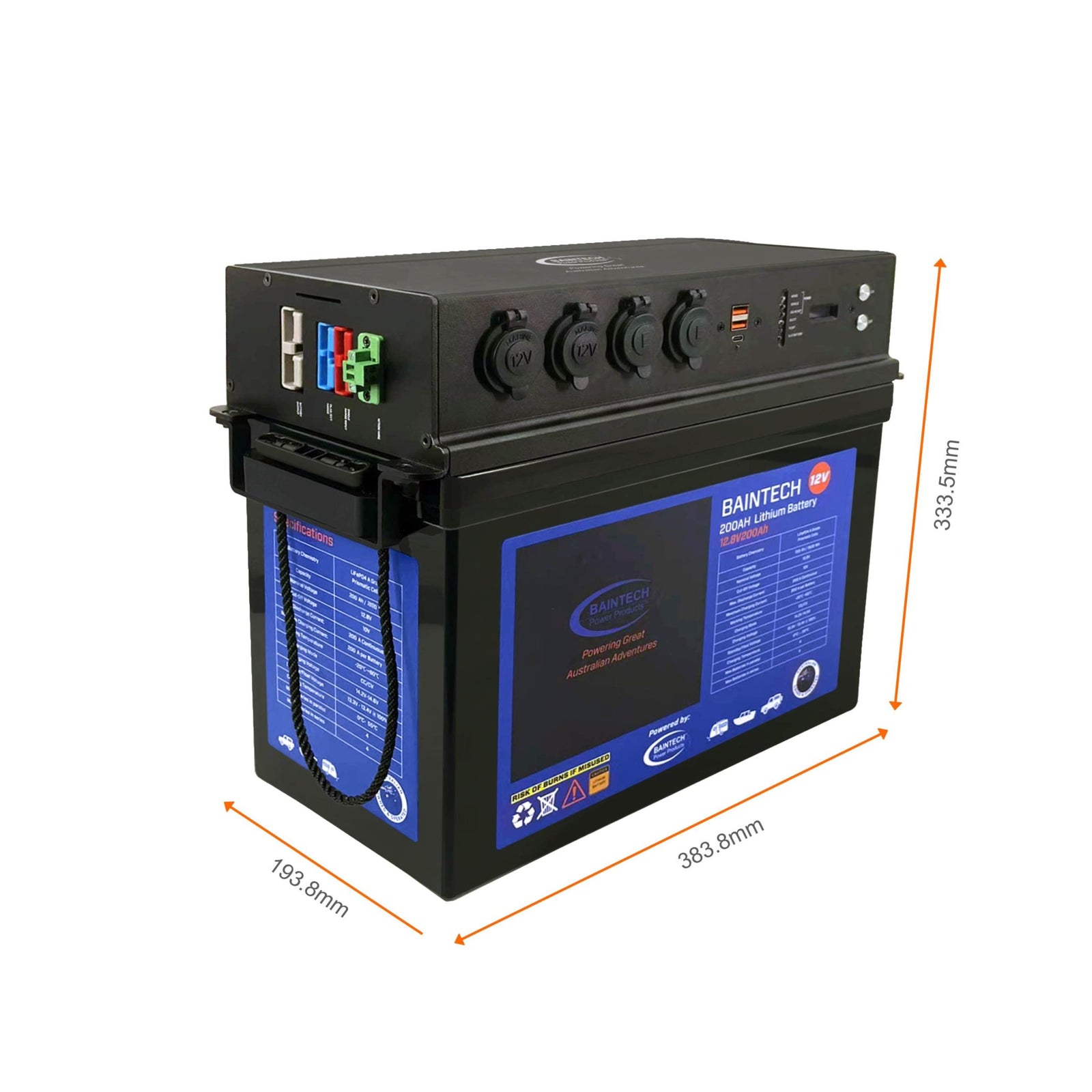

• Dimensions: 384mm (L) × 194mm (W) × 333.5mm (H)
• Terminal type: M8 threaded posts
• Housing material: ABS plastic
• Housing protection: IP30
• BMS: Integrated with Bluetooth connectivity
• Communication: Bluetooth with smartphone app
• Display: LED indicators + display screen
• Warranty: 5 years manufacturer warranty

Features & Benefits

Complete Integrated Power Distribution System: The Power Top eliminates separate distribution panels, Anderson outlet boxes, circuit breakers, and USB adaptors. Everything is built into the battery housing with integrated protection for each output: SOA Anderson (blue) for DC-DC chargers, 50A Anderson (red) for standard 12V loads, 120A Anderson (grey) for high-current equipment, 2× cigarette sockets for accessories, Engel socket for portable fridges, 2× USB-C ports for fast device charging, 2× USB-A QC3.0 ports for smartphones. This integration saves installation time, reduces external wiring complexity, and creates a professional finished appearance.

200Ah / 2560Wh Maximum Capacity: The 200Ah capacity provides the highest energy storage in Baintech's Power Top range, delivering 2560Wh—enough to run a 45L fridge for 48–60 hours, power LED lighting and water pumps for extended periods, support inverter loads up to 2400W continuous, and provide multi-day autonomy for serious off-grid applications. This capacity suits extended remote travel, full-time caravan living, off-grid cabin systems, and marine liveaboard vessels where substantial power reserves are essential.

200A Continuous / 400A Pulse Discharge: The exceptional 200A continuous discharge capability powers large inverters (2400W+ continuous), multiple high-draw appliances simultaneously, or brief surge loads up to 400A for motor starting. This high discharge rate maintains stable voltage even under heavy loads, ensuring consistent performance from fridges, inverters, air compressors, and power tools. The 4S/2P cell configuration (two parallel cell strings) provides the high current capability with excellent load distribution across cells.

200A Maximum Charge Current: The 200A charge acceptance enables incredibly fast recharging—a fully depleted 200Ah battery can be recharged in approximately 1 hour from a 200A source (accounting for charging profile). More realistically, at the recommended 100A charge rate, recharge time is approximately 2.5 hours. This fast charge capability maximizes solar harvesting during peak sun hours and minimizes generator runtime when charging from shore power.

>3000 Cycle Longevity at 1C/80% DOD: Rated for >3000 cycles at 1C discharge rate (200A) and 80% depth of discharge—the exact rating reflects realistic heavy-use conditions. For users cycling daily (365 cycles/year), that's 8+ years of service life. For weekend warriors (50 cycles/year), that's 60+ years of theoretical service. The long cycle life offsets the premium lithium investment through decades of reliable operation without replacement.

98%+ Efficiency with Low Self-Discharge: The 98%+ round-trip efficiency means minimal energy loss during charge/discharge cycles—nearly all solar energy captured is stored and available for use. The <5% monthly self-discharge rate means the battery retains charge during storage between trips, unlike lead-acid batteries that require maintenance charging during storage to prevent sulfation damage.

4S/2P Cell Configuration for High Current: The 4S/2P configuration (4 cells in series for 12.8V, 2 parallel strings for 200Ah capacity) provides superior current handling compared to single-string configurations. Each parallel cell string shares the load, reducing stress on individual cells, improving thermal management, and extending cycle life. Critical for sustained high-current applications and rapid charging.

Multiple Anderson Current Ratings: Three separate Anderson plugs with different current ratings provide optimized connections for various equipment. The SOA Anderson (blue) handles high-current DC-DC charging input, the 50A Anderson (red) suits standard fridges and accessories, and the 120A Anderson (grey) powers high-draw equipment like inverters and air compressors. This prevents overloading lower-rated connections and ensures each circuit has appropriate protection.

Integrated Display with Bluetooth Monitoring: The built-in LED display provides at-a-glance status information, while the Bluetooth smartphone app delivers detailed monitoring of voltage, current draw, state of charge, temperature, and individual cell voltages. Set low-voltage alerts, track power consumption patterns, and diagnose issues remotely without accessing the battery compartment. The display and app combination provides both convenience and comprehensive data.

Extended Temperature Operation: Functions from -20°C to +60°C discharge temperature, handling winter alpine camping through outback summer touring. The charging temperature range (-10°C to +55°C) is notably broader than the 150Ah model (0°C minimum), enabling charging in sub-zero conditions. BMS high-temperature cutoff at 65°C prevents thermal damage in extreme heat. Critical for Australian touring where temperatures span extreme ranges.

IP30 Housing Protection: The IP30-rated housing provides protection against solid objects larger than 2.5mm (tools, wires) while the ABS construction offers impact resistance and durability. While not waterproof (IP67/68), the IP30 rating is appropriate for typical installation locations inside vehicles, caravans, and battery compartments where direct water exposure doesn't occur.

M8 Terminal Posts for Reliable Connections: Heavy-duty M8 threaded terminal posts accommodate large cable lugs and provide secure, vibration-resistant connections. Critical for off-road applications where vibration can loosen compression terminals or lighter-duty connections. M8 posts handle high-current cables (50mm²+) required for 200A discharge capability.

5-Year Manufacturer Warranty: Baintech backs this premium battery with comprehensive 5-year warranty coverage, demonstrating confidence in LiFePO4 longevity, BMS protection, and construction quality. This extended warranty provides peace of mind for the significant investment and reflects the battery's design for long-term reliability in demanding applications.

Technical Specs

Electrical Specifications:

• Nominal voltage: 12.8V
• System designation: 12V
• Rated capacity: 200Ah
• Energy: 2560Wh (200Ah × 12.8V)
• Cell configuration: 4S/2P
• Cell type: LiFePO4 prismatic cells
• Chemistry: Lithium Iron Phosphate
• Internal resistance: ≤30mΩ
• Efficiency: ≥98%
• Self-discharge: <5% per month
• Cycle life: >3000 cycles @ 1C discharge, 80% DOD

Discharge Specifications:

• Continuous discharge current: 200A
• Pulse discharge current: 400A (<1 second)
• Recommended voltage disconnect: 10V
• BMS discharge cutoff voltage: 10V
• Recommended reconnect voltage: 10.8V
• Discharge temperature: -20°C to +60°C

Charging Specifications:

• Charge voltage: 14.2V–14.6V
• Recommended float voltage: 13.3V–13.4V @ 100% SOC
• Recommended charge current: 100A
• Maximum charge current: 200A
• BMS charge cutoff voltage: 14.8V
• Charge method: CC-CV (Constant Current-Constant Voltage)
• Charge temperature: -10°C to +55°C

Compatible Power Sources:

• Alternator: 11.5V–16V DC, max 40A input
• Solar: 11.5V–50V DC, max 40A input

Output Connections (Power Top):

• 1× Anderson SOA (blue) - High-current DC-DC input/output
• 1× Anderson 50A (red) - Standard 12V loads
• 1× Anderson 120A (grey) - High-current loads
• 2× Cigarette socket - 12V accessories
• 1× Engel socket - Portable fridges
• 2× USB-C ports (PD3.0) - Fast charging capable
• 2× USB-A ports (QC3.0) - Quick charge smartphones

Physical Specifications:

• Dimensions: 384mm (L) × 194mm (W) × 333.5mm (H)
• Weight: 21.5kg
• Terminal type: M8 threaded posts (2 terminals)
• Housing material: ABS plastic
• Housing protection: IP30
• Operating temperature: -20°C to +60°C
• Charge temperature: -10°C to +55°C
• Storage temperature: -20°C to +60°C
• BMS high temperature cutoff: 65°C

Protection Features:

• Over-voltage protection
• Under-voltage protection (10V cutoff)
• Over-current protection (200A continuous limit)
• Over-temperature protection (65°C cutoff)
• Short-circuit protection (all outputs)
• Cell balancing

Communication & Display:

• Communication protocol: Bluetooth
• Smartphone app: Real-time monitoring
• Built-in display: LED indicators + display screen
• Alarm information: Voltage, current, SOC alerts

Warranty:

• 5 years manufacturer warranty

Compatible With / Goes Well With

• 12V portable fridges and freezers (45–80L capacity, multiple units)
• DC-DC battery chargers (60A–200A for vehicle alternator charging)
• Solar panels (400W–1000W) with high-output MPPT controllers (100A+)
• Pure sine wave inverters (1500W–2400W continuous)
• Anderson plug-based 12V distribution systems
• LED lighting systems and camp lighting
• 12V water pumps and pressure systems
• Caravan and camper trailer house battery systems
• 4WD dual battery setups (as high-capacity auxiliary)
• Off-grid cabin and tiny house power systems
• Marine house battery systems (check IP rating requirements)
• USB-C compatible laptops and tablets (PD3.0 fast charge)
• QC3.0 compatible smartphones and devices
• 12V air compressors and tyre inflators
• UHF radios and communication equipment
• Battery monitoring systems with Bluetooth
• Heavy-gauge DC cabling (70mm²–95mm² for high-current connections)
• Multiple 200Ah batteries for parallel expanded capacity

Note: Ensure DC-DC chargers and solar controllers are compatible with 14.2V–14.6V LiFePO4 charging voltage and rated for 100A+ output.

Frequently Asked Questions

How does 200Ah compare to 150Ah for extended trips?

The 200Ah capacity provides 33% more energy (2560Wh vs 1920Wh), translating to approximately 1.3× longer runtime between charges. For extended remote travel (7–14 days), the 200Ah battery provides greater autonomy and reduces reliance on solar recharging during cloudy weather. The weight penalty is only 4kg (21.5kg vs 17.5kg) for the substantial capacity increase. Choose 200Ah for extended expeditions, full-time living, or when oversized capacity provides peace of mind.

Can this battery power a caravan air conditioner?

The 200A discharge supports inverters up to 2400W continuous, sufficient for smaller caravan air conditioners with soft-start technology (typically 1500–2000W running). However, air conditioners draw sustained high current—a 2000W air conditioner running for 2 hours depletes approximately 40% of the battery. For regular air conditioning use, consider pairing with substantial solar charging (400W+) or generator backup, or install multiple 200Ah batteries in parallel.

What's the advantage of the 4S/2P cell configuration?

The 4S/2P configuration uses two parallel cell strings, each handling 100A at full 200A discharge. This parallel arrangement reduces stress on individual cells, improves thermal management (heat distributed across more cells), extends cycle life, and enables the high 200A continuous discharge rating. Single-string batteries (1P) at 200Ah would stress cells more heavily, reducing lifespan and limiting safe discharge rates.

How many solar panels do I need to recharge this battery?

At 100A recommended charge rate, you need approximately 1300W of solar (100A × 13V charging voltage). In practice, 600–800W of solar provides 50–60A charging during peak sun (5–6 hours per day), recharging the battery from 20% to 100% in one day of good sun. For faster recharging or cloudy-weather contingency, install 800–1000W of panels. Always use an MPPT controller rated for the panel wattage and 100A+ output.

Can I connect two 200Ah batteries in parallel for 400Ah?

Check Baintech documentation for parallel connection guidelines. If supported, two 200Ah batteries in parallel provide 400Ah total capacity (5120Wh total energy), suitable for off-grid cabins, full-time caravan living, or extended remote expeditions. Ensure batteries are at similar state of charge before paralleling, use identical models/ages for best results, and install appropriate fusing on each battery's parallel connection.
