AXIS HDC/AX-M - 4-Pin (M) to Universal 4-Pin (M) Converter

AXIS HDC/AX-M - 4-Pin (M) to Universal 4-Pin (M) Converter

Pin configuration converter cable featuring AXIS 4-pin male to Universal 4-pin male aviation connector compatibility, flexible pin arrangement conversion, direct equipment-to-equipment connection adaptation, weatherproof aviation-grade construction, and compatibility bridge enabling AXIS proprietary pinout devices to connect with universal standard 4-pin equipment female ports in vehicle camera and monitoring systems.

Product Overview

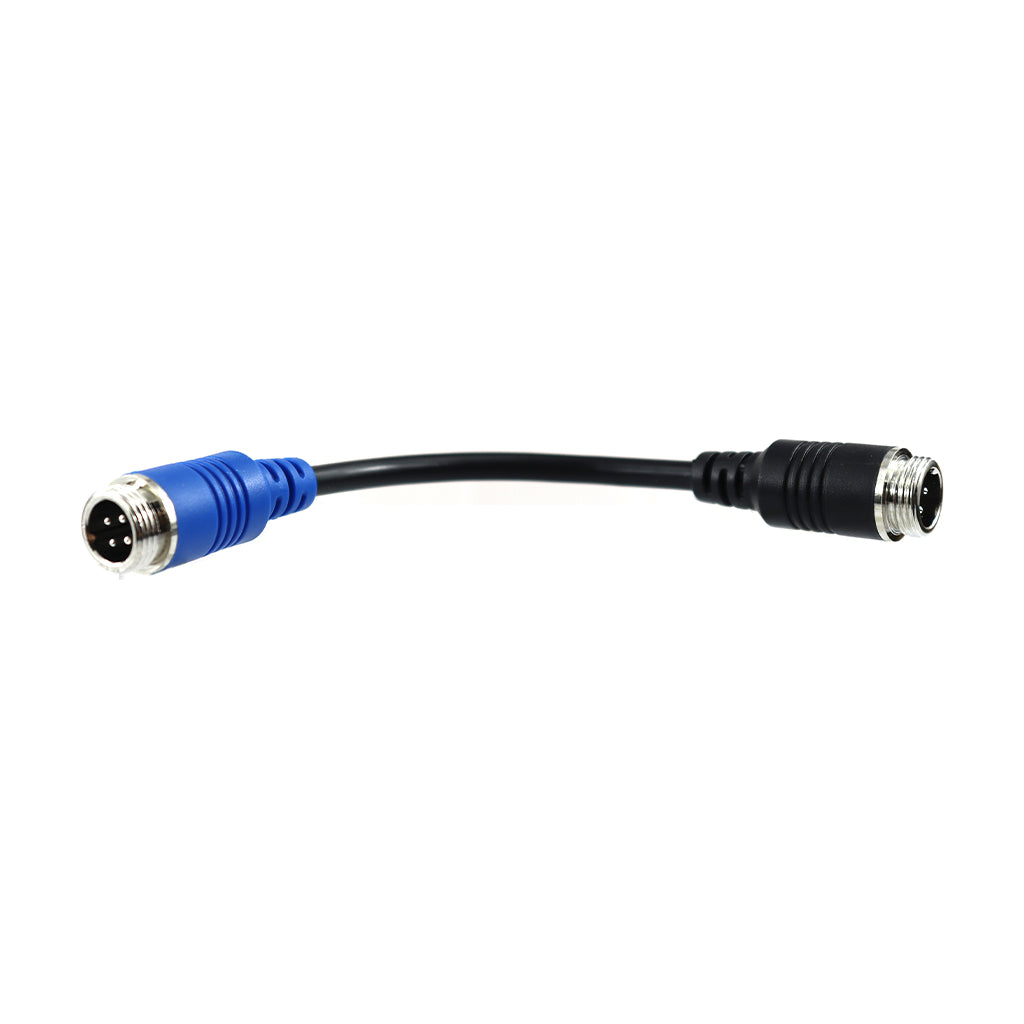

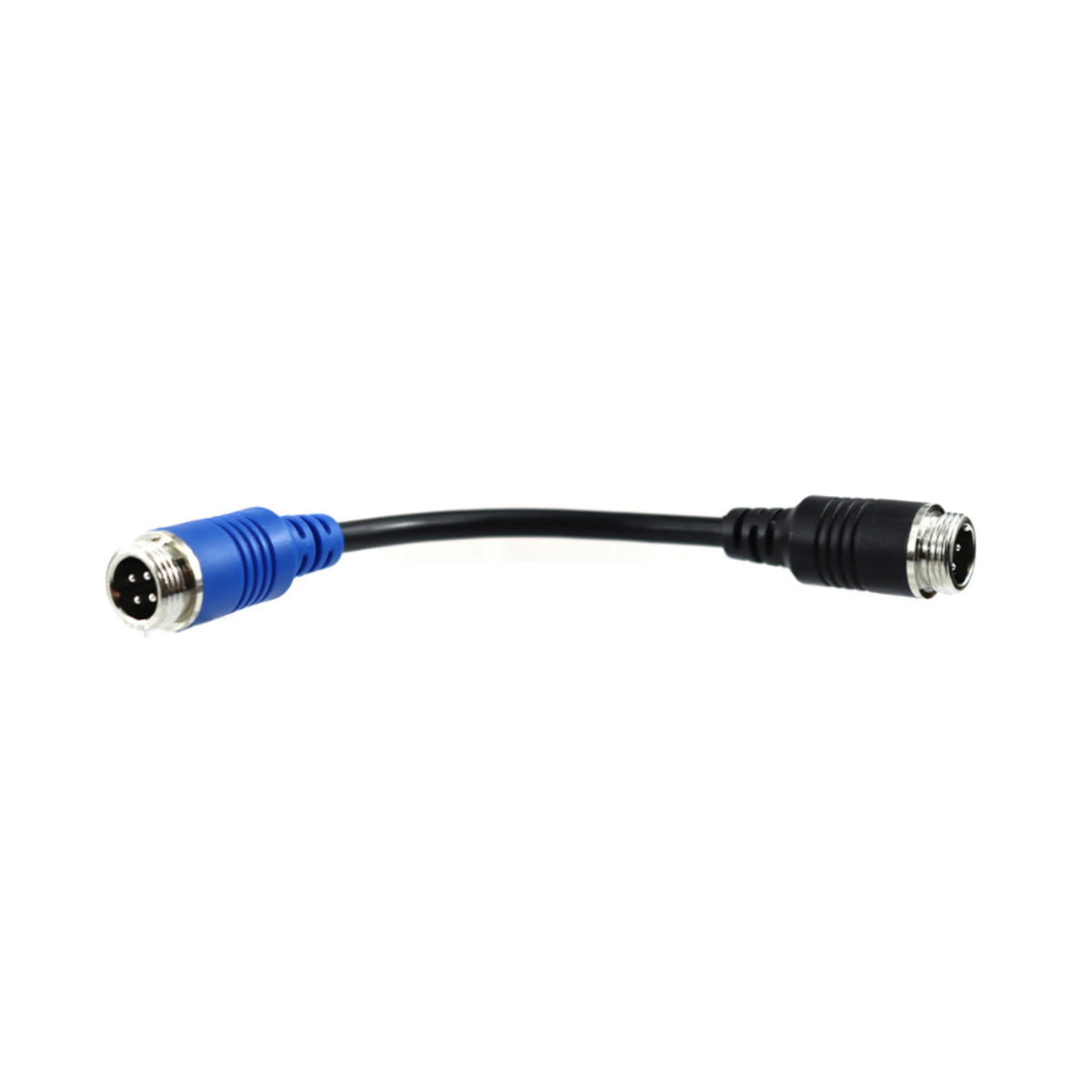

The AXIS HDC/AX-M allows for flexible pin configuration offering the ability to switch from AXIS type to Universal type. This converter cable solves compatibility challenges between AXIS proprietary 4-pin pinout configuration and universal standard 4-pin pinout used by various camera and monitor manufacturers. The 4-pin aviation connector format maintains weatherproof sealing and vibration resistance essential for vehicle applications while converting signal pin arrangement between incompatible standards. AXIS brand cameras, monitors, and equipment utilize specific pin configuration placing power, ground, and video signals on designated pins within 4-pin aviation connector. Universal standard equipment from other manufacturers uses different pin arrangement placing identical signals on different pin positions within physically identical 4-pin aviation connector. Without this converter, physically compatible connectors fail to establish proper electrical connection because power may connect to video pin, ground to power pin, or other incorrect pin mapping causing equipment malfunction or damage. This adapter cable features AXIS 4-pin male connector on one end plugging into female ports on AXIS equipment such as monitors, recorders, or distribution panels. The opposite end features Universal 4-pin male connector plugging into female ports on universal standard equipment such as monitors, recorders, or cameras utilizing industry-standard pinout. Internal wiring within converter cable routes signals from AXIS pin positions to corresponding universal pin positions ensuring proper power, ground, and video signal connections. The male-to-male configuration enables direct connection between equipment female ports without requiring intermediate extension cables or additional adapters when bridging AXIS and universal equipment. Aviation-grade connector construction provides IP67-rated weatherproof sealing when properly mated to equipment female ports protecting electrical connections from moisture ingress, dust contamination, and corrosive salt spray typical in marine, agricultural, and mining vehicle applications. Threaded coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation. Gold-plated contact pins minimize electrical resistance and prevent corrosion ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. Compact design minimizes cable bulk and maintains installation flexibility in confined spaces typical of equipment mounting locations and wiring harnesses behind vehicle dashboards or equipment panels.

Features & Benefits

AXIS to Universal Pin Conversion Bridges compatibility gap between AXIS proprietary 4-pin pinout and universal standard 4-pin configuration enabling direct equipment connection between different manufacturer standards. This compatibility eliminates need to replace entire camera systems or monitors when mixing equipment brands reducing total system cost and enabling gradual system upgrades.

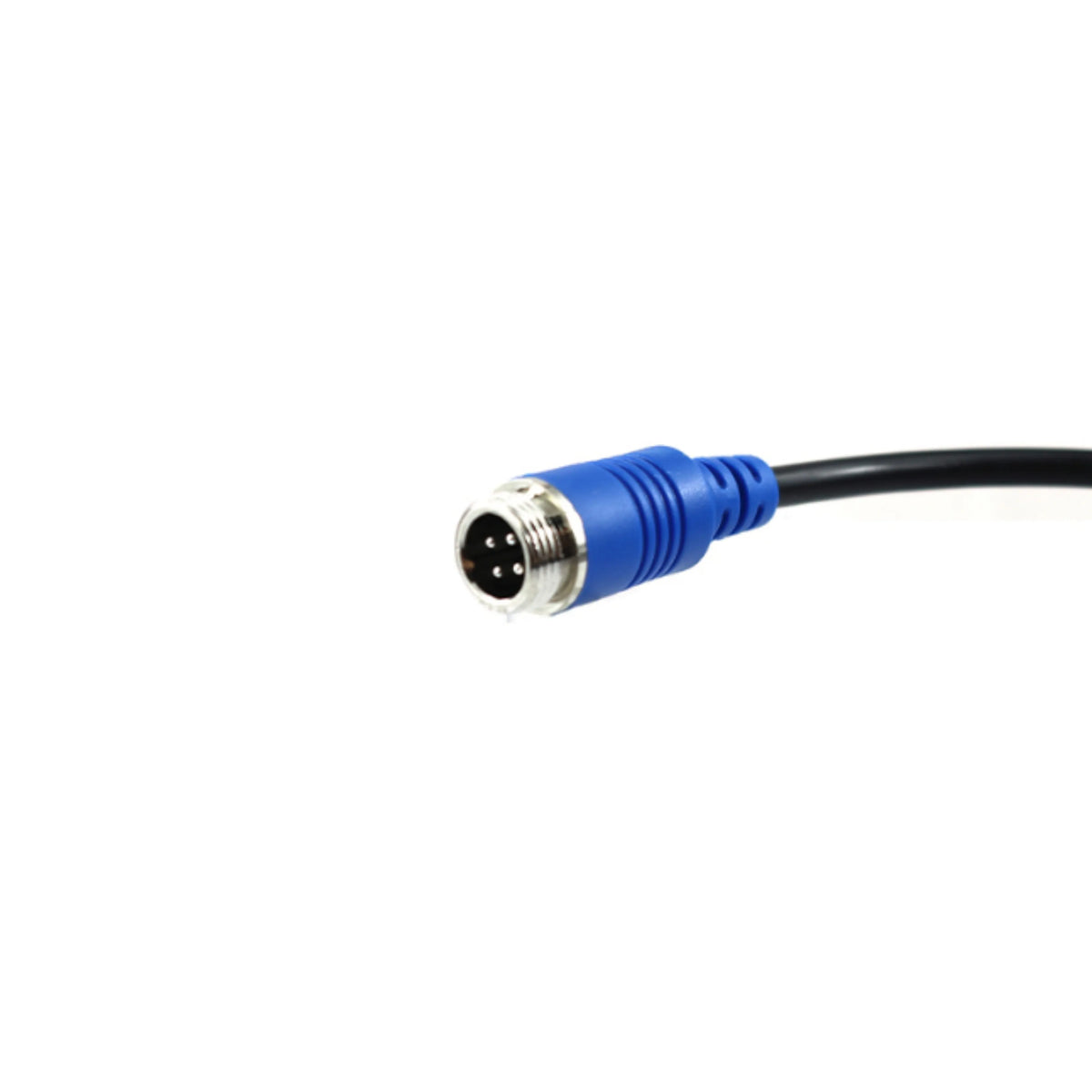

Male-to-Male Configuration Both ends feature male connectors plugging directly into equipment female ports enabling connection between monitor inputs, camera outputs, or distribution panel ports without intermediate extension cables. This direct connection reduces connection points minimizing potential failure locations and maintaining compact installation in equipment-dense mounting areas.

Aviation-Grade Weatherproof Construction IP67-rated sealing when properly mated to equipment female ports protects electrical connections from moisture, dust, and environmental contamination typical in outdoor vehicle applications. This weatherproofing ensures reliable operation in rain, dust storms, vehicle washing, and extreme humidity conditions preventing corrosion-related failures.

Threaded Locking Mechanism Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection when properly tightened into equipment female ports. This positive locking prevents intermittent connections or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability.

Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance and causing video signal degradation or intermittent power delivery especially in high-humidity or salt-spray environments.

Direct Equipment Connection Male-to-male design enables connection directly between equipment female ports without requiring separate extension cables or additional female-to-female adapters. This simplifies system wiring reducing cable clutter and eliminating unnecessary connection points that could introduce signal degradation or mechanical failure points.

Plug-and-Play Installation Simple connection into equipment female ports requires no tools, soldering, or technical expertise enabling quick field installation or system reconfiguration. This simplicity reduces installation labor costs and allows operators to perform equipment changes without specialized technical support or extensive downtime.

Signal Integrity Preservation Quality internal wiring and proper shielding maintain video signal quality without introducing noise, interference, or voltage drop. Inferior adapters use inadequate wire gauge or poor shielding causing video distortion, power supply problems, or electromagnetic interference affecting camera and monitor performance.

Technical Specifications

Installation & Compatibility

Equipment Compatibility The HDC/AX-M converter enables connection between AXIS proprietary pinout equipment and universal standard pinout equipment with female input/output ports. AXIS-compatible equipment includes AXIS brand monitors, recorders, and distribution panels utilizing AXIS-specific pin configuration on female ports. Universal-compatible equipment includes monitors, cameras, and recorders from manufacturers using industry-standard 4-pin pinout configuration on female ports. Verify equipment pinout specifications before purchasing converter to confirm compatibility requirements. Incorrect converter selection results in continued incompatibility despite physical connector compatibility.

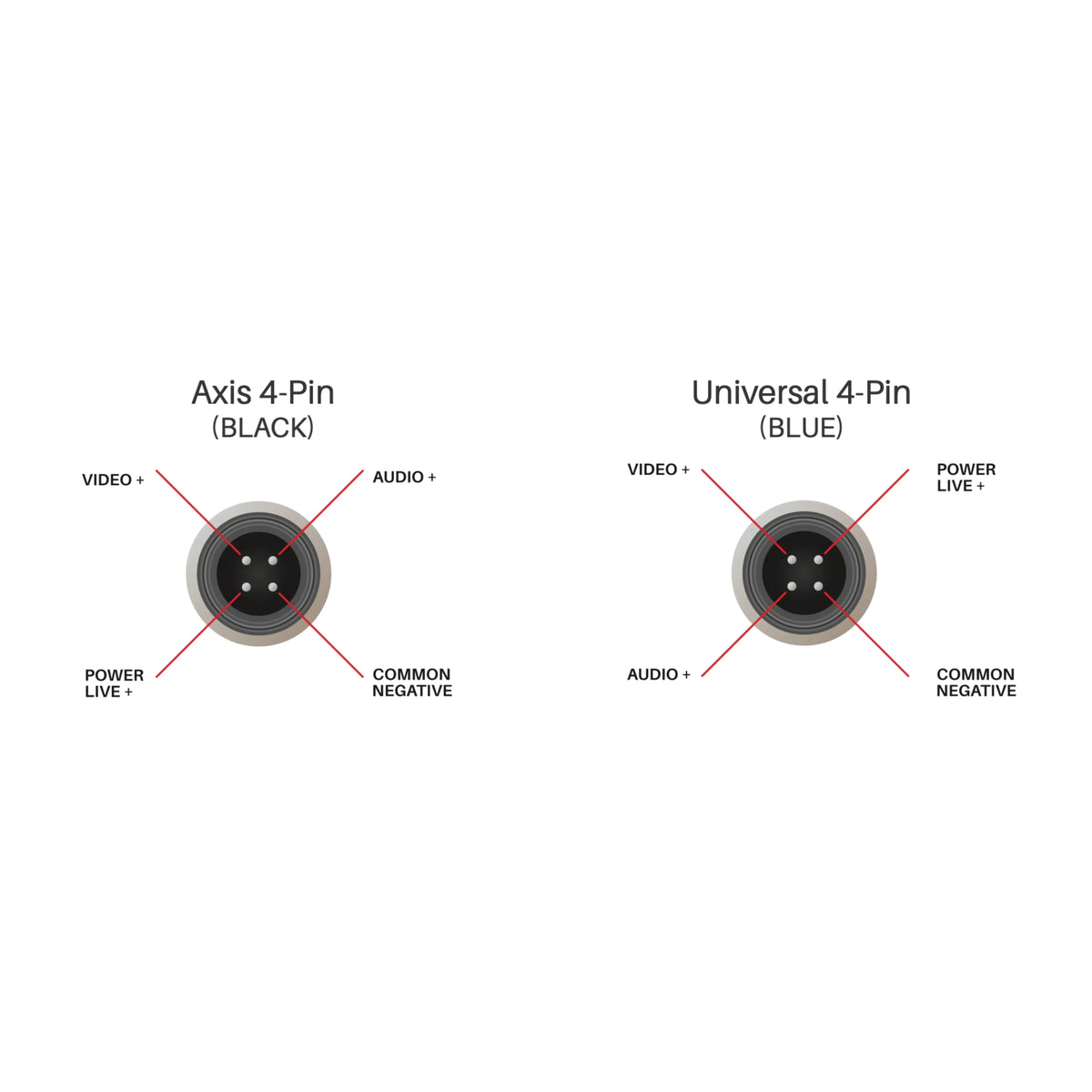

Pin Configuration Understanding 4-pin aviation connectors for camera systems typically carry power positive, ground negative, video signal positive, and video signal ground on four pins within connector. AXIS pinout assigns these signals to specific pin positions differing from universal standard pin position assignments. This converter internally routes signals from AXIS pin positions to universal pin positions enabling proper electrical connection. Understanding this distinction prevents damage from connecting incompatible equipment without appropriate converter.

Connection Process Insert AXIS 4-pin male end of converter into female port on AXIS equipment such as monitor input, recorder input, or AXIS distribution panel output. Insert Universal 4-pin male end of converter into female port on universal standard equipment such as monitor input, camera connector, or universal distribution panel. Ensure threaded coupling nuts engage equipment female port threads and tighten hand-tight securing mechanical connection and maintaining weatherproof seal. Verify correct converter orientation matching AXIS equipment port to AXIS converter end and universal equipment port to universal converter end.

System Testing After Installation After connecting converter between equipment ports, power system and verify video display appears on monitor confirming proper pin mapping and signal routing. Test image should show clear video without distortion, color abnormalities, or interference indicating successful conversion. If video fails to appear, verify converter orientation ensuring AXIS equipment connects to AXIS converter end and universal equipment connects to universal end. Check all coupling nuts tightened securely into equipment ports and inspect connectors for damaged pins or contamination.

Cable Management Position converter cable to minimize stress on equipment female ports preventing leverage forces that could damage port mounting or internal circuit board connections. Use cable ties to secure converter cable to vehicle structure near equipment mounting location reducing movement and vibration transmission to delicate port connections. Protect converter from sharp edges, moving components, and high-heat sources that could damage cable insulation or connector housings.

Multiple Converter Use In systems with multiple cameras or monitors, separate converter may be required for each connection if mixing AXIS and universal equipment throughout system. Label converters identifying which equipment connection each serves simplifying future troubleshooting and maintenance. Alternatively, use consistent pinout standard throughout system avoiding need for multiple converters by selecting all AXIS or all universal equipment during initial purchase.

Frequently Asked Questions

What is the difference between HDC/AX-M and HDC/AX-F converters?

The HDC/AX-M features male-to-male (M-M) connectors while HDC/AX-F features female-to-female (F-F) connectors serving different connection scenarios. HDC/AX-M male connectors plug directly into equipment female ports connecting monitor inputs to camera outputs or linking distribution panels without intermediate cables. HDC/AX-F female connectors accept existing male cable ends enabling inline conversion between camera cables and monitor input cables. Choose HDC/AX-M when connecting directly between equipment female ports. Choose HDC/AX-F when connecting between existing male-terminated cables. Both converters perform identical pin configuration conversion between AXIS and universal standards but accommodate different physical connection requirements. Some installations may require both converter types depending on equipment configuration and existing cable terminations.

Can I use this converter to connect AXIS camera to universal monitor?

Yes, if both camera and monitor have female ports accepting male connectors. Insert AXIS male end into camera female output port and Universal male end into monitor female input port. However, if camera has male connector cable or monitor has male input cable, you need HDC/AX-F female-to-female converter instead to accept existing male cables. Verify your equipment connection types before selecting converter. Many cameras come with attached male cables requiring female-to-female converters while some cameras and most monitors have female ports requiring male-to-male converters. Check equipment specifications or physically inspect connection types to determine correct converter gender configuration for your application.

Will this converter work with extension cables?

The HDC/AX-M does not directly connect to standard extension cables which typically feature male-to-female configuration. This male-to-male converter connects between two female ports on equipment or distribution panels. To use converter with extension cables, you need extension cable with female-to-female configuration or additional gender-changing adapters. Alternatively, use HDC/AX-F female-to-female converter which accepts male connectors from standard extension cables enabling inline conversion. For complex systems mixing AXIS and universal equipment with various cable types, consider creating complete wiring diagram identifying all connection points and required converter types before purchasing to ensure correct adapter selection for each connection point.
