AUTOBACS FHD180W - 1080P Dome Camera 12V White

AUTOBACS FHD180W - 1080P Dome Camera 12V White

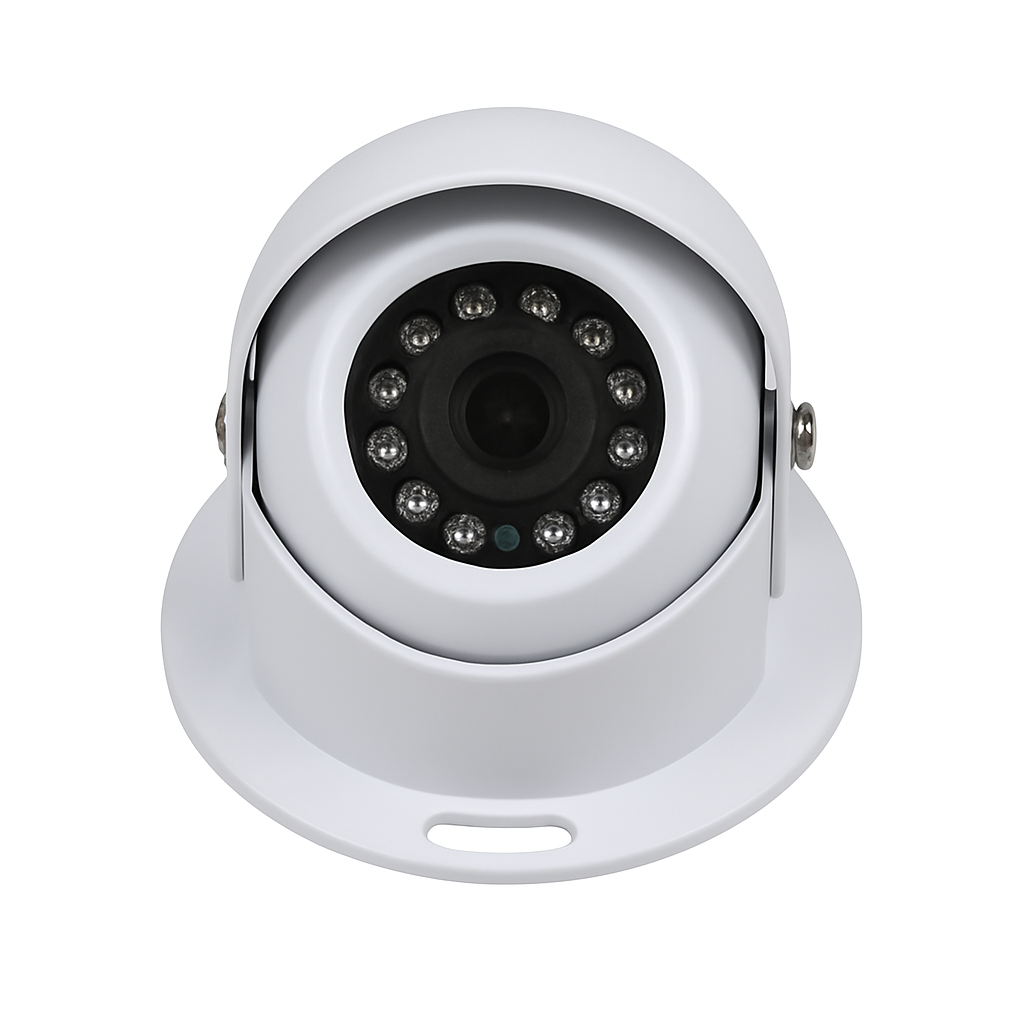

High-definition white dome camera featuring 1920 x 1080 CMOS image sensor, 110° diagonal viewing angle, 12 infrared LEDs for night vision, IP67 waterproof rating, and 15-metre cable for caravan and RV monitoring applications.

Product Overview

The AUTOBACS FHD180W 1080P Dome Camera delivers reliable vehicle monitoring with clear full HD recording in a durable white dome-style design specifically engineered for caravan and RV applications. This professional-grade camera system features a CMOS image sensor providing crystal-clear 1920 x 1080 effective pixel resolution with PAL signal system compatibility for high-definition image quality. The comprehensive 110° diagonal viewing angle with 95° horizontal and 55° vertical viewing angles provides extensive coverage for interior or exterior monitoring requirements. Engineered with IP67 ingress protection rating, this dome camera withstands dust ingress and water spray exposure for reliable performance in various Australian weather conditions. The integrated 12-piece infrared LED array delivers 0.1 Lux low-light performance with infrared night vision capability ensuring clear visibility during night-time or low-light monitoring situations. The white finish dome design complements caravan and RV interiors while providing discreet monitoring coverage. The 70mm x 63mm dimensions including mounting bracket enable straightforward installation on ceilings, walls, or overhead locations with the included 15-metre cable providing extensive routing flexibility for various vehicle layouts. Operating across -20°C to +70°C temperature range with 90% humidity tolerance and consuming less than 3W power with maximum 250mA current draw from 12V DC supply, this camera connects through standard 4-pin connector for reliable integration with compatible monitoring systems.

Key Features

Full HD 1080P Recording - Professional CMOS image sensor delivering 1920 x 1080 effective pixel resolution with PAL signal system compatibility, ensuring crystal-clear full HD image quality for reliable vehicle monitoring, security recording, and situational awareness in caravan, RV, and motorhome applications with clear detail capture for incident documentation.

Wide 110° Dome Coverage - Comprehensive 110° diagonal viewing angle with 95° horizontal and 55° vertical coverage providing extensive monitoring range from a single dome camera position, minimizing blind spots and delivering complete visibility of interior spaces, entry points, or exterior perimeter areas with optimal positioning flexibility.

Advanced Infrared Night Vision - Integrated 12-piece infrared LED array providing 0.1 Lux low-light performance with infrared night vision capability, ensuring clear visibility during night-time monitoring, camping in remote locations without external lighting, or low-light interior conditions without disturbing occupants with visible illumination.

IP67 Weather Protection - Professional IP67 ingress protection rating ensuring complete protection against dust ingress and water spray exposure, delivering reliable performance throughout various Australian weather conditions including rain, humidity, dust storms, and temperature extremes for dependable outdoor or indoor monitoring applications.

Extended 15-Metre Cable - Generous 15-metre cable length providing extensive routing flexibility for various caravan and RV layouts, enabling installation from front to rear sections, through overhead channels, around furniture, or across exterior mounting positions without requiring cable extensions or additional junction boxes for clean professional installations.

White Dome Design - Discreet white finish dome-style housing measuring 70mm x 63mm including mounting bracket, complementing caravan and RV interior aesthetics while providing professional monitoring coverage with 4-pin connector for straightforward installation compatibility and less than 3W power consumption with maximum 250mA current draw.

Technical Specifications

Image Performance

• Image Sensor: CMOS
• Effective Pixels: 1920 x 1080
• Image Quality: FHD (Full HD)
• Signal System: PAL
• Illuminance: 0.1 Lux
• IR Night Vision: Yes
• LED Light: 12 pieces

Viewing Angles

• Diagonal Viewing Angle: 110°
• Horizontal Viewing Angle: 95°
• Vertical Viewing Angle: 55°

Construction & Protection

• Ingress Protection: IP67
• Colour: White
• Dimensions: 70mm x 63mm (Including Bracket)
• Cable Length: 15 metres

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Operating Humidity: 90%
• Storage Temperature: -30°C to +80°C
• Storage Humidity: 90%

Electrical Specifications

• Power Requirements: DC 12V
• Power Consumption: <3W
• Maximum Current: <250mA
• Connector: 4-PIN

Frequently Asked Questions

What is the difference between IP67 and IP68 ratings?

IP67 provides protection against dust ingress and water spray/splashing, making it suitable for outdoor installations protected from direct water submersion. The FHD180W can withstand rain, humidity, and wash-down conditions but should not be continuously submerged underwater. This rating is ideal for caravan exterior mounting under eaves or interior installations in wet areas.

How long can the 15-metre cable reach in my caravan or RV?

The 15-metre cable provides extensive routing flexibility sufficient for most caravan and RV installations, reaching from front cabin areas to rear sections, routing through overhead channels, around furniture, or across exterior mounting positions. This length accommodates large motorhomes and fifth-wheelers without requiring cable extensions or additional junction boxes.

Will the infrared LEDs illuminate visible light at night?

No, the 12 infrared LEDs provide invisible infrared illumination that cameras can detect but human eyes cannot see. This ensures night vision monitoring capability without disturbing sleeping occupants, alerting potential intruders with visible lighting, or creating glare that affects night-time visibility through windows or windscreens.

Can I use this camera indoors and outdoors?

Yes, the IP67 rating makes the FHD180W suitable for both indoor and outdoor installations. Indoors, it provides discreet white dome monitoring for living areas, bedrooms, or storage compartments. Outdoors, it withstands rain, dust, and temperature extremes when mounted under eaves, awnings, or protected exterior locations on caravans and RVs.

What viewing coverage does the dome camera provide?

The FHD180W delivers 110° diagonal viewing angle with 95° horizontal and 55° vertical coverage. From a ceiling-mounted position, this provides comprehensive monitoring of interior spaces, entry doors, or exterior perimeter areas. The dome design allows flexible mounting angles to optimize coverage for specific monitoring requirements in various caravan layouts.
