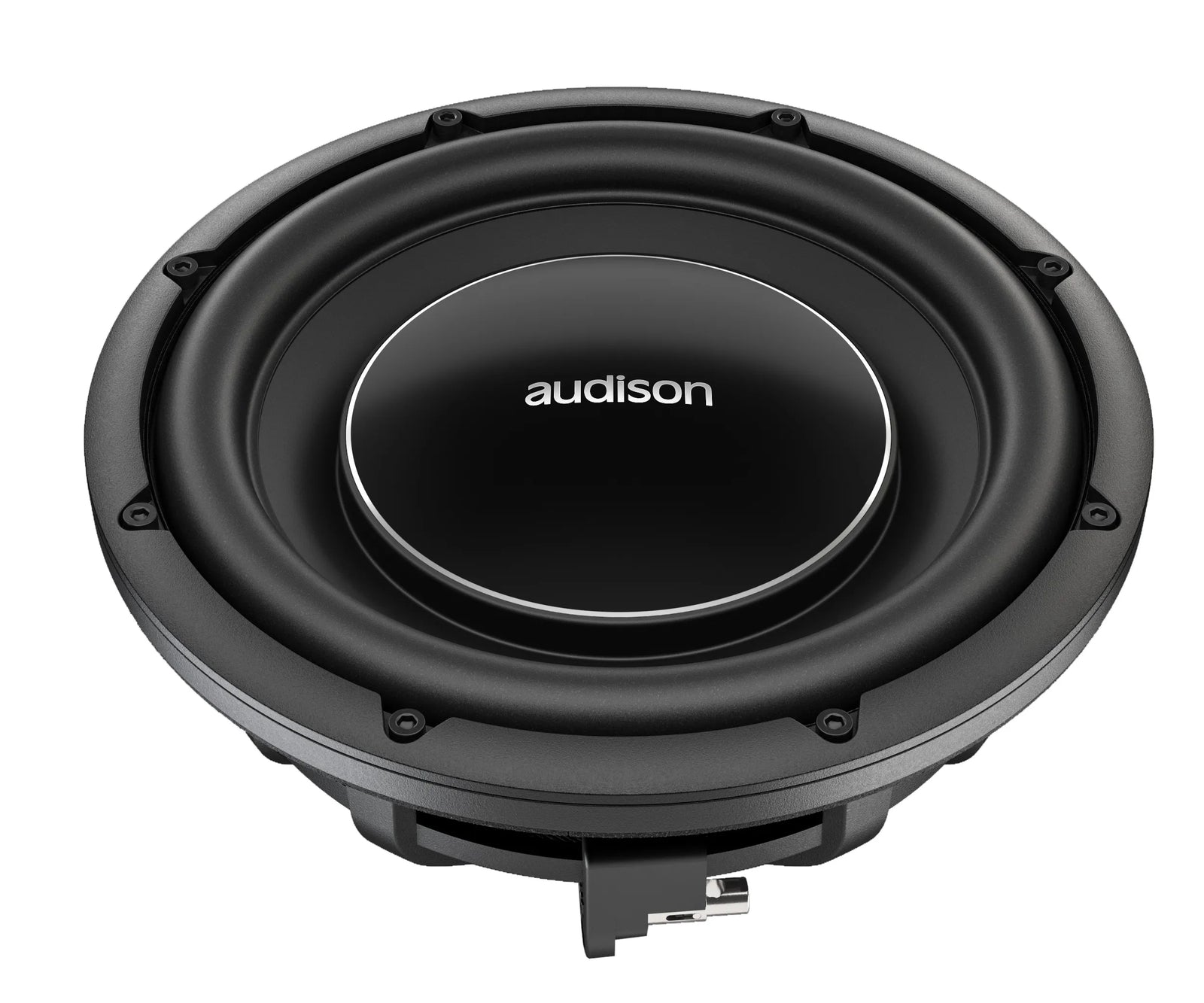

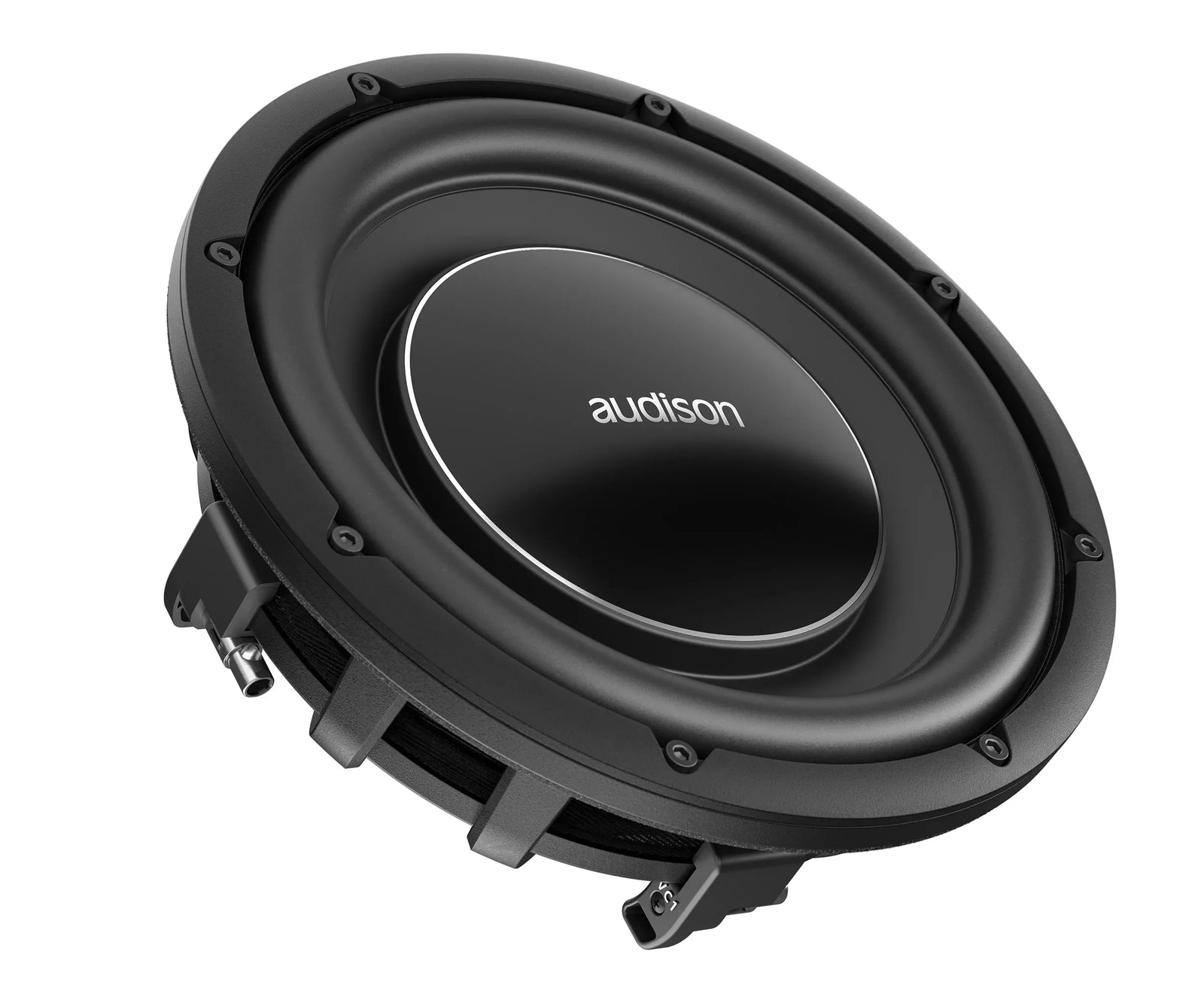

AUDISON AV10D2II - Voce II 10 Inch Subwoofer 2Ω

AUDISON AV10D2II - Voce II 10 Inch Subwoofer 2Ω

Premium Italian-engineered 10-inch subwoofer from Audison's prestigious Voce II line featuring dual 2Ω voice coil configuration for flexible amplifier matching and optimal power transfer, 550W RMS continuous power handling with 1100W peak capacity, 1.5-inch CCAW (Copper-Clad Aluminum Wire) voice coil combining exceptional thermal management with reduced mass for superior transient response, FEM-optimized magnetic circuit geometry concentrating flux precisely around voice coil gap for enhanced efficiency and control, die-cast aluminum basket with integrated cable-routing hooks ensuring stability and thermal dissipation, Airflow Venting Cooling (A.V.C.) technology preventing voice coil overheating through strategically placed internal channels, Radial Reinforcement Framework (R.R.F.) increasing mechanical rigidity during high-excursion operation, extended-profile dust cap with Voce II styling optimizing cone rigidity and structural damping, optimized for compact sealed enclosures (12-14L / 0.4-0.5 ft³) delivering deep controlled bass in space-limited installations, protective metal mesh grille included, eID technology for product authentication and technical documentation access, ideal for premium car audio systems, custom trunk installations, and audiophile mobile applications demanding exceptional bass quality and precision in compact spaces.

Product Overview

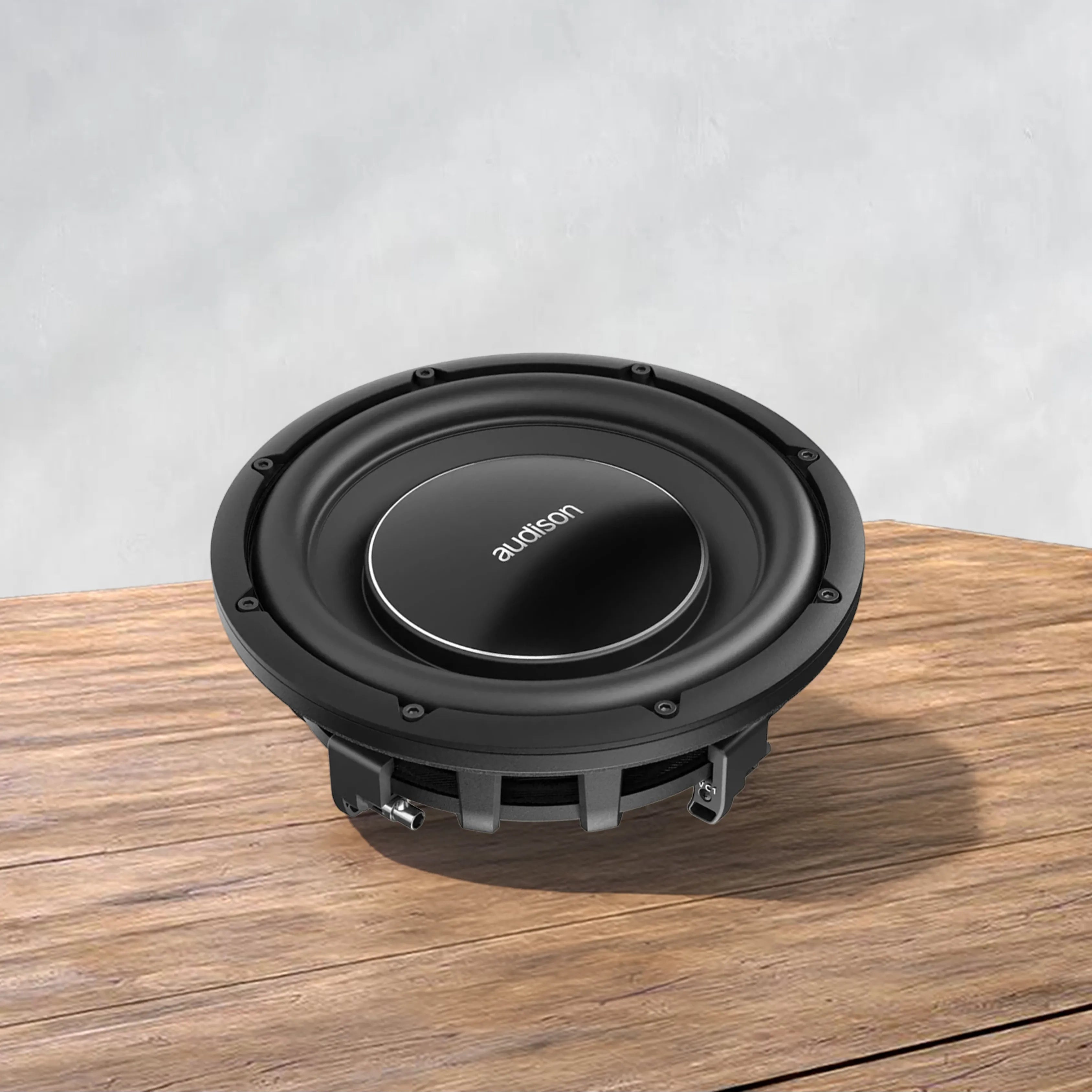

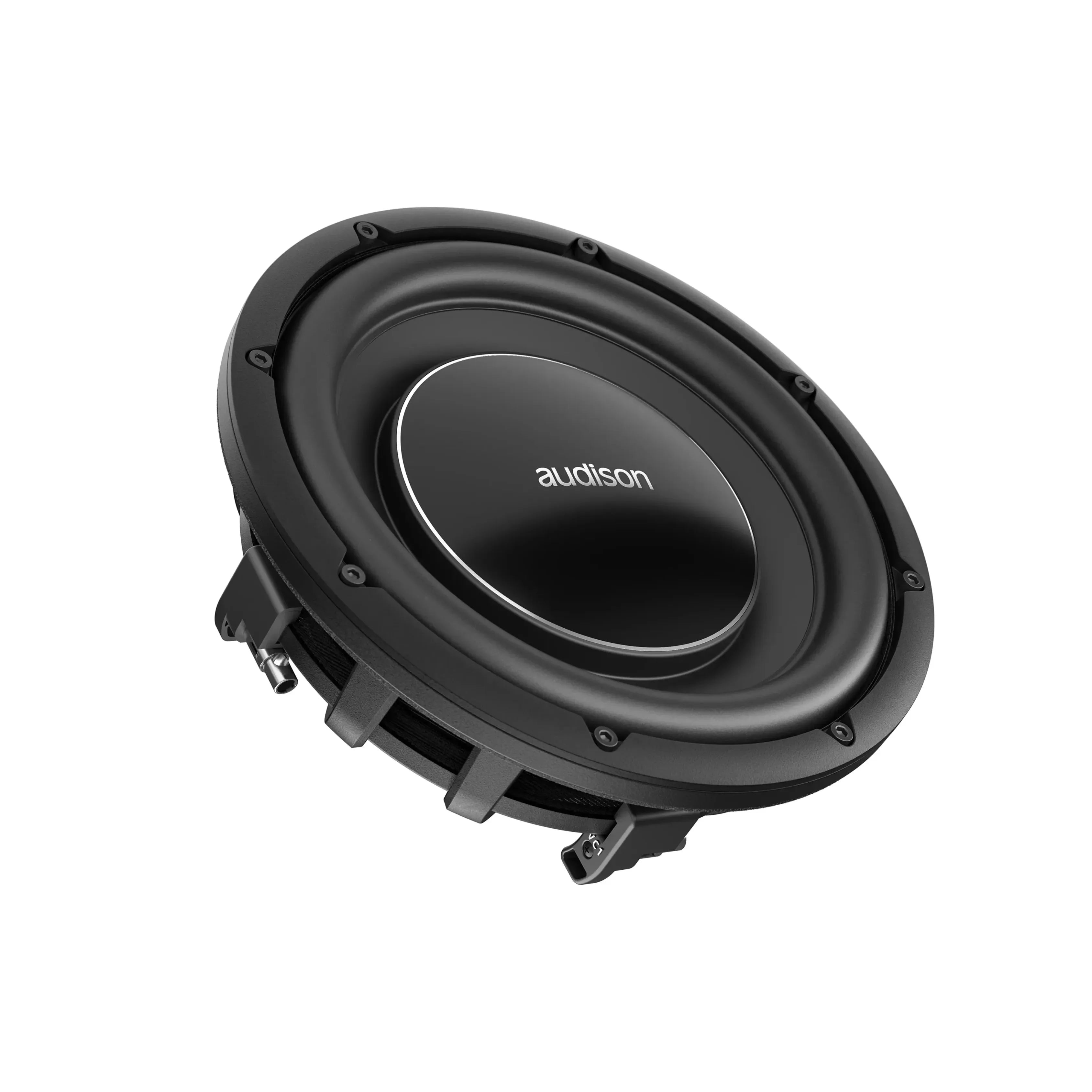

The AUDISON AV10D2II is a premium 10-inch subwoofer from Audison's prestigious Voce II line, engineered specifically for tight spaces and dynamic performance where compact dimensions cannot compromise sonic quality. Designed and manufactured in Italy with Audison's renowned attention to detail, this subwoofer delivers powerful, articulate low frequencies with the precision and control that define the Voce II component range. The dual 2Ω voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers through series (4Ω) or parallel (1Ω) wiring configurations. The 1.5-inch CCAW voice coil combines exceptional thermal handling capabilities with reduced mass compared to pure copper, maximizing transient response, precision, and durability under demanding listening conditions. The entire magnetic assembly has been engineered using Audison's proprietary FEM (Finite Element Method) simulation platform to concentrate magnetic flux precisely around the voice coil gap, enhancing efficiency, responsiveness, and control throughout the frequency range. The robust die-cast aluminum basket maximizes rigidity and thermal dissipation while integrated cable-routing hooks facilitate clean installations even in confined spaces. The extended-profile dust cap featuring refined Voce II styling detailing is engineered through FEM simulation to optimize cone rigidity and structural damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation reducing deformation risks. Airflow Venting Cooling technology ensures effective heat dissipation through strategically placed internal channels, preserving performance even under prolonged stress. Optimized to perform at its best in compact sealed enclosures (12-14L / 0.4-0.5 ft³), the AV10D2II delivers deep, clean, and fast bass response ideal for systems where space is limited but sonic expectations remain uncompromisingly high.

Important Notes:

Amplifier Power Matching: 550W RMS power handling requires appropriate amplifier. Underpowering reduces performance; overpowering risks damage. Match amplifier output to subwoofer specifications.

Enclosure Volume Critical: Optimized for 12-14L (0.4-0.5 ft³) sealed enclosures. Different volumes significantly affect frequency response and performance. Follow recommended specifications.

Professional Installation Recommended: Proper enclosure construction, wiring configuration (series/parallel), and amplifier setup requires expertise ensuring optimal performance and preventing damage.

Dual Voice Coil Wiring: Dual 2Ω coils can wire series (4Ω final) or parallel (1Ω final). Verify amplifier stability at chosen impedance before connection.

Premium Component: Voce II line represents audiophile-grade performance. Pair with quality amplifiers, source units, and proper installation for full potential.

Key Features

550W RMS Power Handling - Exceptional thermal stability and mechanical robustness ensure reliable management of 550W RMS continuous power allowing sustained high-performance bass output.

1100W Peak Power - Handles dynamic transient peaks up to 1100W providing headroom for demanding musical passages without distortion or damage.

Dual 2Ω Voice Coils - Flexible impedance configuration wires series (4Ω) or parallel (1Ω) matching various amplifier capabilities and system designs.

1.5" CCAW Voice Coil - Copper-Clad Aluminum Wire combines exceptional thermal handling with reduced mass maximizing responsiveness, precision, and durability.

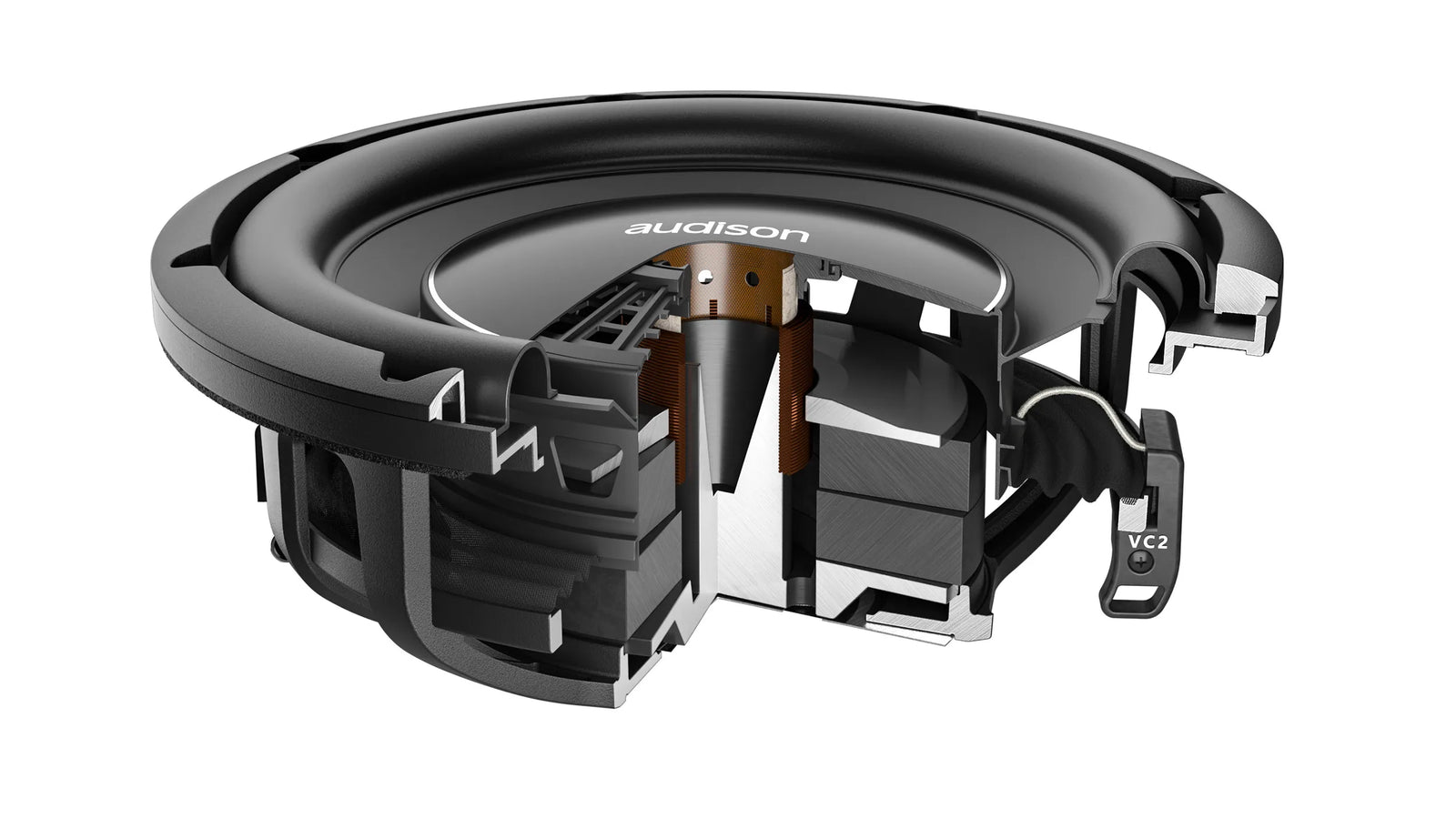

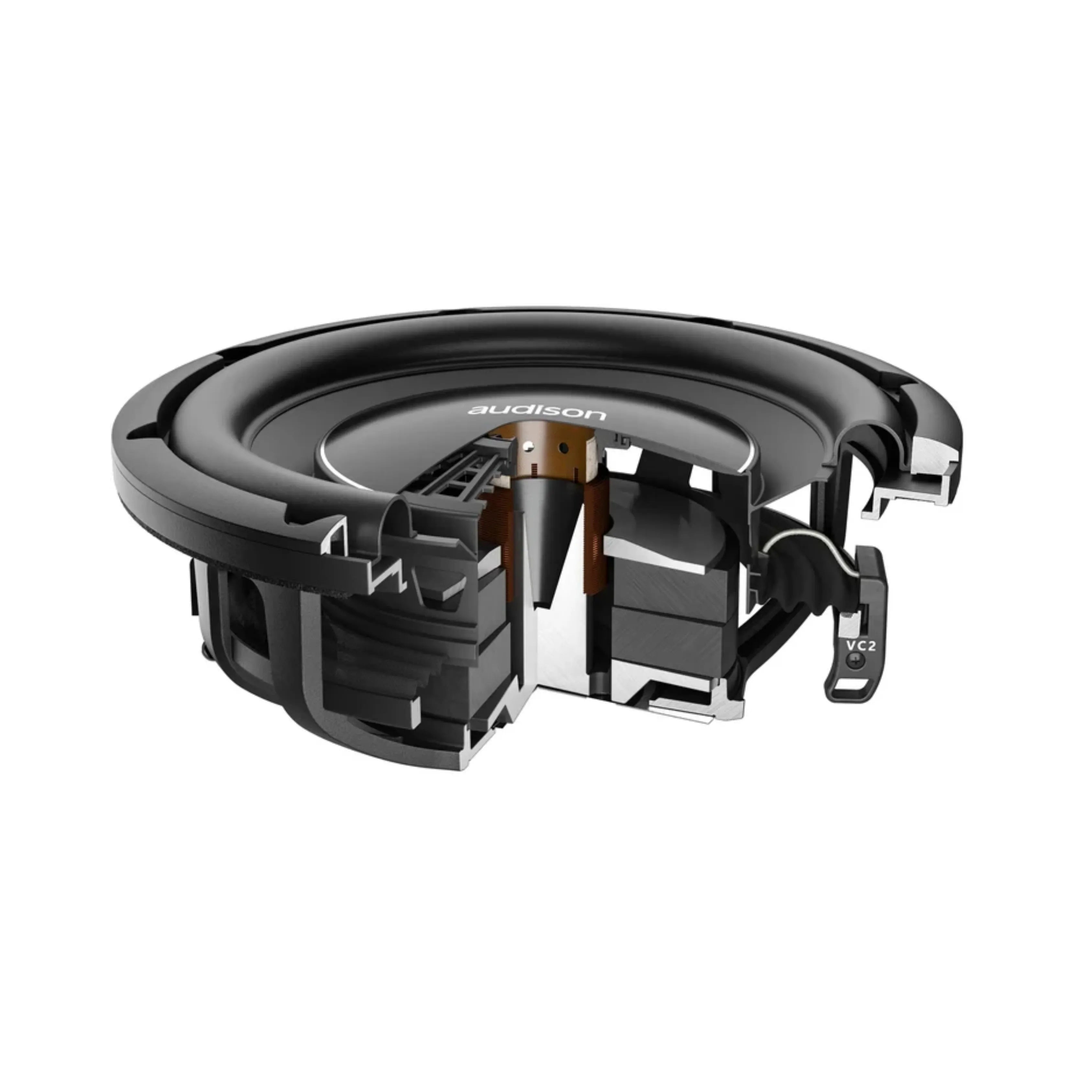

FEM-Optimized Magnetic Circuit - Proprietary FEM simulation platform concentrates magnetic flux precisely around voice coil gap enhancing efficiency, responsiveness, and control.

Airflow Venting Cooling (A.V.C.) - Strategically placed internal channels optimize airflow and cooling efficiently dissipating heat maintaining consistent performance at high SPL.

Radial Reinforcement Framework (R.R.F.) - Internal structural rays beneath cone significantly increase mechanical rigidity reducing deformation risks during high-excursion operations.

Extended-Profile Dust Cap - Enlarged dust cap with Voce II styling engineered through FEM simulation optimizes cone rigidity and structural damping.

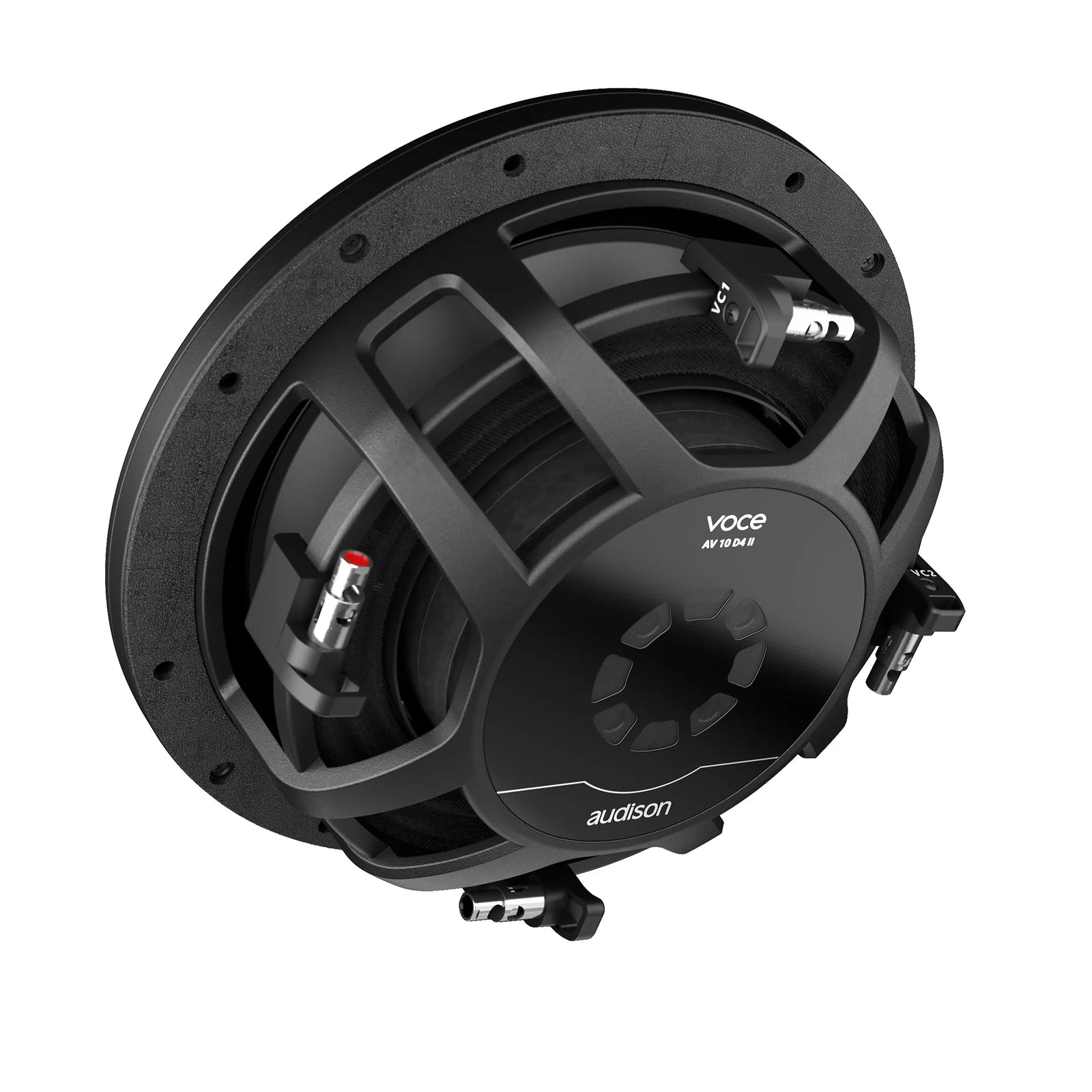

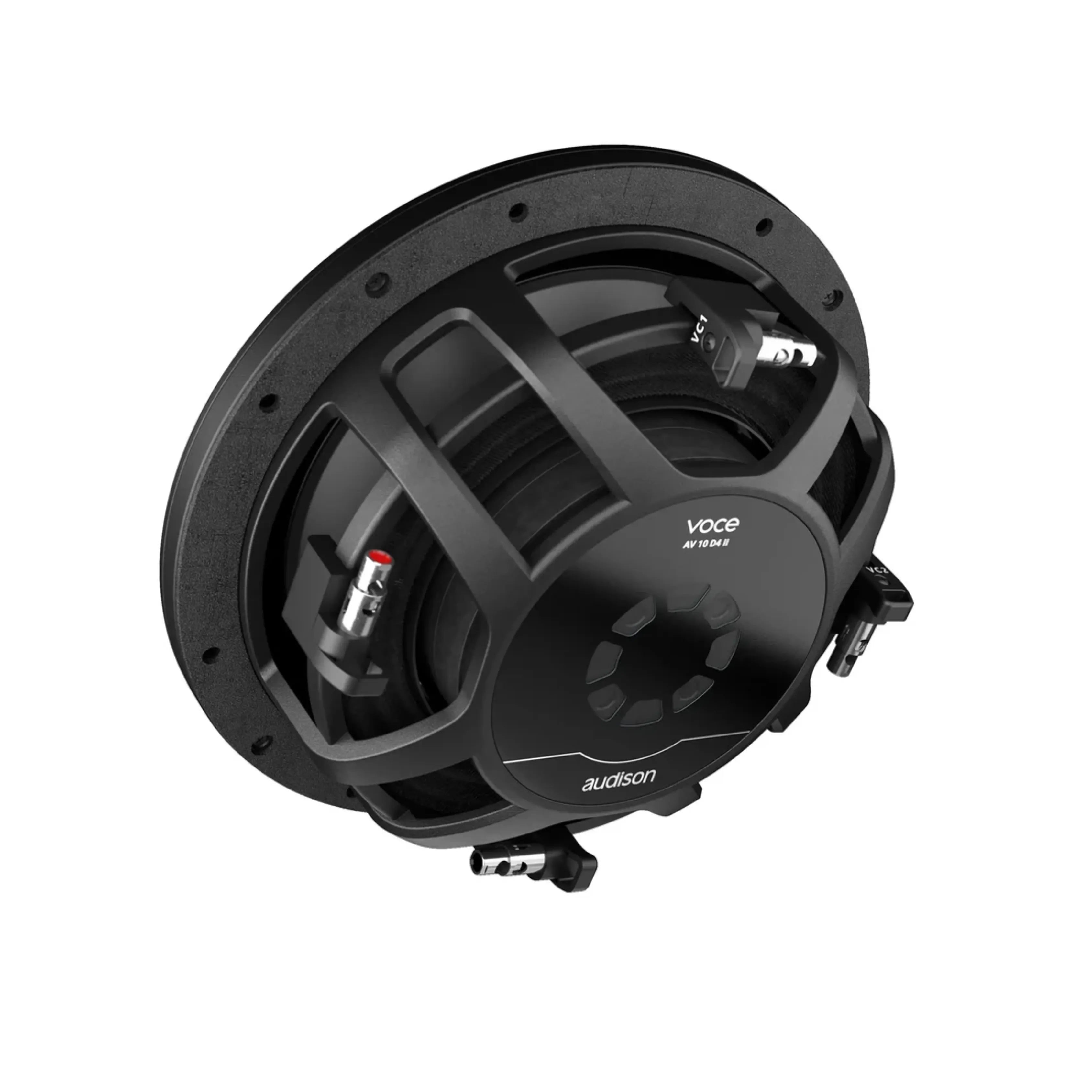

Die-Cast Aluminum Basket - Robust aluminum construction maximizes rigidity and thermal dissipation with integrated cable-routing hooks facilitating clean installations.

Compact Sealed Enclosure Optimized - Engineered for 12-14L (0.4-0.5 ft³) sealed enclosures offering deep controlled bass response in space-limited setups.

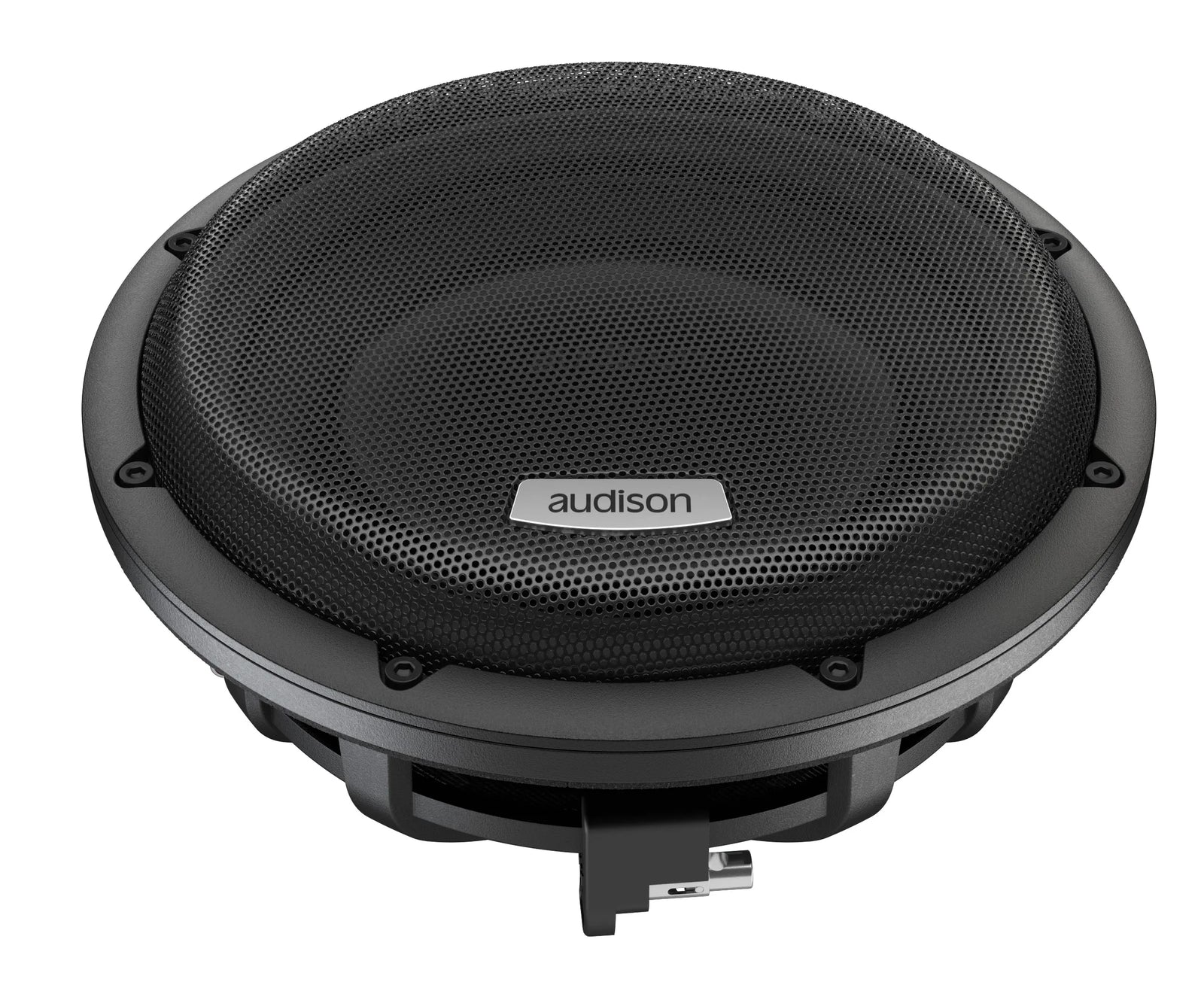

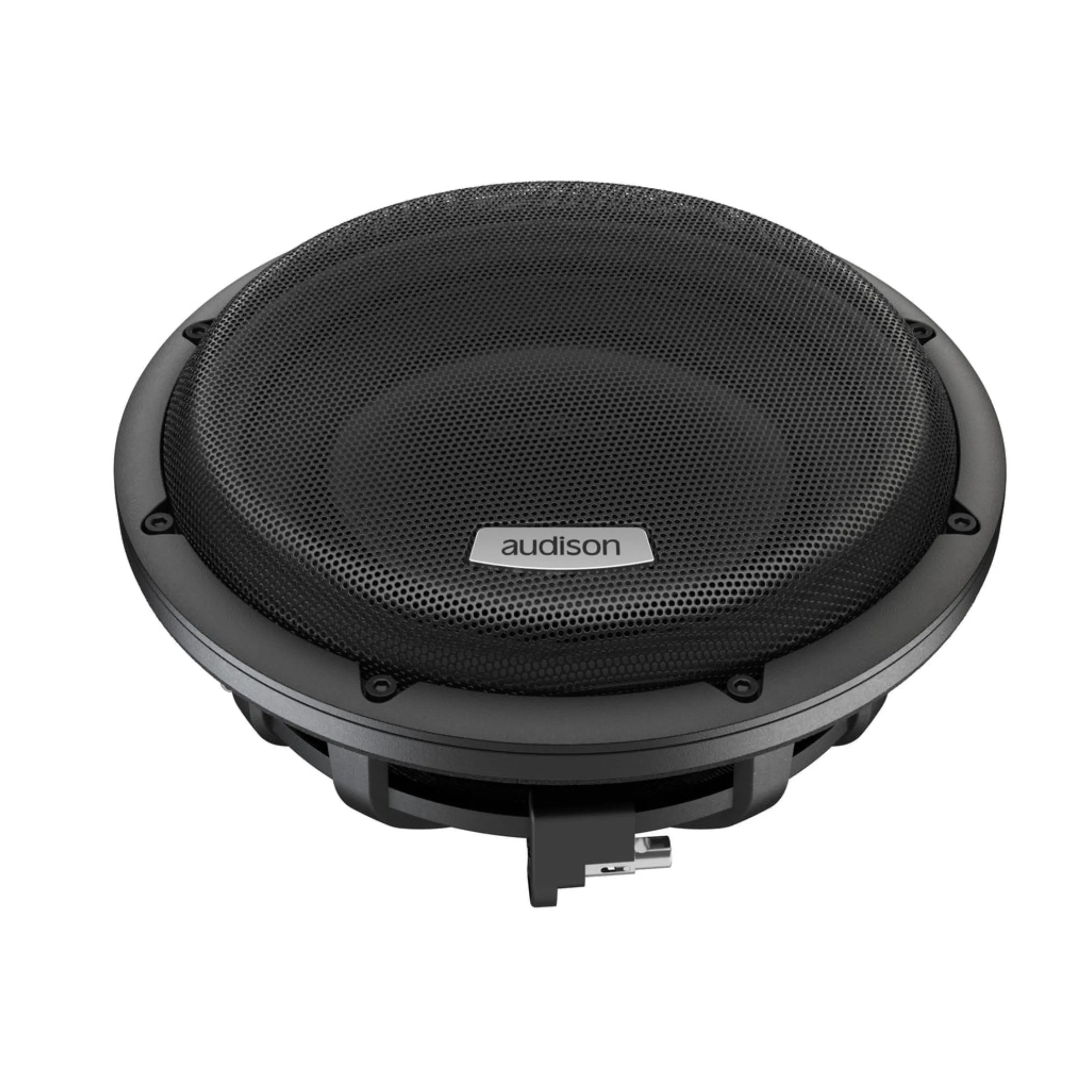

Protective Metal Mesh Grille - Durable black mesh grille with mounting screws provides reliable cone protection without compromising acoustic transparency.

Integrated Cable Routing Hooks - Two molded guides simplify neat secure cable management entirely within subwoofer footprint ensuring tight space compatibility.

Spring-Loaded Horizontal Terminals - Heavy-duty 8 AWG ready terminals allow short clean wiring paths and simplified series/parallel configurations.

High-Density Flux Ferrite Magnet - Large 134x57x36mm magnet provides powerful magnetic field for precise cone control and linear excursion.

16.8mm Xmax Linear Excursion - Substantial linear excursion capability enables deep bass output while maintaining control and distortion-free performance.

eID Technology - Elettromedia's eID system provides full traceability, product authentication, and direct access to technical documentation and support.

Voce II Component Quality - Premium Italian engineering and craftsmanship delivering audiophile-grade performance in compact subwoofer format.

Made in Italy - Audison's Italian design and manufacturing heritage ensuring exceptional build quality and sonic performance.

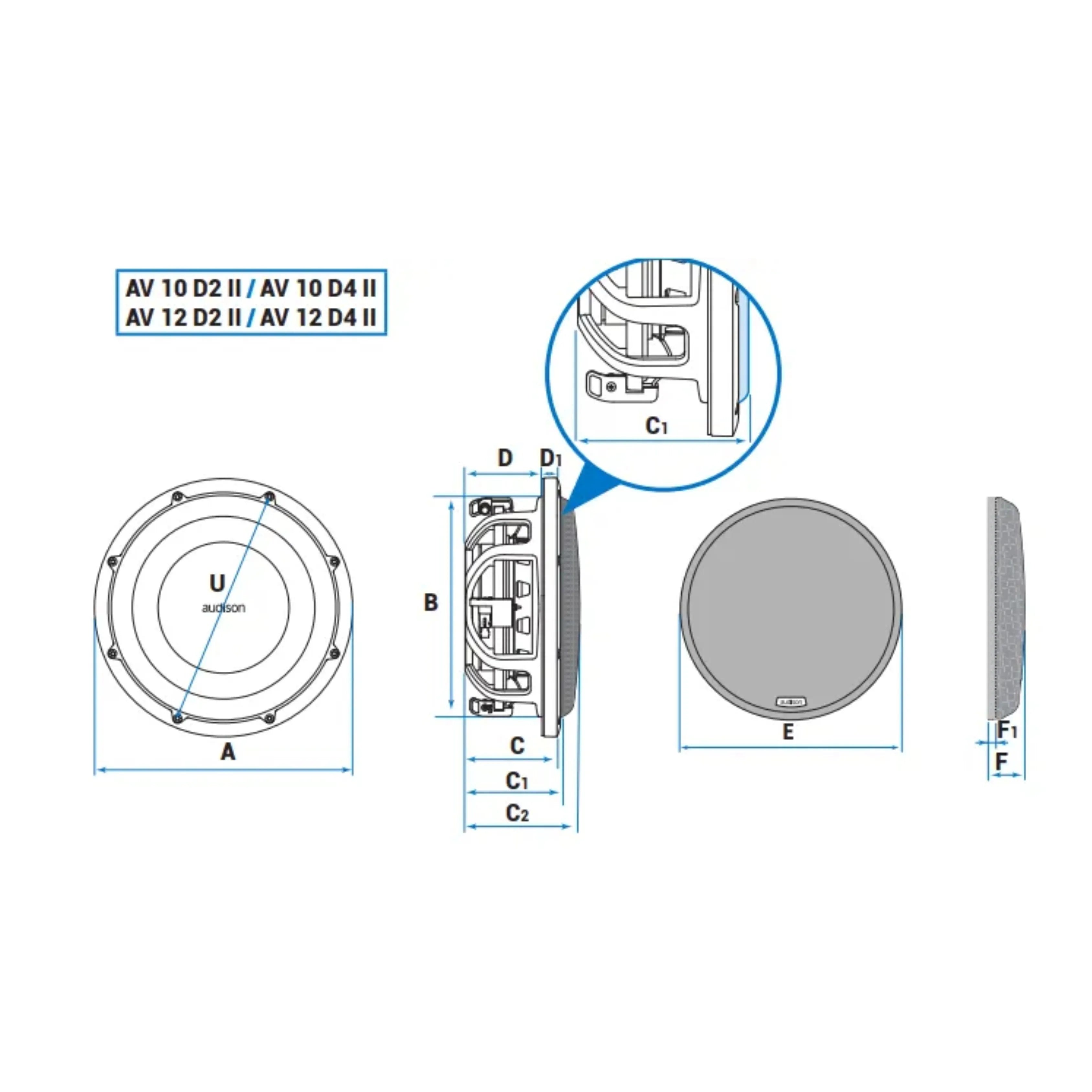

Technical Specifications

Note: Thiele-Small parameters specified with voice coils connected in series (2+2Ω = 4Ω).

Frequently Asked Questions

Q: What size enclosure do I need for the AV10D2II?

A: The AV10D2II is optimized for compact sealed enclosures between 12-14L (0.4-0.5 ft³), with 13.2L being the recommended volume. Sealed enclosure design is critical - this subwoofer is specifically engineered for sealed applications and will not perform optimally in ported enclosures. Proper internal volume, quality construction with adequate bracing, and correct mounting ensure the subwoofer achieves its design performance delivering deep, controlled, and fast bass response.

Q: How do I wire the dual 2Ω voice coils?

A: The dual 2Ω voice coils provide two wiring options: Series connection (positive of coil 1 to negative of coil 2) presents 4Ω to the amplifier - suitable for most amplifiers and lower power applications. Parallel connection (positives together, negatives together) presents 1Ω to the amplifier - requires amplifier stable at 1Ω loads and provides maximum power transfer. Verify your amplifier's impedance stability and power ratings at your chosen configuration before wiring.

Q: What amplifier power do I need for the AV10D2II?

A: Match amplifier RMS output to the 550W RMS rating at your chosen impedance (4Ω series or 1Ω parallel). For 4Ω series wiring, use amplifier rated 400-600W RMS at 4Ω. For 1Ω parallel wiring, use amplifier rated 400-600W RMS at 1Ω (verify amplifier 1Ω stability first). Underpowering reduces performance potential; overpowering risks thermal or mechanical damage. Quality amplifiers with proper gain structure prevent clipping which causes more damage than power ratings.

Q: Can I use this subwoofer in a ported enclosure?

A: The AV10D2II is specifically engineered and optimized for sealed enclosure applications (12-14L sealed). While technically possible to design a ported enclosure, the Thiele-Small parameters and mechanical design are tuned for sealed operation delivering the intended fast, tight, and accurate bass response characteristic of the Voce II line. For best results and to achieve design performance, use sealed enclosure construction as recommended.

Q: What makes Voce II different from other Audison subwoofers?

A: The Voce II line represents Audison's premium component range featuring advanced engineering including FEM-optimized magnetic circuits, CCAW voice coils, Radial Reinforcement Framework, Airflow Venting Cooling, and meticulous Italian craftsmanship. Voce II components deliver audiophile-grade sonic performance emphasizing accuracy, transient response, control, and musical detail rather than just maximum output. The AV10D2II specifically excels in compact installations where space limitations cannot compromise sound quality expectations, making it ideal for sophisticated car audio systems prioritizing precision and finesse over pure SPL competition.
