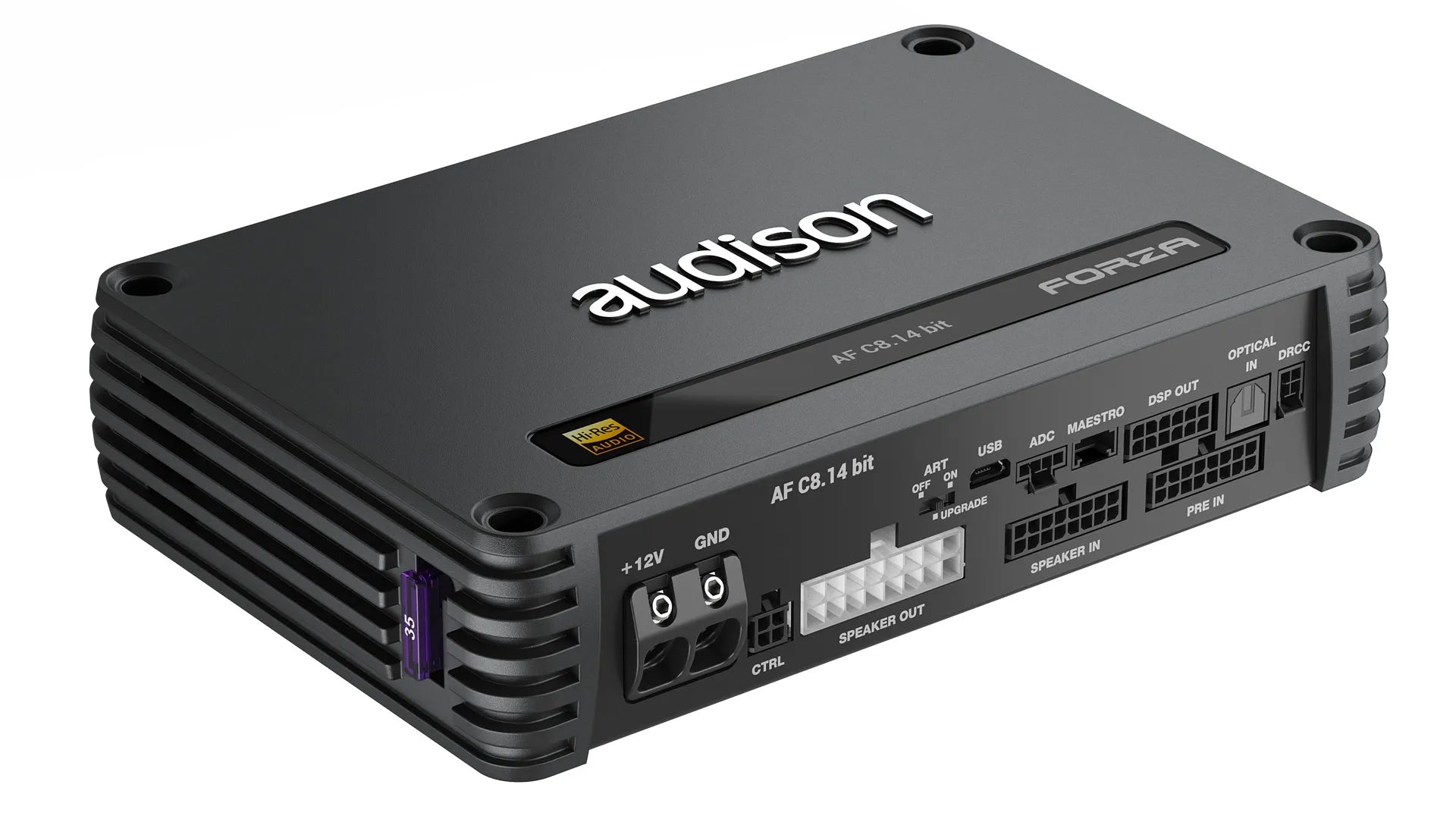

Audison AF C8.14 BIT Forza 800W 8-Channel With14 Channel DSP Amplifier

Audison Forza, the Next Level of OEM Integration & Tuning!

8CH Amplifier With 14 CH DSP - 800W
The Audison AF C8.14 bit is a 14-channel amplifier with 8 high-power amplified channels settable in bridge mode and 6 DSP OUT pre-amplified outputs to reach a total number of 14 output channels. It features 8 signal inputs, PRE IN (Lo-Level) or SPEAKER IN (Hi-Level) 1 S/PDIF optical digital. Through additional modules:

• F4 IN - To increase up to 12 the master input channels
• F2O - 2 digital inputs can be added: optical digital S/PDIF or electrical digital S/PDIF

Equipped with a high-performance 32-bit digital signal processor (DSP) clocked at 147 MHz and 24-bit AD and DA converters, capable of maximizing the acoustic performance of your Car Audio system. Each output channel features: an adjustable Graphic/Parametric equalization group, electronic crossover adjustable in 1Hz steps, and Butterworth/Linkwitz/Bessel/Chebyshev/QLP filters with slopes from 6 to 48 dB and a digital time delay line.

There are adjustments that can be selected by the user who can interact with the AF C8.14 bit via the DRC AC remote control device. The AF C8.14 bit can be interfaced to any standard system, even on cars equipped with an integrated audio processor, as thanks to the de-equalization and analysis function the AF C8.14 bit will manage a flat signal from its OEM source. It also ensures interfacing to devices equipped with the Maestro/ADC protocol which makes this product unique in its category.

Features:

• Enjoy the improved audio performance of the latest generation Audison D-Class technology
• Maximum versatility thanks to the bridging option for each pair of channels
• Two independent power supplies: the audio amplifier power supply is loosely regulated, and the DSP power supply is stiffly regulated
• Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz
• Pure digital signal transfer with a resolution of up to 24bit/96 kHz
• Quick I/O Configuration speeds up system definition and signal routing
• When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring a full dynamic range signal at the input
• iDatalink Maestro AR native support for total integration with OEM infotainment
• Equipped with eight analogue inputs, to support total connectivity even with the most complex OEM systems
• Electrical Signal Analysis ensures proper integration and correction for each input channel
• Automatically sums and reverses OEM equalization
• Input delay compensation of time-delayed factory outputs prior to signal summing
• Allows left and right inputs to match in the phase before tuning, even if OEM phase processing has been used
• Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source
• Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function
• 14 DSP-processed output channels for a total control
• 6 native pre-out channels for maximum versatility
• The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone
• The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning

Specifications:

• Power Supply:
  • Nominal Power Supply Voltage / Fuse: 11 - 15 VDC / 1 x 35A
  • Pulse Operating Voltage: 6.5 - 17.5 VDC
  • Idling current: 1.3 A
  • Standby current draw: 1.5 mA
  • Consumption @ 14.4 VDC, Minimum Load Impedance (Max Musical Power): 34 A
  • Remote IN: 4 -15 VDC (1 mA)
  • Remote OUT: 6.5 -15 VDC (150 mA)
  • ART - Automatic Remote Turn On/Off From Speaker-In: 1.5 VDC
  • Efficiency @ Rated Power (RMS) at14.4 VDC, 1 Percent THD,4 OHM, All Channels: 81 Percent
• Amplifier Stage:
  • Distortion - THD+N at 1 KHz, 4OHM, 70 Percent Rated Power: 0.05 Percent
  • Damping Factor @ 1 kHz, 4OHM, 2 VRMS: 85
  • Bandwidth at -3 dB: 10 Hz - 42 kHz
  • S/N ratio (A-Weighted @ 1 V Input, Rated Power) Master Input: 98.5 dBA
  • S/N ratio (A-Weighted @ Rated Power) Optical Input: 105 dBA
  • Minimum Load Impedance:
    • 8Ch: 2OHM
    • 4Ch - (Bridge 1/2: 3/4: 5/6: 7/8): 4OHM
  • Output Continuous Power (RMS) at14.4 VDC, 1 Percent THD:
    • 8 Ch @ 4OHM: 65 W x 8
    • 8 Ch @ 2OHM: 100 W x 8
    • 4Ch (Bridge 1/2: 3/4: 5/6: 7/8) @ 4OHM: 200 W x 4
• CEA Specifications:
  • Output power @ 4OHM, 1 Percent THD+N, 14.4 V: 55 W x 8
  • SN Ratio (Ref. 1 W output): 80 dB
• Inputs / Outputs:
  • Pre-In (8 Ch): 0.6 - 6 VRMS (15 kOHM Imp.)
  • Speaker-In (8 Ch + Additional 4 Ch with Optional F4IN Card): 2.2 - 22 VRMS (5 OHM Imp.)
  • Digital IN: 1 x Optical S/PDIF: Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with Optional F2O Card
  • DSP Preout (6 Ch): 5V RMS
• Digital Signal Processor:
  • Audio DSP & Converters:
    • Analog Devices ADAU1467 Automotive Qualified Audio Processor.
    • Processing @ 96 kHz. Analog Devices 3 x ADAU1978 (4CH) & ADAU1966A (16ch) A/D & D/A Converters (24 bit/192 kHz) provide Very High-Level Performance
  • Filter type: Full / High-Pass / Low-Pass / Band-Pass
  • Filter Mode & Slope:
    • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
    • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
    • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
    • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
    • QLP @ 6 dB/Oct.
  • Crossover frequency: 20 Hz - 20 kHz
  • Phase Control: 0 / 180, All-Pass filters
  • Analog Input Equalizer (20 Hz - 20 kHz): 12 Biquad + Delay
  • Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
  • Input & Output Real Time Audio Monitor: RTA
  • Time Alignment Distance: 0 - 510 cm / 0 - 200"
  • Time Alignment Delay: 0 - 15 ms
• Control Connections:
  • Audison DRCC Port: Input For DRCC Remote Control (Optional)
  • Audison ADC Port: Manage Other Audison Devices that Support This Standard
  • Control 1 Wire: Customizable Functions (+ 12 V Activated)
  • Control 2 Wire: Customizable Functions (+ 12 V Activated)
• General Requirements:
  • PC Connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
  • Software/ PC Requirements: Windows 10, Windows 11 (Min. Res. 1024 x 768)
  • Ambient Operating Temperature Range: 0 C ~ 55 C
• Size/Weight:
  • Max Size: (W) 200mm x (H) 47mm x (D) 134mm
  • Weight: 1.49kg
