ALTIQ SX20FM CX2 Scene Flush Mount LED Work Light | Ultra-Compact Flood Solution

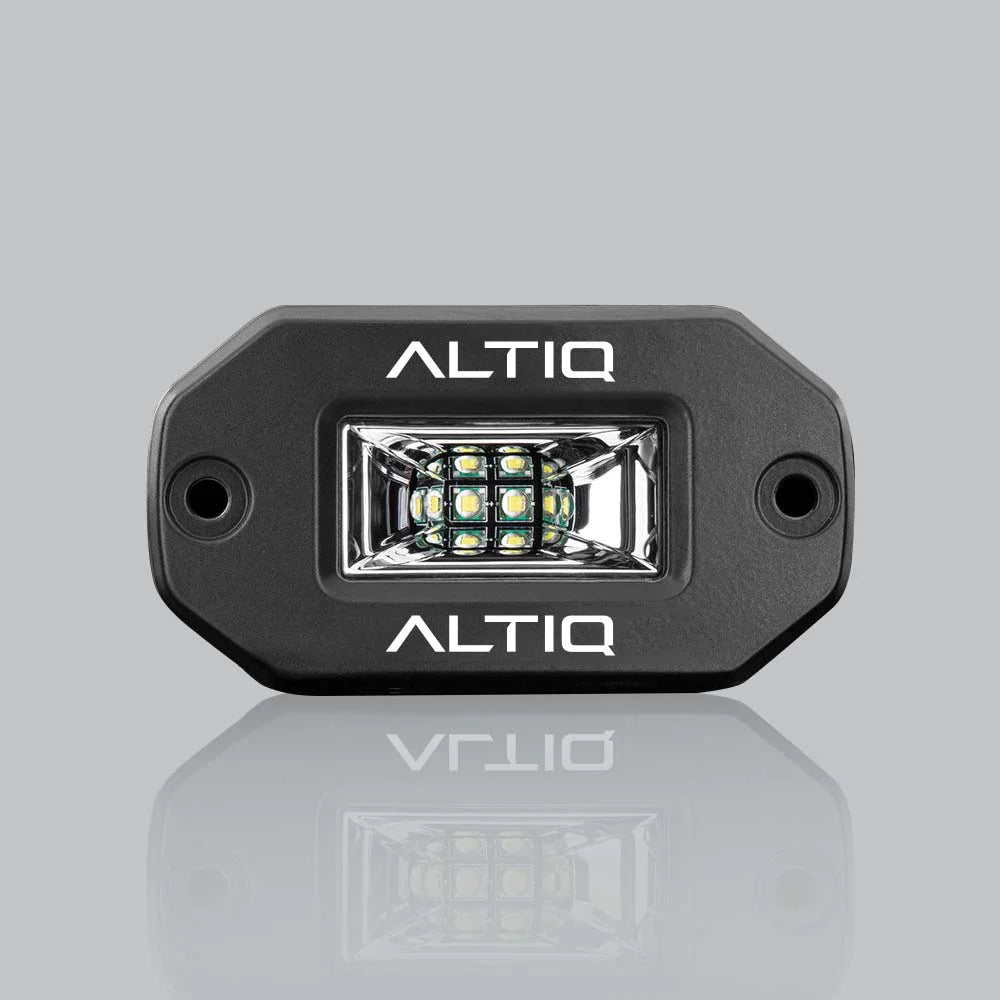

ALTIQ SX20FM CX2 Scene Flush Mount - LED Work Light

Minimal Profile. Maximum Output.

Designed for tight installs and tactical performance, the CX2 Flush Mount delivers a seamless 120° flood beam from an ultra-compact footprint. Built with the same high-efficiency scene optic as the surface-mounted version, this flush-fit variant is perfect for ute trays, rear bars, canopy walls, and slim bumper cavities.

The smooth beam pattern eliminates hot spots and shadows—providing even, glare-free illumination right where you need it, without sticking out or getting in the way.

Key Features:

• 120° ultra-wide scene beam
• Single reflector with 2 high-performance LEDs
• Ideal for: Rear bumpers, canopy walls, roof platforms, campers
• Stealth black housing with OEM-style flush fit
• IP-rated, sealed construction + stainless hardware

OEM Fit and Finish

This is lighting that disappears until you need it — seamlessly integrated, sitting flush with the surface for a clean, OEM-style look. Whether it's mounted into a rear tray, canopy, tub, or bull bar, the result is the same: sharp, sleek, and seriously capable.

No brackets. No bulk. Just a compact unit delivering broad, even light across your work zone or campsite

Installation Made Simple

Getting the perfect flush-mount install has never been easier. With the CX2's dedicated printable template guide, you'll know exactly where to cut and drill—no second guessing. Just print the guide, cut it out, and position it on your panel. The outlines show precise dimensions for both the light and bolt holes, saving you time and effort. Once your cut is clean, just drop in the CX2 with the included gasket and stainless-steel hardware. That's it. A clean, factory-style fit in minutes—engineered for perfection, delivered with simplicity.

DOWNLOAD PDF TEMPLATE

Specifications:

• LEDs: 10W CREE XM-L2
• Waterproof Rating: IP69K
• Lens: GE Lexan
• Bracket: 316L Stainless
• Input: 11-36V DC
• Colour Temperature: 5700K
• Paint: Limited Lifetime
• Connector: DT04-2P Deutsche
• Lumens: 1200
• Housing: 6063 Heavy Duty Die Cast Aluminium
• Weight: 0.25KG

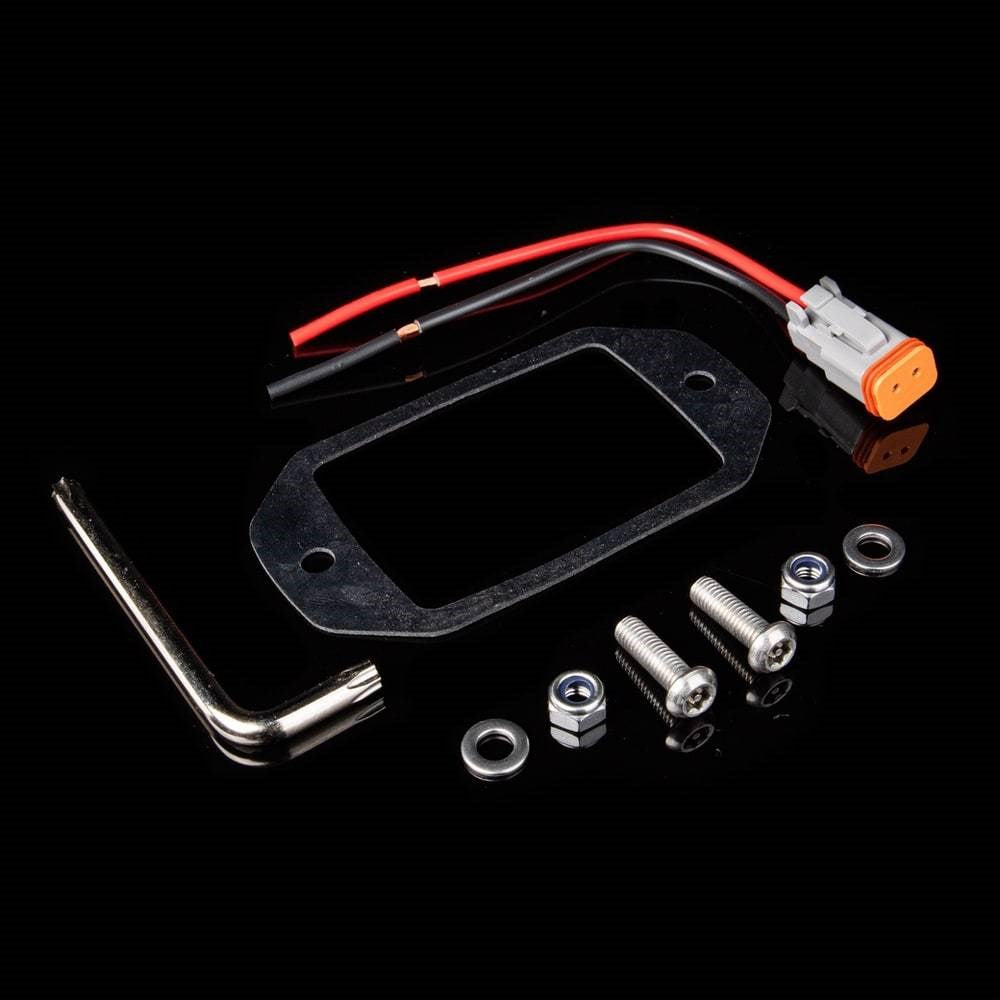

What's Included:

• ALTIQ CX2 Flush Mount LED Work Light - Scene (1)
• Stainless Steel Mounting Hardware
• Rubber EPDM Gasket
• Deutsch Connector with 150mm Tail

SX20FM Features:

• General Electric Lexan lens - Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed
• DuPont black paint - Black that stays black - highest chip resistant coating
• Gore-Tex breather valve - 100% pressure equalisation and moisture venting
• CISPR 25 Class 3 Certified - Zero Radio/communication interference
• IP69K Waterproof - Highest Dust & Waterproof Rating - Pressure wash safe
• 10 Year warranty - No strings, our lights are made to last!
• Deutsch Connector - 150mm Tail for easy of connection

Perfect for:

• Ute trays, rear bars, canopy walls, slim bumper cavities, rear bumpers, roof platforms, campers, and any application requiring ultra-compact flush mount scene lighting
