ALTIQ rap32c Supernova Raptor Next-Gen 32" LED Light Bar Kit | Double Row Hybrid Behind Grille

ALTIQ rap32c Supernova Raptor Next-Gen 32" LED Light Bar Kit | Double Row Hybrid Behind Grille

Factory Integration. Extreme Performance. Effortless Install.

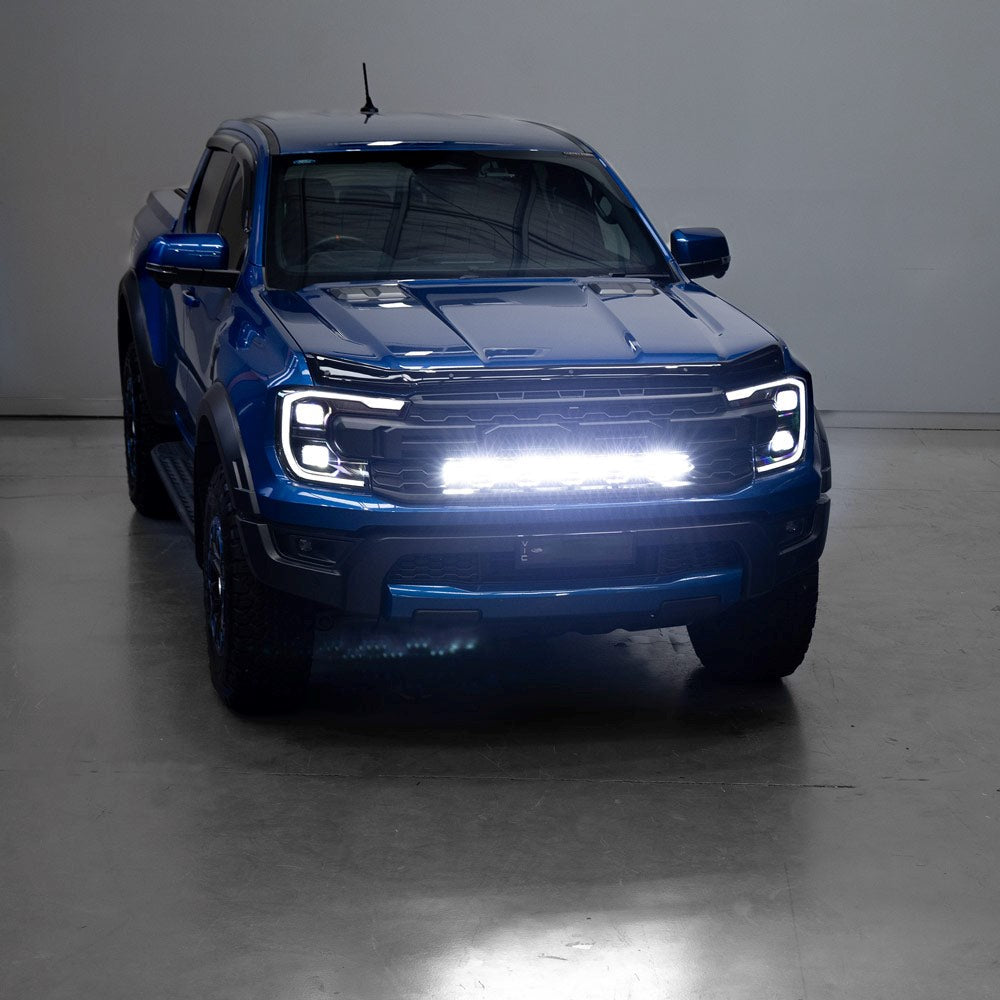

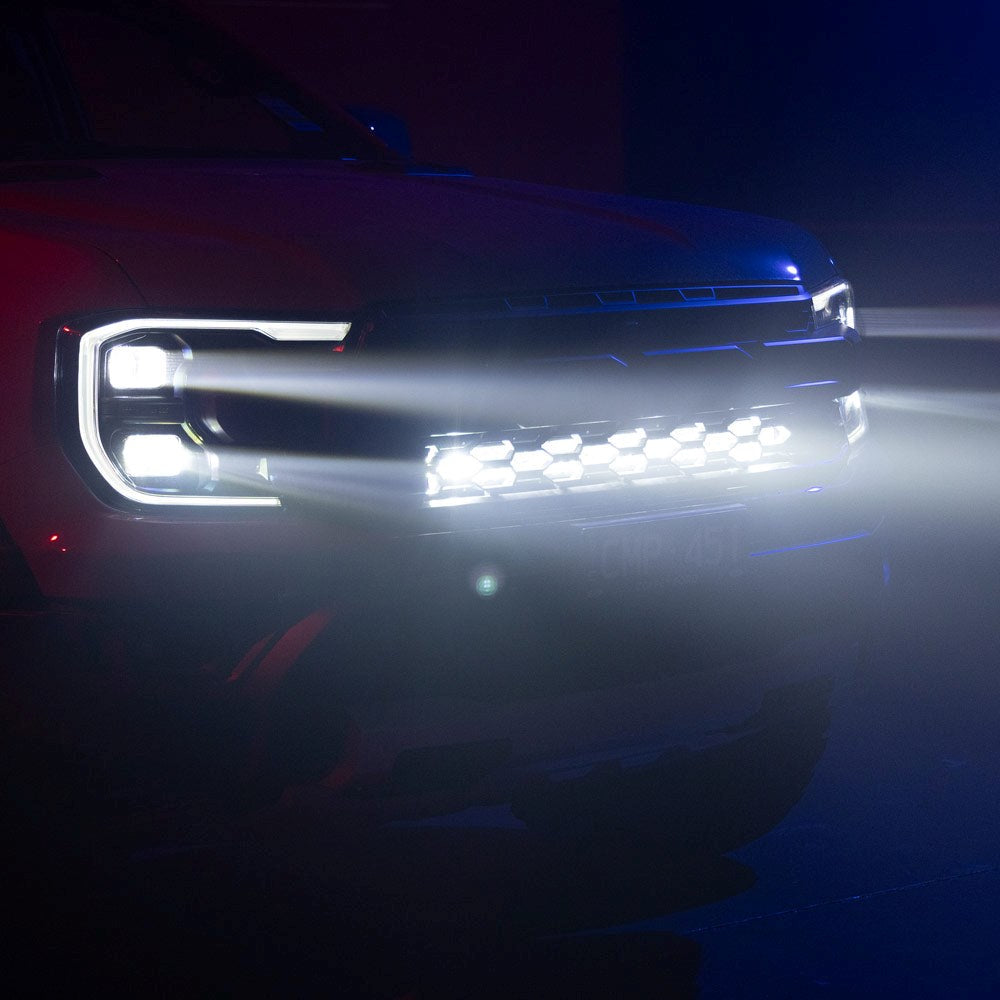

The world’s first 32" Double Row Light Bar Kit for the Next-Gen Raptor delivers a near fourfold increase in lux and true factory-style integration. This bespoke kit mounts the renowned 32" Commander Double Row Hybrid LED Light Bar behind the grille, providing unmatched brightness, seamless fitment, and direct control from your cabin’s factory auxiliary switches.

Designed for a flawless fit with no modifications required, this kit includes custom brackets, heat shrink connectors, and all necessary hardware. The light bar synchronizes with your high beam when the Aux 5 or 6 switch is on, remaining ADR compliant and ensuring optimal safety and performance in any driving condition.

rap32c Feature:

• World’s first 32" double row hybrid LED light bar kit for Next-Gen Raptor
• Delivers up to 7200 lux—four times the factory high beam output
• Direct fit with custom brackets—no extra hardware or modifications needed
• Synchronizes with high beam via factory Aux 5 or 6 switch (ADR compliant)
• Indestructible 3mm GE Lexan lens and 316L marine-grade stainless fasteners
• 60 x genuine 5W OSRAM P9 chips for 14,850 lumens and 1 lux at 878m
• DuPont Midnight paint for a stealth, UV-resistant finish
• Waterproof rated IP68/IP69K for extreme conditions
• Lifetime warranty for peace of mind
• CFD-tested bracket system for optimal airflow
• Compatible with Herrod tuned Raptors—no change to installation

Specifications:

• Lux Distance: 1 lux @ 878m
• Lumens: 14,850
• Lens: 3mm GE Lexan (indestructible)
• LEDs: 60 x Genuine 5W OSRAM P9 Chips
• Candela: 1,601,793
• Finish: DuPont Midnight Paint
• Fasteners: 316L Marine Stainless Steel
• Waterproof Rating: IP68 / IP69K
• Warranty: Lifetime
• Input Voltage: 10-30V DC
• Current Draw: 11.33A @ 12V
• Included Wiring Harness: 14 Gauge Dual DT Output, Neg/Pos switched compatible
• Colour Temperature: 5700K @ 82+ CRI
• Weight: 2.48kg (including brackets)

What’s Included:

• ALTIQ Hybrid 32" LED Light Bar
• ALTIQ Light bar brackets for Next Gen Raptor
• DT Waterproof plug pigtail
• Heatshrink with inbuilt solder
• Instructions

Perfect for:

• Next-Gen Raptor owners seeking a stealth, factory-style lighting upgrade with maximum brightness, seamless integration, and reliable performance for both on-road and off-road adventures.
