ALTIQ cmlb32 32" Hybrid Double Row Light Bar | Updated Tri-Optic Design

ALTIQ cmlb32 32" Hybrid Double Row Light Bar | Updated Tri-Optic Design

Take Command of the Night with Wider Coverage and Further Distance.

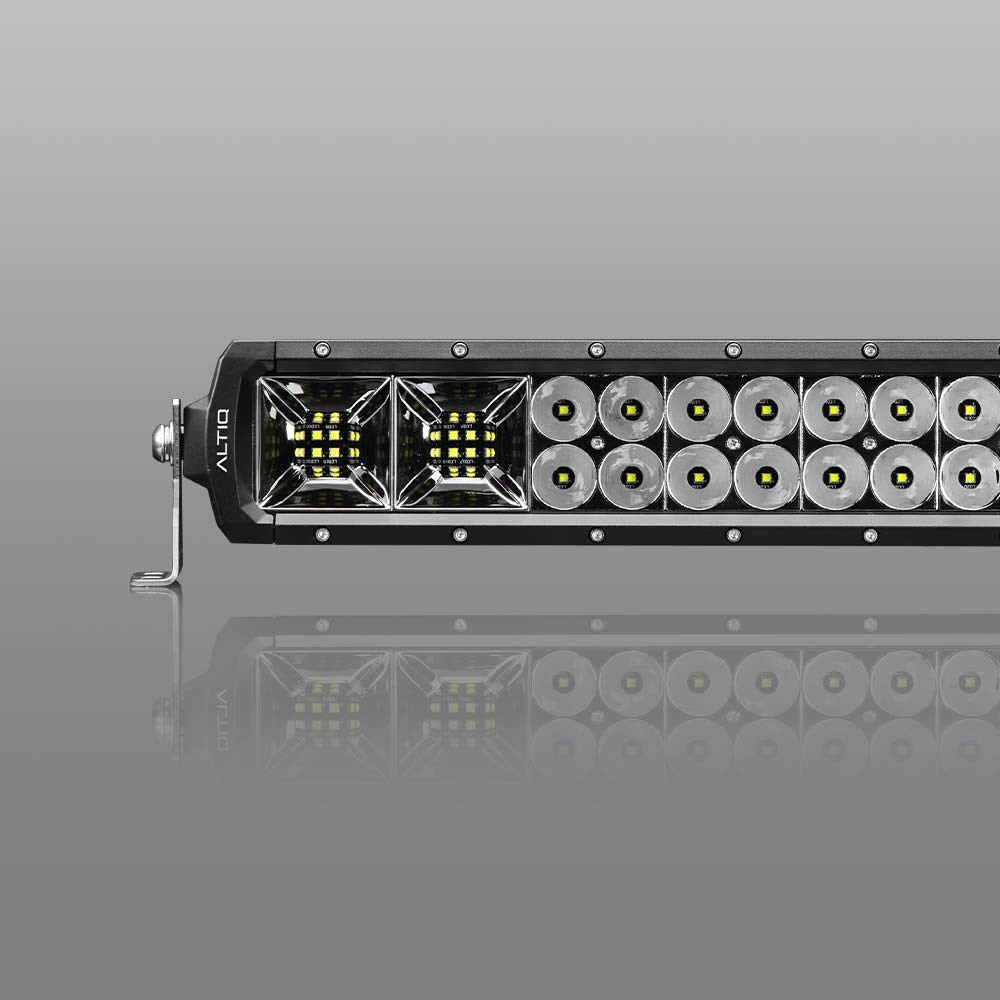

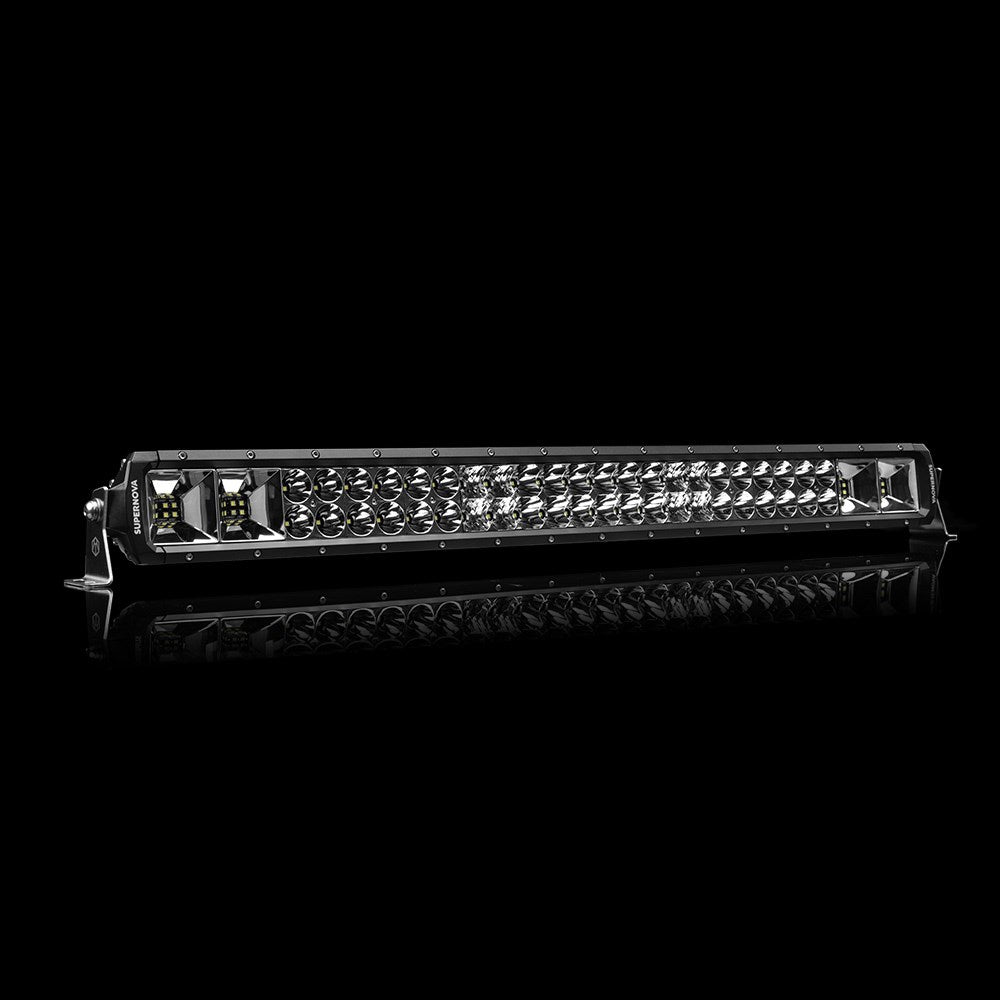

The ALTIQ 32" Hybrid Double Row Light Bar features a new Tri-Optic, multi-pattern reflector design that delivers superior visibility and leading optic efficiency. This advanced design provides a wider flood angle for the widest tracks and greater distance for long highways, ensuring unmatched coverage across all angles.

Tri-Optic Beam Pattern Includes:

• 5° Hyperspot for distance
• Combo centre spread flood
• Scene ultra-wide flood

Built for tough conditions and made to last, the Hybrid series is backed by ALTIQ’s renowned 10-year warranty and utilises the highest quality components from GE, DuPont, Vishay, and Osram.

Features:

• 4 x Scene Reflectors – Ultra Wide Flood Output
• 5° Hyperspot + wide spread flood reflectors – seamless spot-to-flood output
• Side and undermount brackets – flexible installation
• IP69K waterproof – highest protection rating, pressure wash safe
• GE Lexan lens – near indestructible, resists hazing/yellowing
• DuPont black paint – superior chip-resistant coating
• Gore-Tex breather valve – prevents moisture build-up
• Marine grade 316 stainless steel mounting hardware
• CISPR 25 Class 3 – zero radio/communication interference
• 5700K color temp – natural daylight output for minimal eye strain
• Includes plug & play wiring harness
• 10 Year warranty – Aussie backed support

Specifications:

• Lux Distance: 1 lux @ 878m
• Lumens: 14,850
• Lens: 3mm GE Lexan
• LEDs: 60 x 5W OSRAM P9
• Paint: DuPont Midnight Black
• Fasteners: Marine Grade 316L Stainless Steel
• Waterproof Rating: IP68 – IP69K
• Warranty: 10 Years
• Input Voltage: 10–30V DC
• Current Draw: 11.33A @ 12V
• Included Wiring: 14 Gauge Dual DT Plug, Hi/Low beam compatible
• Colour Temp: 5700K @ 82+ CRI
• Weight: 2.48kg (including brackets)

What’s Included:

• 1 x ALTIQ Hybrid 32" Double Row LED Light Bar
• 2 x Stainless Steel Side Mounting Brackets
• 2 x Sliding Rear Undermount Brackets
• 1 x Stainless Steel Fastener Kit
• 1 x Fast Fit Wiring Harness with H4 + HB3 High Beam Adapters

Perfect For:

• Drivers seeking high-performance long and wide-range visibility on highways, 4x4 tracks, and rugged terrain.
