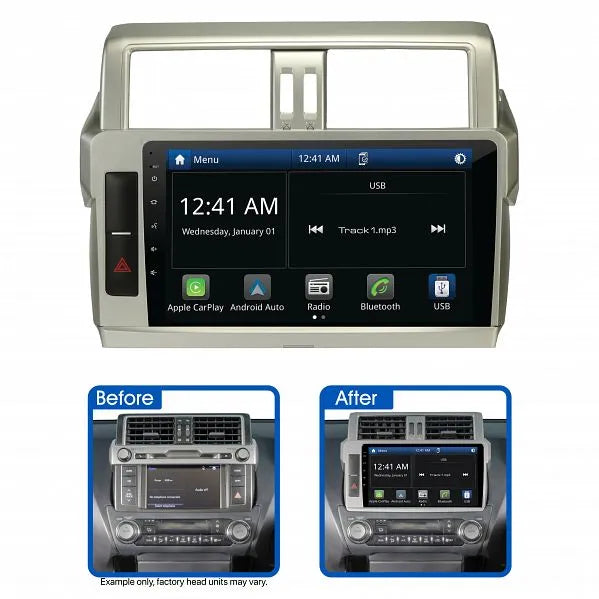

Aerpro AMTO36 10" Multimedia Receiver Suit Toyota Prado 2013 - 2017

Aerpro AMTO36 10" Multimedia Receiver Suit Toyota Prado 2013 - 2017: Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

10" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMTO36 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Prado (2013-2017) vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO36 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input, parking tones and the factory reverse camera.

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit.
• AUX Input Retention uses the RCA AUX input on the rear of the head unit.
• Reverse Sensor Audio retained but not sensor visualisation (Tiny overlay of car showing which sensor is active).
• Left Hand Hazard button cover included to transfer factory hazard to new position.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Aerpro AMTO36 Features:

• To suit Toyota Prado (2013-2017) Vehicles
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (Wireless / Wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 required, sold separately)
• Large 10" Capacitive Touchscreen Display
• Steering wheel control, USB input, AUX input, parking tones and factory reverse camera retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & Presets (18FM/12AM)
• Rear USB Input (1.5A Max Charging)
• Reverse Camera Input (AHD 720P Compatible) & Rear A/V Input
• 40W x 4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: Yes
• AUX Input: Yes
• USB Input: Yes
• Parking Tones: Yes
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

Aerpro AMTO36 Specifications:

• LCD Display:
  • Size: 10"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • Max Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-In & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# Of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm Jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (With 12V Power Supply to the Camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included
• Vehicle Compatibility: Toyota Prado (2014 - 2017 150 Series)
• Weight: 4.00kg

Aerpro AMTO36 Kit Inclusions:

• AM10X Multimedia Receiver
• Silver Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
