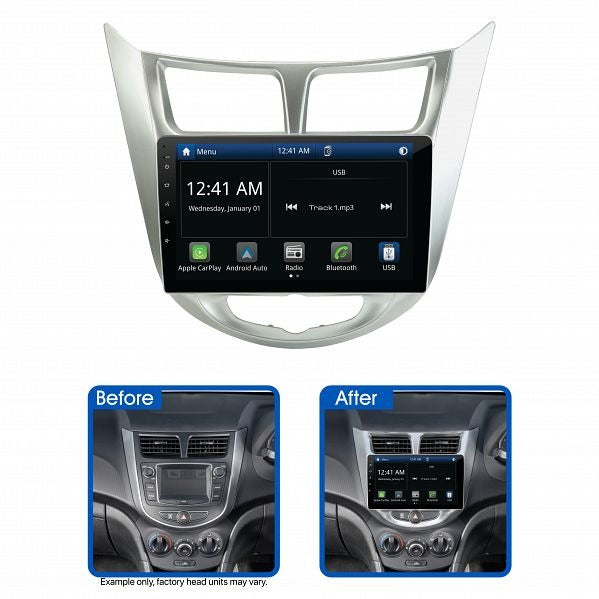

Aerpro AMHY22 9" Multimedia Receiver Suit Hyundai Accent RB 2011 - 2020

Complete the Installation & Retains Important Vehicle Features Including Steering Wheel Controls!

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto
The Aerpro AMHY22 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Hyundai Accent RB (2011-2020) vehicles without factory reverse camera in OEM head unit. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.

Sound quality is superb with 50Wx4 max output, 8-band graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMHY22 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits vehicles without factory reverse camera in OEM head unit.
• USB retention harness APHYUSB8 (sold separately) can be used for models 2016-2020.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: N/A
• AUX Input: No
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Hyundai Accent RB (2011-2020) vehicles without factory reverse cameras in OEM head unit
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Large 9" capacitive touchscreen display
• Steering wheel control retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8-band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP, AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO / SWC Plug
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Hyundai Accent RB (2011 - 2015)
• Hyundai Accent RB (2016 - 2020)

Kit Inclusions:

• AM9X Multimedia Receiver
• Facia Kit (Silver)
• Steering Wheel Control Interface Harness
