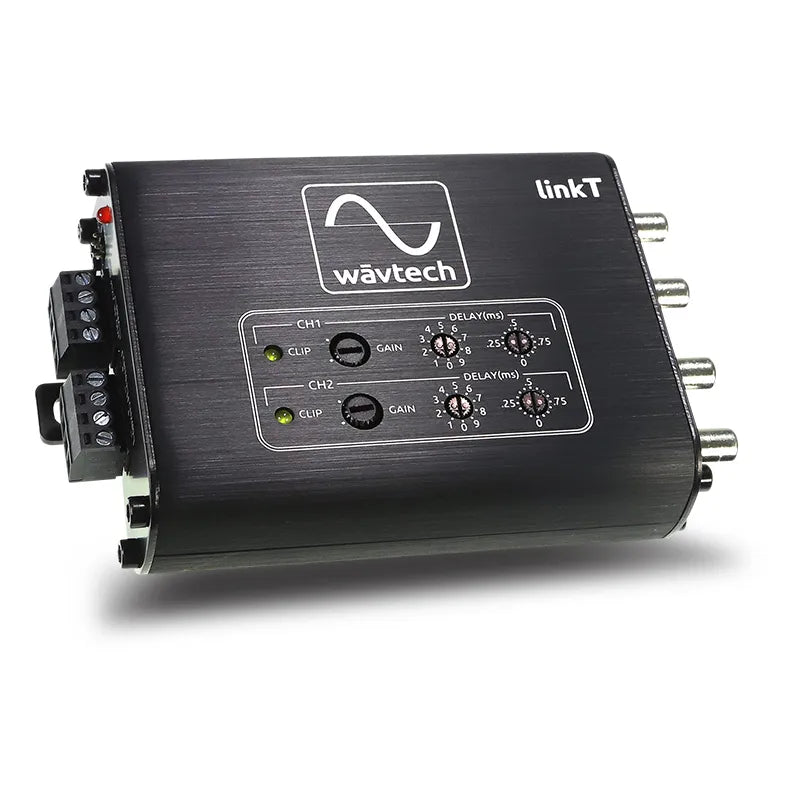

Wavtech LINKT 2-Channel Line Driver/Line Output Converter With Digital Time Alignment
Click to open expanded view
WAVTECH logo

Discontinued

Wavtech LINKT 2-Channel Line Driver/Line Output Converter With Digital Time Alignment

SKU: LINKT

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257 2636

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail

Product features

Whether You're Using Your Factory Radio or An Aftermarket Receiver without Time Alignment, The LinkT Will Focus the Stereo Image Right Where You Want It!

2-Channel Time Alignment Processor & Line Driver/Output Converter
You've just installed a new audio system, but something isn't quite right. No matter how hard you try, you just can't get the image positioned where you want it. Another common problem occurs in systems with multiple subwoofers, powered by multiple amplifiers. Issues with phasing can create a loss in bass output.

The "Patent Pending" linkT provides a simple solution to these dilemmas. Using DSP Time Alignment technology, each dial represents a digit in the range of milliseconds (ms) of delay available. All dials in the maximum position equal 9.95ms of delay.

The minimum increment of adjustment is .0625ms. 1 ms is equal to approximately 0.34m. If all this sounds confusing, don't worry. It Differential-Balanced means you can control the time when the sound reaches your ears, so that any sound stage imaging or subwoofer phase problems are corrected.

Features:

  • 2-Channel Digital Time Alignment Processor
  • 2-Channel Line Driver or Line Output Converter (LOC)
  • Differential Balanced Inputs
  • Low Impedance Outputs
  • Independent Variable Gain Adjustments with Clip LED's
  • Auto-turn on via DC-offset or audio signal detect
  • Generated +12V Remote Output
  • OEM Load Detect Compatible
  • Selectable Ground Isolation
  • Detachable Power/Speaker Terminals
  • Professional Grade Panel Mount RCA's
  • Compact aluminium chassis with detachable mounting tabs

Specifications:

  • Output Voltage (Max): >10VRMS
  • Output Impedance: <50 OHM
  • Input Sensitivity SPK/RCA: 2-20VRMS / 0.5-5VRMS
  • Max Input Voltage (SPK): 40VRMS
  • Frequency Response: <10Hz - >44kHz
  • THD+N SPK/RCA: <0.1% / <0.05%
  • S/N SPK/RCA: >95dBA / >95dBA
  • Time Delay Range: 0 ~ 9.94MS (11.2Ft/3.4M)
  • Time Delay Increments: 0.0625MS (0.85"/2.1cm), 1MS (13.5"/34.3cm)
  • Generated +12V Output: >500mA
  • Chassis Dimensions: 25mm x 75mm x 93mm
  • Weight: 0.20kg
  • Packaging Type: Giftbox
