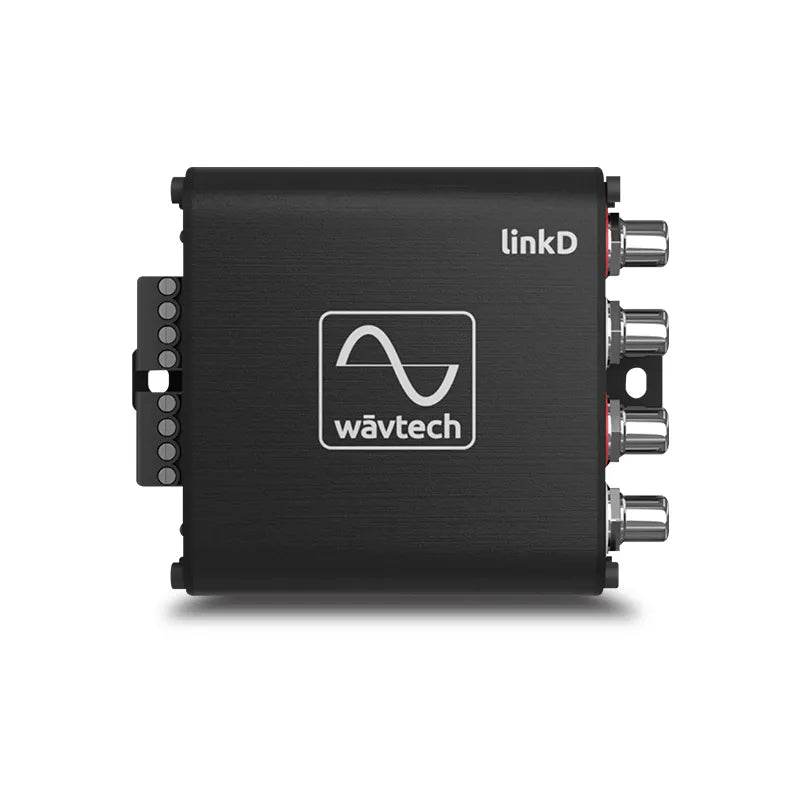

Wavtech LINKD Active 2-Channel Line Driver/Line Output Converter
Click to open expanded view
WAVTECH logo

Discontinued

Wavtech LINKD Active 2-Channel Line Driver/Line Output Converter

SKU: LINKD

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

The Great Choice For Upgrading An OEM Audio System!

Active 2-Channel Line Driver/Output Converter
When upgrading your audio system, a good clean signal is critical. The linkD is a versatile little box with a dual personality. First, it is an active, high output/ low impedance line output convertor (LOC). It was designed to work well with high-power factory audio systems. It also functions as a high-output voltage line driver, delivering over 10V RMS of output at less than 50 ohms.

If these numbers don't mean anything to you that's ok, they are really good. It features auto turn-on via DC-offset or Audio Signal Detect. This allows the unit to turn on without the need for a remote wire and even generates a +12V output to turn on the amplifier or other aftermarket devices in your system, This makes it a great choice for upgrading an OEM audio system.

Features:

  • 2-Channel line driver or line output converter (LOC)
  • Differential Balanced Inputs
  • Low Impedance Outputs
  • Variable gain adjustments with clip LED's
  • Auto-turn on via DC-offset or audio signal detect
  • Generated +12V Remote Output
  • OEM Load Detects Compatible
  • Selectable Ground Isolation
  • Locking detachable power/speaker terminals
  • Professional grade panel mount RCA's
  • Compact aluminium chassis with detachable mounting tabs

Specifications:

  • Output Voltage (Max): >10VRMS
  • Output Impedance: <50Ω
  • Input Sensitivity:
    SPK: 2 - 20VRMS, 4 - 40VRMS
    RCA: 0.5 - 5VRMS
  • Max Input Voltage (SPK): 40VRMS
  • Frequency Response: <10Hz - >100kHz
  • THD+N SPK/RCA: <0.1% / <0.01%
  • S/N SPK/RCA: >112dBA / >115dBA
  • Turn-On Trigger: +12V, DC-Offset & Audio Detect
  • Generated +12V Output: >500mA
  • Chassis Dimensions: 29mm x 75mm x 71mm
  • Packaging Type: Giftbox
  • Weight: 0.20kg
