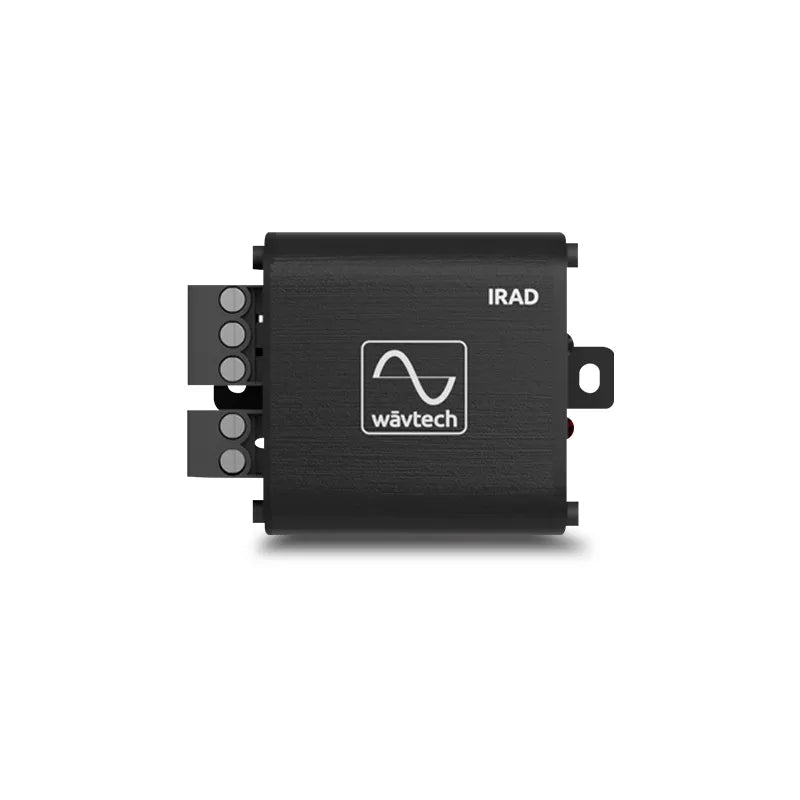

Wavtech IRAD Ignition/Remote Generator With Delay Function

SKU: IRAD

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Provides a Switched 12-Volt Output in Problem Vehicles, & Solves Problems with Start/Stop Vehicles

12-Volt Source & Secondary Battery Controller
The IRAD provides solutions to three very specific problems faced in todays car audio installations. This easy to program device allows you to add a switched 12 volt output, a remote output with adjustable delay and a relay/solenoid control to overcome the issues created by vehicles with start/stop systems.

Features:

  • Automatic 12V ignition detection and +12V output generation
  • Generated +12V remote output (Direct or linked to IGN)
  • Stop-Start Relay/Solenoid Control Mode
  • Independent adjustable IGN & REM turn-on/off delays
  • >750mA Continuous Current per Output
  • Compact aluminium chassis with detachable mounting tabs
  • Locking Detachable Terminals

Specifications:

  • Operating Voltage: 6V-18V
  • Ignition Detect Threshold: >0.5V B+ Change
  • Remote In Trigger: >6V
  • Ignition Out:
    • Voltage: >1V From B+
    • Continuous Current: 750mA
    • Peak Current: <1.5A
  • Remote Out:
    • Voltage: >1V From B+
    • Continuous Current: 750mA
    • Peak Current: <1.5A
  • Ignition Remote Mode:
    • Ignition Out Delay: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-10MIN, 1MIN Steps (0 Default)
    • Remote Out Delay: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-5SEC, 1SEC Steps (0 Default)
  • Relay Control Mode:
    • Ignition Out: Turn-On: 0-5SEC, 1SEC Steps (0 Default) / Turn-Off: 0-10MIN, 1MIN Steps (3MIN Default)
    • Remote Out: Turn-On: N/A (BY Engine Off Detect) / Turn-Off: N/A (Same as Ignition Out)
  • Current Draw:
    • Max: <1.6A (Cont.)
    • Idle: <2.6MA
  • Dimensions:
    • Chassis Only: 20mm x 38mm x 37.7mm
    • Including Tabs: 22mm x 38mm x 61mm
  • Weight: 0.10
