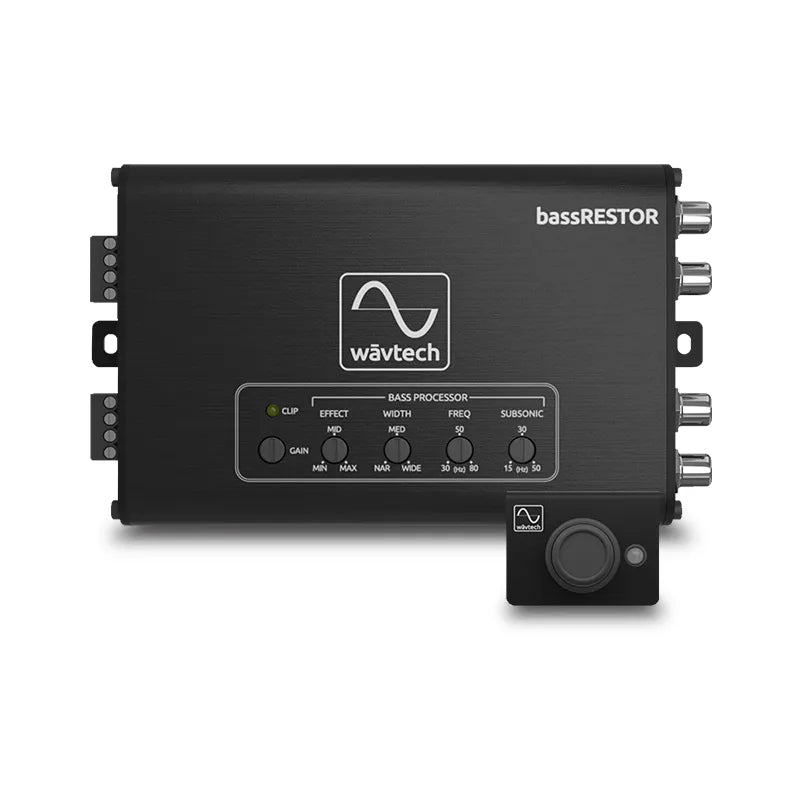

Wavtech BRESTOR 2-Channel Bass Restoration Processor With Remote

Let's You Add What's Missing, Creating The Low Bass Notes You Want that Weren't Emphasized on The Recording!

bassRESTOR Bass Restoration Processor
There are certain types of music that just don't have enough good, low bass. If you listen to classic rock, older hip-hop or Banda music, you know that something is missing. The bassRESTOR fills in the gaps and adds just the right amount of bass back into your music.

Our unique Multi-Function Remote Level Control (RLC) lets you adjust the overall bass volume, the amount of bass restoration effect needed for a particular song or defeat the effect completely when no restoration is required. The bassRESTOR has both speaker level and RCA inputs, so it integrates easily with factory or aftermarket sources. There is a variable frequency subsonic filter for fine system tuning.

Features:

• 2-Channel Bass Restoration Processor: Complete Tuning Control (Effect, Width, Freq)/ Variable Subsonic Filter
• 2-Channel Line Driver or Line Output Converter
• Includes Multi-Function Remote Level Control
• Differential Balanced Inputs
• Low Impedance Outputs
• Variable Gain Adjustment with Clip LED
• Auto Turn-On Via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• OEM Load Detect Compatible
• Selectable Ground Isolation
• Locking Detachable Power/Speaker Terminals
• Professional Grade Panel Mount RCA's
• Compact aluminium chassis with detachable mounting tabs

Specifications:

• Output Voltage (Max): >10VRMS
• Output Impedance: <50 Ohm
• Input Sensitivity:
  • SPK: 2-20VRMS, 4-40VRMS
  • RCA: 0.5-5VRMS, 1-10VRMS
• Max Input Voltage (SPK): 40VRMS
• Frequency Response: <15Hz - >100kHz
• THD+N SPK/RCA: <0.05% / <0.1%
• S/N SPK/RCA: >115dBA / >114dBA
• Bass Restoration:
  • Effect: Up to +18dB
  • Width: Nar-Wide
  • Frequency: 30-80Hz
• Subsonic Filter: 15Hz-50Hz
• Turn-On Trigger: +12V, DC-Offset & Audio Detect
• Generated +12V Output: >500mA
• Chassis Dimensions: 29mm x 90mm x 133mm
• Weight: 0.74kg
