Complete cabin transformation with German-engineered 6.5" component speakers front and rear with perfect-fit installation accessories

Product Overview

The HELIX Ci3 Speaker Upgrade Package for VW Tiguan delivers comprehensive audio performance through matching high-efficiency 6.5" component speakers for both front and rear positions with advanced 3Ω technology. This professionally curated complete speaker system combines HELIX COMPOSE technology with vehicle-specific FlexMount adapters and plug-and-play connectors to create a comprehensive cabin-wide upgrade that enhances clarity, dynamics, and overall listening experience throughout your Tiguan while maintaining all original functionality through complete plug & play integration.

What Makes This Package Special

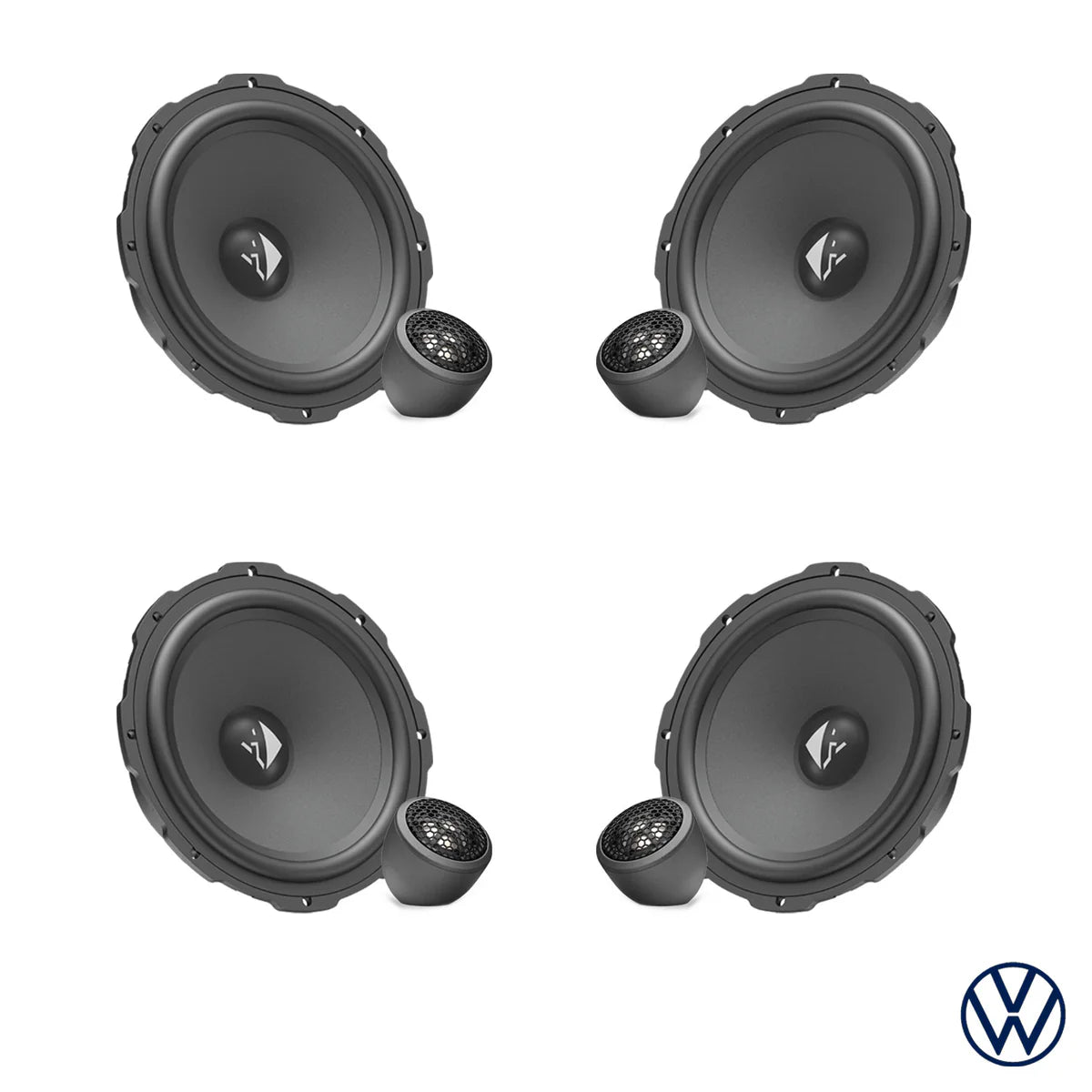

• Complete Cabin Upgrade Approach – This comprehensive package transforms your entire Tiguan cabin with matching 6.5" HELIX components front and rear for consistent sonic signature throughout, featuring advanced paper cone technology, precision crossovers, and titanium dome tweeters that create seamless soundstage integration and professional-grade audio quality in every seating position
• German Engineering Excellence – HELIX Ci3 components feature precision-engineered drivers with advanced Cenosphere coating, 3Ω design for maximum amplifier efficiency, and sophisticated crossover networks that deliver 100W RMS handling per pair with extended frequency response from 60Hz to 25kHz for complete full-range performance throughout the cabin

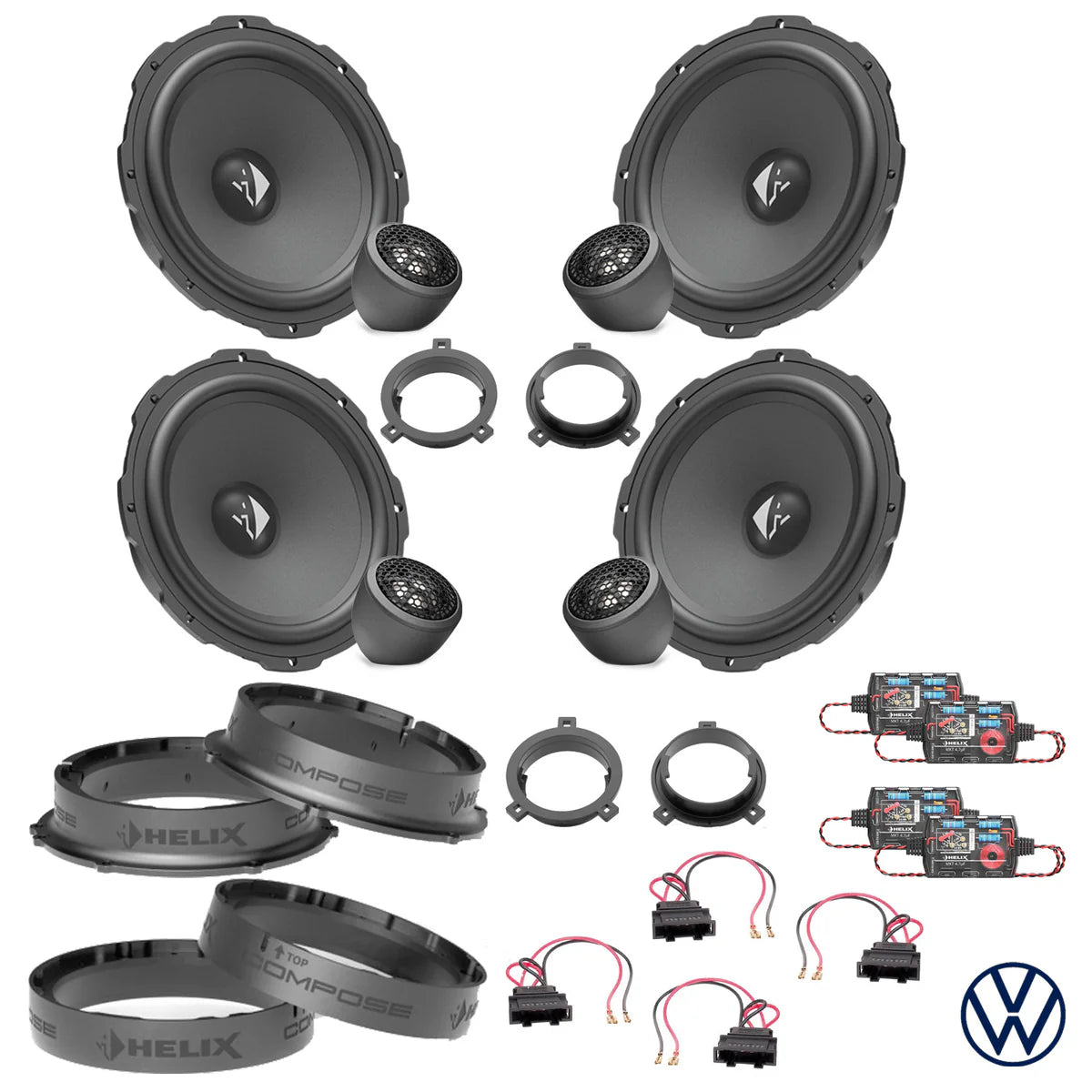

• Perfect Tiguan Integration – Complete plug & play installation through comprehensive vehicle-specific HELIX FlexMount system including CFMK165 VW.2 adapters for front doors, CFMK165 VW.1 adapters for rear doors, CFMK25 VW.1 tweeter adapters for all positions, and AERPRO APS56 connectors that eliminate wire cutting while maintaining professional appearance and acoustic optimization
• High-Efficiency 3Ω Technology – Advanced 3Ω impedance design maximizes power output from factory head units or aftermarket amplifiers, delivering 92dB sensitivity across all positions for impressive volume levels and dynamic range that transforms your complete driving experience without requiring additional amplification while providing headroom for future system expansion

Technical Specs

• Front components: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" woofer with +/- 3.2mm excursion
• Rear components: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" woofer with +/- 3.2mm excursion
• Tweeter specifications: Titanium dome with neodymium magnet, 1800Hz resonance, 20mm voice coil (front and rear)
• Midbass specifications: Paper cone with Cenosphere coating, 70Hz resonance, 25mm voice coil (front and rear)
• Crossover design: 12dB highpass tweeter protection, 6dB lowpass midbass optimization (front and rear)
• Impedance: 3Ω midbass, 4Ω tweeter for optimal efficiency throughout cabin
• Frequency response: 60Hz - 25,000Hz complete cabin coverage
• Sensitivity: 92dB @ 2.83V / 1m (88dB @ 1W / 1m) all positions
• Installation depth: Midbass 60.7mm, Tweeter 9.8mm
• Total system power: 400W RMS / 600W Peak (200W per pair)

Frequently Asked Questions

How much improvement will I notice with complete front and rear speaker upgrades?

Complete cabin upgrades provide dramatic transformation with consistent sonic signature throughout the vehicle. Matching HELIX components front and rear eliminate factory speaker inconsistencies, deliver superior clarity and imaging in all seating positions, and create seamless soundstage integration that transforms the entire listening experience versus partial upgrades.

Will these speakers work with my factory Tiguan head unit throughout the cabin?

Yes, the HELIX Ci3 components feature high-efficiency 3Ω design specifically optimized for factory head unit power levels across all positions. The 92dB sensitivity and advanced impedance matching ensure excellent performance with factory systems while providing consistent volume and clarity front and rear with headroom for future amplifier upgrades.

How do the different FlexMount adapters ensure proper fit in all Tiguan positions?

The comprehensive FlexMount system includes CFMK165 VW.2 for front doors, CFMK165 VW.1 for rear doors, and CFMK25 VW.1 for all tweeter positions. Each adapter is 3D-printed specifically for Tiguan geometry, providing precise mounting, acoustic sealing, and professional appearance while handling automotive temperature ranges and preventing acoustic short circuits.

Can I install this complete speaker system myself or do I need professional installation?

The complete plug & play design enables DIY installation throughout the cabin. The comprehensive FlexMount system secures all speakers in factory locations, AERPRO connectors eliminate wire cutting for all positions, and included mounting accessories provide everything needed for professional-quality installation that preserves warranty and can be reversed if needed.

What makes this complete HELIX system better than mixing different speaker brands?

HELIX Ci3 provides matched acoustic characteristics throughout the cabin with identical driver technology, crossover design, and sonic signature front and rear. This ensures seamless soundstage integration, consistent tonal balance, and professional system performance versus mixed brands that can create acoustic inconsistencies and imaging problems.

Compatible With / Goes Well With

System Enhancement: DSP amplifiers for advanced processing and power, subwoofer systems for bass extension, sound deadening materials for optimal acoustic performance

Future Upgrades: MATCH micro amplifiers for professional power, complete system packages for full transformation, professional calibration accessories for optimal tuning

Professional Services: Expert installation services available through authorized dealers for optimal component placement throughout cabin, acoustic tuning, and complete system optimization
