VW Tiguan - Front Speaker DSP Amplified Package | HELIX Ci3

VW Tiguan - Front Speaker DSP Amplified Package | HELIX Ci3

Transform your Tiguan's front soundstage with German-engineered 6.5" component speakers and professional 5-channel DSP amplification

Product Overview

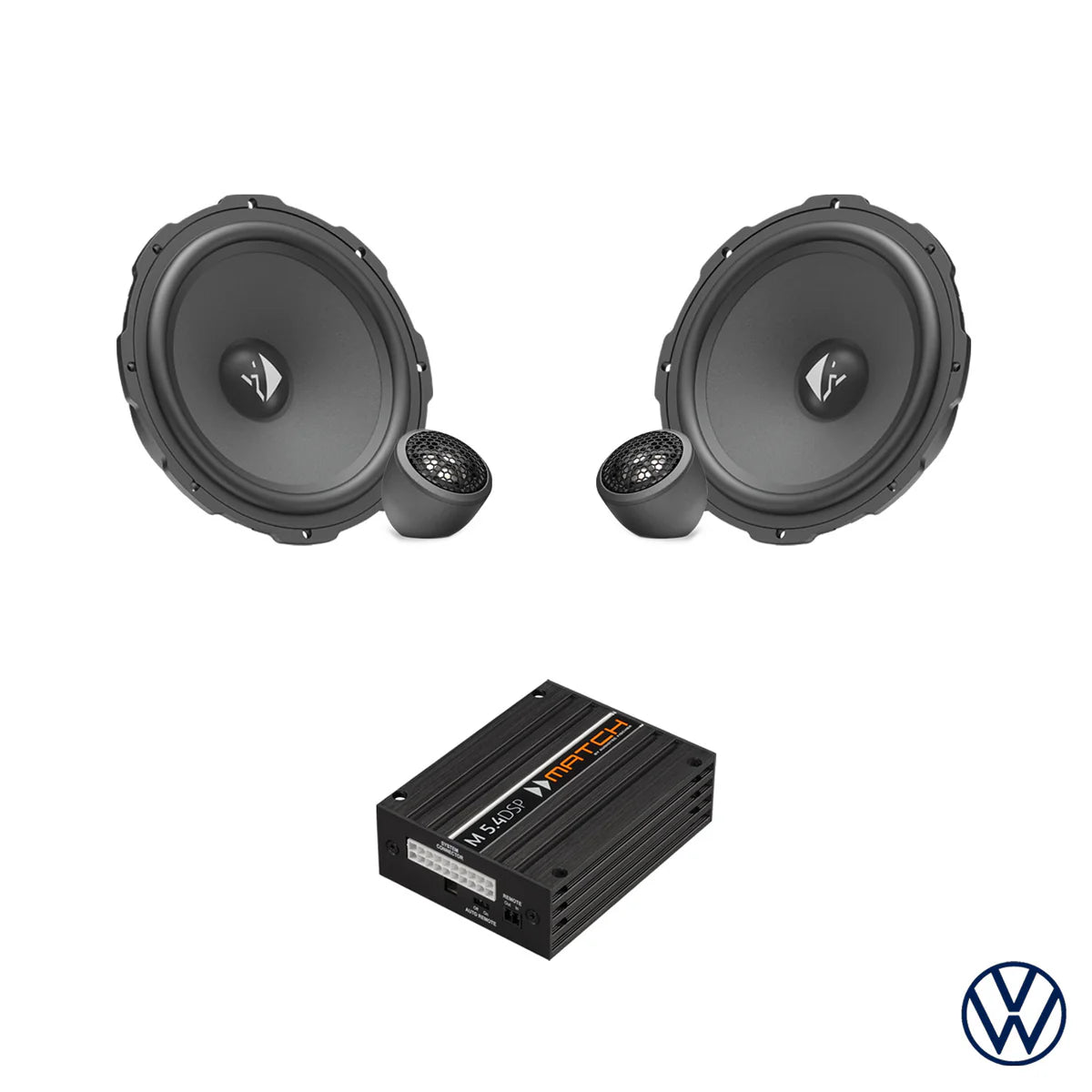

The HELIX Ci3 Front Speaker DSP Amplified Package for VW Tiguan delivers premium audio performance through high-efficiency 6.5" component speakers with advanced 5-channel DSP amplification. This professionally curated package combines HELIX COMPOSE technology with MATCH micro amplifier engineering and advanced DSP processing to create a targeted front speaker upgrade with professional amplification that enhances clarity, dynamics, and overall listening experience while maintaining all original Tiguan functionality through complete plug & play integration.

What Makes This Package Special

• Amplified Front Upgrade Approach – This advanced package transforms your Tiguan's front soundstage with premium 6.5" HELIX components powered by dedicated MATCH M 5.4DSP micro amplifier, featuring 240W RMS total power output with sophisticated 9-channel DSP processing for professional-grade sound quality and system optimization that surpasses factory head unit limitations
• German Engineering Excellence – HELIX Ci3 components feature precision-engineered drivers with advanced Cenosphere coating and 3Ω design, while MATCH M 5.4DSP provides ultra-efficient Class GD amplification with 64-bit DSP resolution, ACO CoProcessor platform, and advanced sound features like Augmented Bass Processing and StageXpander for audiophile-level performance
• Professional DSP Integration – Advanced 5-channel amplification with 9-channel DSP processing provides dedicated power for front components plus subwoofer capability, Virtual Channel Processing for complex configurations, Input Signal Analyzer for factory system compensation, and TuneEQ automated frequency correction for optimal acoustic performance
• Perfect Tiguan Integration – Complete plug & play installation through MATCH Premium Molex T-harness, vehicle-specific HELIX FlexMount adapters, and AERPRO connectors maintains all factory functionality while adding professional amplification with smartphone-sized stealth installation and Start-Stop compatibility for modern vehicles

Technical Specs

• Front components: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" woofer with +/- 3.2mm excursion
• DSP amplifier: 4 x 60W RMS (HighPower) / 4 x 35W RMS (MidPower) + 1 x 160W RMS subwoofer output
• DSP processing: 64-bit resolution, 295 MHz power, 9-channel processing capability
• Frequency response: 20Hz - 20,000Hz complete system coverage with professional tuning
• Signal-to-noise ratio: 105dB digital, 99dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Operating voltage: 10.5-17V with Start-Stop capability down to 6V
• Amplifier dimensions: 35 x 85 x 110mm (smartphone-sized for stealth installation)
• System impedance: 3Ω components for maximum efficiency and power transfer
• Advanced features: Virtual Channel Processing, Input Signal Analyzer, Augmented Bass Processing, StageXpander

Frequently Asked Questions

How much improvement will I notice with DSP amplification versus just speaker upgrades?

DSP amplification provides dramatically superior performance with dedicated 60W RMS per channel versus factory head unit power, plus professional signal processing with Input Signal Analyzer to compensate for factory system limitations, advanced crossover control, and sound enhancement features that deliver audiophile-level clarity and dynamics impossible with factory systems.

Will the micro amplifier fit in my Tiguan without major modifications?

Yes, the MATCH M 5.4DSP measures only 35 x 85 x 110mm (smartphone-sized) and features ultra-efficient Class GD technology with minimal heat generation. The compact design enables stealth installation in various locations while maintaining Start-Stop compatibility and providing professional power output in minimal space.

How does the 9-channel DSP processing enhance front speaker performance?

The advanced DSP provides Virtual Channel Processing for sophisticated signal routing, Input Signal Analyzer to compensate for factory system coloration, parametric EQ with TuneEQ automation, time alignment, and professional sound effects like StageXpander that create immersive soundstage width and imaging impossible with passive systems.

Can this system be expanded for full vehicle audio transformation?

Yes, the M 5.4DSP includes 4 RCA line outputs for additional amplifiers, dedicated subwoofer output with connection cable, and Smart Control Port for MATCH accessories. The system provides the foundation for complete vehicle transformation while delivering immediate front speaker enhancement with professional amplification.

What makes this amplified package better than higher-powered factory systems?

The MATCH DSP amplifier provides clean, dedicated power with professional signal processing versus factory systems with shared amplification and basic EQ. Advanced features like Input Signal Analyzer, Virtual Channel Processing, and audiophile-grade components deliver superior sound quality that factory premium systems cannot match regardless of power ratings.

How It Installs

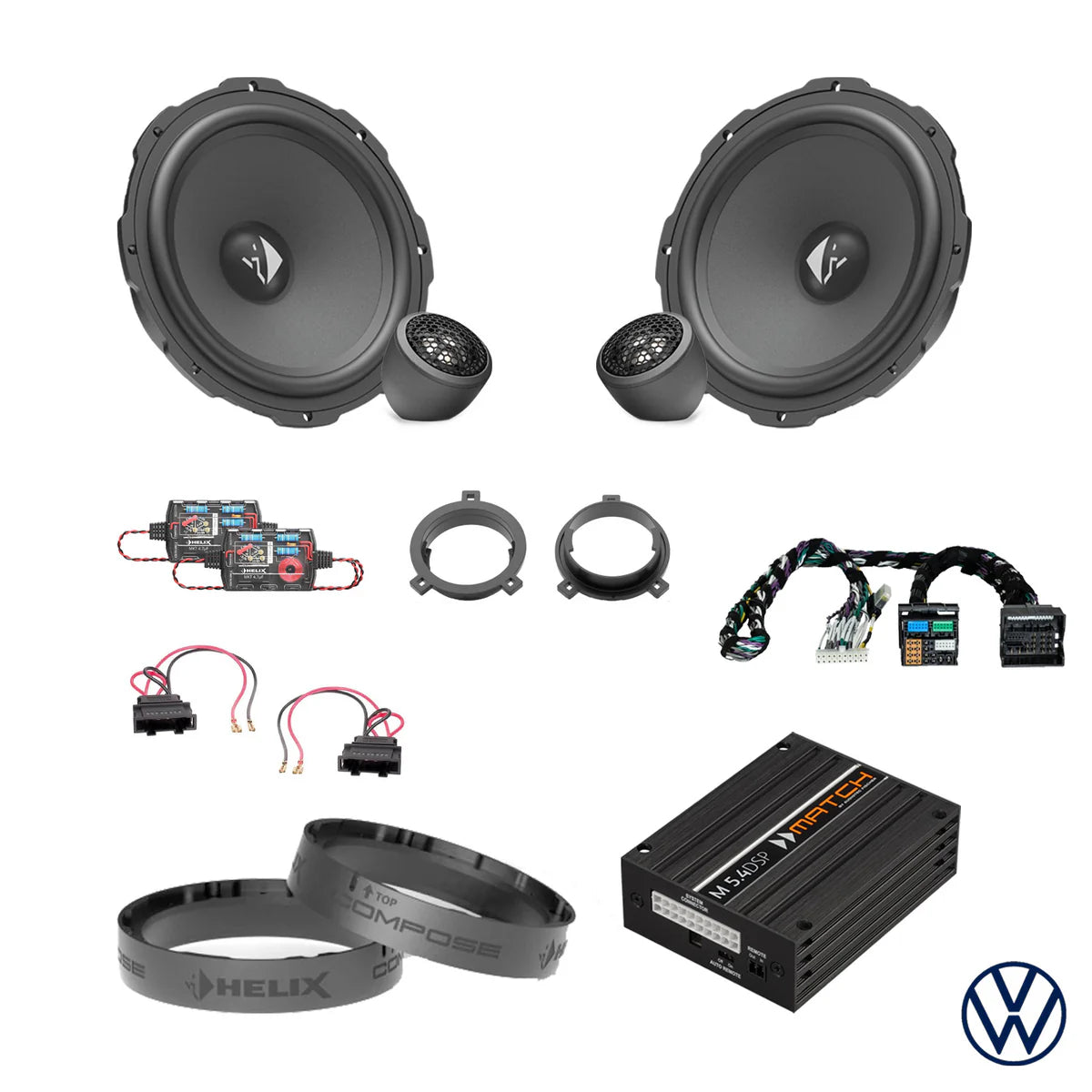

Plug & Play Professional Integration – The amplified package installs through factory connections without cutting any wires, preserving your warranty while adding professional amplification and DSP processing. MATCH Premium Molex T-harness connects to factory wiring, HELIX FlexMount adapters secure components in factory locations, AERPRO connectors provide clean electrical connection, and the micro amplifier installs discretely with comprehensive mounting solutions for professional appearance.

Compatible With / Goes Well With

System Enhancement: Rear speaker upgrades for full cabin transformation, subwoofer systems utilizing dedicated amplifier channel, sound deadening materials for optimal acoustic performance

MATCH Ecosystem: Additional MATCH amplifiers via line outputs, MATCH DIRECTOR controller for advanced system control, professional calibration accessories for optimal tuning

Professional Services: Expert installation and comprehensive DSP tuning packages available through authorized dealers for optimal component placement, acoustic calibration, and advanced sound optimization
