Out of stock

VW T6.1 - Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

SKU: 104769
Price
$3,282
Buy now, pay later
  • image
  • image
  • image


Product features

Transform your VW T6.1 into the ultimate professional audio command center with German-engineered precision throughout.

Product Overview

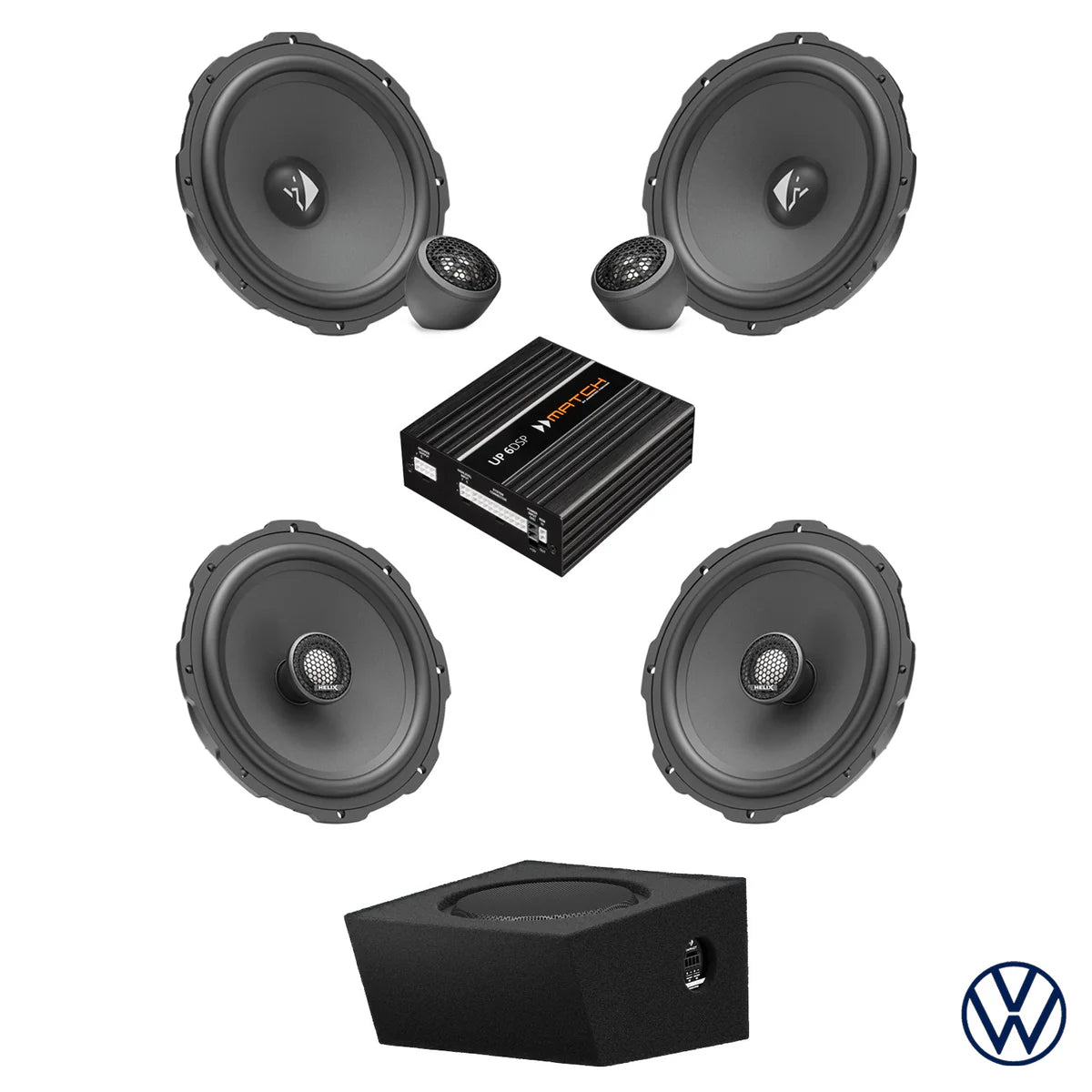

The HELIX Ci3 Complete DSP Audio Package for VW T6.1 delivers comprehensive sound transformation through German-engineered components and advanced digital signal processing. This complete system features 6.5" FlexMount component speakers for the front, coaxial speakers for the rear, a vehicle-specific 10" console subwoofer, and a sophisticated 6-channel DSP amplifier with vehicle-specific integration hardware. Built on HELIX COMPOSE and MATCH DSP technology, the package is designed for professional installation to unlock premium audio performance throughout your commercial vehicle while maintaining the durability and functionality expected in demanding work environments.

Key Specifications

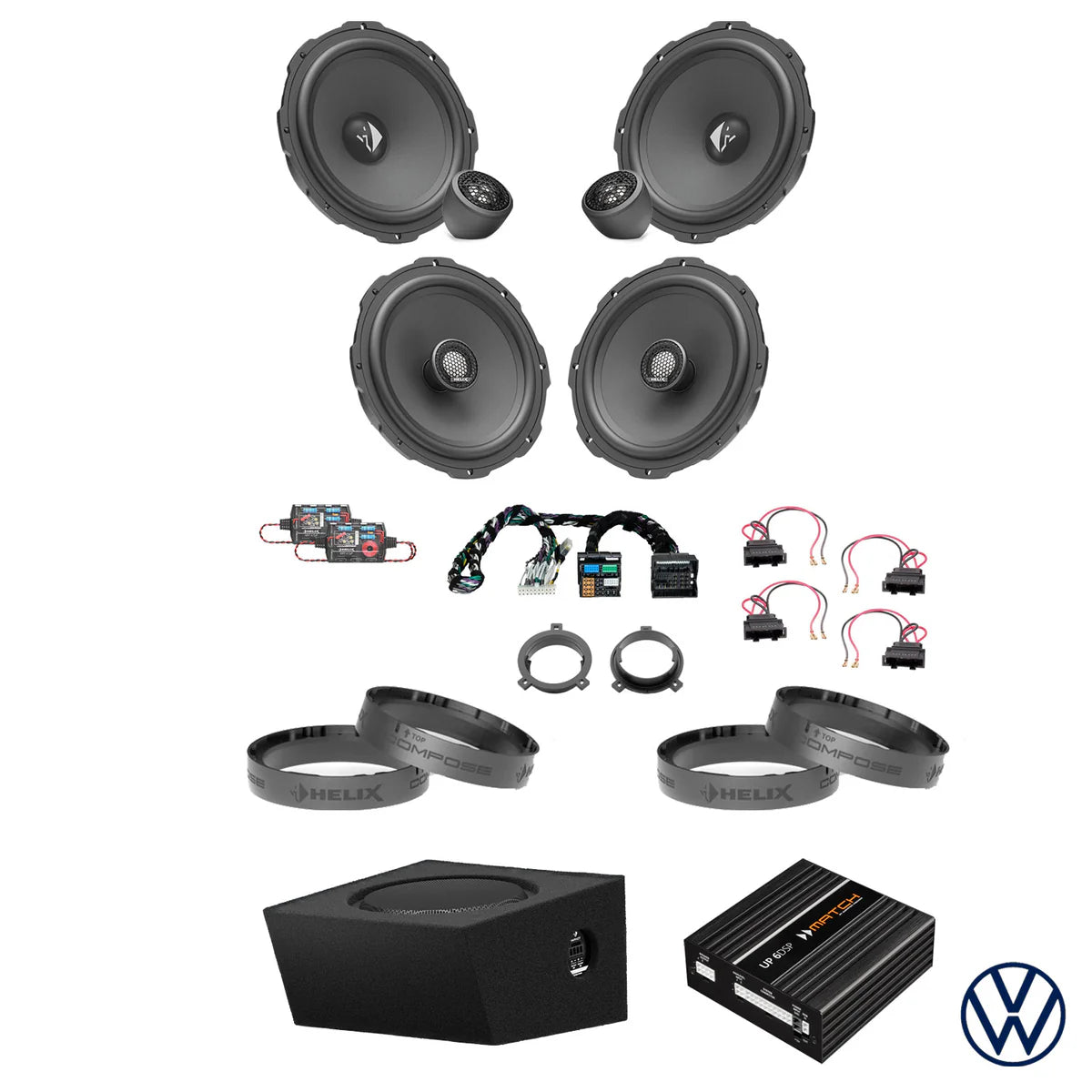

Package Contents:

  • HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
  • HELIX Ci3 C165.2FM-S3 - 6.5" 2-Way Coaxial Speaker Pair with FlexMount (3Ω impedance)
  • HELIX IK EC10.1-DVC2 VW Multi-Trans - 10" Sealed Console Subwoofer (300W RMS)
  • MATCH UP 6DSP - 6 Channel DSP Amplifier with 7-Channel Processing
  • MATCH PP-PAM 92b - VAG Quadlock T-Harness for Radio-to-Amplifier Integration
  • HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (2 Pairs)
  • HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
  • Aerpro APS56 - VW Speaker Plug Adapters (2 Pairs)

System Specifications:

  • Front amplification: 4 × 65W RMS minimum (3Ω compatible)
  • Rear/subwoofer channels: 2 × 160W RMS @ 2Ω
  • DSP resolution: 64-bit with 295MHz processing power
  • Speaker configuration: Front components, rear coaxials, console subwoofer
  • Vehicle compatibility: VW T6.1, T6, T5 specific engineering
  • Integration method: Complete DSP processing with factory radio retention

Features & Benefits

Complete Commercial Vehicle Solution - Every audio zone is upgraded with German-engineered components, delivering professional audio performance throughout your T6.1 while maintaining the durability and functionality commercial operators demand.

Advanced DSP Processing Excellence - The MATCH UP 6DSP provides comprehensive 7-channel processing with TuneEQ automated calibration, Virtual Channel Processing, and proprietary sound enhancement features like Augmented Bass Processing and RealCenter.

Space-Optimized Professional Design - The console-mounted subwoofer utilizes otherwise unused space while front components and rear coaxials provide full-range coverage without compromising vehicle functionality or cargo capacity.

German Engineering Throughout - HELIX and MATCH represent the pinnacle of European automotive audio technology, with materials and construction standards that exceed commercial vehicle requirements for reliability and performance longevity.

Factory Integration Excellence - ADEP.3 circuitry and VAG-specific T-harness ensure seamless integration with factory systems without triggering diagnostic errors, while maintaining all OEM functions and vehicle monitoring systems.

Technical Specs

HELIX Component/Coaxial Speakers:

  • Power handling: 100W RMS / 150W Max per pair
  • Frequency response: 60Hz - 25,000Hz
  • Sensitivity: 92dB @ 2.83V/1m
  • Impedance: 3Ω throughout system for optimal amplifier matching
  • Construction: Paper cone with Cenosphere coating, titanium dome tweeters

MATCH UP 6DSP Amplifier:

  • Front channels (A-D): 4 × 65W RMS @ 3Ω minimum
  • Subwoofer channels (E-F): 2 × 160W RMS @ 2Ω
  • Dimensions: 46 × 130 × 130mm compact design
  • Features: TuneEQ, Virtual Channel Processing, ADEP.3 integration
  • Signal-to-noise ratio: 104dB analog, 106dB digital

HELIX Console Subwoofer:

  • Driver: 10" (250mm) with sandwich paper cone
  • Enclosure dimensions: 193 × 350 × 330mm
  • Impedance options: Configurable 2×2Ω / 4Ω / 1Ω
  • Installation: Passenger seat console specific design

Frequently Asked Questions

Will this provide audio for all seating positions? Yes, this complete system includes front components for detail, rear coaxials for coverage, and a console subwoofer for bass throughout the entire T6.1 cabin.

How much cargo space will I lose? The console subwoofer utilizes unused space within the passenger seat console, preserving all cargo capacity while adding powerful bass response.

Can this handle demanding commercial use? Yes, all components are built to exceed automotive standards with extended temperature ranges and durability specifications suitable for commercial vehicle applications.

Is professional tuning included? The TuneEQ function provides automated frequency response correction, but professional installation and calibration is recommended for optimal performance in your specific application.

Will this affect my vehicle warranty? The plug-and-play design with ADEP.3 integration preserves factory wiring and functions, but installation involves interior modifications that should be discussed with us.

Compatible With / Goes Well With

Vehicle Applications:

  • VW T6.1

Installation Components Included:

  • Complete FlexMount adapter system for front and rear speakers
  • Console mounting hardware for subwoofer
  • VAG Quadlock T-harness for DSP integration
  • Professional installation documentation

Professional Services:

  • Complete system installation and console modification
  • DSP calibration and TuneEQ setup
  • Multi-zone audio optimization

Weight

Total package weight approximately 25-30kg
