VW T6.1 - Front Speaker DSP Amplified Package | HELIX Ci3

Transform your VW T6.1 into a professional audio powerhouse with German-engineered precision and commercial-grade performance.

Product Overview

The HELIX Ci3 DSP Audio Package for VW T6.1 delivers professional-quality sound transformation through German-engineered components and advanced amplification technology. This complete system features 6.5" FlexMount component speakers, a vehicle-specific 10" console subwoofer, and a compact high-power monoblock amplifier engineered for commercial vehicle applications. Built on HELIX COMPOSE and MATCH technologies, the package is designed for professional installation to unlock premium audio performance while maintaining the durability and functionality expected in commercial vehicle environments.

Key Specifications

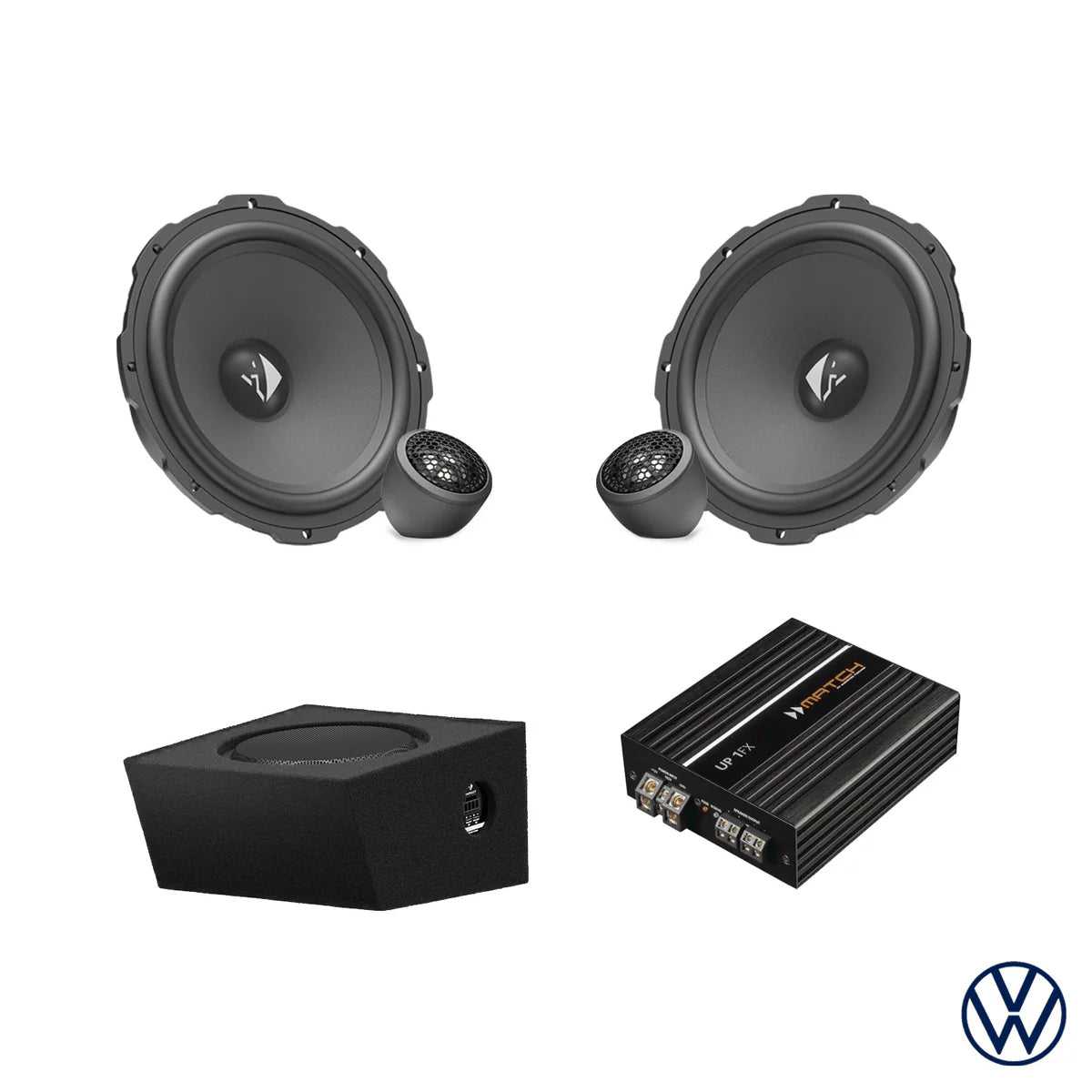

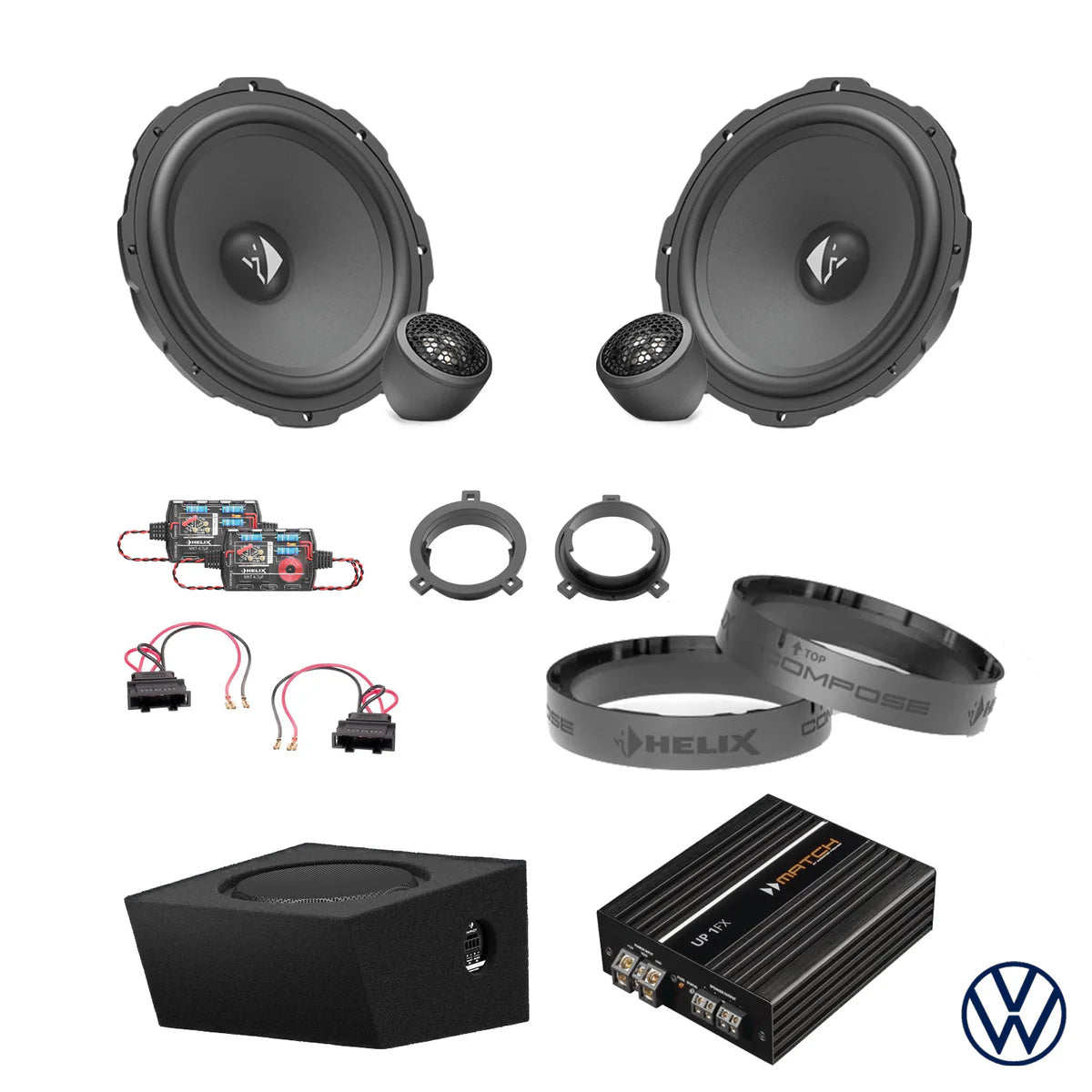

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH UP 1FX - Compact 1-Channel Digital Amplifier (900W RMS @ 1Ω)
• HELIX IK EC10.1-DVC2 VW Multi-Trans - 10" Sealed Console Subwoofer (300W RMS)
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (Pair)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
• Aerpro APS56 - VW Speaker Plug Adapters (Pair)

System Specifications:

• Front speakers: 100W RMS / 150W Max power handling
• Subwoofer: 300W RMS with flexible impedance configuration (2×2Ω / 4Ω / 1Ω)
• Amplifier: Up to 900W RMS @ 1Ω with ADEP.3 integration
• Vehicle compatibility: VW T6.1, T6, T5 specific engineering
• Installation: FlexMount technology with console integration

Features & Benefits

Complete Commercial Vehicle Solution - Every component is engineered for the demanding commercial vehicle environment, delivering professional audio performance while maintaining the durability and functionality T6.1 operators require.

Space-Optimized Design - The console-mounted subwoofer utilizes otherwise unused space in the passenger seat console, preserving valuable cargo capacity while delivering powerful bass response throughout the cabin.

German Engineering Excellence - HELIX and MATCH represent the pinnacle of European automotive audio technology, with materials and construction standards that exceed commercial vehicle requirements for reliability and longevity.

Advanced Factory Integration - ADEP.3 circuitry ensures seamless integration with factory systems without triggering diagnostic errors, while maintaining all OEM functions including radio controls and vehicle monitoring systems.

Professional Installation Approach - FlexMount adapters and console-specific subwoofer design enable clean, professional installation that maintains vehicle warranty compliance and resale value.

Technical Specs

HELIX Ci3 Component Speakers:

• Frequency response: 60Hz - 25,000Hz
• Sensitivity: 92dB @ 2.83V/1m
• Impedance: 3Ω for optimal amplifier matching
• Installation depth: 60.7mm midbass, 9.8mm tweeter
• Construction: Paper cone with Cenosphere coating, titanium dome tweeter

MATCH UP 1FX Amplifier:

• Output power: 350W @ 4Ω / 600W @ 2Ω / 900W @ 1Ω RMS
• Dimensions: 46 × 130 × 153mm ultra-compact
• Features: ADEP.3 integration, DirectDSP mode, Start-Stop capability
• Signal-to-noise ratio: 108dB with 0.002% THD

HELIX Console Subwoofer:

• Driver: 10" (250mm) with sandwich paper cone
• Enclosure dimensions: 193 × 350 × 330mm
• Impedance options: Configurable 2×2Ω / 4Ω / 1Ω
• Installation: Passenger seat console specific design

Frequently Asked Questions

Will this fit my specific T6.1 configuration? This package is designed for VW T6.1, T6, and T5 models with passenger seat console compatibility. The console subwoofer is specifically engineered for these applications.

How much cargo space will I lose? The console subwoofer utilizes unused space within the passenger seat console, preserving all cargo capacity while adding powerful bass response.

Can this handle commercial vehicle operating conditions? Yes, all components are built to automotive standards with extended temperature ranges and durability specifications suitable for commercial vehicle applications.

Will this affect my vehicle warranty or compliance? The plug-and-play design with ADEP.3 integration preserves factory wiring and functions, but installation involves interior modifications that should be discussed with us.

What installation expertise is required? Professional installation is recommended due to console modification requirements and amplifier integration. The system requires electrical and mechanical installation expertise.

Compatible With / Goes Well With

Vehicle Applications:

• VW T6.1

Installation Components Included:

• FlexMount speaker and tweeter adapters
• Console mounting hardware for subwoofer
• Speaker plug adapters for factory integration
• Professional installation documentation

Professional Services:

• Console modification and subwoofer installation
• Amplifier mounting and wiring
• System tuning and calibration

Weight

Total package weight approximately 20-25kg
