Complete audio transformation with German-engineered 6.5" front components, rear coaxials, powerful dual 6.5" subwoofer, and advanced 5-channel DSP amplification

Product Overview

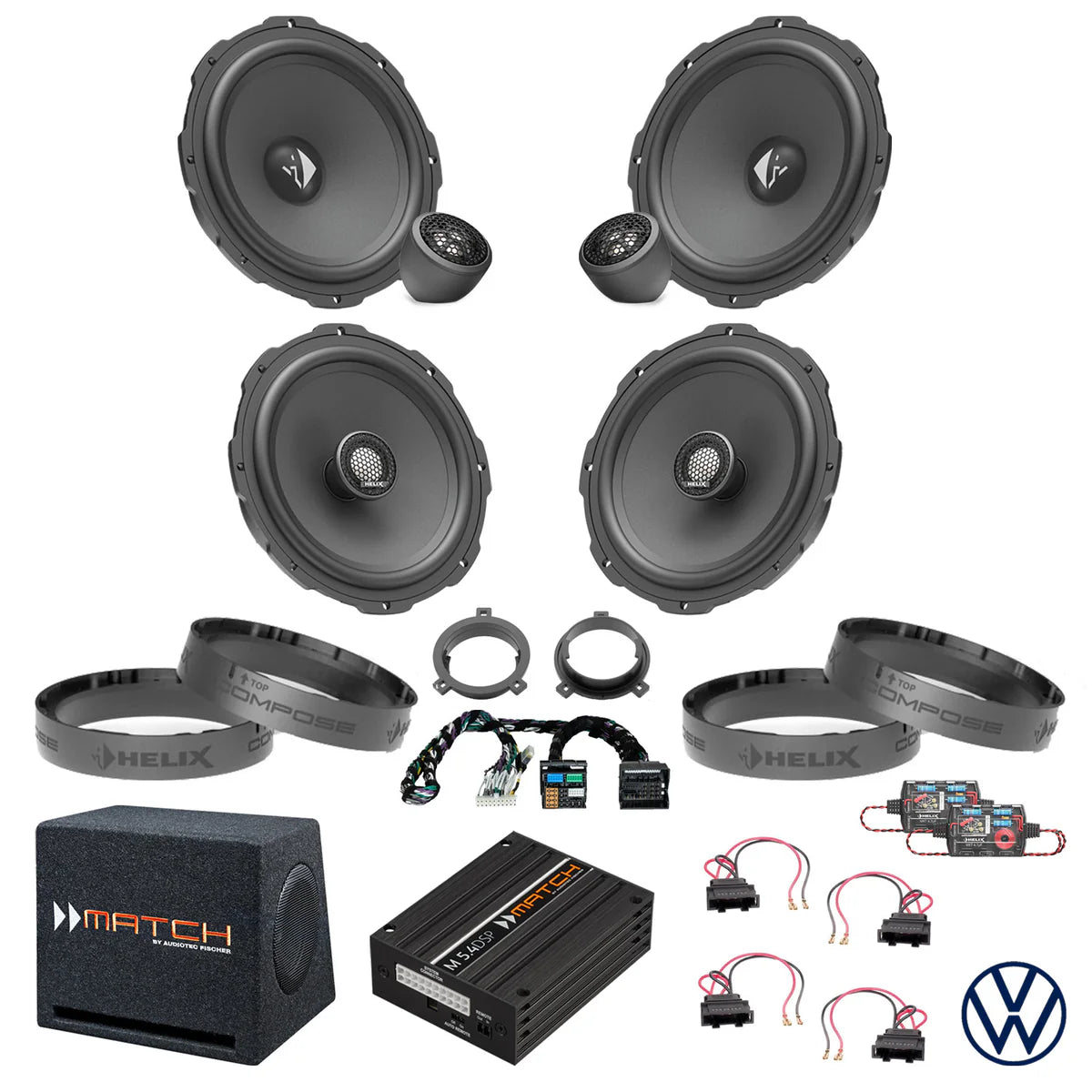

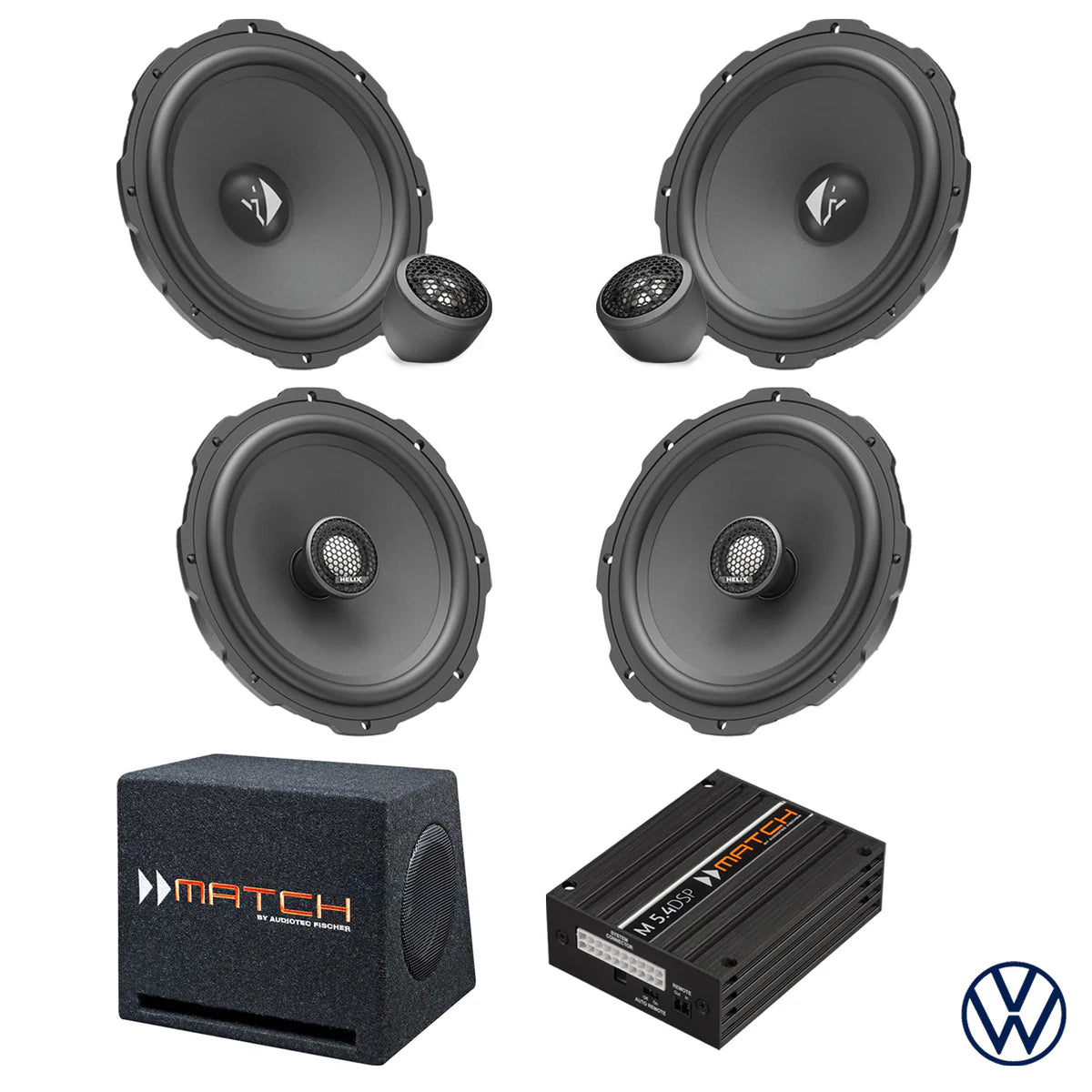

The HELIX Ci3 Speaker & Subwoofer DSP Amplified Package for VW T-Roc A1 delivers comprehensive audio performance through premium 6.5" component speakers front, matching coaxial speakers rear, compact dual 6.5" vented subwoofer enclosure, and advanced 5-channel DSP amplifier. This professionally curated complete system combines HELIX COMPOSE technology with MATCH subwoofer engineering and advanced DSP processing to create the ultimate T-Roc A1 audio transformation that enhances every aspect of your listening experience while maintaining all original functionality through complete plug & play integration.

What Makes This Package Special

• Strategic Complete System Approach – This comprehensive package transforms your entire T-Roc A1 audio with premium 6.5" HELIX components for front clarity and imaging, matching coaxial speakers for consistent rear fill, plus powerful dual 6.5" MATCH subwoofer for deep bass extension, all powered by sophisticated 5-channel DSP amplifier with 500W RMS total output for professional-grade sound quality throughout the cabin
• German Engineering Excellence – HELIX Ci3 components feature precision-engineered drivers with advanced Cenosphere coating and 3Ω design for maximum efficiency, while matching coaxial speakers provide consistent sonic signature, and MATCH PP 7E-D subwoofer delivers powerful bass response through dual long-excursion woofers with hand-scooped paper cones and optimized vented enclosure design
• Advanced 5-Channel DSP Processing – MATCH M 5.4DSP delivers 4 x 60W RMS for front/rear speakers plus 200W RMS for subwoofer with 9-channel processing, Virtual Channel Processing for complex configurations, Input Signal Analyzer for factory system compensation, and Augmented Bass Processing for optimized subwoofer performance with seamless system integration
• Perfect T-Roc A1 Integration – Complete plug & play installation through MATCH Premium Molex T-harness, vehicle-specific HELIX FlexMount adapters for components and coaxials, and AERPRO connectors maintains all factory functionality while adding professional amplification with smartphone-sized stealth installation and dedicated subwoofer cable for seamless MATCH system operation

Technical Specs

• Front components: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" woofer with +/- 3.2mm excursion
• Rear coaxials: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" driver with integrated tweeter
• Subwoofer: 200W RMS / 400W Peak, dual 6.5" long-excursion woofers, 4x2Ω impedance configuration
• DSP amplifier: 4 x 60W RMS + 1 x 200W RMS, 64-bit processing, 295 MHz DSP power
• Subwoofer excursion: +/- 5.0mm linear with 90dB efficiency @ 1W/1m
• Frequency response: 20Hz - 25,000Hz complete system coverage with deep bass extension
• Signal-to-noise ratio: 105dB digital, 99dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Operating voltage: 10.5-17V with Start-Stop capability down to 6V
• Subwoofer dimensions: 280 x 318 x 310mm compact vented enclosure
• Total system power: 500W RMS / 800W Peak
• Advanced features: Virtual Channel Processing, Augmented Bass Processing, Input Signal Analyzer, StageXpander

Frequently Asked Questions

How does the component/coaxial combination optimize T-Roc A1 performance?

The strategic combination provides premium front soundstage with separate tweeters for superior imaging and clarity, while matching coaxial speakers deliver consistent rear fill without separate tweeter mounting requirements. This approach maximizes front performance where critical vocals and imaging occur while maintaining acoustic balance throughout the cabin.

Will the complete system including subwoofer fit properly in my T-Roc A1?

Yes, the HELIX FlexMount system ensures perfect speaker integration in all factory locations, while the MATCH PP 7E-D features compact vented enclosure design (280 x 318 x 310mm) specifically engineered for compact SUV installations. The system maximizes performance while maintaining boot functionality and professional appearance.

How does the 5-channel DSP optimize this mixed speaker configuration?

The M 5.4DSP provides dedicated amplification and processing for front components (2 channels), rear coaxials (2 channels), and subwoofer (1 channel) with independent crossover control. Virtual Channel Processing enables sophisticated signal routing, while Input Signal Analyzer compensates for factory system limitations across all speaker types for seamless integration.

Can this system accommodate the T-Roc A1's compact interior design?

Yes, the smartphone-sized M 5.4DSP amplifier (35 x 85 x 110mm) enables stealth installation in minimal space, while the FlexMount system provides perfect acoustic integration without modifications. The strategic component/coaxial approach optimizes performance for compact cabin acoustics while maintaining professional appearance throughout.

What makes the MATCH subwoofer specially optimized for this complete system?

The PP 7E-D is specifically engineered for MATCH Plug & Play amplifier integration with included 4.8m connection cable, optimized impedance matching (4x2Ω), and acoustic tuning designed to work in perfect harmony with MATCH DSP processing including Augmented Bass Processing for seamless integration with front/rear speakers.

Compatible With / Goes Well With

Professional Services: Complete installation and comprehensive DSP tuning packages available through authorized dealers for optimal system calibration, subwoofer integration, and advanced acoustic setup with Virtual Channel Processing

System Enhancement: Sound deadening materials for optimal acoustic performance, professional calibration accessories for advanced tuning, MATCH DIRECTOR controller for comprehensive system control

MATCH Ecosystem: Additional MATCH amplifiers via line outputs, upgraded power cables for maximum performance, custom installation solutions for enhanced integration and professional appearance
