VW Polo VII AW - Front Speaker DSP Amplified Package | HELIX Ci3

Transform your VW Polo VII AW front speakers with precision German engineering and professional DSP integration.

Product Overview

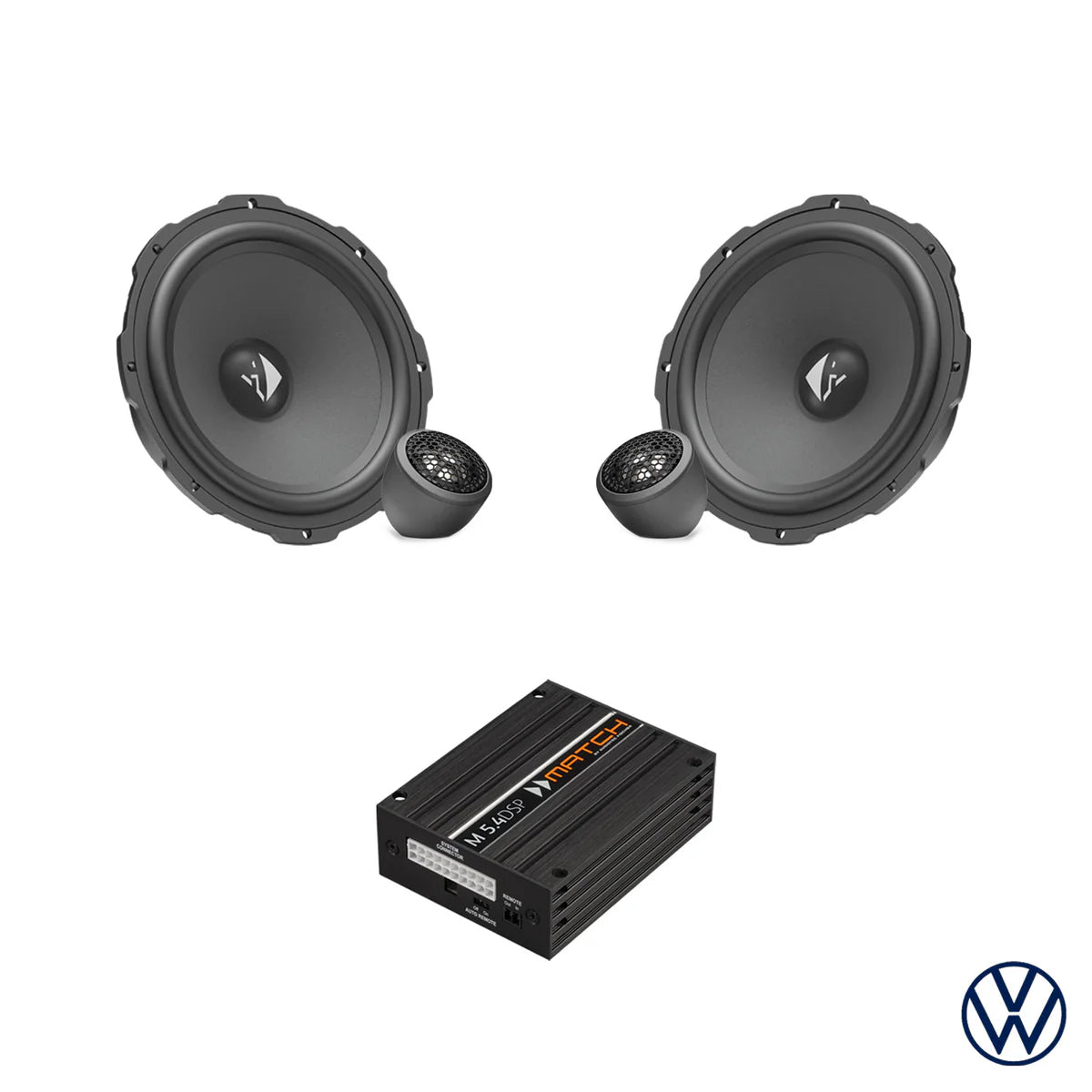

The HELIX Ci3 Front Speaker DSP Package for VW Polo VII AW delivers audiophile-quality front soundstage through German-engineered components and advanced digital signal processing. This complete system features 6.5" FlexMount component speakers with a sophisticated 5-channel DSP amplifier and vehicle-specific integration hardware. Built on HELIX COMPOSE and MATCH DSP technology, the package is designed for professional installation using the MATCH Plug & Play upgrade system to unlock premium front audio performance while maintaining factory functionality.

Key Specifications

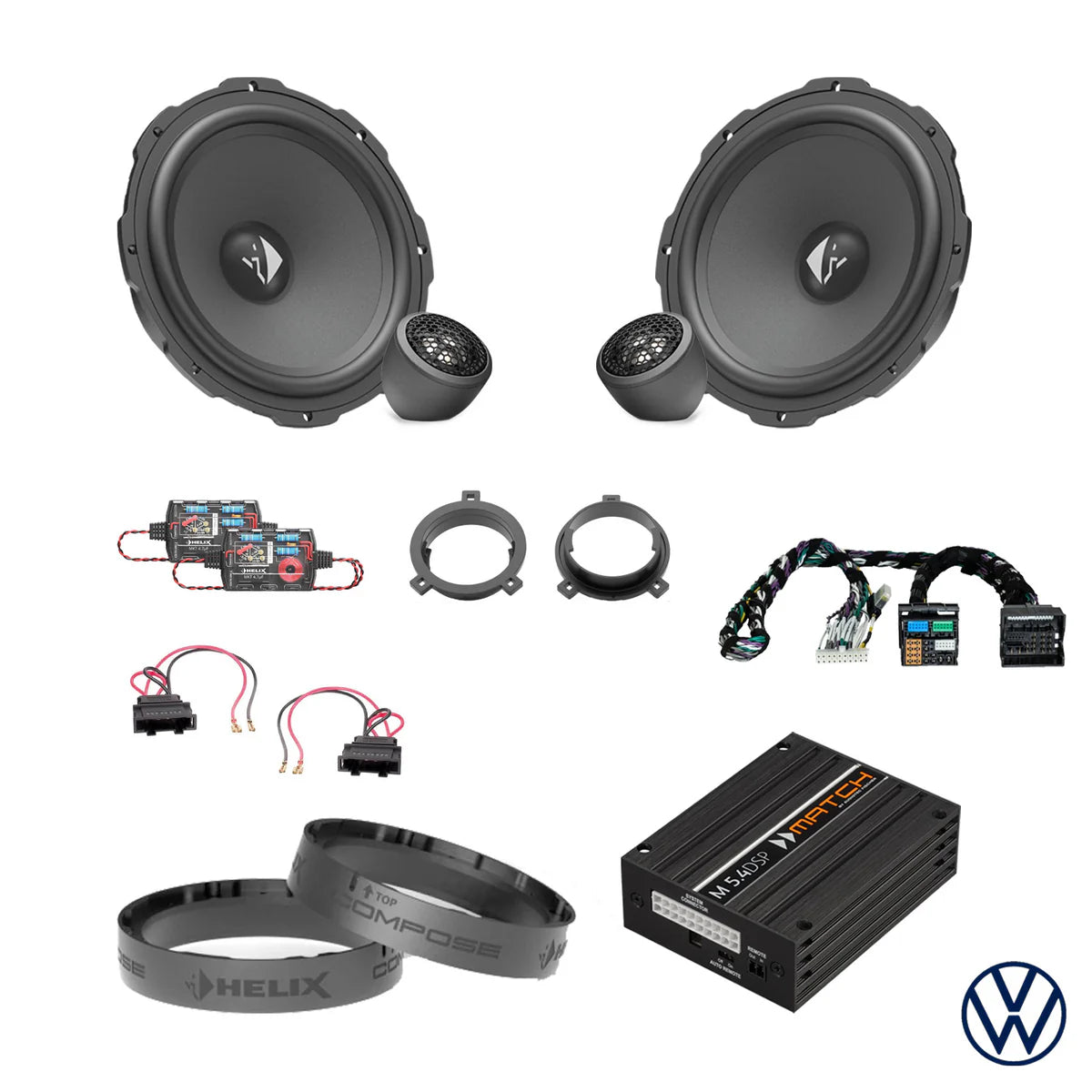

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH M 5.4DSP - 5 Channel Micro Amplifier with 9-Channel DSP Processing
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for Radio-to-Amplifier Integration
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (Pair)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
• Aerpro APS56 - VW Speaker Plug Adapters (Pair)

System Specifications:

• Front amplification: 4 × 60W RMS (HighPower mode) / 4 × 35W RMS (MidPower mode)
• Subwoofer output capability: 1 × 160W RMS @ 2Ω (for future expansion)
• DSP resolution: 64-bit with 295MHz processing power
• Speaker configuration: 2-way component with separate tweeters and crossovers
• Vehicle compatibility: VW Polo VII AW (2017+) specific engineering
• Integration method: Plug-and-play with factory radio retention

Features & Benefits

German Precision Engineering - HELIX Ci3 components deliver exceptional clarity and dynamics through advanced driver design, titanium dome tweeters, and precision crossover networks engineered for European audio standards.

Advanced DSP Processing - MATCH M 5.4DSP provides 64-bit signal processing with intelligent features like Input Signal Analyzer, StageXpander, and Augmented Bass Processing to optimise your Polo's front soundstage acoustics.

Vehicle-Specific Integration - FlexMount adapters and VAG Quadlock T-harness ensure seamless installation without cutting factory wiring, maintaining warranty coverage while delivering professional-grade audio performance.

Dual Power Modes - HighPower mode maximises performance with external power supply, while MidPower mode enables plug-and-play installation using factory electrical systems for simplified integration.

Future Expansion Ready - Integrated subwoofer output and line outputs allow easy system expansion with additional amplifiers or subwoofers as your audio requirements evolve.

Technical Specs

HELIX Ci3 Component Speakers:

• Power handling: 100W RMS / 150W Max per pair
• Frequency response: 60Hz - 25,000Hz
• Sensitivity: 92dB @ 2.83V/1m
• Impedance: 3Ω for maximum amplifier efficiency
• Installation depth: 60.7mm midbass, 9.8mm tweeter
• Construction: Paper cone with Cenosphere coating, titanium dome tweeter

MATCH M 5.4DSP Amplifier:

• Dimensions: 35 × 85 × 110mm (smartphone-sized)
• Operating voltage: 10.5-17V (Start-Stop compatible)
• Signal-to-noise ratio: >105dB digital, >99dB analog
• Total harmonic distortion: <0.03%
• DSP features: 9-channel processing, BurrBrown converters

Installation Hardware:

• FlexMount adapters: Automotive-grade 3D printed polymer (-40°C to +90°C)
• T-harness: 1.0m length with optimised cable cross-sections
• Speaker connectors: Plug-and-play design for VW factory plugs

Frequently Asked Questions

Does this package include rear speakers? No, this is a front speaker upgrade package only. The system focuses on optimising the front soundstage with component speakers and DSP processing.

Can I add a subwoofer later? Yes, the MATCH M 5.4DSP includes a dedicated subwoofer output (160W RMS) and comes with connection cables for easy future subwoofer integration.

Will this work in MidPower mode without extra wiring? Yes, MidPower mode (4 × 35W RMS) operates using factory electrical supply, making it ideal for plug-and-play installations without additional power cables.

Do I need professional installation? While designed as plug-and-play, professional installation is recommended for optimal DSP tuning and to achieve the full performance potential of the HELIX components.

Is this compatible with factory steering wheel controls? Yes, the MATCH PP-PAM 92b T-harness maintains factory radio functions including steering wheel controls and dashboard integration.

Compatible With / Goes Well With

Vehicle Applications:

• VW Polo VII AW (2017+ with 40-pin Quadlock system)
• Compatible VW Group vehicles with VAG Quadlock connectors

Future System Expansion:

• MATCH PP series subwoofers with plug-and-play cables
• Additional amplifiers via line outputs
• MATCH wireless control accessories (WIFI CONTROL, DIRECTOR)

Installation Services:

• Professional DSP tuning and calibration
• Sound deadening materials for enhanced acoustics
• Custom installation configurations

Weight

Total package weight approximately 5-8kg
