VW Polo VII AW - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

Transform your VW Polo VII AW with precision German engineering and professional DSP audio integration.

Product Overview

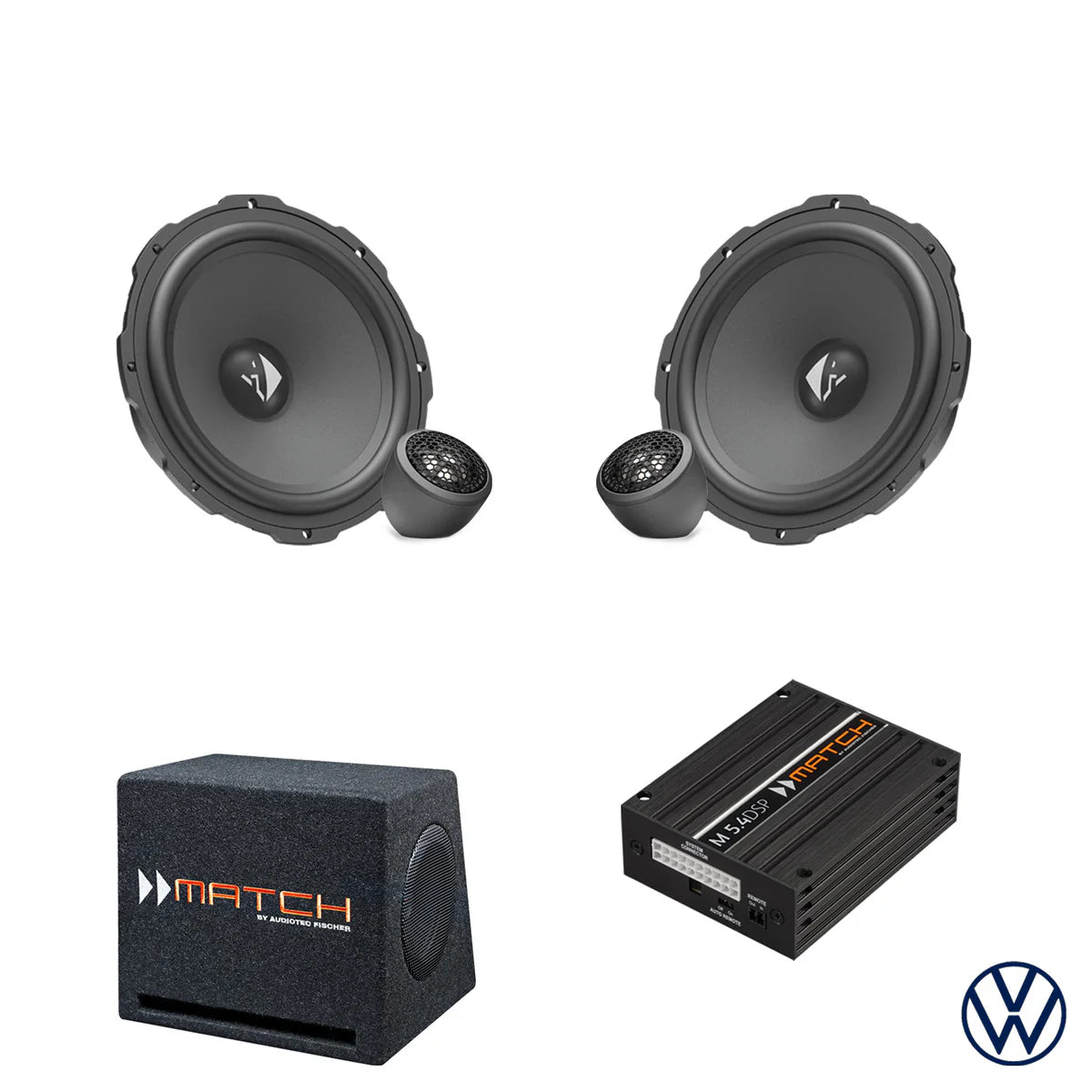

The HELIX Ci3 DSP Audio Package for VW Polo VII AW delivers audiophile-quality sound through German-engineered components and advanced digital signal processing. This complete system features 6.5" FlexMount component speakers, a compact dual-subwoofer enclosure, and a sophisticated 5-channel DSP amplifier with vehicle-specific integration hardware. Built on HELIX COMPOSE and MATCH DSP technology, the package is designed for professional installation to unlock premium audio performance while maintaining factory aesthetics and functionality.

Key Specifications

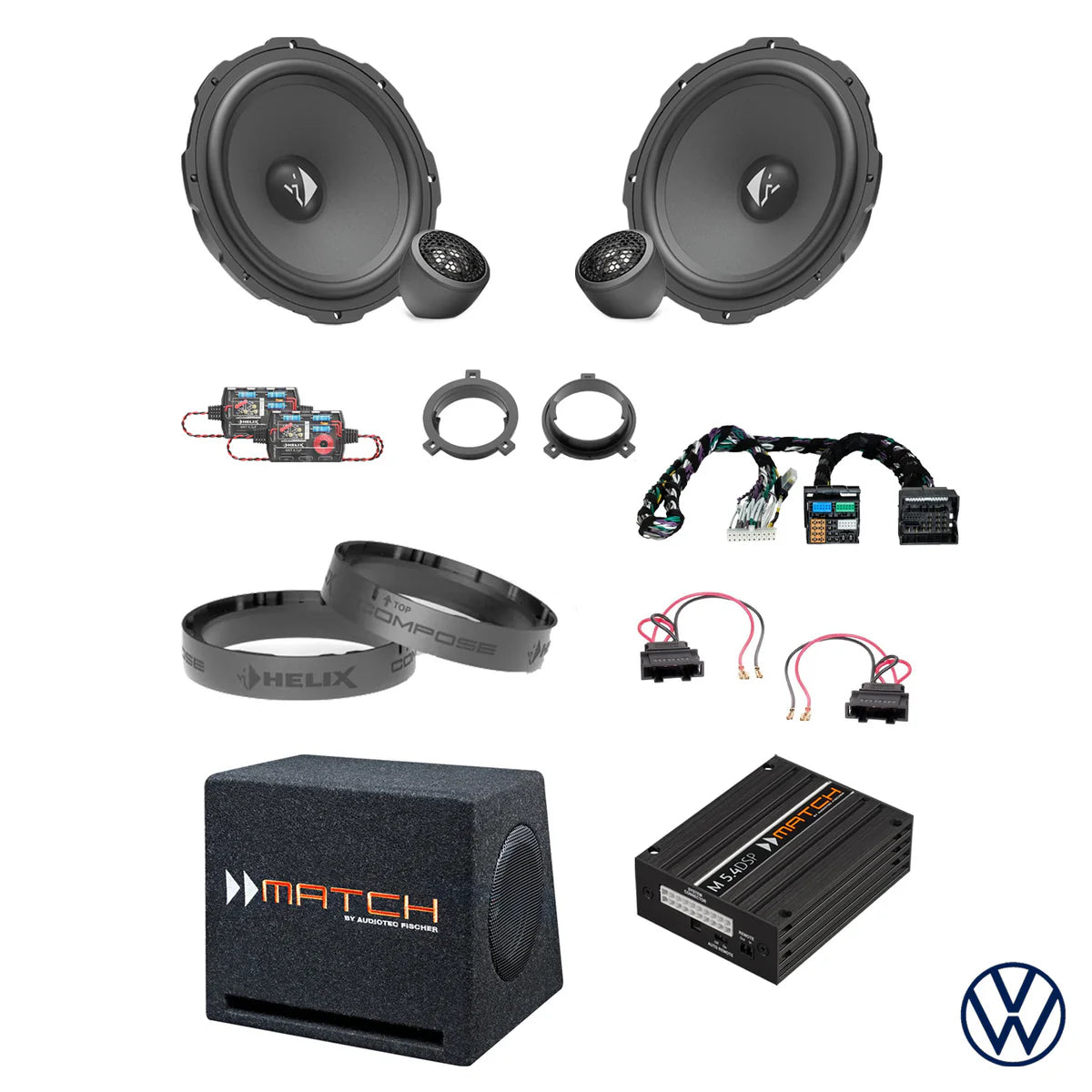

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH PP 7E-D - Dual 6.5" 200W RMS Vented Subwoofer Enclosure (4×2Ω configuration)
• MATCH M 5.4DSP - 5 Channel Micro Amplifier with 9-Channel DSP Processing
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for Radio-to-Amplifier Integration
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapters (Pair)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapters (Pair)
• Aerpro APS56 - VW Speaker Plug Adapters (Pair)

System Specifications:

• Total system power: 400W RMS / 800W Maximum
• Front amplification: 4 × 60W RMS (HighPower mode)
• Subwoofer amplification: 1 × 160W RMS @ 2Ω
• DSP resolution: 64-bit with 295MHz processing power
• Vehicle compatibility: VW Polo VII AW (2017+) specific engineering
• Integration method: Plug-and-play with factory radio retention

Features & Benefits

Complete System Integration - Every component is pre-selected and tested together, eliminating guesswork and ensuring optimal acoustic synergy between speakers, amplification, and vehicle acoustics.

Advanced DSP Processing - The MATCH M 5.4DSP delivers 64-bit signal processing with intelligent features like Input Signal Analyzer, StageXpander, and Augmented Bass Processing to compensate for your Polo's interior acoustics.

German Engineering Excellence - HELIX and MATCH represent the pinnacle of European automotive audio technology, with materials and construction standards that exceed OEM requirements for durability and performance.

Factory-Perfect Integration - Vehicle-specific T-harnesses and FlexMount adapters ensure clean, reversible installation that maintains your vehicle's warranty and resale value while delivering audiophile sound quality.

Compact High-Performance Design - The micro DSP amplifier and optimised subwoofer enclosure maximise performance while preserving your Polo's practical cargo space and interior functionality.

Technical Specs

HELIX Ci3 Component Speakers:

• Frequency response: 60Hz - 25,000Hz
• Sensitivity: 92dB @ 2.83V/1m
• Impedance: 3Ω for maximum amplifier efficiency
• Installation depth: 60.7mm midbass, 9.8mm tweeter
• Crossover: 12dB high-pass tweeter, 6dB low-pass midbass
• Construction: Paper cone with Cenosphere coating, titanium dome tweeter

MATCH DSP Amplifier:

• Output power: 4 × 60W + 1 × 160W RMS
• Operating voltage: 10.5-17V (Start-Stop compatible)
• Dimensions: 35 × 85 × 110mm
• Inputs: High-level, optical SPDIF
• DSP features: 9-channel processing, 64-bit resolution

MATCH Subwoofer Enclosure:

• Dual 6.5" long-excursion drivers with 4×2Ω configuration
• Enclosure dimensions: 280 × 318 × 310mm
• Maximum excursion: ±5.0mm linear
• Efficiency: 90dB @ 1W/1m

Frequently Asked Questions

Will this fit my specific Polo VII model year? This package is designed for VW Polo VII AW chassis (2017+). The included PP-PAM 92b adapter specifically suits the newer VAG Quadlock connector system.

Can I install this myself or do I need professional help? While components are plug-and-play, installation involves dashboard disassembly and DSP tuning. Professional installation is recommended for optimal results and warranty protection.

How much power will this draw from my battery? The system draws approximately 280mA when idle and up to 40A maximum during high-volume operation, well within your Polo's electrical system capacity.

Will this affect my factory warranty? The plug-and-play design preserves factory wiring, but installation involves interior modifications. Consult us first regarding warranty implications before installation.

What's included for the complete installation? The package includes all speakers, amplifier, subwoofer, vehicle-specific harnesses, FlexMount adapters, speaker connectors, and mounting hardware required for installation.

Compatible With / Goes Well With

Vehicle Applications:

• VW Polo VII AW (2017+ with 40-pin Quadlock system)
• Seat Ibiza (compatible chassis with verification)
• Škoda Fabia (compatible models with verification)

Installation Accessories Included:

• MATCH PP-PAM 92b T-harness (VAG Quadlock)
• HELIX FlexMount CFMK165 VW.1 speaker adapters
• HELIX FlexMount CFMK25 VW.1 tweeter adapters
• Aerpro APS56 speaker plug adapters
• All required mounting hardware and cables

Professional Installation Services:

• DSP tuning and calibration
• Interior trim removal tools
• Acoustic measurement equipment

Weight

Total package weight approximately 15-20kg
