Transform your Golf 8 with enhanced bass performance through German-engineered 8" components and professional 4-channel DSP amplification

Product Overview

The HELIX Ci3 Extra Bass DSP Package for VW Golf 8 delivers superior audio performance with enhanced low-frequency response through premium 8" component speakers, 6.5" coaxial speakers, and advanced 4-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with advanced DSP processing to create a comprehensive upgrade that maximizes bass response while maintaining all original Golf 8 functionality and aesthetics through complete plug & play integration.

Key Specifications

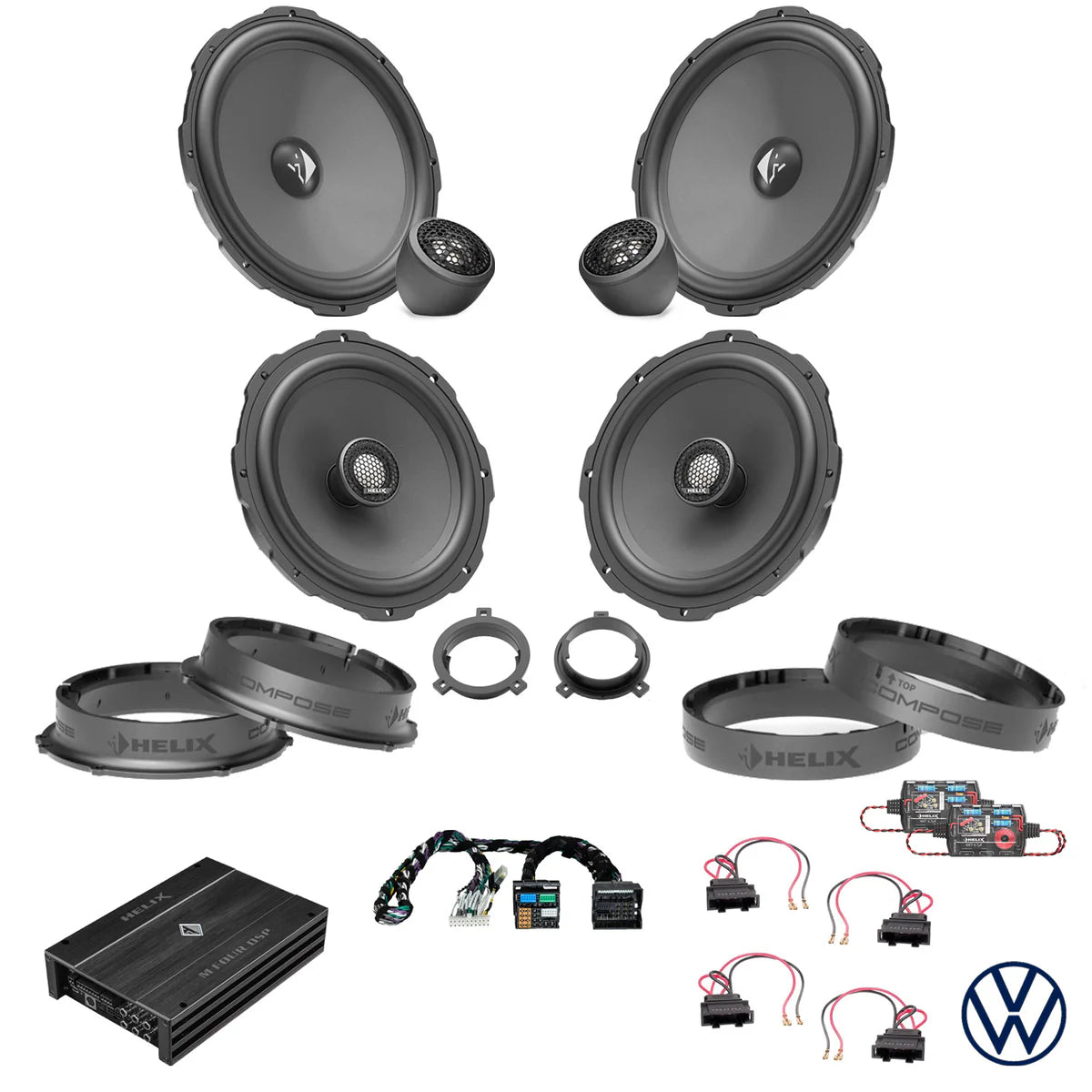

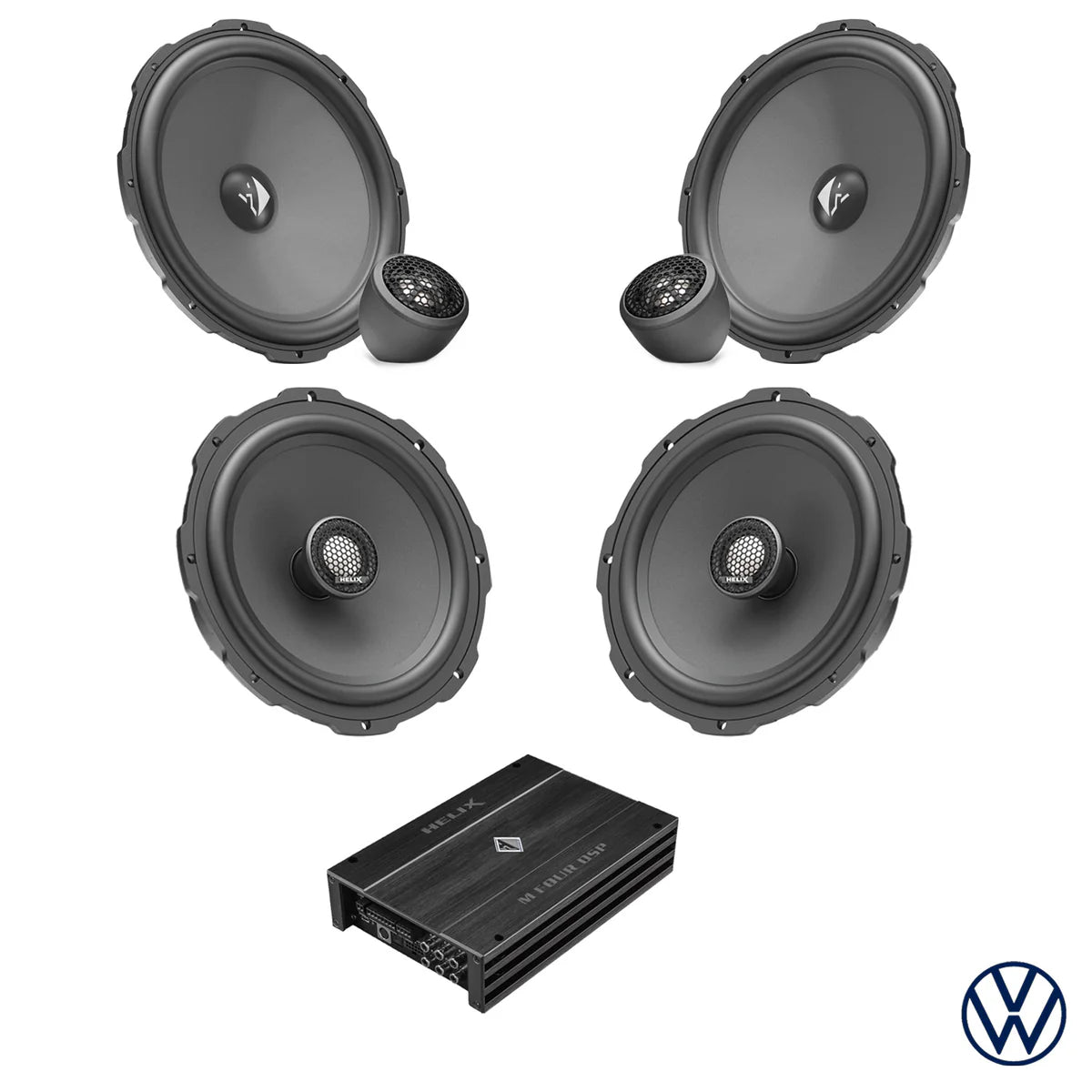

Package Contents:

• HELIX Ci3 K200.2FM-S3 - 8" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• HELIX Ci3 C165.2FM-S3 - 6.5" 2-Way Coaxial Speaker Pair with FlexMount (3Ω impedance)
• HELIX M FOUR DSP - 4 Channel Amplifier with 10ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK200 VW.2 - 8" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen x2 Items

System Specifications:

• Front speakers: 8" (200mm) component system with enhanced bass response
• Rear speakers: 6.5" (165mm) coaxial system for consistent rear fill
• Total amplifier power: 400W RMS (4 x 100W RMS per channel)
• DSP processing: 64-bit resolution with 10-channel Virtual Channel Processing
• Vehicle compatibility: VW Golf 8 specific engineering with complete integration

Features & Benefits

• Enhanced Bass Performance – Premium 8" component speakers deliver superior low-frequency response with 50Hz-25kHz range and 94dB sensitivity, providing deeper, more powerful bass than standard 6.5" systems while maintaining exceptional midrange clarity
• German HELIX Engineering Excellence – Both component and coaxial speakers feature titanium dome tweeters, Cenosphere-coated drivers, and 3Ω high-efficiency design for maximum power transfer and audiophile-quality sound reproduction
• Professional 4-Channel DSP Integration – HELIX M FOUR DSP provides 100W RMS per channel with advanced 64-bit processing, Virtual Channel Processing, and proprietary sound effects including Augmented Bass Processing for optimized system tuning
• Complete FlexMount Integration System – Vehicle-specific 3D-printed adapters (CFMK200, CFMK165, CFMK25) ensure perfect speaker positioning and acoustic sealing in all Golf 8 locations without modifications to factory trim
• Advanced DSP Features Suite – Includes Input Signal Analyzer, InputEQ compensation, StageXpander, RealCenter processing, and comprehensive crossover control for professional-grade acoustic tuning and system optimization
• Plug & Play Professional Installation – MATCH T-harness and AERPRO connectors enable complete system integration without wire cutting, preserving warranty while adding professional amplification and DSP capabilities

Technical Specs

• Front components: 100W RMS / 150W Peak, 50Hz-25kHz, 94dB sensitivity, 8" woofer
• Rear coaxials: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 6.5" driver
• DSP amplifier: 4 x 100W RMS @ 4Ω & 2Ω, 64-bit processing, 295 MHz DSP power
• Frequency response: 20Hz - 22,000Hz complete system coverage
• Signal-to-noise ratio: 105dB digital, 102dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Operating voltage: 10.5-16V with Start-Stop capability
• Front woofer excursion: +/- 3.8mm for enhanced bass response
• System impedance: 3Ω throughout for maximum efficiency

Frequently Asked Questions

How does the 8" component system provide better bass than standard 6.5" speakers?

The HELIX Ci3 K200.2FM-S3 features larger 8" woofers with +/- 3.8mm excursion and extended 50Hz-25kHz frequency response compared to 6.5" systems. This delivers significantly deeper bass response and higher output levels while maintaining exceptional midrange clarity for enhanced overall performance.

Will the larger 8" components fit properly in my Golf 8 front doors?

Yes, the CFMK200 VW.2 FlexMount adapters are specifically 3D-printed for Golf 8 front door locations to accommodate the 8" HELIX components. They provide perfect mounting, acoustic sealing, and professional appearance without modifications to factory trim or panels.

How does the HELIX M FOUR DSP enhance the extra bass performance?

The M FOUR DSP provides 100W RMS per channel with Augmented Bass Processing, advanced crossover control, and Virtual Channel Processing. This enables precise bass management, optimized frequency distribution, and enhanced low-frequency response that maximizes the potential of the larger 8" woofers.

Does this system maintain compatibility with my Golf 8's factory electronics?

Yes, the MATCH PP-PAM 92b T-harness provides complete plug & play integration maintaining steering wheel controls, navigation, and all factory functions. The AERPRO connectors eliminate wire cutting while the DSP amplifier includes Auto Remote switching for seamless operation.

What makes this "Extra Bass" package different from standard speaker upgrades?

This package combines larger 8" front woofers for enhanced bass response with professional DSP amplification and bass processing. The HELIX M FOUR DSP includes specific bass enhancement features and crossover control that optimize the larger drivers for maximum low-frequency performance.

Compatible With / Goes Well With

System Enhancement: HELIX subwoofers for ultimate bass extension, sound deadening materials for doors, professional calibration services for optimal DSP tuning

Professional Services: Complete installation and comprehensive DSP tuning packages available through authorized dealers for optimal system calibration and acoustic setup

Future Expansion: Additional amplifiers via RCA outputs, upgraded power cables, custom installation solutions for enhanced performance and integration capabilities
