Transform your Golf 8 into a premium audio experience with German-engineered components and professional DSP amplification

Product Overview

The HELIX Ci3 DSP Amplified Package for VW Golf 8 delivers audiophile-quality sound through a complete system integration featuring German-engineered component speakers, compact subwoofer enclosure, and advanced 5-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with MATCH amplification expertise to create a seamless plug & play upgrade that transforms your Golf 8's factory audio system while maintaining all original functionality and aesthetics.

Key Specifications

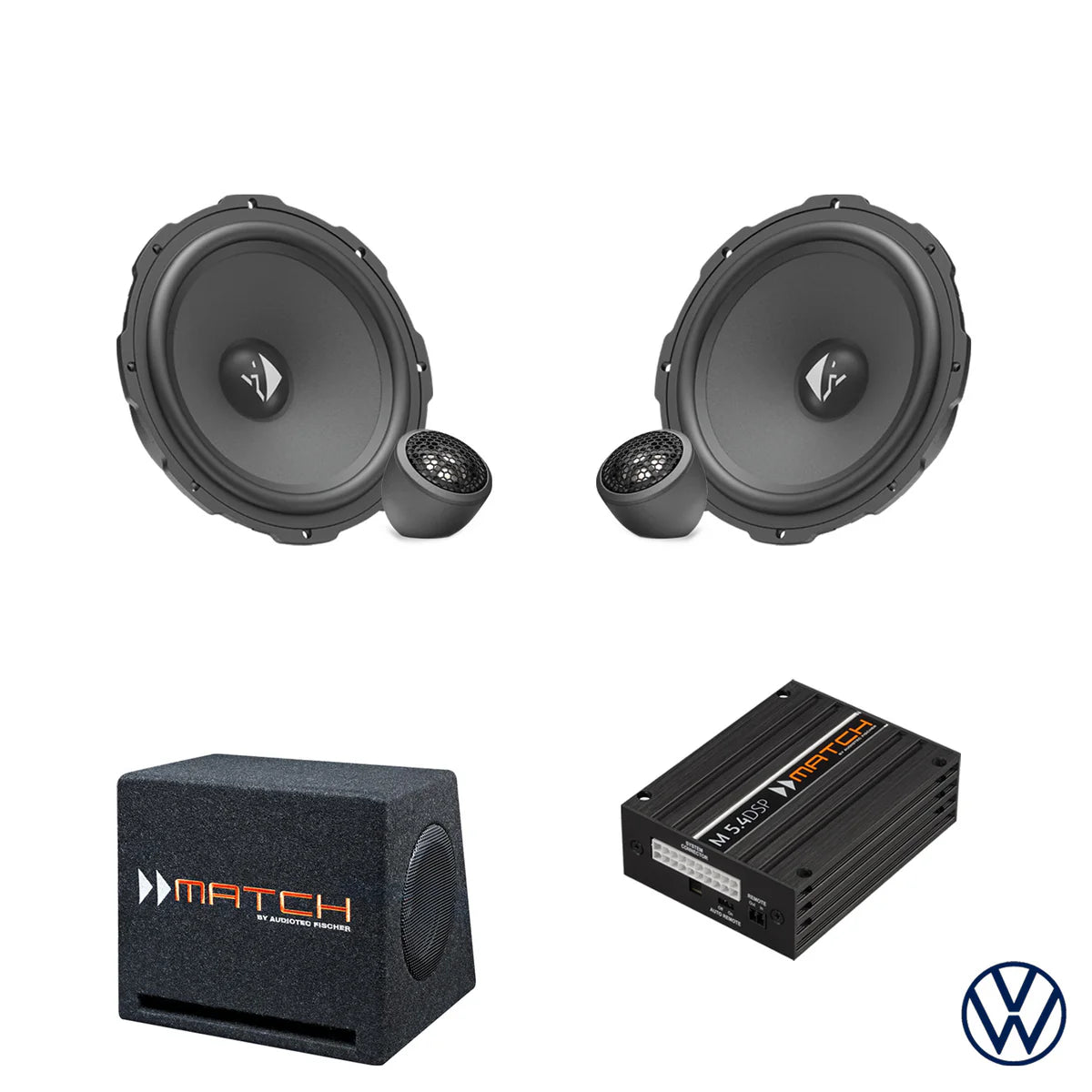

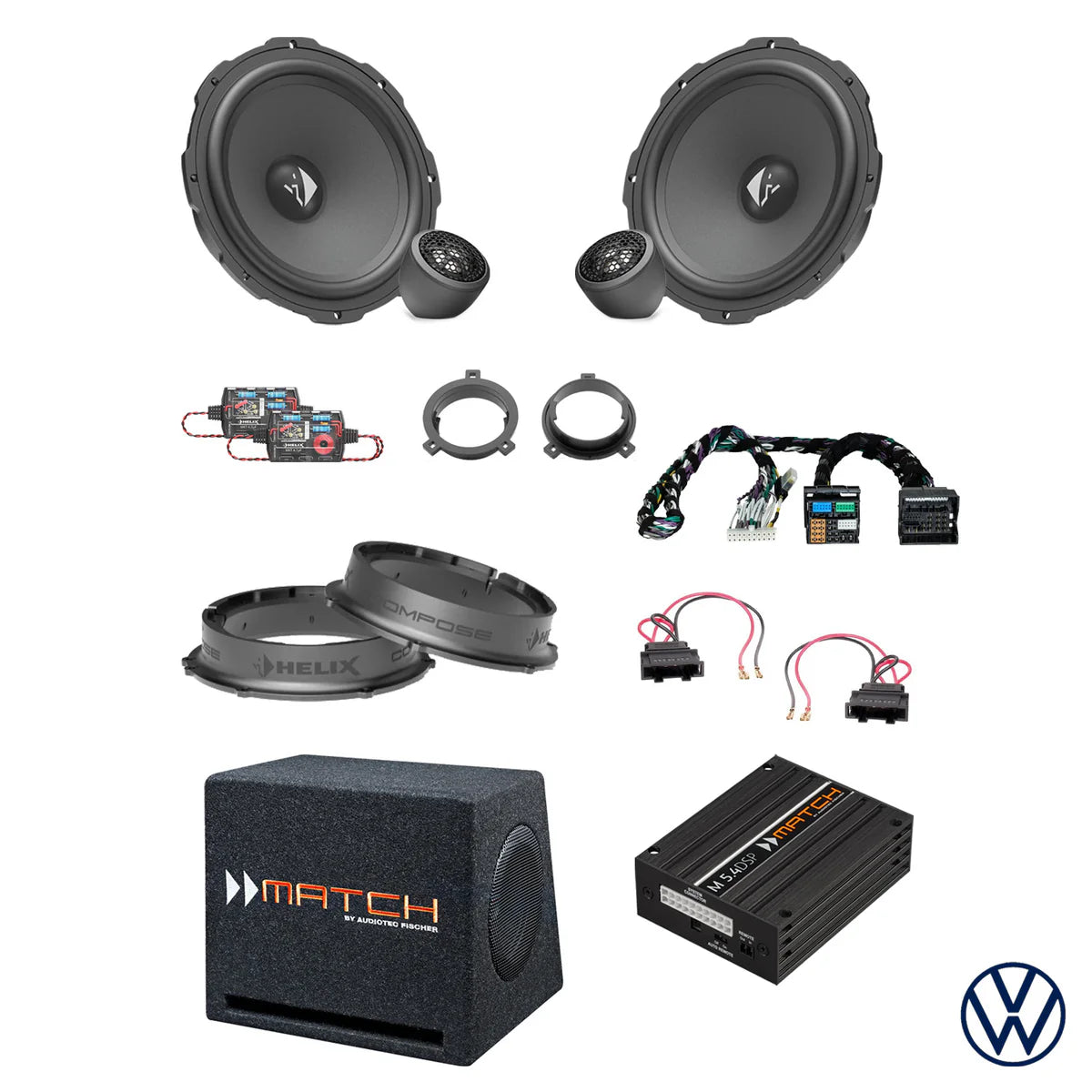

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH PP 7E-D - 2x6.5" 200W RMS Vented Subwoofer Box (4x2Ω configuration)
• MATCH M 5.4DSP - 5 Channel PnP Micro Amplifier with 9ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK165 VW.2 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen

System Specifications:

• Total amplifier power: 400W RMS / 800W Peak
• Front speakers: 100W RMS / 150W Peak per channel
• Subwoofer: 200W RMS / 400W Peak
• DSP processing: 64-bit resolution with 9-channel capability
• Vehicle compatibility: VW Golf 8 specific engineering with VAG Quadlock integration
• Installation method: Plug & play with factory integration T-harness

Features & Benefits

• Complete DSP Audio System – Professional 5-channel amplifier with 64-bit DSP processing delivers studio-quality sound tuning, bass management, and advanced acoustic correction specifically calibrated for Golf 8 cabin acoustics
• German HELIX COMPOSE Technology – Premium component speakers feature titanium dome tweeters, Cenosphere-coated paper cones, and advanced crossover networks for exceptional clarity and dynamics in your Golf 8's acoustic environment
• MATCH Plug & Play Integration – Micro amplifier and VAG Quadlock T-harness provide seamless factory integration without wire cutting, preserving warranty while adding professional-grade amplification and DSP processing
• Compact Vented Subwoofer System – Dual 6.5" long-excursion woofers in optimized vented enclosure deliver deep, powerful bass response despite compact dimensions perfect for Golf 8 boot space
• Complete FlexMount Integration – Vehicle-specific 3D-printed adapters ensure perfect speaker positioning and acoustic sealing in factory locations without modifications to trim or panels
• Advanced DSP Features – Includes Auto Turn-On, signal analysis, input EQ, augmented bass processing, stage expansion, and real center processing for audiophile-level sound customization

Technical Specs

• Component speakers: 100W RMS / 150W Peak, 60Hz-25kHz, 92dB sensitivity, 3Ω impedance
• Subwoofer system: 200W RMS / 400W Peak, dual 6.5" drivers, 4x2Ω configuration
• DSP amplifier: 5 channels, 64-bit processing, 295 MHz DSP power, optical SPDIF input
• Frequency response: 20Hz - 20,000Hz full spectrum coverage
• Signal-to-noise ratio: >105dB digital, >99dB analog
• Operating voltage: 10.5-17V with Start-Stop capability
• Amplifier dimensions: 35 x 85 x 110mm ultra-compact design
• Construction: German HELIX and MATCH engineering standards with automotive-grade materials

Frequently Asked Questions

Does this complete DSP package include everything for professional Golf 8 installation?

Yes, this package includes all components for complete system upgrade: component speakers, subwoofer, DSP amplifier, VAG Quadlock T-harness, FlexMount adapters, and AERPRO connectors. Professional installation recommended for optimal DSP tuning and system integration.

How does the MATCH M 5.4DSP amplifier integrate with my Golf 8's factory system?

The MATCH M 5.4DSP uses the included PP-PAM 92b VAG Quadlock T-harness for plug & play integration with your Golf 8's factory wiring. The amplifier features Auto Turn-On, maintains steering wheel controls, and requires no wire cutting while adding 400W RMS amplification.

What makes this DSP system better than standard amplified speakers?

The 64-bit DSP processing provides professional audio tuning including bass management, time alignment, crossover control, and acoustic correction specifically calibrated for Golf 8 acoustics. This delivers audiophile-quality sound impossible with passive systems or basic amplifiers.

Will the MATCH PP 7E-D subwoofer fit in my Golf 8 boot space?

Yes, the compact vented enclosure measures 280 x 318 x 310mm and is specifically designed for space-conscious installations. The dual 6.5" configuration provides powerful bass response while maintaining practical boot space in your Golf 8.

How do the FlexMount adapters work with the DSP amplified system?

The CFMK165 VW.2 and CFMK25 VW.1 adapters ensure perfect speaker positioning for optimal DSP processing and soundstage creation. They provide acoustic sealing and precise mounting that maximizes the benefits of the advanced DSP amplification and tuning capabilities.

Compatible With / Goes Well With

Professional Services: Complete installation and DSP tuning packages available through authorized dealers for optimal acoustic setup and system calibration

System Integration: Compatible with all VW Golf 8 factory electrical systems, steering wheel controls, dashboard infotainment, and Start-Stop technology

Additional Accessories: Sound deadening materials for doors, professional calibration microphone for DSP tuning, optional MATCH DIRECTOR controller for advanced system control
