VW Golf 7 - Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

VW Golf 7 - Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

Transform your Golf 7 into a complete audiophile experience with German-engineered speakers, compact subwoofer, and professional 5-channel DSP amplification

Product Overview

The HELIX Ci3 Complete DSP Package for VW Golf 7 delivers the ultimate audio transformation through a comprehensive system featuring German-engineered component and coaxial speakers, compact dual 6.5" subwoofer enclosure, and advanced 5-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with MATCH amplification expertise to create a seamless plug & play upgrade that transforms every aspect of your Golf 7's audio system while maintaining all original functionality and aesthetics.

Key Specifications

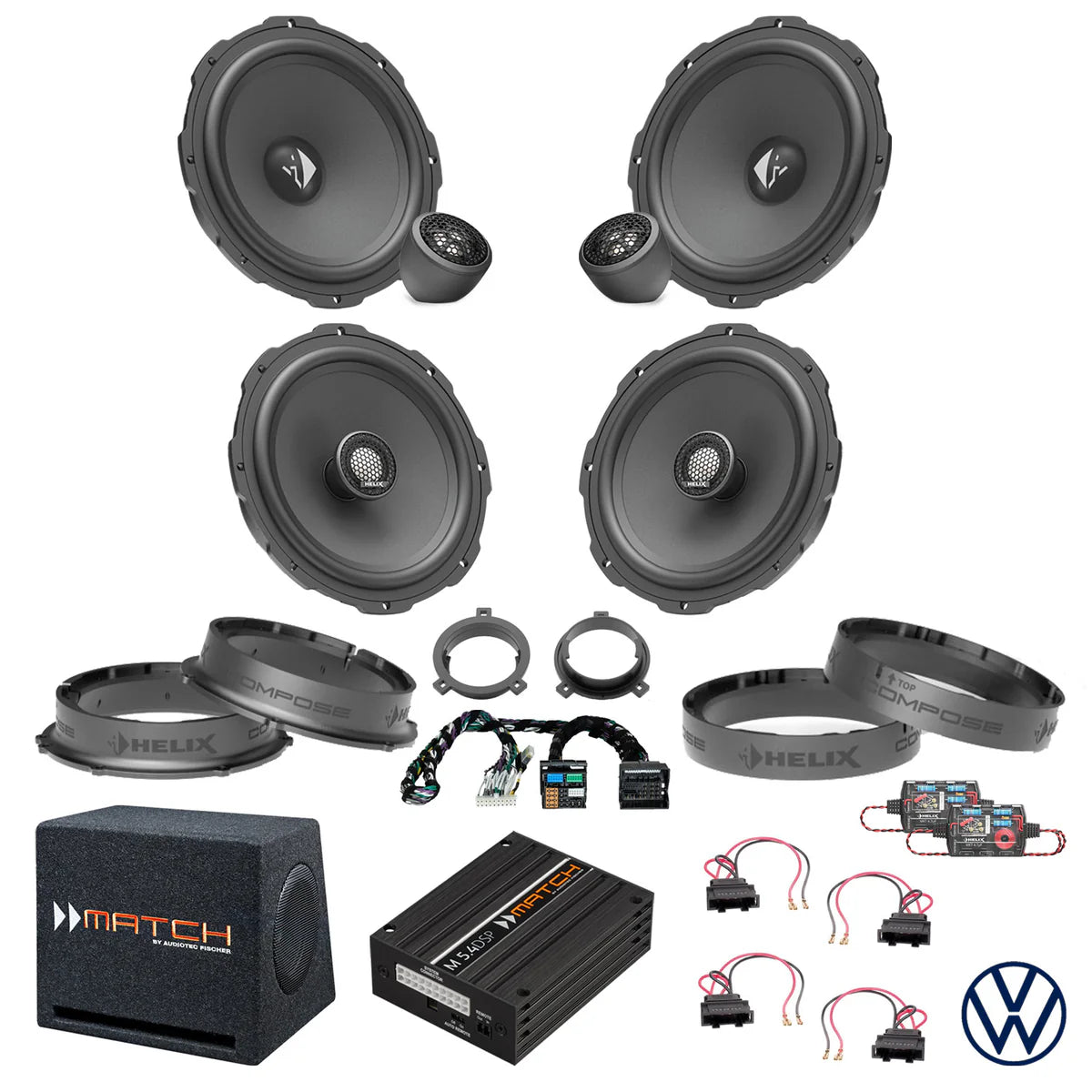

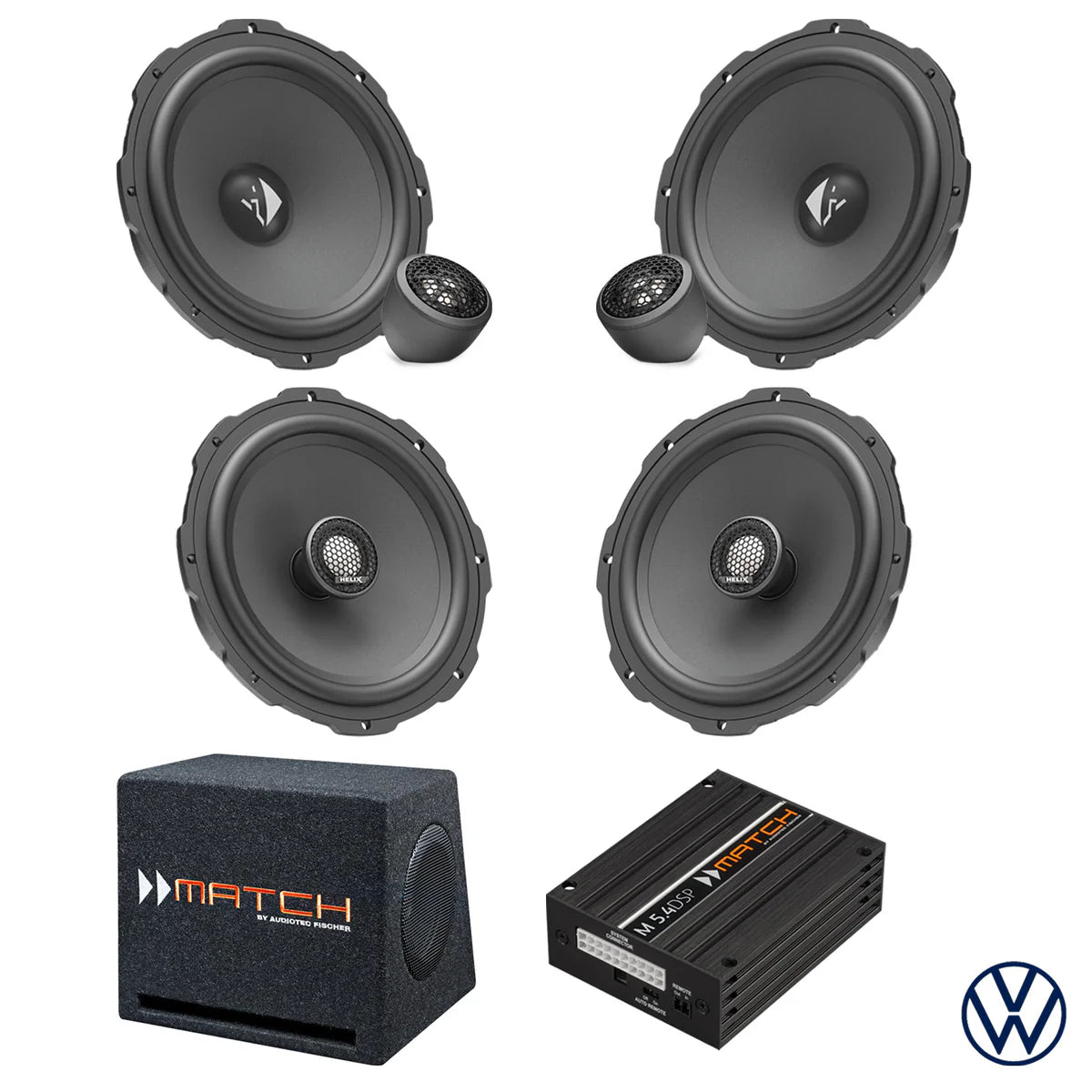

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• HELIX Ci3 C165.2FM-S3 - 6.5" 2-Way Coaxial Speaker Pair with FlexMount (3Ω impedance)
• MATCH PP 7E-D - 2x6.5" 200W RMS Vented Subwoofer Box (4x2Ω configuration)
• MATCH M 5.4DSP - 5 Channel PnP Micro Amplifier with 9ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK165 VW.2 - 6.5" 3D Printed Speaker Adapter (1 pair for front doors)
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapter (1 pair for rear doors)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter (1 pair for front tweeters)
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen (2 pairs for all 4 speakers)

System Specifications:

• Total amplifier power: 400W RMS total system output
• Front/rear speakers: 4 x 60W RMS + 160W RMS subwoofer output
• Subwoofer: 200W RMS compact dual 6.5" vented enclosure
• DSP processing: 64-bit resolution with 9-channel capability and Virtual Channel Processing
• Vehicle compatibility: VW Golf 7 specific engineering with complete VAG Quadlock integration

Features & Benefits

• Complete Audio System Transformation – Premium component speakers, coaxial speakers, and compact dual-driver subwoofer deliver full-range audiophile performance with professional 5-channel DSP amplification and advanced acoustic management
• German HELIX Engineering Excellence – Component speakers feature titanium dome tweeters and Cenosphere-coated drivers, while coaxials provide consistent rear fill, all utilizing 3Ω high-efficiency design for maximum power transfer from the micro amplifier
• MATCH Plug & Play Subwoofer System – Compact PP 7E-D features dual 6.5" long-excursion woofers with hand-scooped paper cones, optimized specifically for MATCH DSP amplifiers with intelligent bass management and space-efficient design
• Professional 5-Channel Micro DSP – MATCH M 5.4DSP provides individual amplification plus dedicated subwoofer channel with advanced features like Augmented Bass Processing, StageXpander, and RealCenter processing in smartphone-sized package
• Complete FlexMount Integration System – Vehicle-specific 3D-printed adapters ensure perfect speaker positioning and acoustic sealing in all Golf 7 locations without modifications to trim or panels, including separate variants for optimal fitment
• Advanced DSP Features Suite – Includes Virtual Channel Processing, Input Signal Analyzer, automated frequency correction, and proprietary SFX sound effects for professional-grade tuning and system optimization

Technical Specs

• Component speakers: 100W RMS / 150W Peak per channel, 60Hz-25kHz, 92dB sensitivity
• Coaxial speakers: 100W RMS / 150W Peak per channel, matching 3Ω impedance
• Subwoofer system: 200W RMS / 400W Peak, dual 6.5" drivers, compact vented enclosure
• DSP amplifier: 5 channels, 64-bit processing, 295 MHz DSP power, smartphone-sized
• Power distribution: HighPower 4 x 60W RMS + 160W subwoofer, MidPower 4 x 35W + 90W
• Frequency response: 20Hz - 20,000Hz complete spectrum coverage
• Signal-to-noise ratio: >105dB digital, >99dB analog (A-weighted)
• Operating voltage: 10.5-17V with Start-Stop capability
• Subwoofer dimensions: 280 x 318 x 310mm ultra-compact design

Frequently Asked Questions

Does this complete package transform my entire Golf 7 audio system?

Yes, this comprehensive package replaces all factory speakers with premium HELIX components and coaxials, adds a compact dual 6.5" subwoofer, and drives everything through a professional 5-channel DSP amplifier with advanced acoustic processing and bass management capabilities.

How does the MATCH M 5.4DSP amplifier manage all these speakers and the subwoofer?

The M 5.4DSP features 5 dedicated channels: 4 channels for front/rear speakers (60W each in HighPower mode) and 1 powerful subwoofer channel (160W @ 2Ω) that perfectly matches the MATCH PP 7E-D's dual voice coil configuration for optimized performance.

Will the MATCH PP 7E-D subwoofer fit in my Golf 7 and does it require permanent installation?

The PP 7E-D measures 280 x 318 x 310mm in extremely compact design perfect for Golf 7 boot space. It includes a 4.8-meter Plug & Play connection cable for easy installation and features the "team play" optimization specifically designed for MATCH DSP amplifiers.

What makes this DSP system better than standard amplified speaker upgrades?

The 64-bit DSP processing includes Virtual Channel Processing for complex routing, Augmented Bass Processing for optimized subwoofer performance, StageXpander for enhanced soundstage, and Input Signal Analyzer enabling professional acoustic tuning impossible with basic amplifiers.

How do all the FlexMount adapters work together in this complete Golf 7 system?

The package includes CFMK165 VW.2 adapters for front speakers, CFMK165 VW.1 adapters for rear speakers, and CFMK25 VW.1 tweeter adapters, ensuring every speaker mounts perfectly in Golf 7 factory locations with proper acoustic sealing and professional appearance.

Compatible With / Goes Well With

Professional Services: Complete installation and comprehensive DSP tuning packages available through authorized dealers for optimal system calibration and acoustic setup

System Enhancement: Sound deadening materials for doors and boot, professional calibration accessories, MATCH DIRECTOR controller for advanced system control and remote operation

MATCH Ecosystem: Additional MATCH amplifiers via RCA outputs, upgraded power cables for maximum performance, custom installation solutions for enhanced integration
