VW Golf 7 - Speaker & Subwoofer DSP Amplified Package 2 | HELIX Ci3

VW Golf 7 - Speaker & Subwoofer DSP Amplified Package 2 | HELIX Ci3

Transform your Golf 7 into the ultimate audiophile experience with German-engineered speakers, premium downfire subwoofer, and professional 6-channel DSP amplification

Product Overviewhelix

The HELIX Ci3 Complete DSP Package 2 for VW Golf 7 delivers the ultimate audio transformation through a comprehensive system featuring German-engineered component and coaxial speakers, premium 10" downfire subwoofer, and advanced 6-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with MATCH amplification expertise to create a seamless plug & play upgrade that transforms every aspect of your Golf 7's audio system while maintaining all original functionality and aesthetics.

Key Specifications

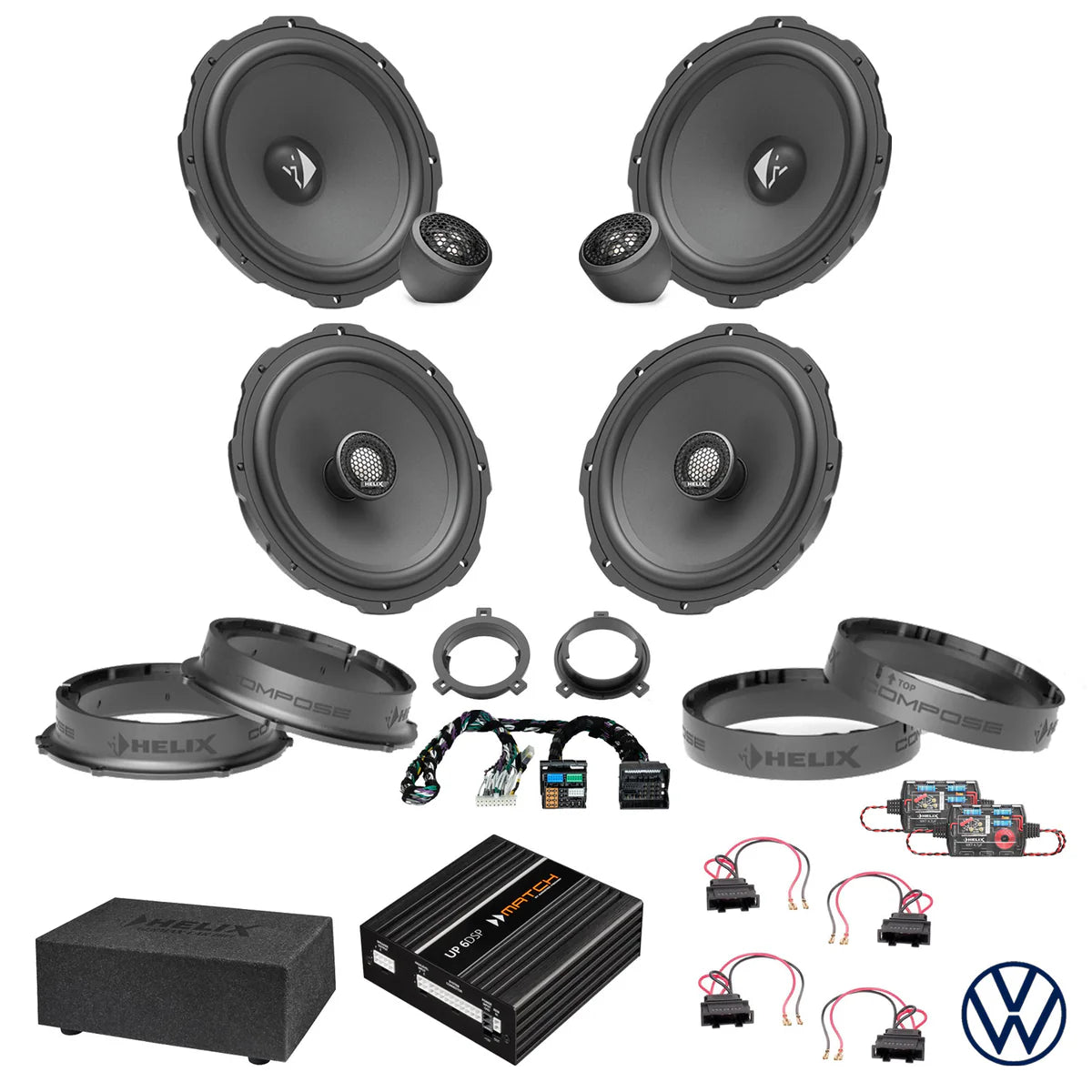

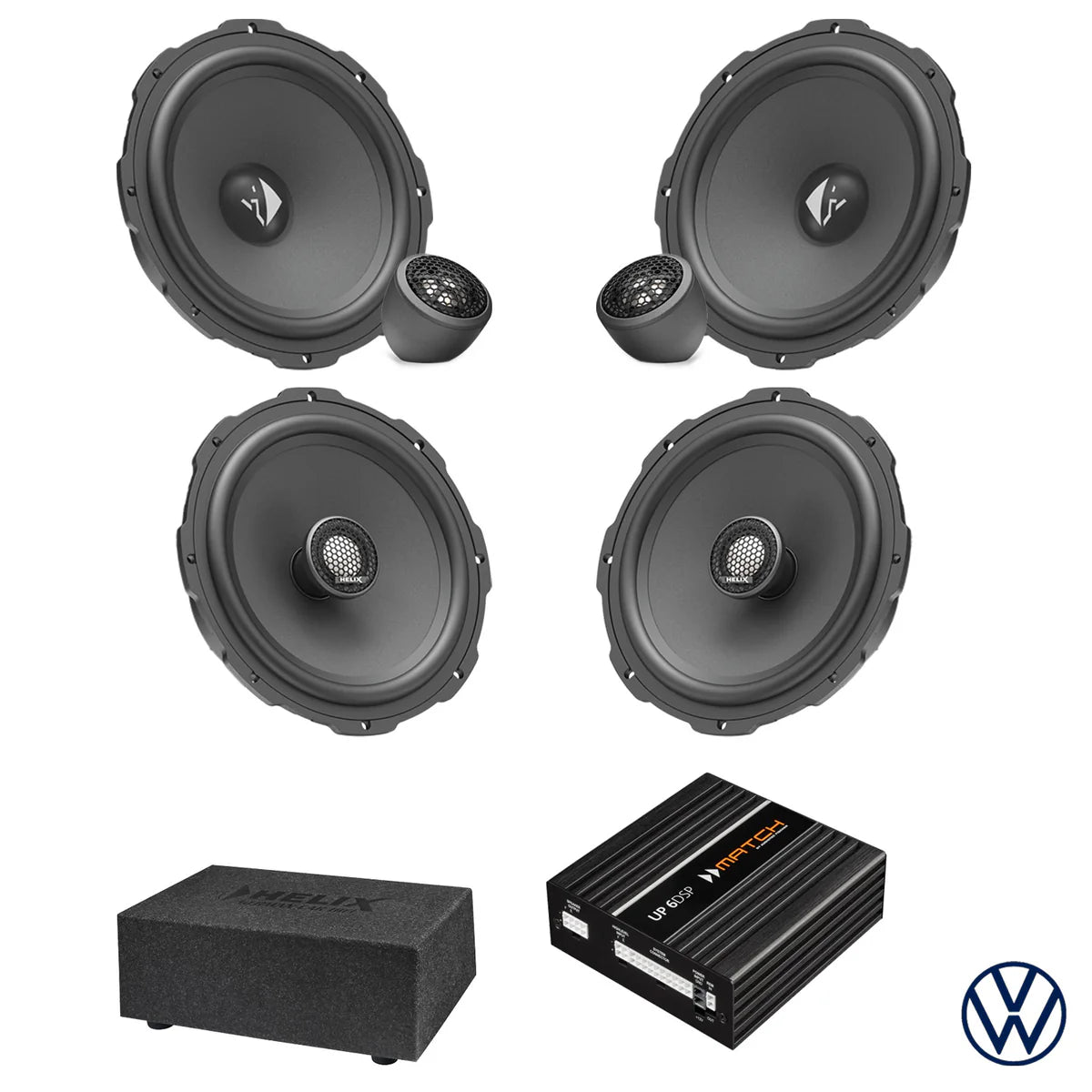

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• HELIX Ci3 C165.2FM-S3 - 6.5" 2-Way Coaxial Speaker Pair with FlexMount (3Ω impedance)
• HELIX IK E10.1-DVC2 - 10" 300W RMS Vented Subwoofer Box (2x2Ω configuration)
• MATCH UP 6DSP - 6 Channel PnP Amplifier with 7ch DSP (520W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK165 VW.2 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen x2 Items

System Specifications:

• Total amplifier power: 520W RMS total system output
• Front/rear speakers: 4 x 65W RMS + 2 x 160W RMS subwoofer channels
• Subwoofer: 300W RMS premium 10" downfire enclosure with intelligent bass management
• DSP processing: 64-bit resolution with 7-channel capability and Virtual Channel Processing
• Vehicle compatibility: VW Golf 7 specific engineering with complete VAG Quadlock integration

Features & Benefits

• Complete Premium Audio System – Component speakers, coaxial speakers, and premium 10" downfire subwoofer deliver full-range audiophile performance with professional 6-channel DSP amplification and advanced TuneEQ frequency correction
• German HELIX Engineering Excellence – Component speakers feature titanium dome tweeters and Cenosphere-coated drivers, while coaxials provide consistent rear fill, all utilizing 3Ω high-efficiency design for maximum power transfer
• Premium HELIX Downfire Subwoofer – IK E10.1-DVC2 delivers 300W RMS through intelligent downfire design using vehicle floor as acoustic reflection surface, providing powerful bass response in compact dimensions perfect for Golf 7
• Professional 6-Channel DSP Integration – MATCH UP 6DSP provides individual amplification for each speaker plus dedicated subwoofer channels with advanced features like TuneEQ, RealCenter processing, and Augmented Bass Processing
• Complete FlexMount Integration System – Multiple FlexMount adapter variants ensure perfect speaker positioning and acoustic sealing in all Golf 7 locations without modifications to trim or panels
• Advanced DSP Features Suite – Includes Virtual Channel Processing, Input Signal Analyzer, automated TuneEQ frequency correction, Dynamic Loudness Control, and proprietary SFX sound effects for professional-grade tuning

Technical Specs

• Component speakers: 100W RMS / 150W Peak per channel, 60Hz-25kHz, 92dB sensitivity
• Coaxial speakers: 100W RMS / 150W Peak per channel, matching 3Ω impedance
• Subwoofer system: 300W RMS, 10" driver, downfire vented enclosure, 2x2Ω configuration
• DSP amplifier: 6 channels + RCA output, 64-bit processing, 295 MHz DSP power
• Power distribution: 4 x 65W RMS @ 4Ω + 2 x 160W RMS @ 2Ω subwoofer channels
• Frequency response: 10Hz - 22,000Hz complete spectrum coverage
• Signal-to-noise ratio: 106dB digital, 104dB analog (A-weighted)
• Operating voltage: 10.5-18V with Start-Stop capability and EV compatibility
• Subwoofer dimensions: 187 x 470 x 375mm compact downfire design

Frequently Asked Questions

Does this complete package transform my entire Golf 7 audio system?

Yes, this comprehensive package replaces all factory speakers with premium HELIX components and coaxials, adds a powerful 10" downfire subwoofer, and drives everything through a professional 6-channel DSP amplifier with advanced acoustic processing and TuneEQ frequency correction.

How does the MATCH UP 6DSP amplifier manage all these speakers and the subwoofer?

The UP 6DSP features 6 dedicated amplifier channels plus RCA output: 4 channels for front/rear speakers (65W each) and 2 powerful subwoofer channels (160W each @ 2Ω) that perfectly match the HELIX IK E10.1's dual voice coil configuration.

Will the HELIX IK E10.1 subwoofer fit in my Golf 7 and provide adequate bass?

The IK E10.1 measures 187 x 470 x 375mm in compact downfire design perfect for Golf 7 boot space. The intelligent downfire construction uses your vehicle floor as acoustic reflection surface, delivering powerful bass response despite space-efficient dimensions.

What makes this DSP system better than standard amplified speaker upgrades?

The 64-bit DSP processing includes TuneEQ automated frequency correction, RealCenter processing for enhanced soundstage, Augmented Bass Processing for optimized subwoofer performance, and Virtual Channel Processing enabling complex acoustic tuning impossible with basic amplifiers.

How do all the FlexMount adapters work together in this complete Golf 7 system?

The package includes CFMK165 VW.2 adapters for front speakers, CFMK165 VW.1 adapters for rear speakers, and CFMK25 VW.1 tweeter adapters, ensuring every speaker mounts perfectly in Golf 7 factory locations with proper acoustic sealing and professional appearance.

Compatible With / Goes Well With

Professional Services: Complete installation and comprehensive DSP tuning packages available through authorized dealers for optimal system calibration and TuneEQ setup

System Enhancement: Sound deadening materials for doors and boot, professional calibration microphone for TuneEQ optimization, MATCH DIRECTOR controller for advanced system control

MATCH Ecosystem: Additional MATCH amplifiers via RCA output, MEC expansion cards for Bluetooth HD and USB HD, upgraded power cables for maximum performance
