VW Golf 7 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

VW Golf 7 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci3

Transform your Golf 7's front audio with German-engineered components, compact subwoofer, and professional 5-channel DSP amplification

Product Overview

The HELIX Ci3 Front Speaker & Subwoofer DSP Package for VW Golf 7 delivers superior audio performance with enhanced bass response through premium front component speakers, compact dual 6.5" subwoofer, and advanced 5-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with MATCH amplification expertise to create a focused upgrade that maximizes front soundstage performance and bass extension while maintaining all original Golf 7 functionality and rear speaker compatibility.

Key Specifications

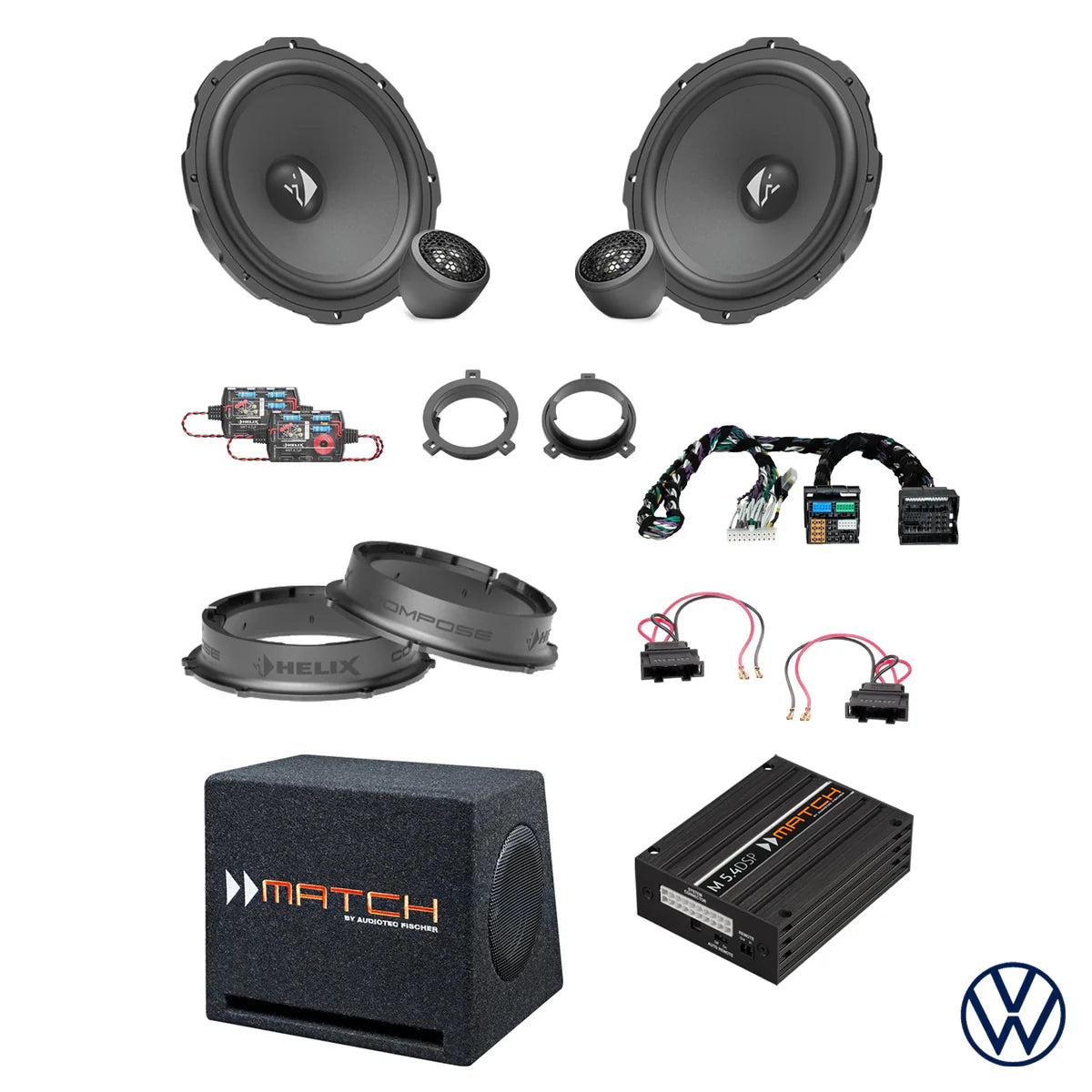

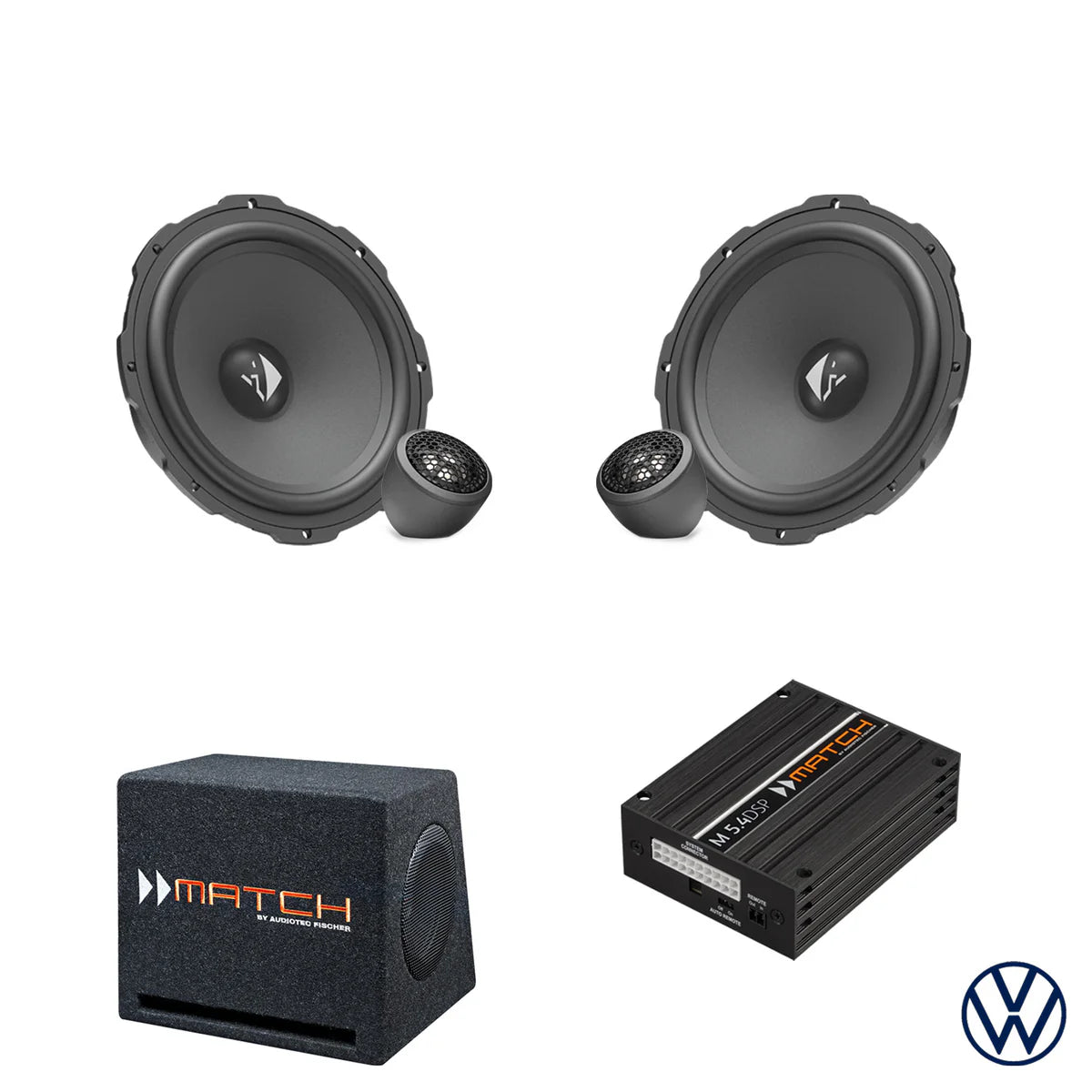

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH PP 7E-D - 2x6.5" 200W RMS Vented Subwoofer Box (4x2Ω configuration)
• MATCH M 5.4DSP - 5 Channel PnP Micro Amplifier with 9ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK165 VW.2 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen

System Specifications:

• Front amplifier power: 240W RMS total (4 x 60W RMS in HighPower mode)
• Subwoofer power: 200W RMS from dedicated amplifier channel
• DSP processing: 64-bit resolution with 9-channel capability and Virtual Channel Processing
• Vehicle compatibility: VW Golf 7 specific engineering with VAG Quadlock integration
• Installation method: Plug & play with factory integration T-harness

Features & Benefits

• Premium Front Component System – HELIX Ci3 K165.2FM-S3 features separate titanium dome tweeters, Cenosphere-coated midbass drivers, and advanced crossover networks for exceptional front soundstage clarity and imaging performance
• MATCH Plug & Play Subwoofer Integration – Compact PP 7E-D features dual 6.5" long-excursion woofers optimized specifically for MATCH DSP amplifiers, delivering powerful bass response in space-efficient design with intelligent "team play" optimization
• Professional 5-Channel Micro DSP – MATCH M 5.4DSP provides dedicated front speaker amplification plus powerful subwoofer channel with advanced features like Augmented Bass Processing, StageXpander, and RealCenter processing in smartphone-sized package
• Complete FlexMount Integration – Vehicle-specific 3D-printed adapters ensure perfect front speaker positioning and acoustic sealing in Golf 7 factory locations without modifications to trim or panels
• Factory Rear Speaker Compatibility – System maintains and enhances your Golf 7's existing rear speakers through rear amplifier channels while focusing premium components on critical front soundstage and bass extension
• Advanced DSP Features Suite – Includes Virtual Channel Processing, Input Signal Analyzer, automated frequency correction, and proprietary SFX sound effects for professional-grade front system tuning and bass management

Technical Specs

• Component speakers: 100W RMS / 150W Peak per channel, 60Hz-25kHz, 92dB sensitivity
• Subwoofer system: 200W RMS / 400W Peak, dual 6.5" drivers, compact vented enclosure
• DSP amplifier: 5 channels, 64-bit processing, 295 MHz DSP power, smartphone-sized
• Power distribution: HighPower 4 x 60W front + 160W subwoofer, rear channels available
• Frequency response: 20Hz - 20,000Hz complete spectrum coverage
• Signal-to-noise ratio: >105dB digital, >99dB analog (A-weighted)
• Operating voltage: 10.5-17V with Start-Stop capability
• Subwoofer dimensions: 280 x 318 x 310mm ultra-compact design
• Front speaker impedance: 3Ω for enhanced power transfer efficiency

Frequently Asked Questions

Does this package work with my Golf 7's existing rear speakers?

Yes, the MATCH M 5.4DSP amplifier includes rear channel outputs that can drive your factory rear speakers while providing premium amplified sound to the new front HELIX components and subwoofer. You get enhanced front performance with bass extension while maintaining rear functionality.

How does the MATCH PP 7E-D subwoofer integrate with the DSP amplifier?

The PP 7E-D is specifically optimized for MATCH DSP amplifiers with "team play" design. The M 5.4DSP provides 160W RMS @ 2Ω to perfectly match the subwoofer's dual voice coil configuration, with dedicated bass processing and management through the DSP.

Will the compact subwoofer fit in my Golf 7 and provide adequate bass?

The PP 7E-D measures 280 x 318 x 310mm for easy Golf 7 boot installation. Despite its compact size, the dual 6.5" long-excursion woofers with DSP optimization deliver powerful bass response that will surprise you, as noted in the MATCH specifications.

Can I add rear speakers to this front-focused system later?

The system is designed to work with your existing rear speakers through the M 5.4DSP's rear channels. You can upgrade rear speakers later, or the package can be expanded with additional components as your system requirements grow.

How does the DSP processing enhance the front components and subwoofer together?

The 64-bit DSP includes Augmented Bass Processing for subwoofer optimization, StageXpander for enhanced front soundstage, and Virtual Channel Processing enabling precise coordination between front components and subwoofer for cohesive, professional-grade performance.

Compatible With / Goes Well With

Future Expansion: Rear speaker upgrades, additional amplifiers via RCA outputs for complete system builds, upgraded power cables for maximum performance

Professional Services: Complete installation and DSP tuning packages available through authorized dealers for optimal system calibration and acoustic setup

System Enhancement: Sound deadening materials for doors and boot, professional calibration accessories, MATCH DIRECTOR controller for advanced system control
