VW Golf 7 - Front Speaker DSP Amplified Package | HELIX Ci3

VW Golf 7 - Front Speaker DSP Amplified Package | HELIX Ci3

Transform your Golf 7's front soundstage with German-engineered components and professional 5-channel DSP amplification

Product Overview

The HELIX Ci3 Front Speaker DSP Package for VW Golf 7 delivers audiophile-quality sound through a complete front speaker system integration featuring German-engineered component speakers and advanced 5-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with MATCH amplification expertise to create a seamless plug & play upgrade that transforms your Golf 7's factory front audio system while maintaining all original functionality and rear speaker compatibility through comprehensive DSP processing.

Key Specifications

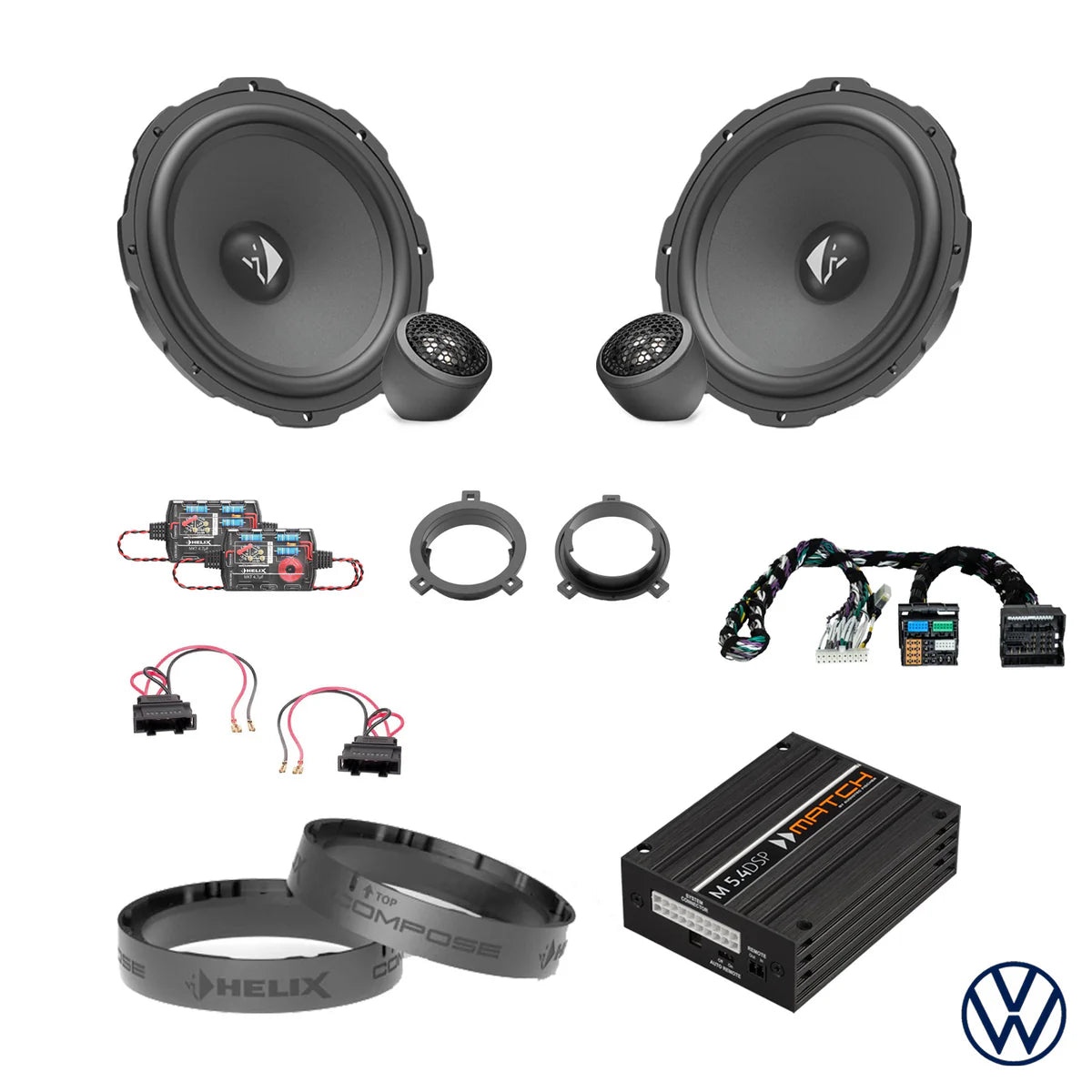

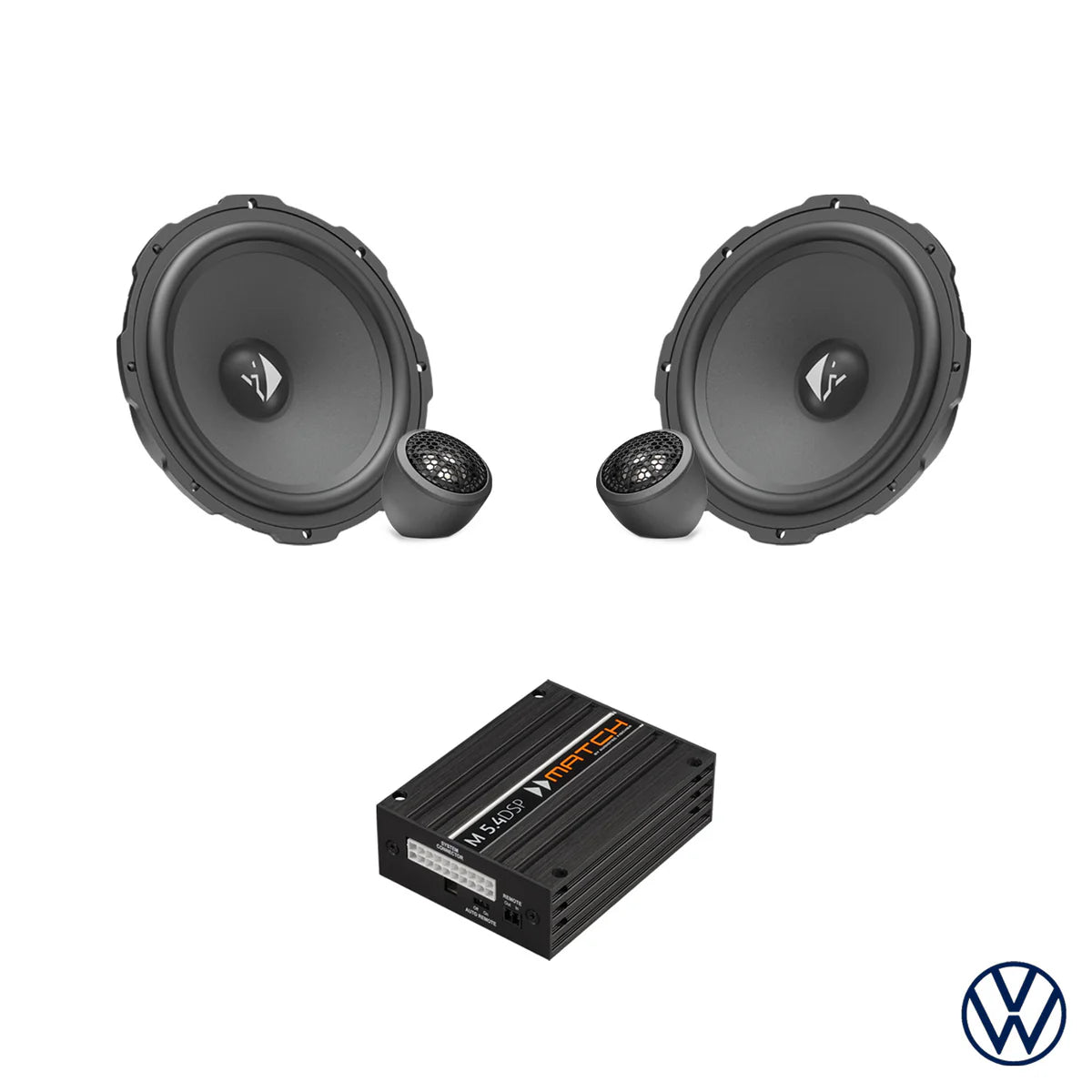

Package Contents:

• HELIX Ci3 K165.2FM-S3 - 6.5" 2-Way Component Speaker Set with FlexMount (3Ω impedance)
• MATCH M 5.4DSP - 5 Channel PnP Micro Amplifier with 9ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK165 VW.2 - 6.5" 3D Printed Speaker Adapter
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen

System Specifications:

• Front amplifier power: 240W RMS total (4 x 60W RMS per channel in HighPower mode)
• Subwoofer output available: 160W RMS @ 2Ω for future expansion
• DSP processing: 64-bit resolution with 9-channel capability and Virtual Channel Processing
• Vehicle compatibility: VW Golf 7 specific engineering with VAG Quadlock integration
• Installation method: Plug & play with factory integration T-harness

Features & Benefits

• Premium Front Component System – HELIX Ci3 K165.2FM-S3 features separate titanium dome tweeters, Cenosphere-coated midbass drivers, and advanced crossover networks for exceptional front soundstage clarity and imaging performance
• Professional 5-Channel DSP Integration – MATCH M 5.4DSP provides 240W RMS front speaker power with 64-bit DSP processing for studio-quality sound tuning, time alignment, and acoustic correction specifically calibrated for Golf 7 acoustics
• MATCH Plug & Play Integration – Micro amplifier and VAG Quadlock T-harness provide seamless factory integration without wire cutting, preserving warranty while adding professional-grade amplification and DSP processing capabilities
• Complete FlexMount Integration – Vehicle-specific 3D-printed adapters ensure perfect speaker positioning and acoustic sealing in factory front door locations without modifications to trim or panels
• Future Expansion Ready – DSP amplifier includes dedicated subwoofer output (160W RMS) and 4x RCA line outputs for adding rear speakers, subwoofers, or additional amplifiers when desired for complete system builds
• Advanced DSP Features Suite – Includes Auto Turn-On, Input Signal Analyzer, InputEQ compensation, Augmented Bass Processing, StageXpander, and RealCenter processing for audiophile-level front soundstage customization

Technical Specs

• Component speakers: 100W RMS / 150W Peak per channel, 60Hz-25kHz, 92dB sensitivity, 3Ω impedance
• DSP amplifier: 5 channels (front + rear + sub outputs), 64-bit processing, 295 MHz DSP power
• Front power output: HighPower mode 4 x 60W RMS @ 4Ω, MidPower mode 4 x 35W RMS @ 4Ω
• Subwoofer output: 160W RMS @ 2Ω / 90W RMS @ 4Ω available for expansion
• Frequency response: 20Hz - 20,000Hz full spectrum coverage
• Signal-to-noise ratio: >105dB digital, >99dB analog (A-weighted)
• Operating voltage: 10.5-17V with Start-Stop capability
• Amplifier dimensions: 35 x 85 x 110mm ultra-compact design
• Construction: German engineering standards with automotive-grade materials

Frequently Asked Questions

Does this front speaker package work with my Golf 7's existing rear speakers?

Yes, the MATCH M 5.4DSP amplifier can drive your factory rear speakers through its rear channel outputs while providing premium amplified sound to the new front HELIX components. You get upgraded front performance while maintaining rear speaker functionality.

Can I add a subwoofer later to this front speaker DSP system?

Absolutely, the M 5.4DSP includes a dedicated subwoofer output (160W RMS @ 2Ω) with DSP processing specifically for subwoofer integration. The amplifier comes with subwoofer connection cable for easy future expansion.

How does the MATCH M 5.4DSP integrate with my Golf 7's factory system?

The M 5.4DSP uses the included PP-PAM 92b VAG Quadlock T-harness for plug & play integration. It maintains steering wheel controls, navigation, and all factory functions while adding professional DSP amplification to your front speakers.

What makes this front component system better than upgrading all speakers at once?

Front speakers handle 80% of your music's critical information including vocals and imaging. Upgrading the front with premium components and DSP processing delivers the most noticeable improvement, while you can upgrade rears and add subwoofer later as budget allows.

Will the FlexMount adapters work perfectly in my Golf 7's front doors?

Yes, the CFMK165 VW.2 and CFMK25 VW.1 adapters are 3D printed specifically for VW Group front door speaker locations. They provide perfect mounting and acoustic sealing for optimal DSP processing and soundstage creation in your Golf 7.

Compatible With / Goes Well With

Future Expansion: Rear speakers, MATCH Plug & Play subwoofers, additional amplifiers via RCA outputs for complete system builds

Professional Services: Complete installation and DSP tuning packages available through authorized dealers for optimal acoustic setup and system calibration

System Integration: Compatible with all VW Golf 7 factory electrical systems, steering wheel controls, dashboard infotainment, and Start-Stop technology
