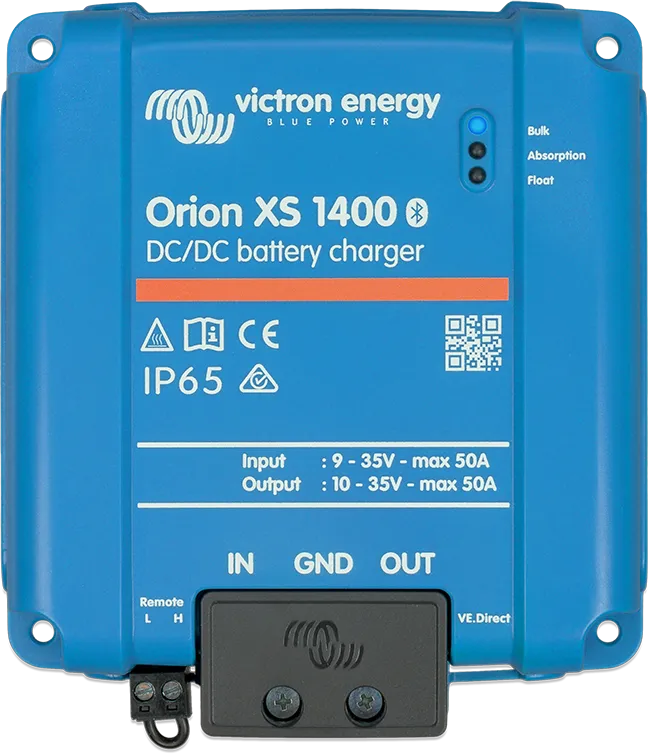

Victron Energy ORI242417040 Orion XS 1400 DC-DC Battery Charger – Reliable Off-Grid Power

Unlock Reliable Power Anywhere – Victron Orion XS 1400 DC-DC Battery Charger

Engineered for ultimate battery-to-battery charging, the Victron Orion XS 1400 delivers unmatched performance for dual-battery setups. Perfect for vehicles, boats, and off-grid systems, it ensures your auxiliary batteries are charged efficiently, safely, and consistently, even with intelligent alternators.

Victron Energy ORI242417040 Key Features & Benefits:

• Optimized Battery Charging: Maintains peak performance and prolongs battery life in 12V, 24V, or mixed-voltage systems.
• Dual-Battery Ready: Perfect for vehicles with main and auxiliary battery setups, ensuring both are fully powered.
• Intelligent Alternator Compatible: Works seamlessly without overloading your vehicle’s charging system.
• High Efficiency & Safety: Advanced thermal management prevents overheating and guarantees reliable operation in any environment.
• Compact, Durable Design: Lightweight and rugged, built to withstand vibrations, shocks, and harsh conditions.
• Easy Installation: Intuitive wiring and setup mean you can get your system running faster and hassle-free.

Technical Specifications:

• Input Voltage Range: 9 – 35 V – Compatible with a wide range of vehicles and systems.
• Output Voltage Adjust Range: 10 – 35 V – Flexible to match battery requirements.
• Output Voltage Tolerance: ±0.25% – Ensures precise, stable charging.
• Output Voltage Noise: 10 mV rms – Ultra-smooth power for sensitive electronics.
• Input & Output Current Setting Range: 1 – 50 A – Customizable for various battery capacities.
• Maximum Constant Short-Circuit Current: 50 A – Reliable protection under extreme conditions.
• Continuous Output Power (up to 40°C): 1400 W – High-power performance for demanding setups.
• Maximum Efficiency: 98.5% – Minimize energy loss, maximize battery charging speed.
• No-Load Current Consumption: <100 mA – Energy-efficient when idle.
• Standby Current Consumption: <1.5 mA – Minimal drain when not in use.
• Power Supply Mode: Yes – Output voltage adjustable via VictronConnect App.

Communication & Connectivity:

• VictronConnect App / Bluetooth Smart: Yes – Monitor and configure your charger remotely.
• VE.Smart Networking: Yes – Integrate with smart Victron systems effortlessly.
• VE.Direct (including DVCC): Yes – Advanced system control and monitoring.

Environmental & Mechanical:

• Operating Temperature Range: -20 to +60°C (derating 1.5% per °C above 40°C) – Reliable in extreme conditions.
• Humidity Resistance: 95%, non-condensing – Safe for marine and off-grid environments.
• Maximum Altitude: 2000 m – Perfect for high-altitude vehicles and installations.
• Pollution Degree: PD2
• Overvoltage Category: OVC1
• DC Connection: Screw terminals – Easy, secure installation.
• Maximum Cable Cross-Section: 4AWG (21.2 mm²)
• Protection Category: IP65 – Dust and water-resistant for rugged environments.

Standards & Compliance:

• Safety: IEC 62477-1 – Ensuring top-tier electrical safety.
• EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 – All pending
• Automotive Directive: ECE R10-6 – All pending

Frequently Asked Questions

• What vehicles or systems is the Orion XS 1400 compatible with?
  The Orion XS 1400 works with 12V, 24V, and mixed-voltage systems, making it ideal for cars, trucks, RVs, boats, and off-grid setups with dual-battery configurations.
• Can I use the Orion XS 1400 with an intelligent alternator?
  Yes! It’s specifically designed to safely charge auxiliary batteries without overloading modern intelligent alternators.
• How efficient is the Orion XS 1400?
  The charger operates at up to 98.5% efficiency, minimizing energy loss and ensuring fast, reliable battery charging.
• Is the charger safe in harsh conditions?
  Absolutely. With an IP65 protection rating, it’s resistant to dust and water, operates from -20°C to +60°C, and can handle high humidity and altitudes up to 2000 m.
• Can I monitor and configure the charger remotely?
  Yes! Use the VictronConnect App with Bluetooth to adjust settings, monitor battery status, and optimize performance from your smartphone or tablet.
• Does the Orion XS 1400 support advanced system integration?
  Yes, it’s compatible with VE.Smart Networking and VE.Direct (including DVCC), allowing seamless integration into larger Victron energy setups.
• How easy is installation?
  The charger uses secure screw terminals and supports cables up to 4AWG (21.2 mm²), making installation straightforward and reliable.
• Can it be used as a standalone power supply?
  Yes, the output voltage can be set via the VictronConnect App, allowing it to function as a flexible DC power supply for various devices.
• Will it prolong my battery life?
  Yes, the Orion XS 1400 provides optimized battery-to-battery charging, reducing strain and extending the lifespan of both starter and auxiliary batteries.
