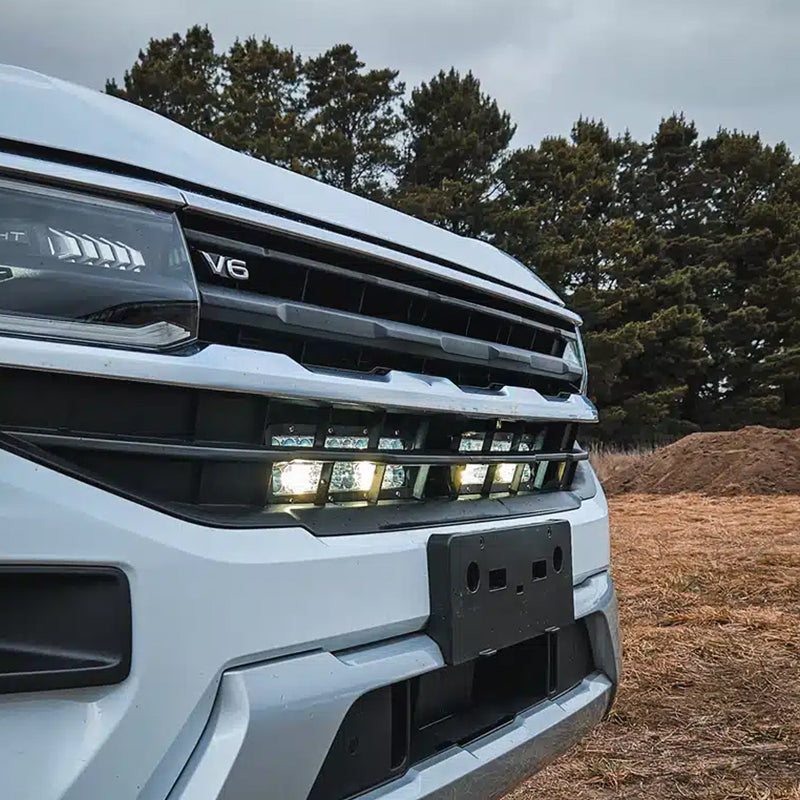

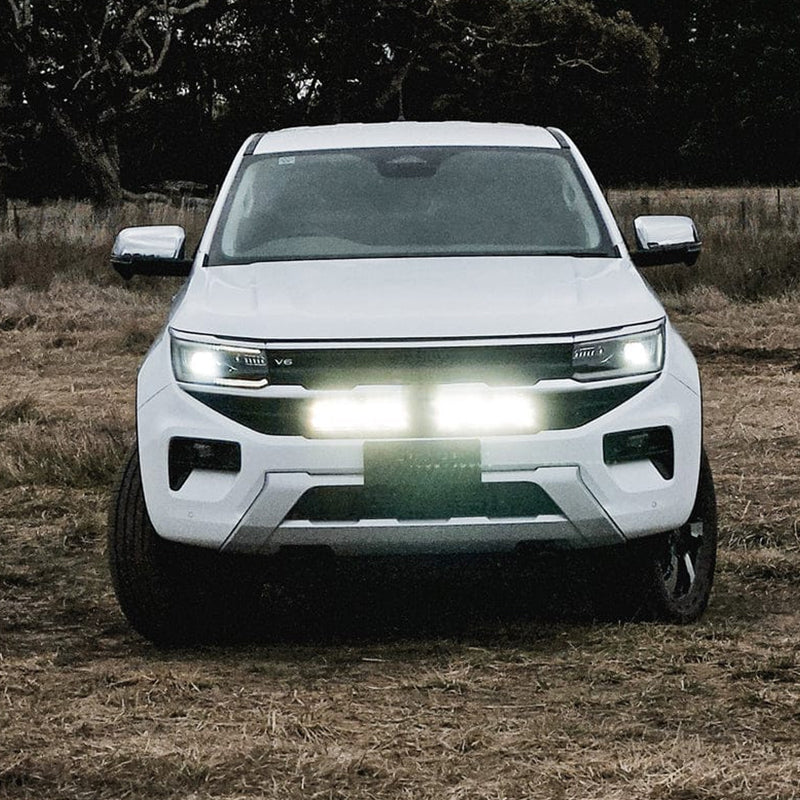

Light up the night with Ultra Vision and our specifically designed Behind Grille Light Bar Kit for Style, Pan Americana & Aventura models.

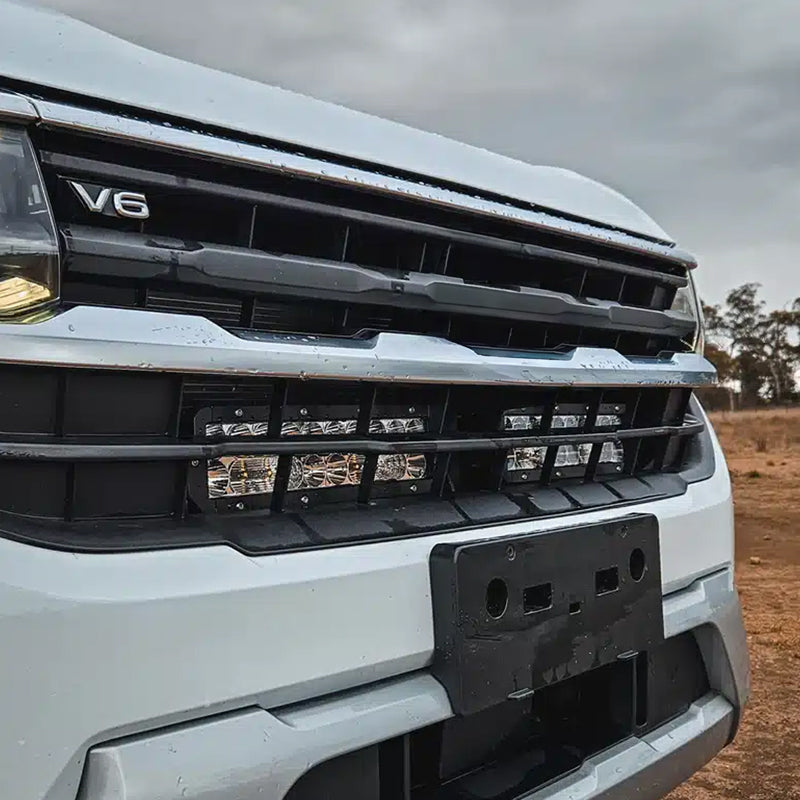

The purpose-built bracket system positions your choice of either one or two light bars behind the grille and mounts to the bumper framework. This results in a very solid fitment so there’s no shaking when you’re out driving on rough roads.
When installing, only the grille shroud beneath the bonnet needs to be removed for temporary access.

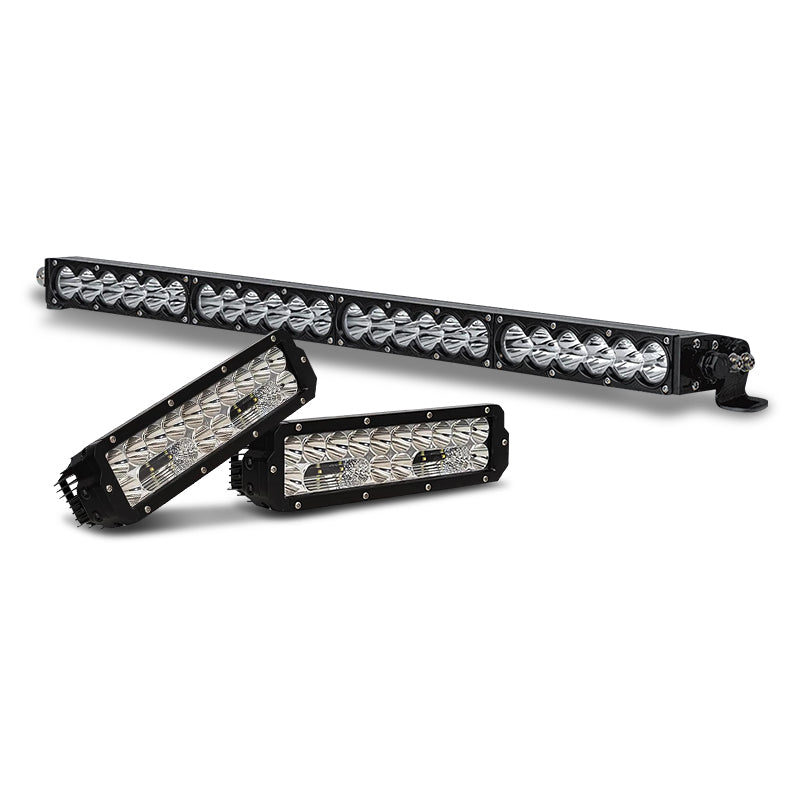

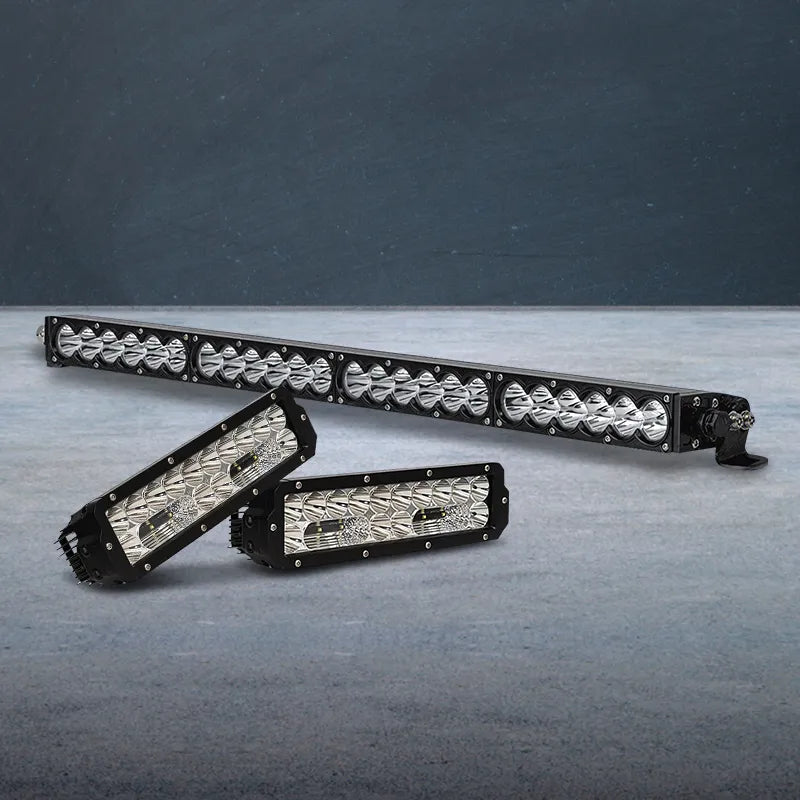

Choose from Light Bar Options Below (all 5700K colour temperature):
Ultra Vision UV-VWAPAM-KIT Features:
Ultra Vision UV-VWAPAM-KIT Specifications:

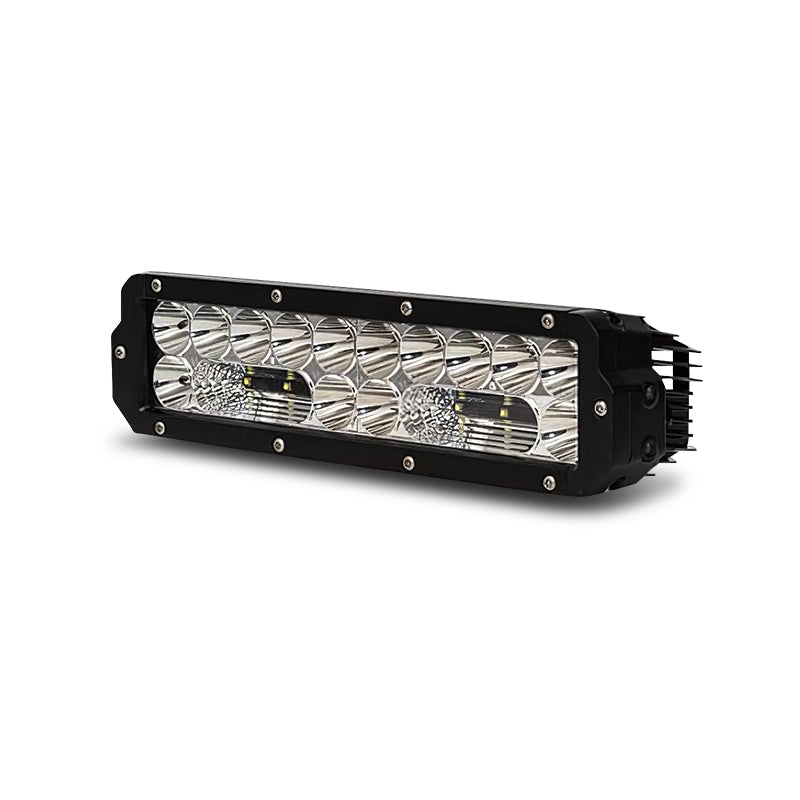

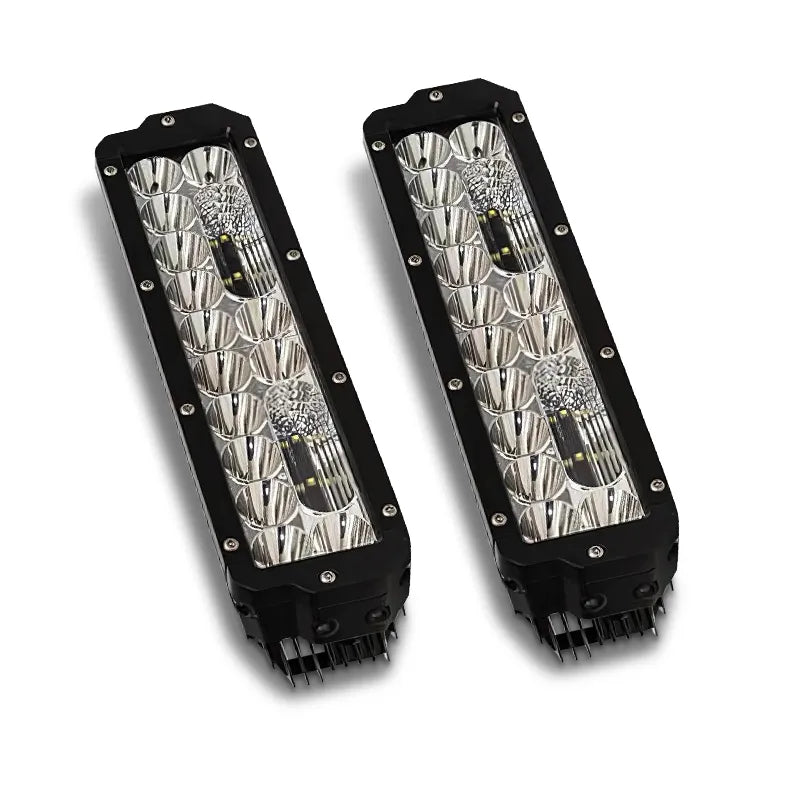

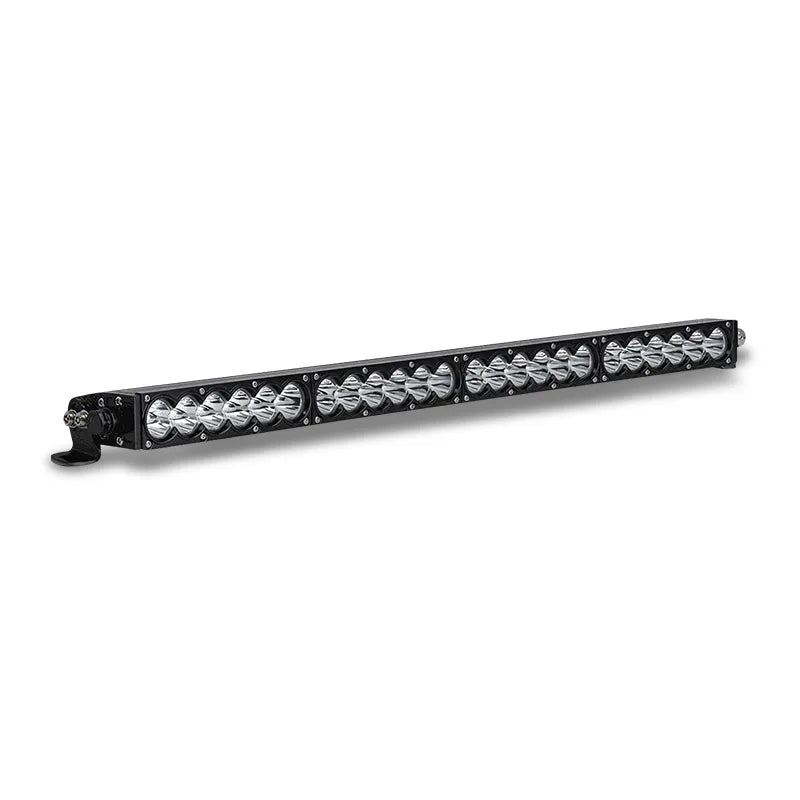

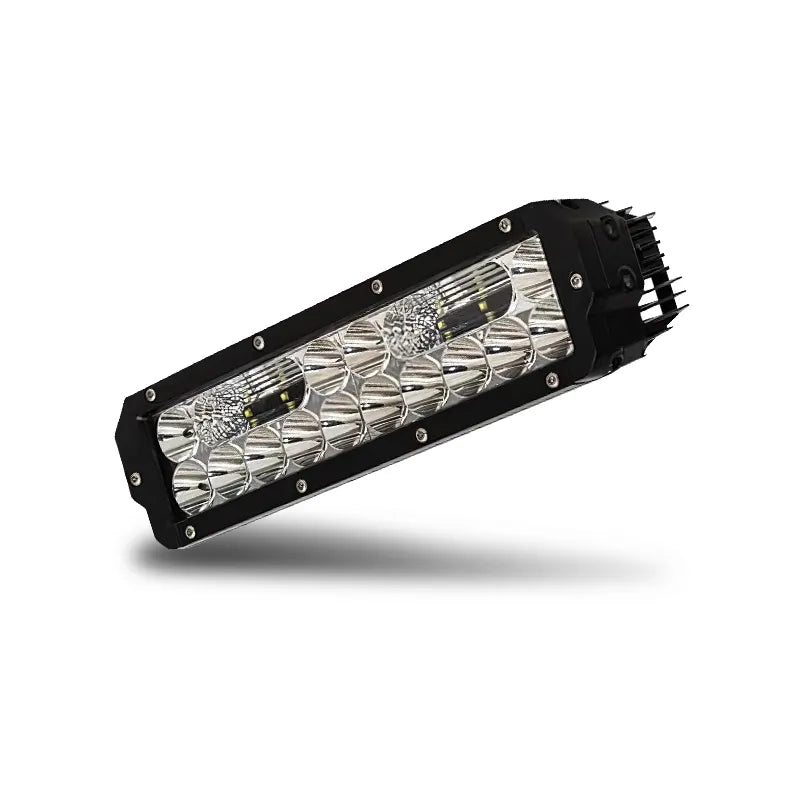

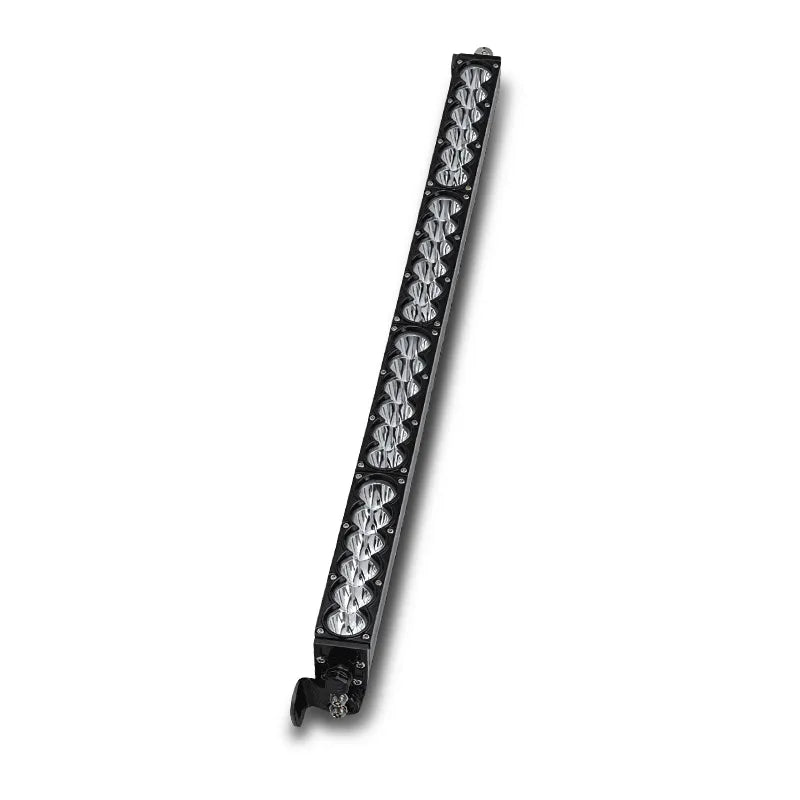

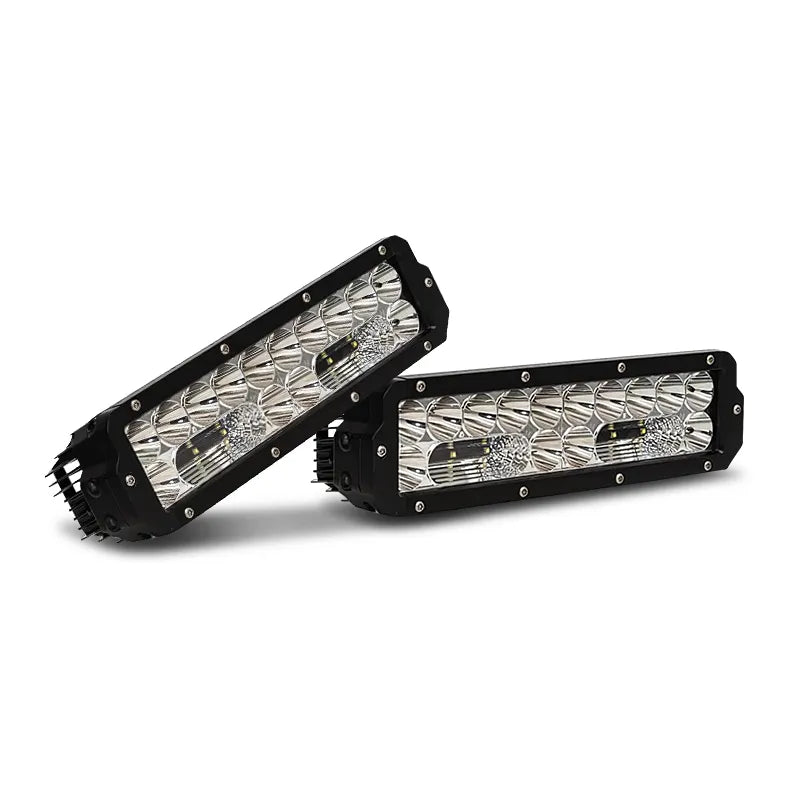

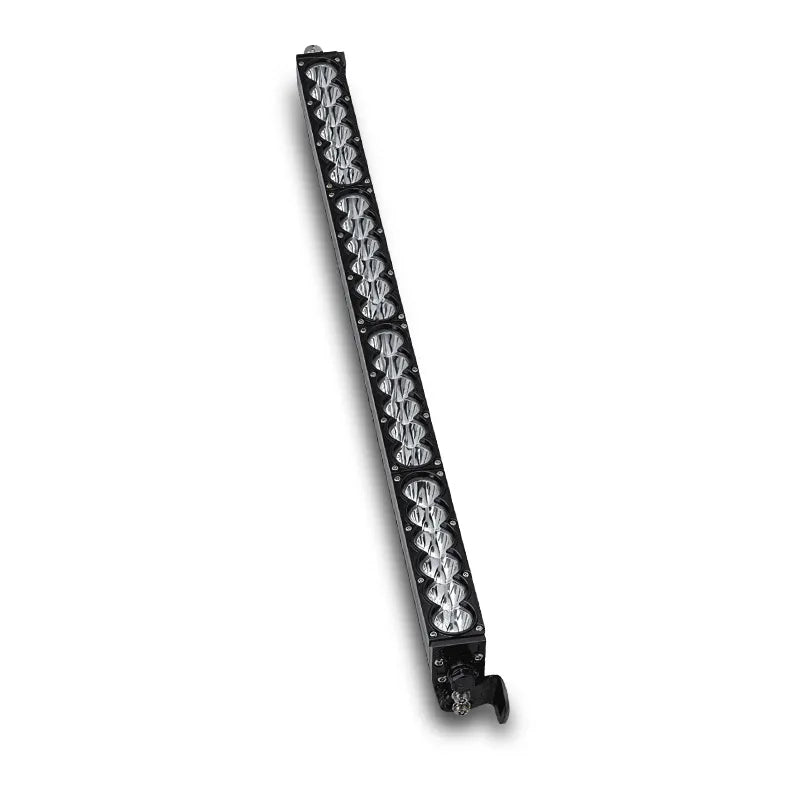

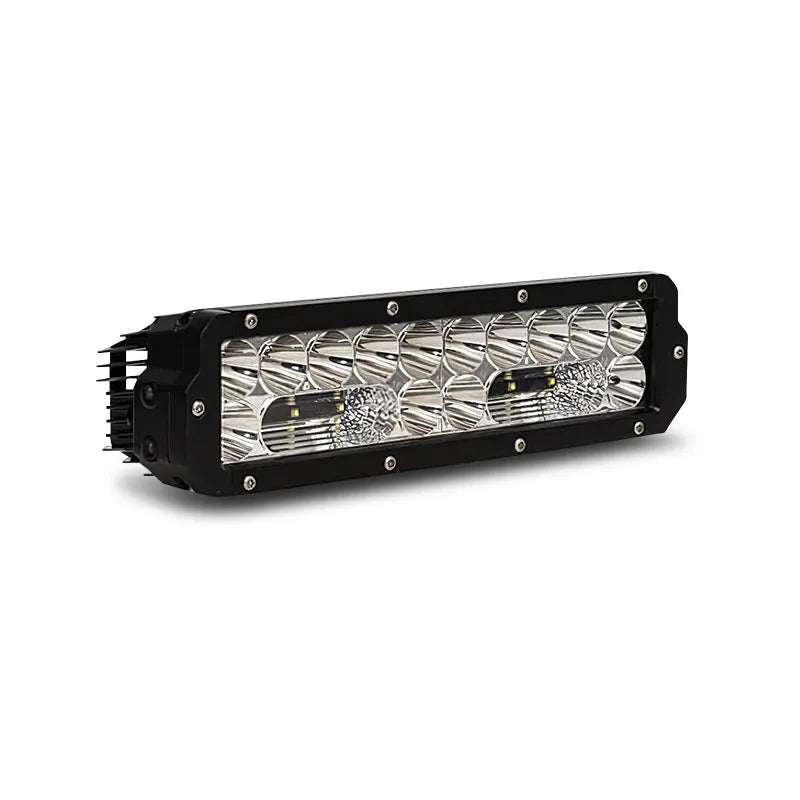

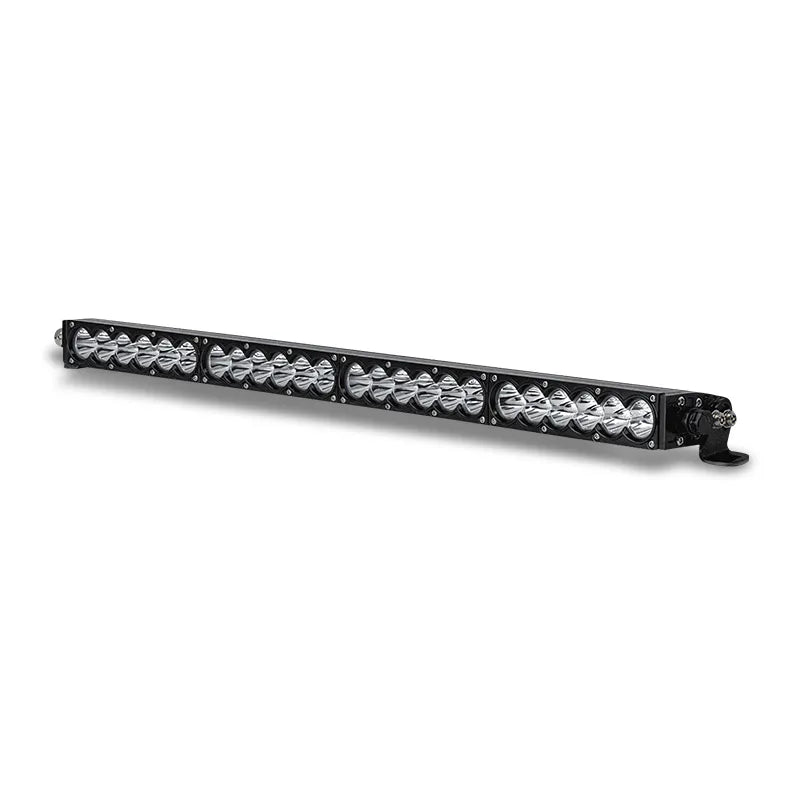

Light Bar Specs (1x Light Bar) | Raptor 165w | Nitro Maxx 105 |
---|---|---|
Wattage | 165 Watts | 100 Watts |
Light Source | 24 High Power LEDs | 20 x 5w LED's |
Light Output – Raw | 18,609 Lumens | 12,320 Lumens |
Light Output – Effective | 15,240 Lumens | 8,865 Lumens |
Voltage | 9-36V | 9-36V |
Current Draw | 13A | 8A |
Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C |
Waterproof Rating | IP67 | IP68 |
Connector Type Plugs | 2 Pin heavy duty Deutsch | 2 Pin heavy std Deutsch |
Housing | Aluminium | 6063 T5 Aluminium |
Lens Construction | Polycarbonate | Polycarbonate |
Brackets | Side Mount Brackets | Sliding Base / Side Mounts |
Colour Temperature | 5700K | 5700K |
Lifespan | 50,000 Hours | 50,000 Hours |
Dimensions | 679 x 45 x 73mm | 324 x 92 x 84mm |
Net Weight | 2.3 kg | 1.9kg |
Beams Available | Spot | Combo and Widr |
Warranty | 3 Years | 5 Years |
What's In The Box:
Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
