Product features

Ultra Vision Behind Grille Light Bar Kit To Suit VW Amarok 2023-on Core & Life Models: Behind Grille Light Bar Kit for Core & Life Models Is the Solution!

Are you looking for a lighting upgrade to your VW Amarok but don’t want to install a bull bar or remove parts of your vehicle?

Ultra Vision’s all new VW Amarok NF 2023-on Behind Grille Light Bar Kit for Core & Life models is the solution!

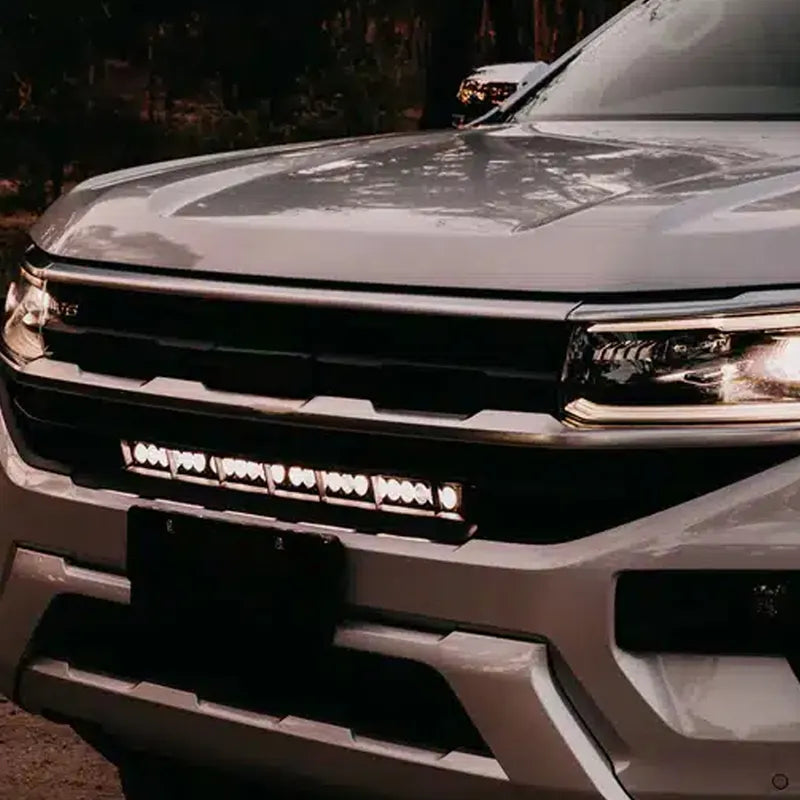

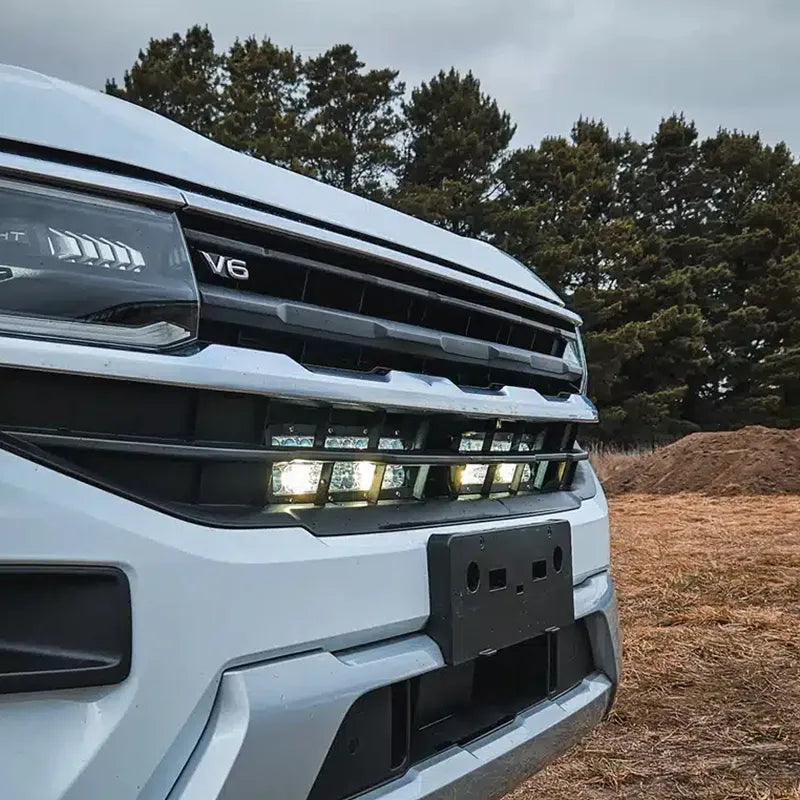

The purpose-built bracket system positions your choice of either one or two light bars behind the grille and mounts to the bumper framework. This results in a very solid fitment so there’s no shaking when you’re out driving on rough roads.

When installing, only the grille shroud beneath the bonnet needs to be removed for temporary access.

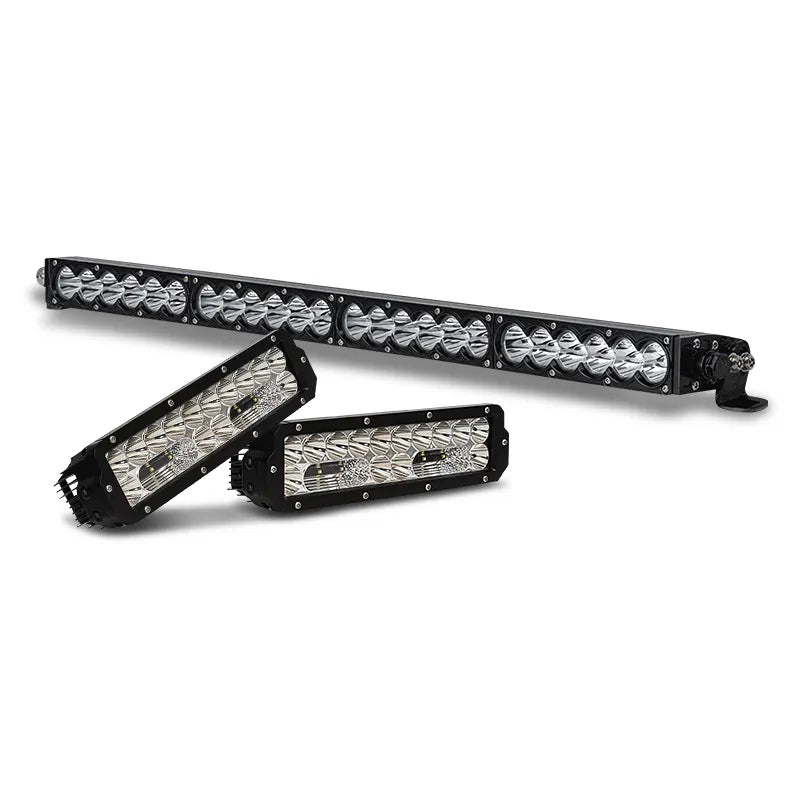

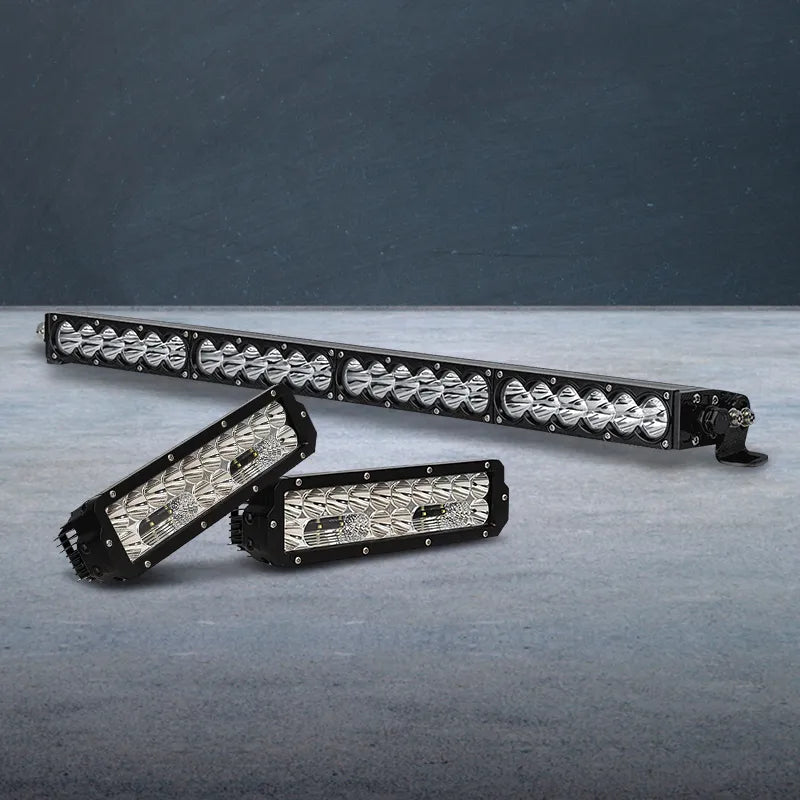

Choose from Light Bar Options Below (all 5700K colour temperature):

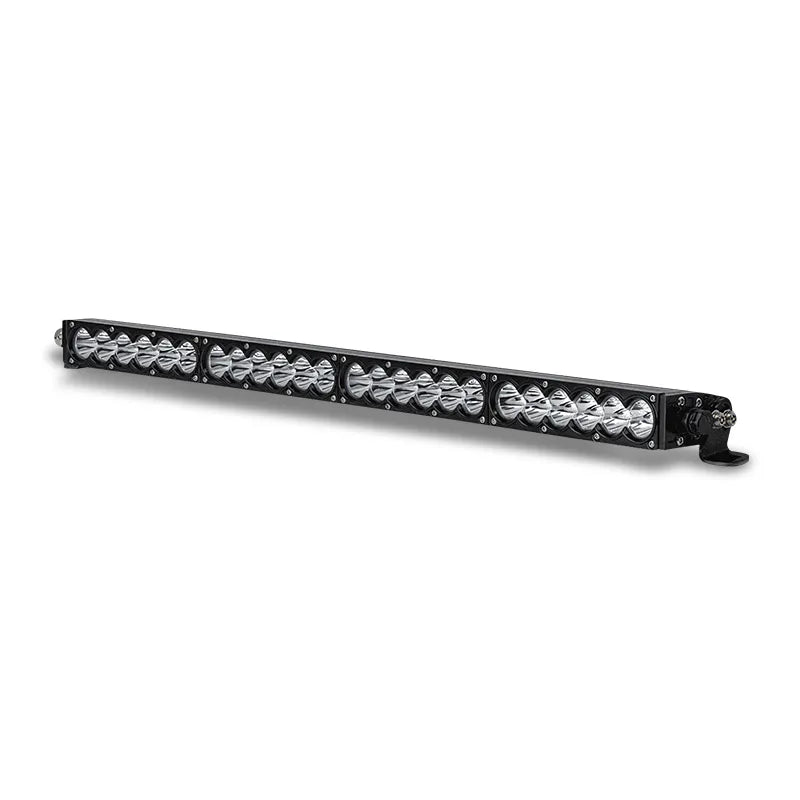

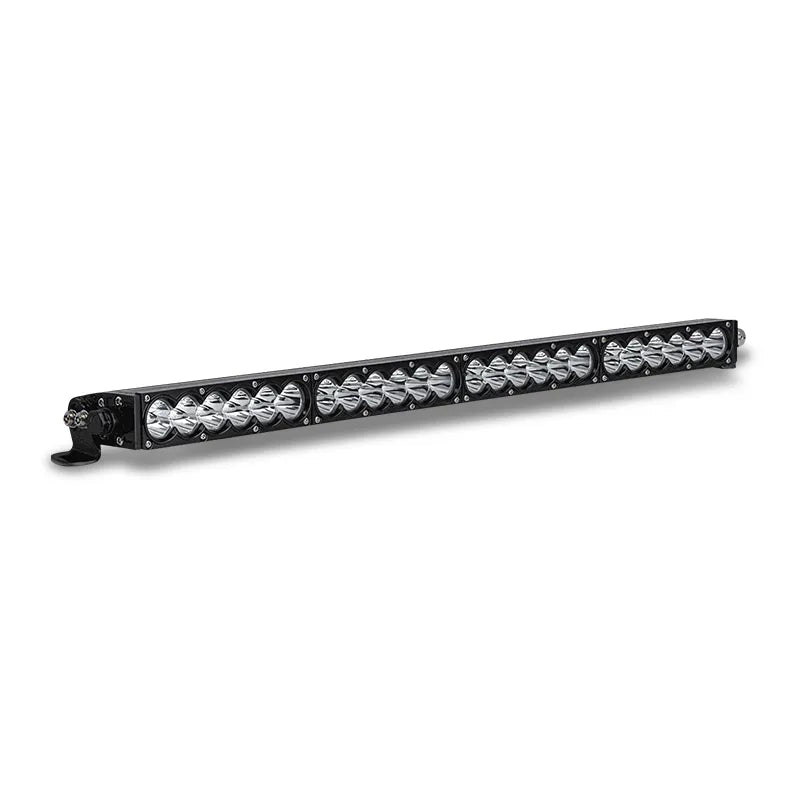

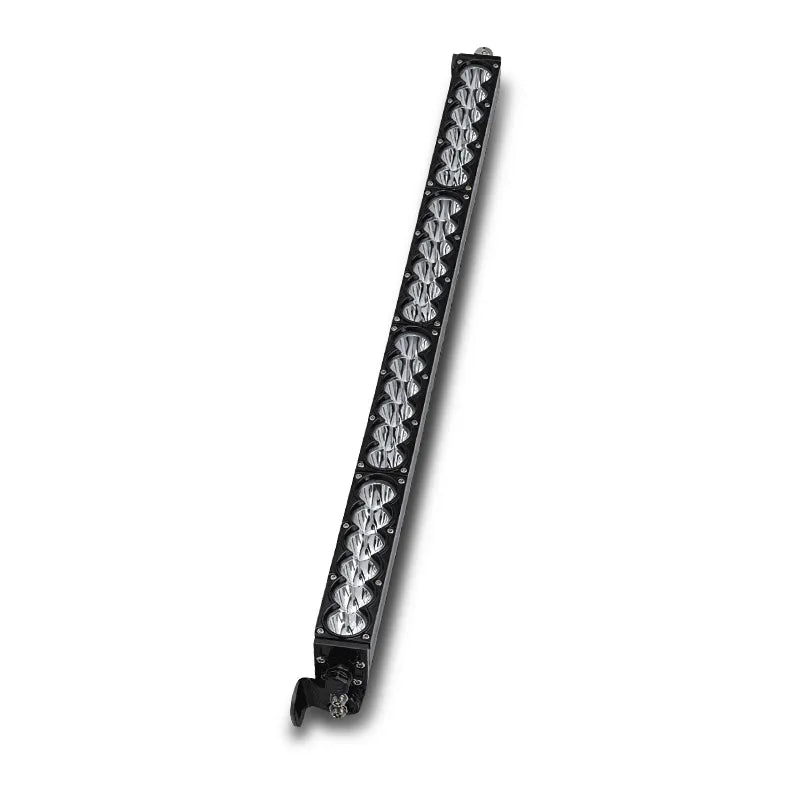

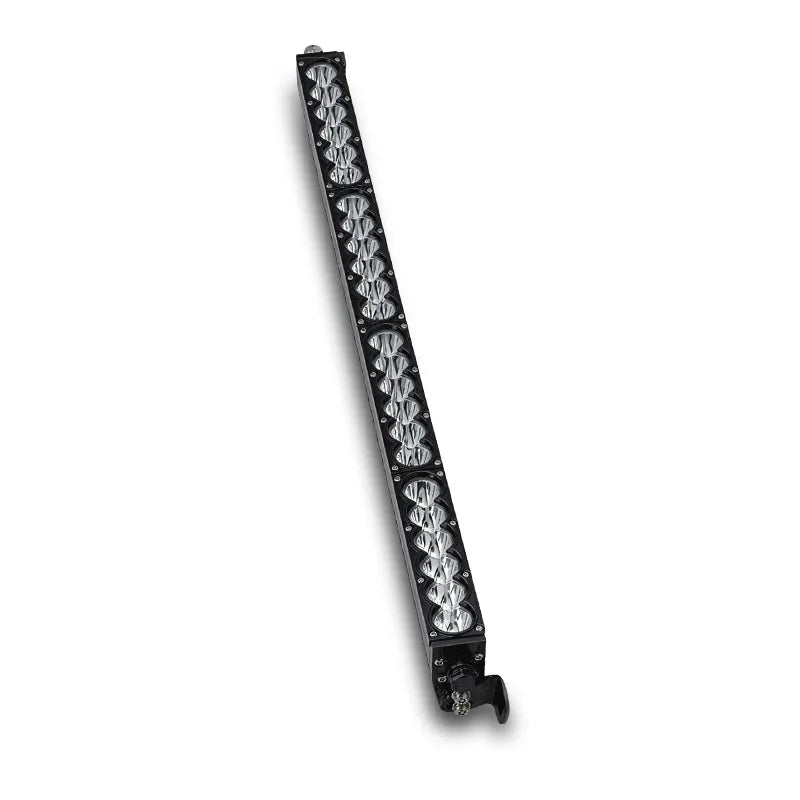

  • 1 x Raptor 165w 26.5-Inch LED Light Bar

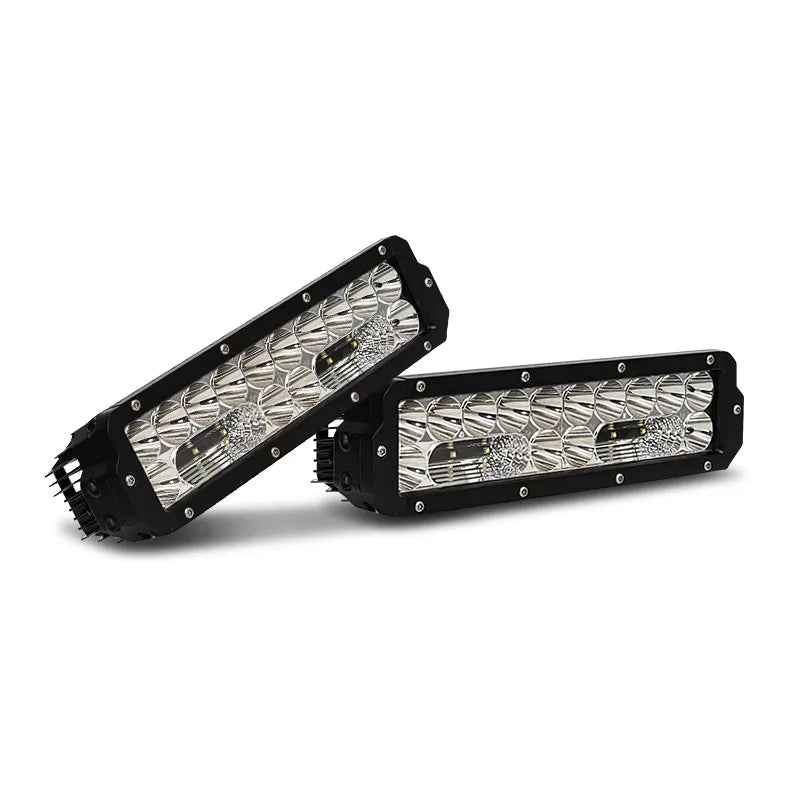

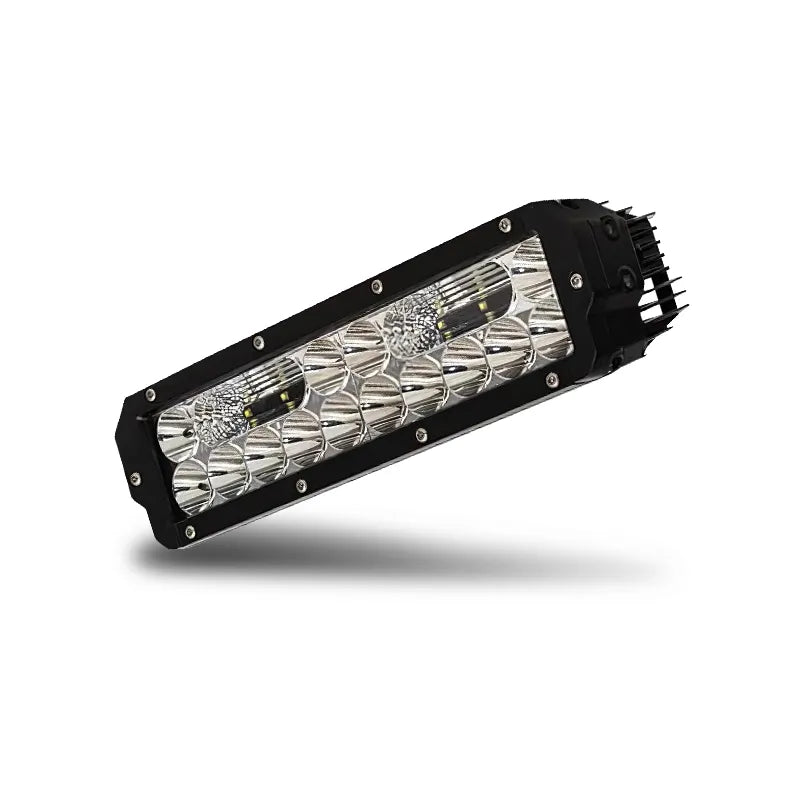

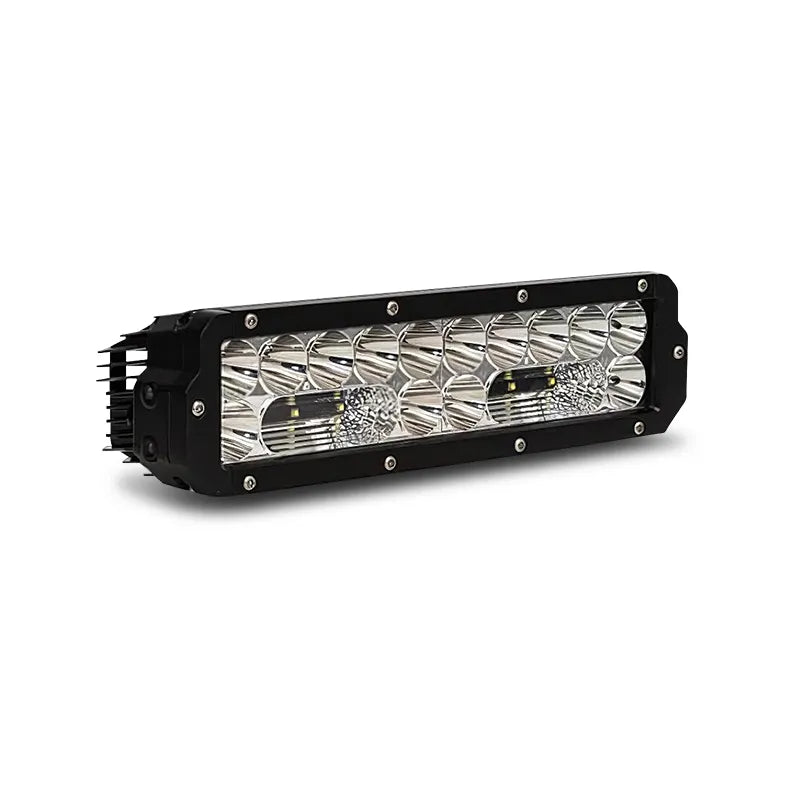

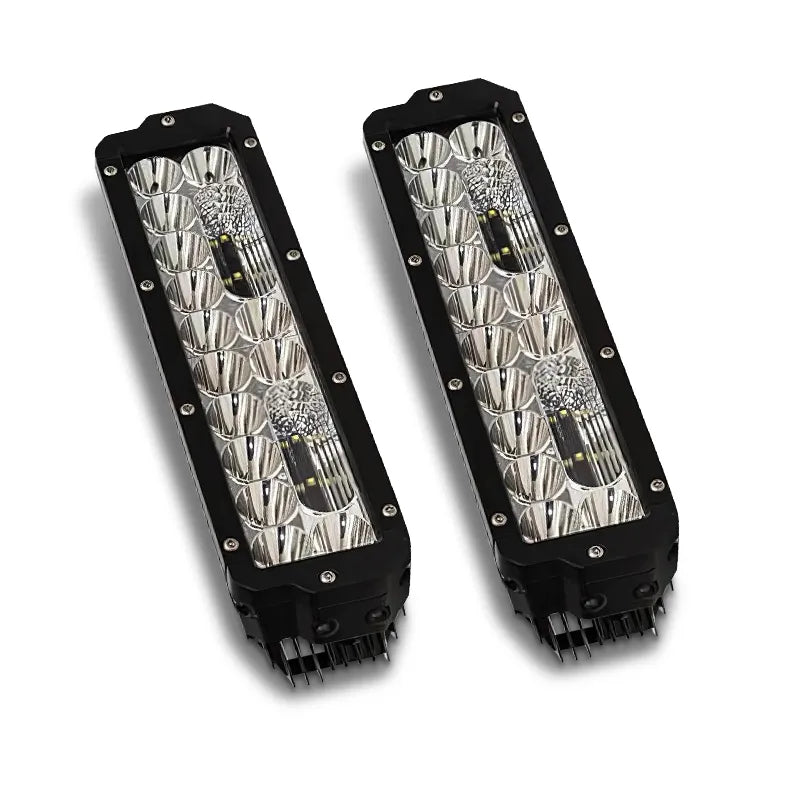

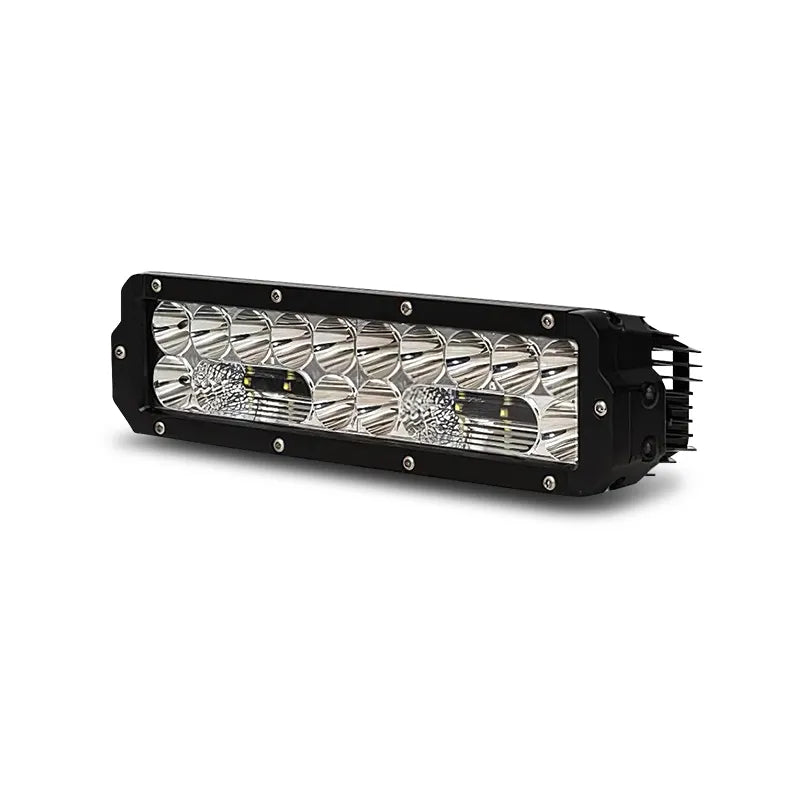

  • 2 x Nitro Maxx 105w 13-Inch LED Light Bars

Ultra Vision UV-VWACL-KIT Features:

  • Designed specifically for VW Amarok NF 2023-on Core & Life Models
  • No bull bar required
  • No cutting or drilling required
  • Choose from Raptor or Nitro Maxx Light Bar options
  • Brackets powder-coated black for sleek design and rust preservation
  • Designed and made in Australia

Ultra Vision UV-VWACL-KIT Specifications:

Light Bar Specs (1x Light Bar) Raptor 165w Nitro Maxx 105
Wattage 165 Watts 100 Watts
Light Source 24 High Power LEDs 20 x 5w LED's
Light Output – Raw 18,609 Lumens 12,320 Lumens
Light Output – Effective 15,240 Lumens 8,865 Lumens
Voltage 9-36V 9-36V
Current Draw 13A 8A
Operating Temperature -40 to 80 Deg C -40 to 80 Deg C
Waterproof Rating IP67 IP68
Connector Type Plugs 2 Pin heavy duty Deutsch 2 Pin heavy std Deutsch
Housing Aluminium 6063 T5 Aluminium
Lens Construction Polycarbonate Polycarbonate
Brackets Side Mount Brackets Sliding Base / Side Mounts
Colour Temperature 5700K 5700K
Lifespan 50,000 Hours 50,000 Hours
Dimensions 679 x 45 x 73mm 324 x 92 x 84mm
Net Weight 2.3 kg 1.9kg
Beams Available Spot Combo and Widr
Warranty 3 Years 5 Years

What's In The Box:

  • 1x Raptor or 2x Nitro Maxx or Light Bar/s of your choice.
  • 1x Wiring harness to suit
  • 1x Purpose-built VW Amarok behind-grille black powder-coated bracket kit
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
