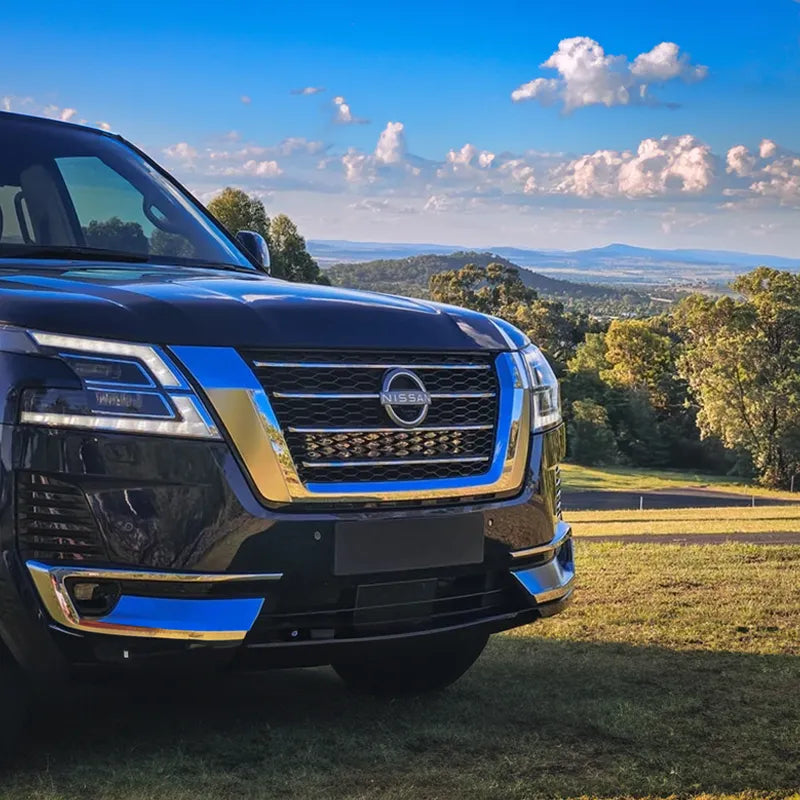

Ultra Vision Behind Grille Light Bar Kit To Suit Nissan Patrol Y62 Series 5 2020-on: Get the Power of Ultra Vision without A Bull Bar

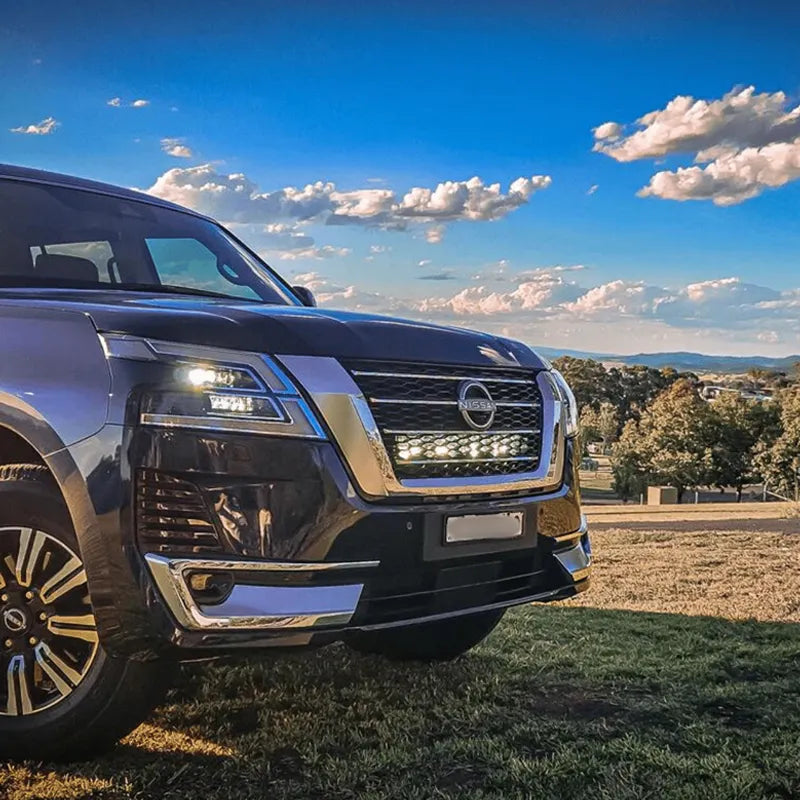

Our Behind Grille Light Bar kit is a simple bolt-in fitment solution for your Nissan Patrol Y62 Series 5, so you can get the power of Ultra Vision without a bull bar or removing parts of your vehicle.
The purpose-built Patrol Y62 light bar bracket mounts to the vehicle framework, not the grille or bumper, which creates a solid fitment that doesn’t shake on rough roads. The invisible bracket also incorporates stud plates, so the installation is simple and seamless!

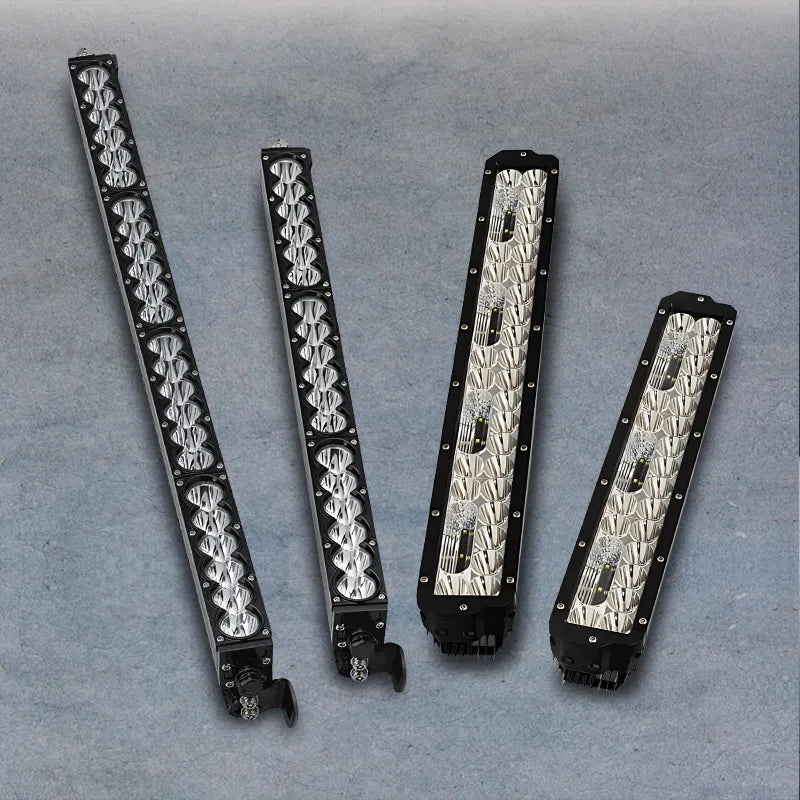

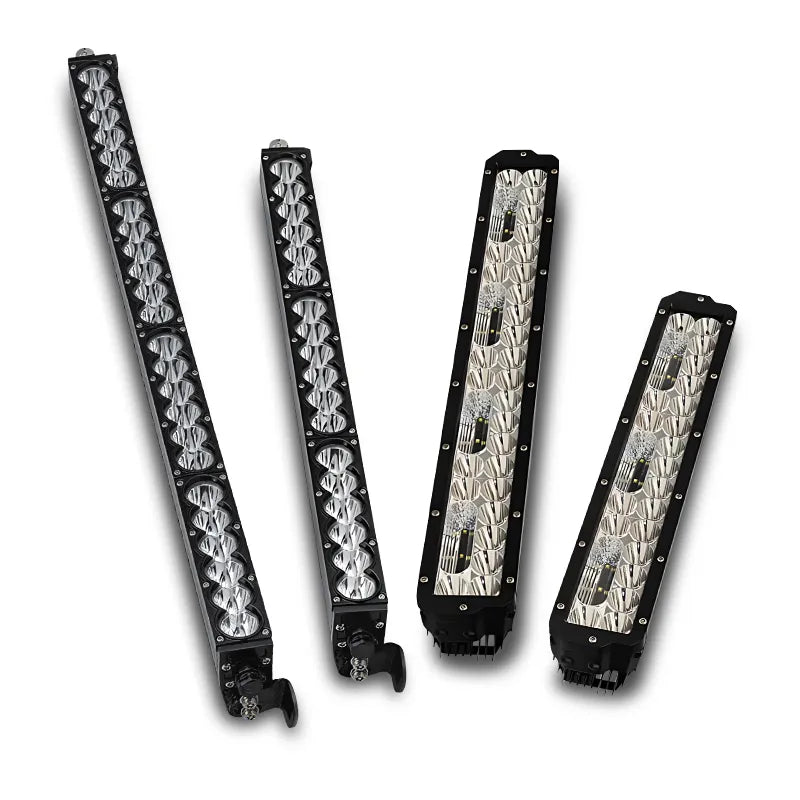

Choose from the below Light Bar Options (all 5700K colour temperature):

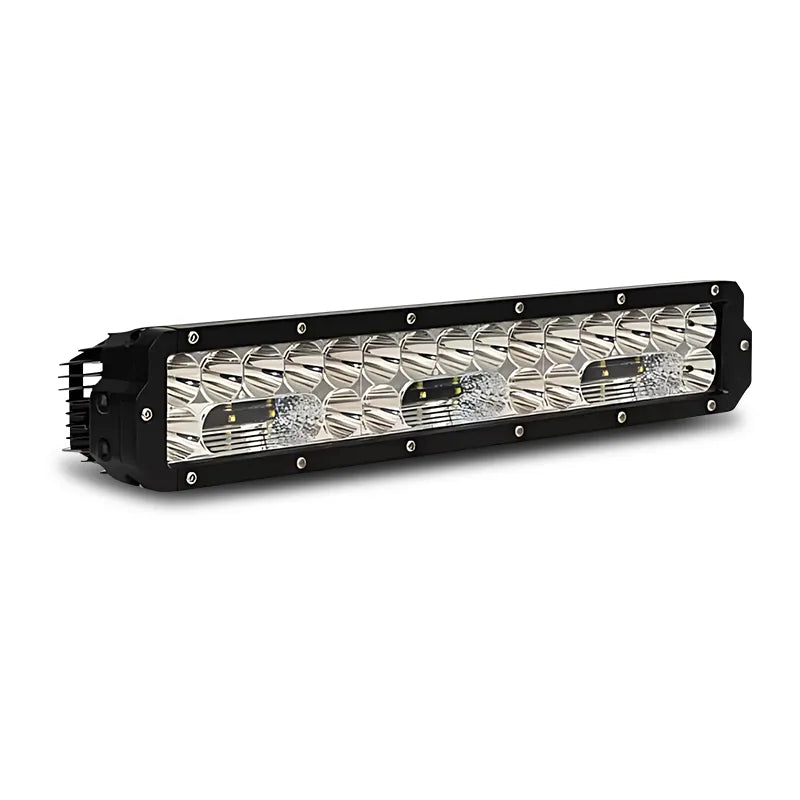

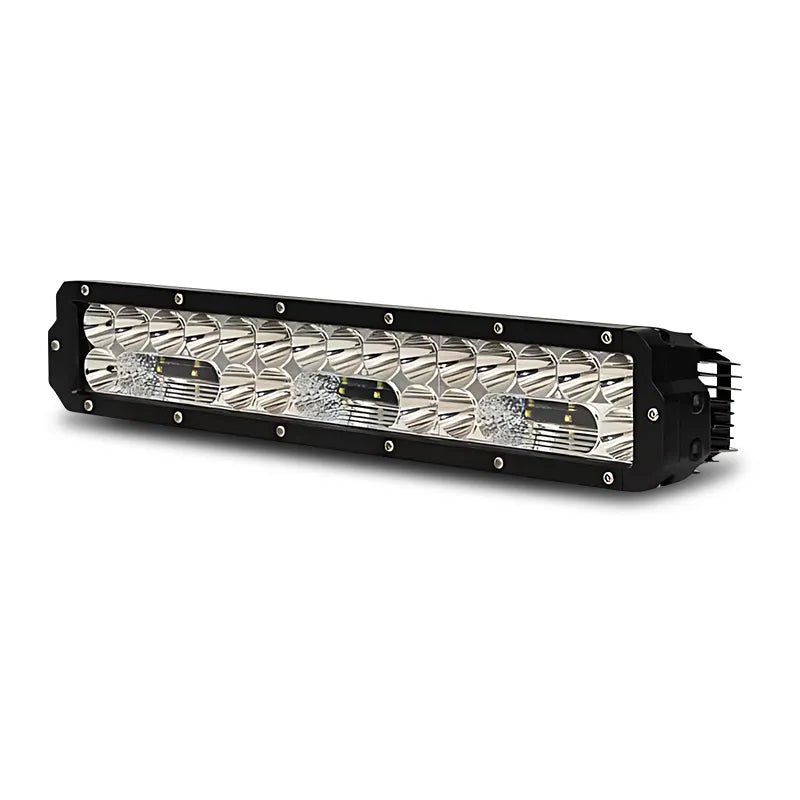

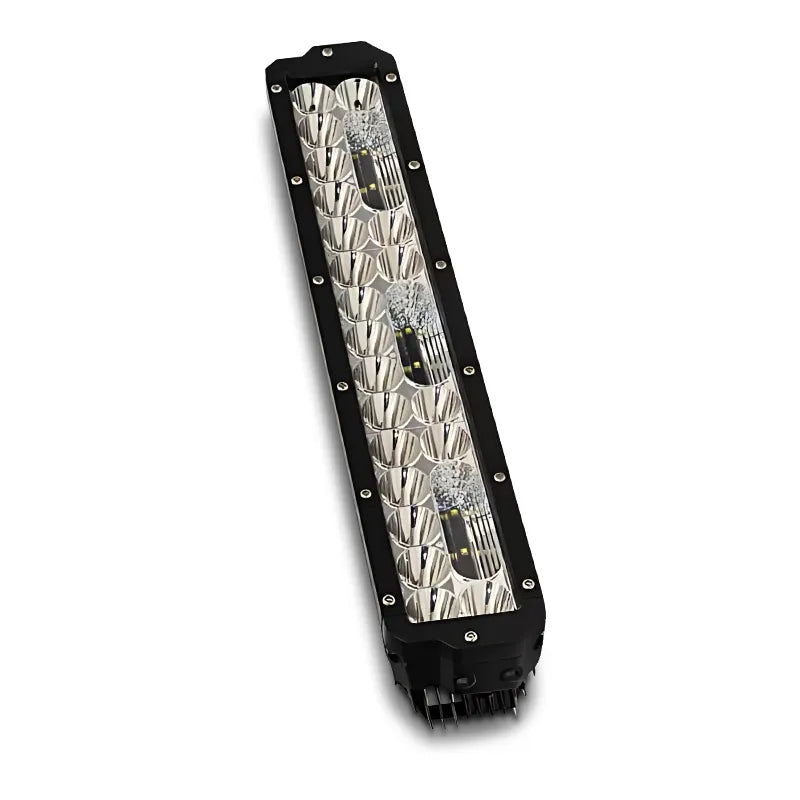

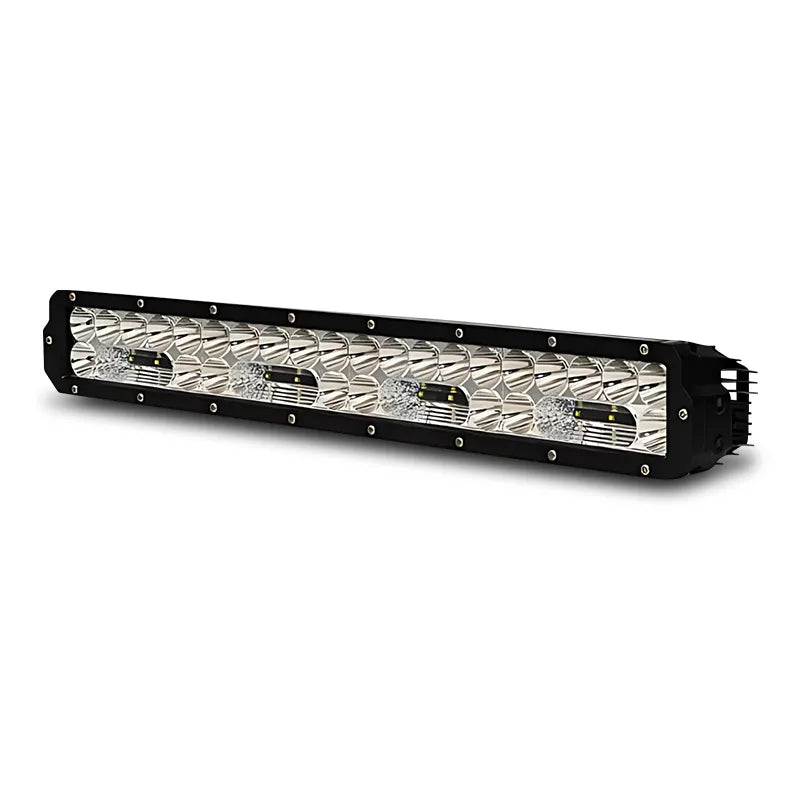

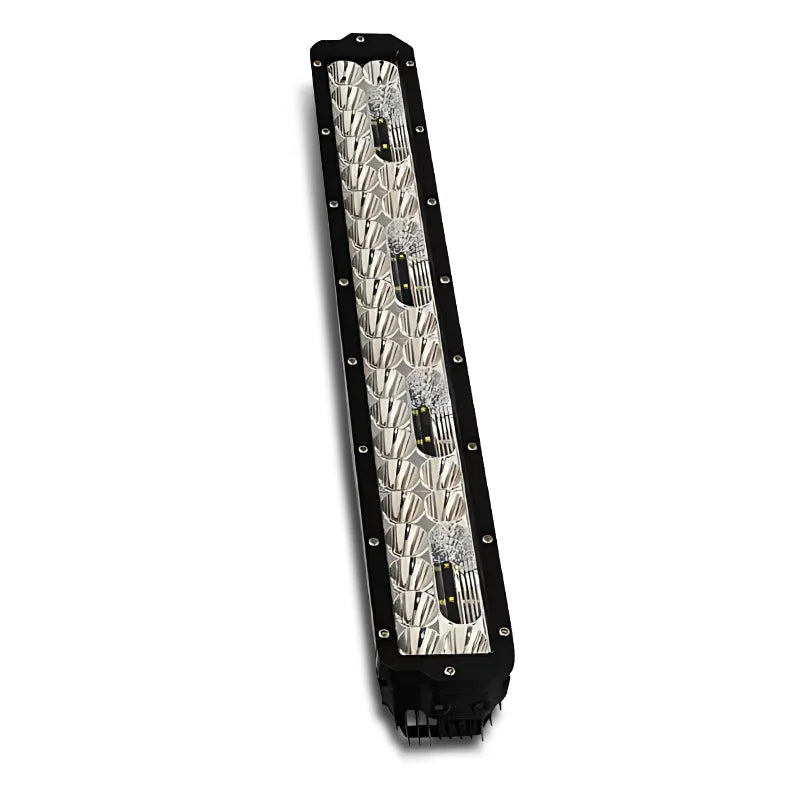

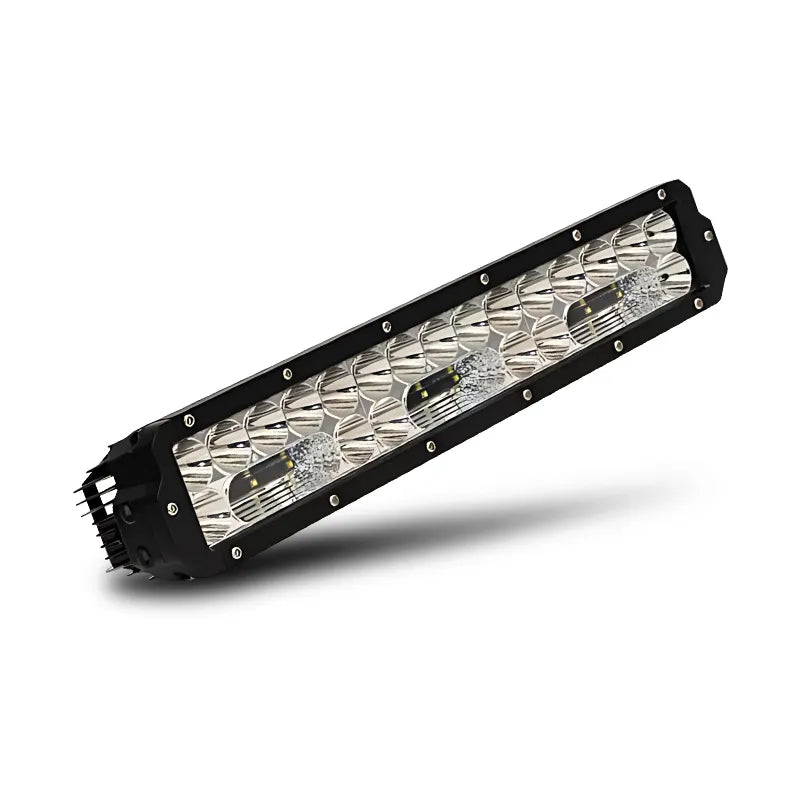

- 1 x Nitro Maxx 155w 18-Inch LED Light Bar

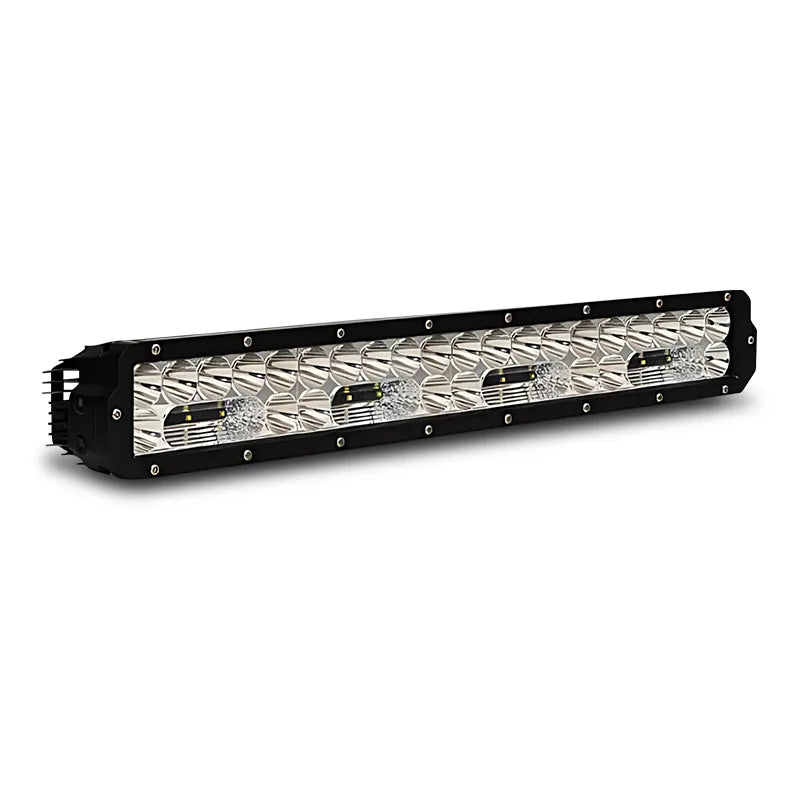

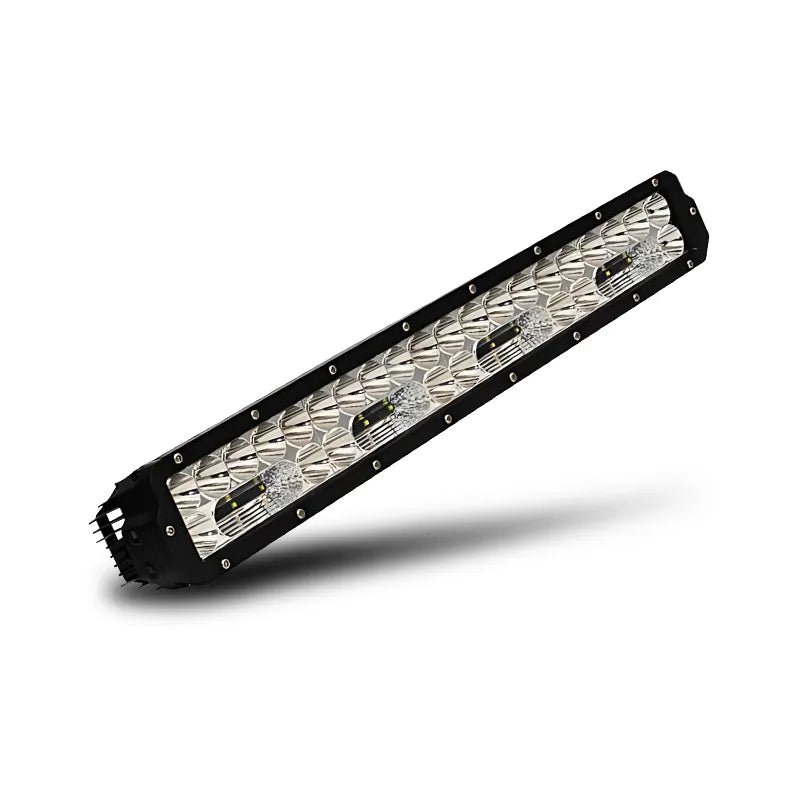

- 1 x Nitro Maxx 205w 24-Inch LED Light Bar

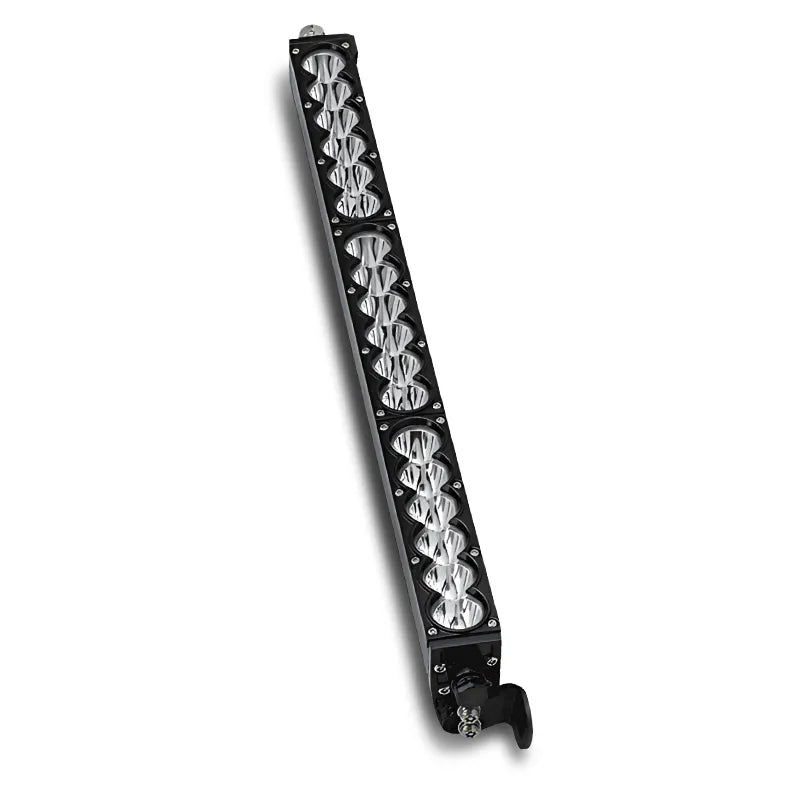

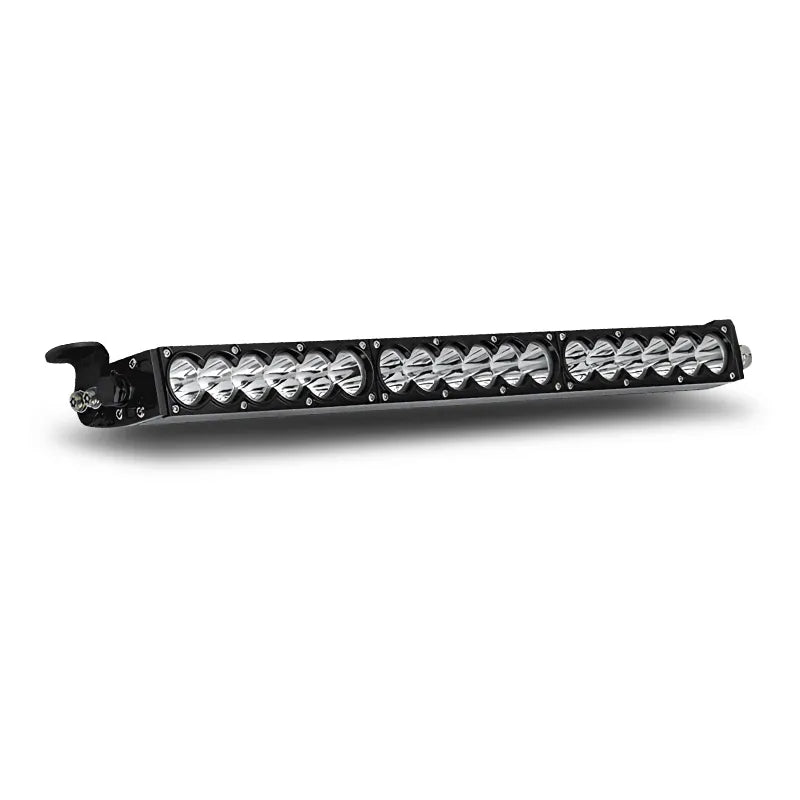

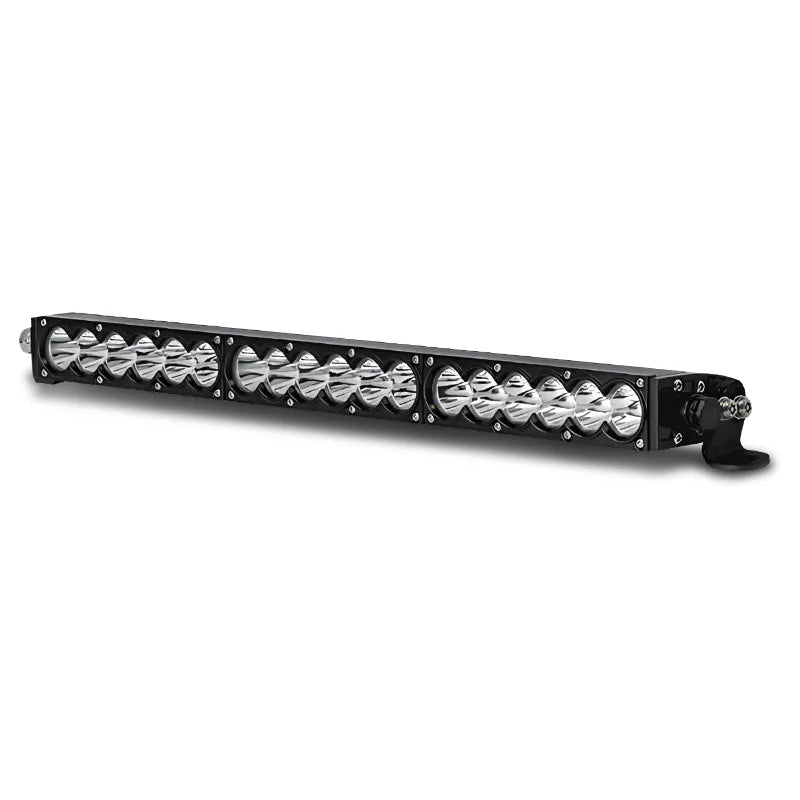

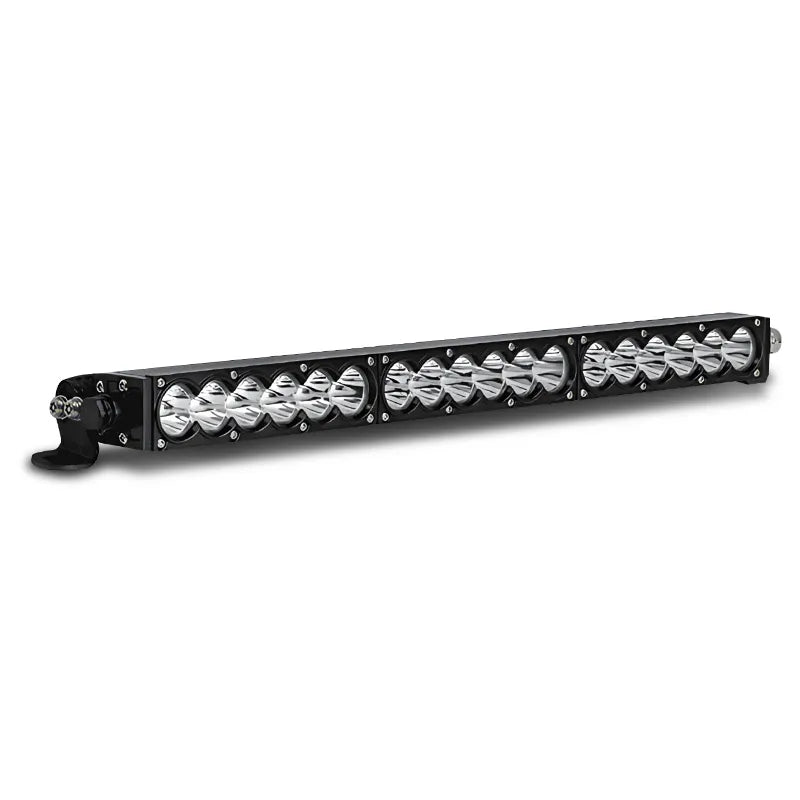

- 1 x Raptor 125w 20.5-Inch LED Light Bar

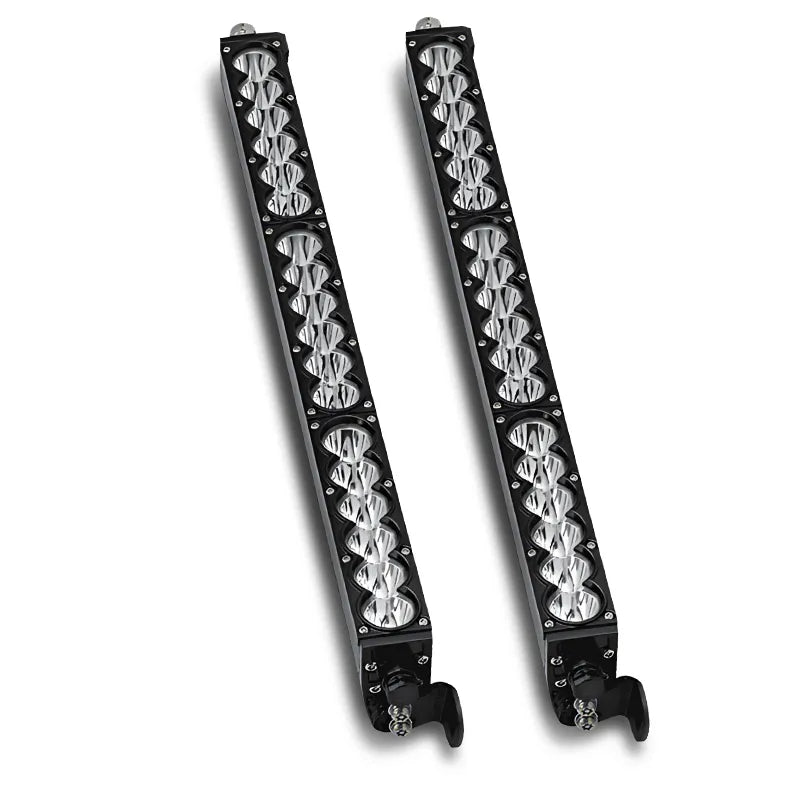

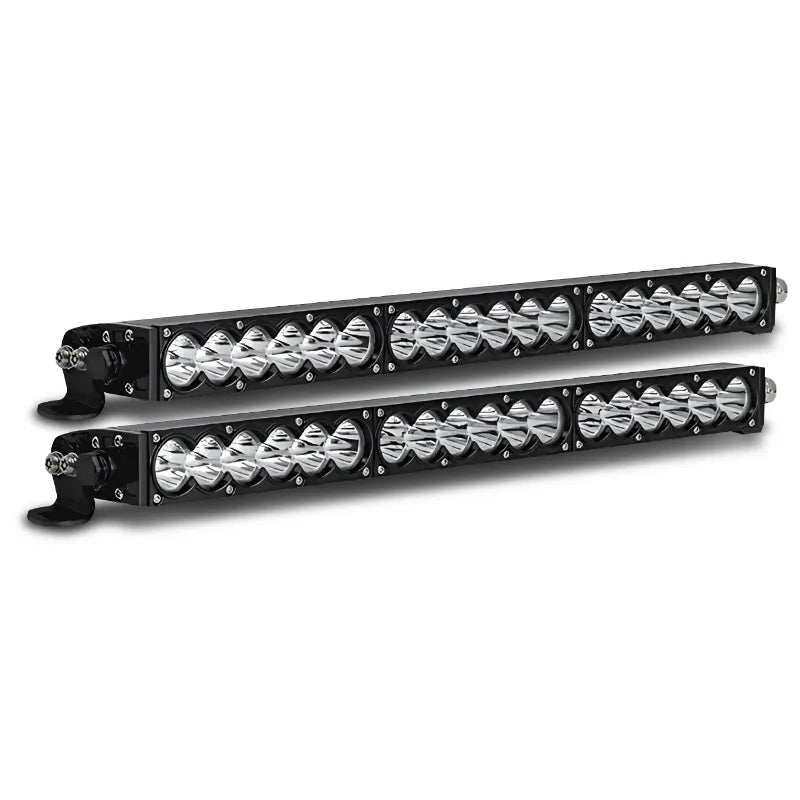

- 2 x Raptor 125w 20.5-Inch LED Light Bars

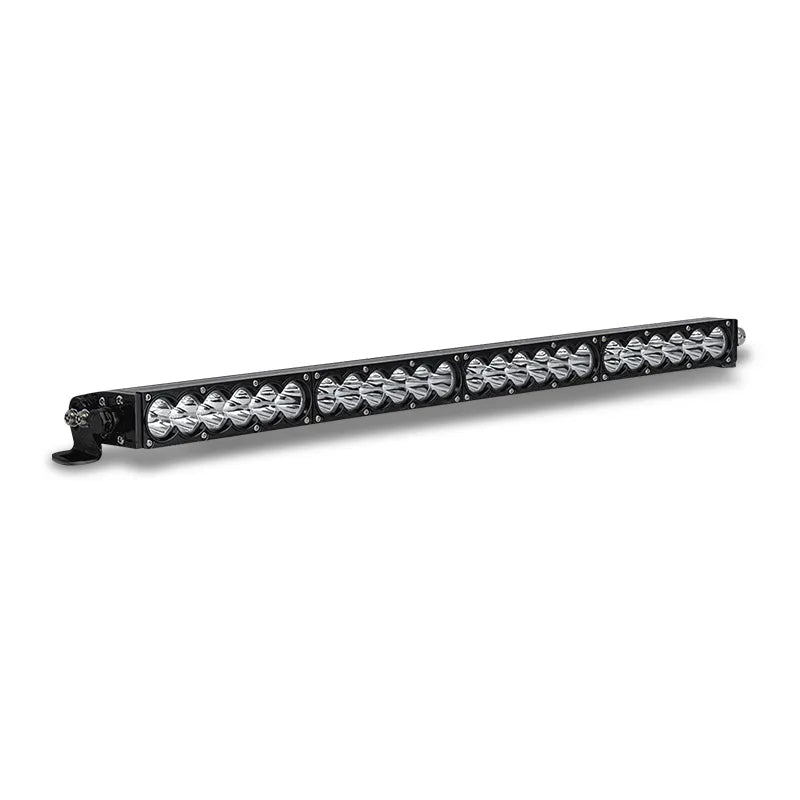

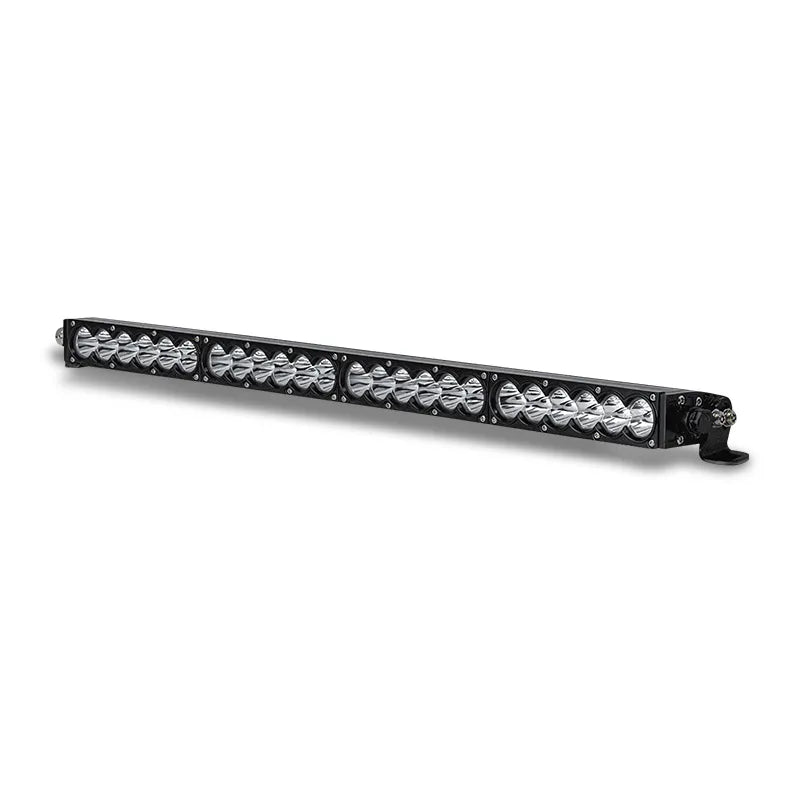

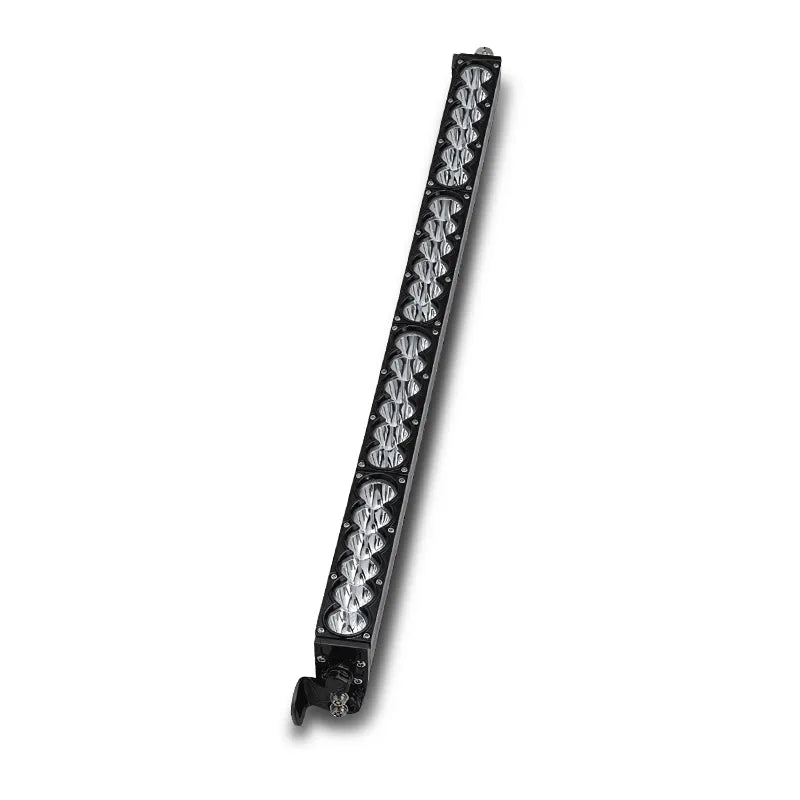

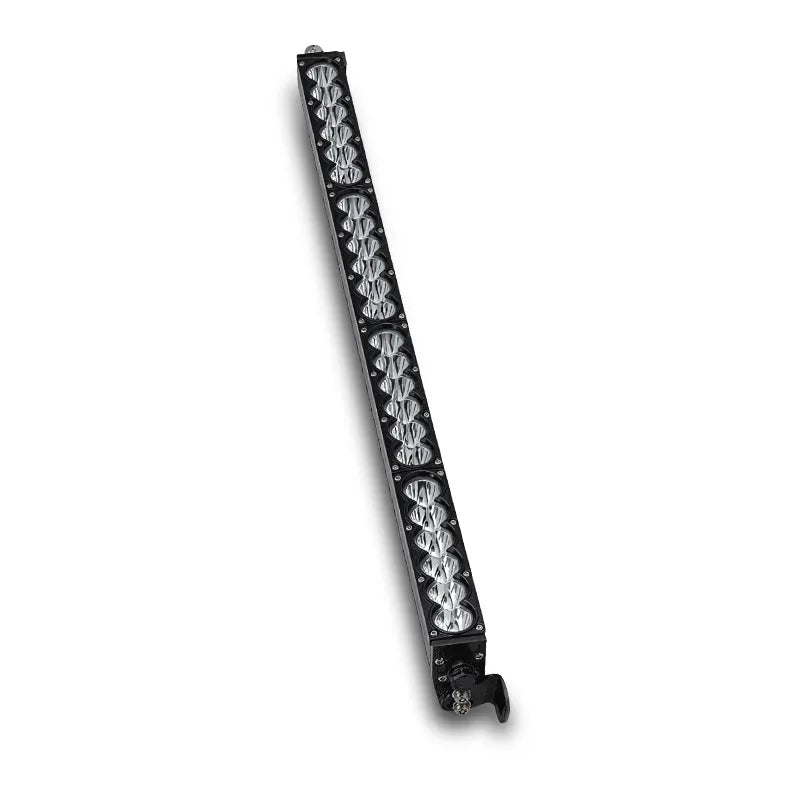

- 1 x Raptor 165w 26.5-Inch LED Light Bar
Ultra Vision UV-NPY62-KIT Features:
- Designed specifically for the Nissan Patrol Y62 Series 5 2020-on models.
- No bull bar required
- No cutting or drilling required
- Includes choice of Raptor or Nitro Maxx Light Bars
- Brackets powder-coated black for sleek design and rust preservation
- Designed and made in Australia.
Ultra Vision UV-NPY62-KIT Specifications:
| Light Bar Specs (1x Light Bar) | Nitro Maxx 155 | Nitro Maxx 205 | Raptor 125w | Raptor 165w |
|---|---|---|---|---|
| Wattage | 150 Watts | 200 Watts | 125 Watts | 165 Watts |
| Light Source | 30 x 5w LED's | 40 x 5w LED's | 18 High Power LEDs | 24 High Power LEDs |
| Light Output – Raw | 18,480 Lumens | 24,640 Lumens | 13,957 Lumens | 18,609 Lumens |
| Light Output – Effective | 13,295 Lumens | 17,724 Lumens | 11,430 Lumens | 15,240 Lumens |
| Voltage | 9-36V | 9-36V | 9-36V | 9-36V |
| Current Draw | 12A | 15A | 10A | 13A |
| Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
| Waterproof Rating | IP68 | IP68 | IP67 | IP67 |
| Connector Type Plugs | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin heavy duty Deutsch | 2 Pin heavy duty Deutsch |
| Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | Aluminium | Aluminium |
| Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| Brackets | Sliding Base / Side Mounts | Sliding Base / Side Mounts | Side Mount Brackets | Side Mount Brackets |
| Colour Temperature | 5700K | 5700K | 5700K | 5700K |
| Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours |
| Dimensions | 465 x 92 x 84mm | 605 x 92 x 84mm | 523 x 45 x 73mm | 679 x 45 x 73mm |
| Net Weight | 2.5 kg | 3.4 kg | 1.7 kg | 2.3kg |
| Beams Available | Combo and Widr | Combo and Widr | Spot | Spot |
| Warranty | 5 Years | 5 Years | 3 Years | 3 Years |
What's In The Box:
- Raptor or Nitro Maxx Light Bar of Choice.
- 1x Wiring harness to suit
- 1x Purpose-built Y62 Patrol Behind-Grille black powder-coated bracket kit
- 1x Y62 Patrol high-beam plug & play wiring adaptor
- 1x OEM-Style switch to fit into factory switch blank
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
