SKU: BGLBIDMAXRGV1125KIT

Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on

Price
$895
Tax included. Shipping calculated at checkout.
Buy now, pay later
  • image
  • image
  • image
Kits: 1 x Raptor 125w Light Bar

Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on

Kits
Price
Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on
1 x Raptor 125w Light Bar
Price
$895
Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on
1 x Raptor 125w Light Bar with Extra Bracket
Price
$929
Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on
1 x Nitro Maxx 155 Light Bar
Price
$1,089
Compare product options
In Stock
Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on

Ultra Vision UV-IDRG-KIT Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on

1 x Raptor 125w Light Bar

Price
$895
1 x Raptor 125w Light Bar
Product features

Ultra Vision Behind Grille Light Bar Kit To Suit Isuzu D-Max RG 2021-on: Get the Power of Ultra Vision on Your Vehicle

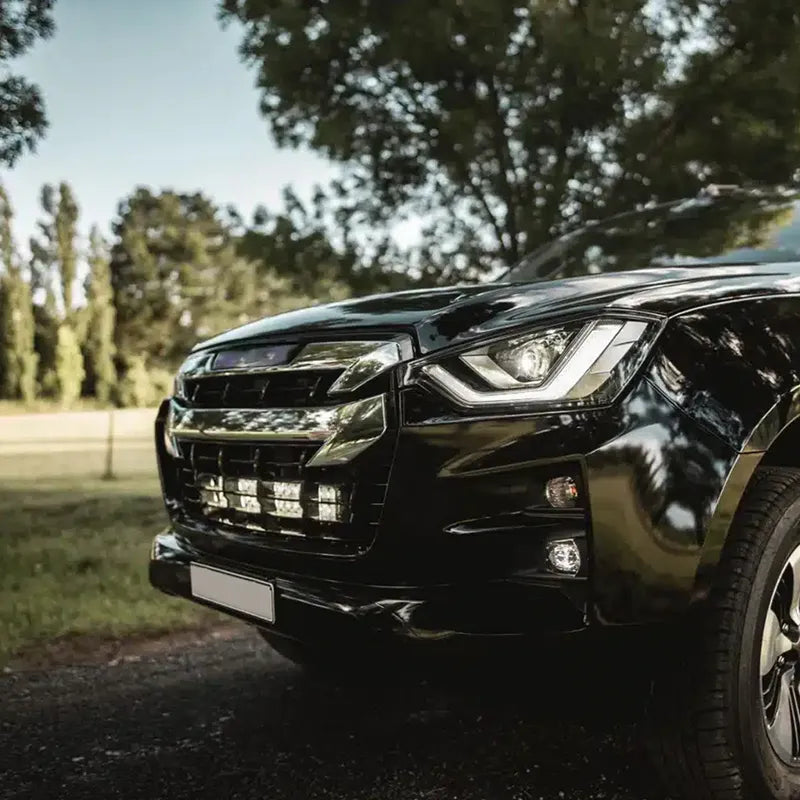

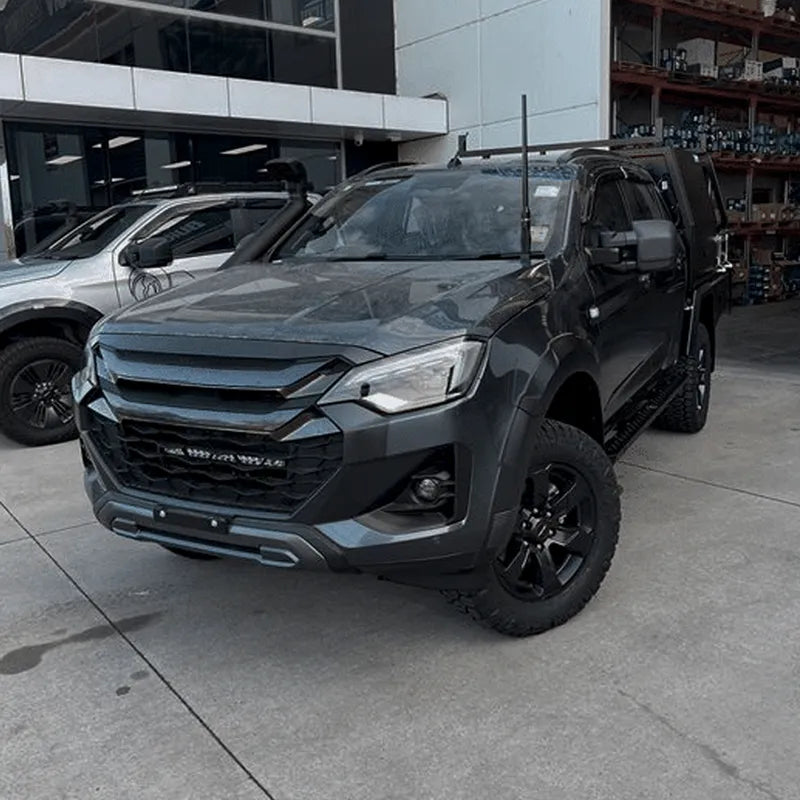

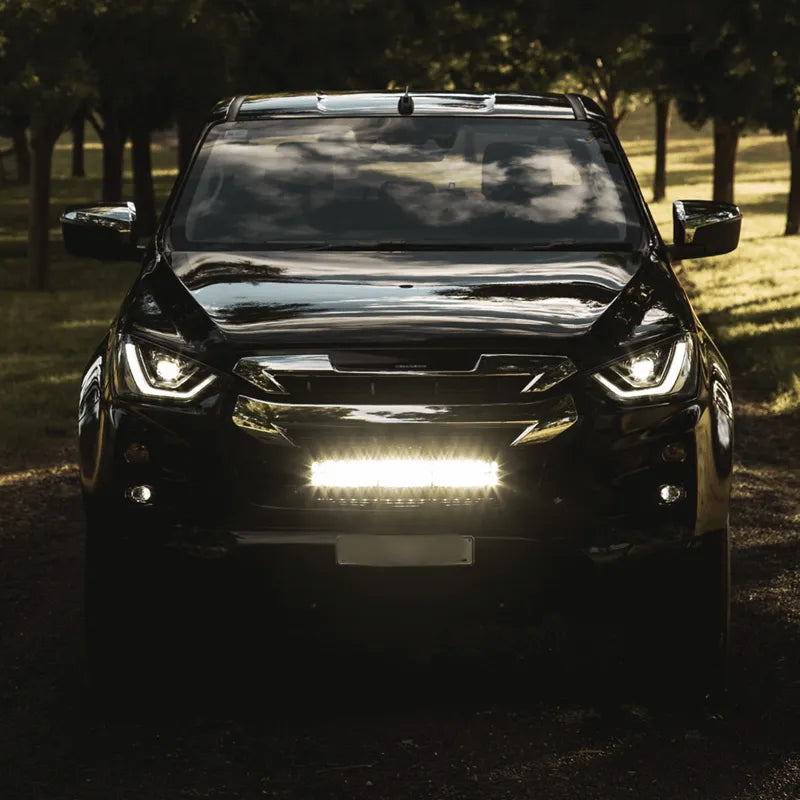

Designed specifically for Isuzu D-Max RG 2021-on, this Behind Grille Light Bar Kit has everything you need to get the power of Ultra Vision on your vehicle, without any cutting, drilling, or a bull bar!

The bracket system has been designed to mount on existing points behind the grille. There is also enough space for the air to flow around and behind the light bar as the bracket positions the light at the front of the grille cavity. This means that there won’t be any ‘hot spots’ on the radiator or intercooler.

The kit comes with fitting instructions and everything you need to install. Plus, there’s minimal tools required for the job – just a screwdriver, a 12mm & 13mm socket, and a 13mm spanner.

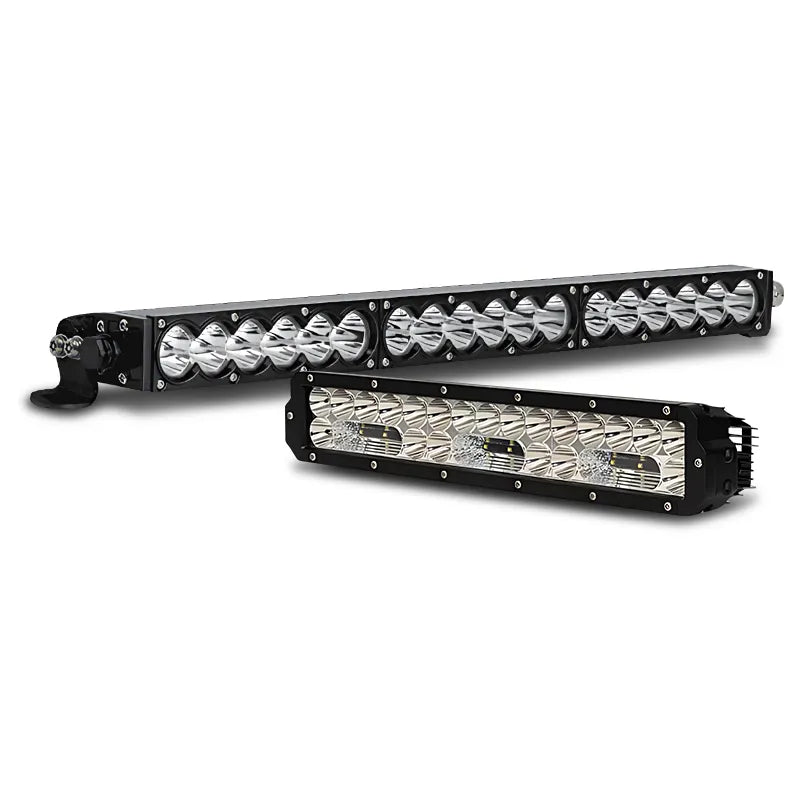

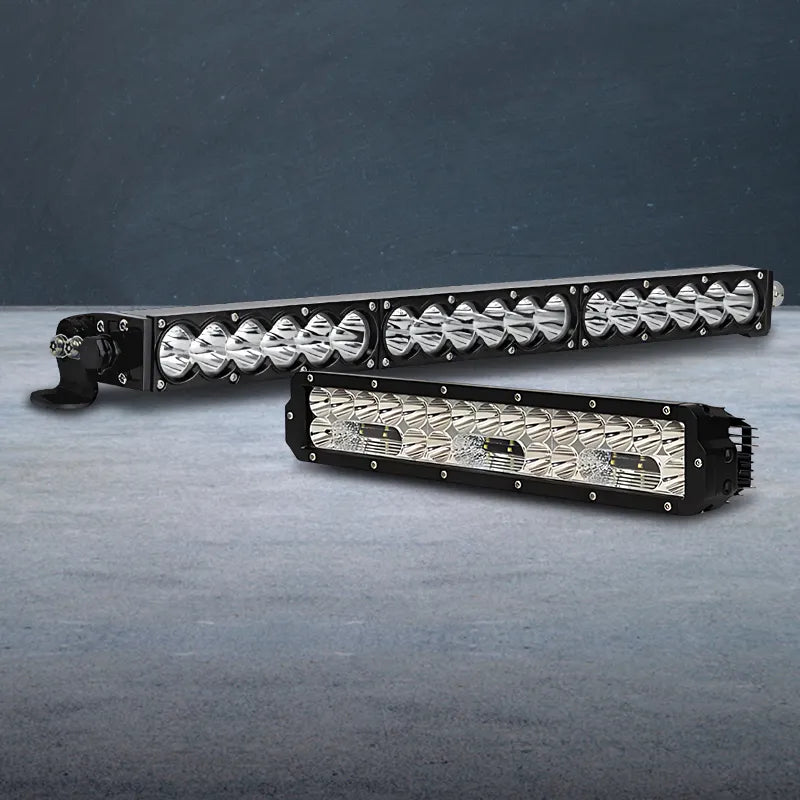

Choose from the below Light Bar Options (all 5700K colour temperature):

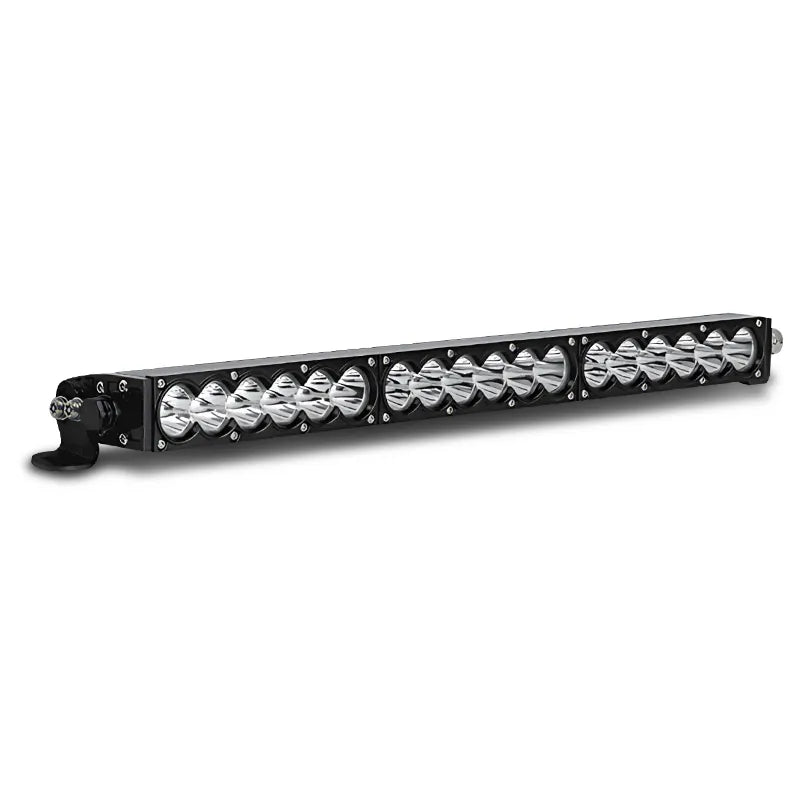

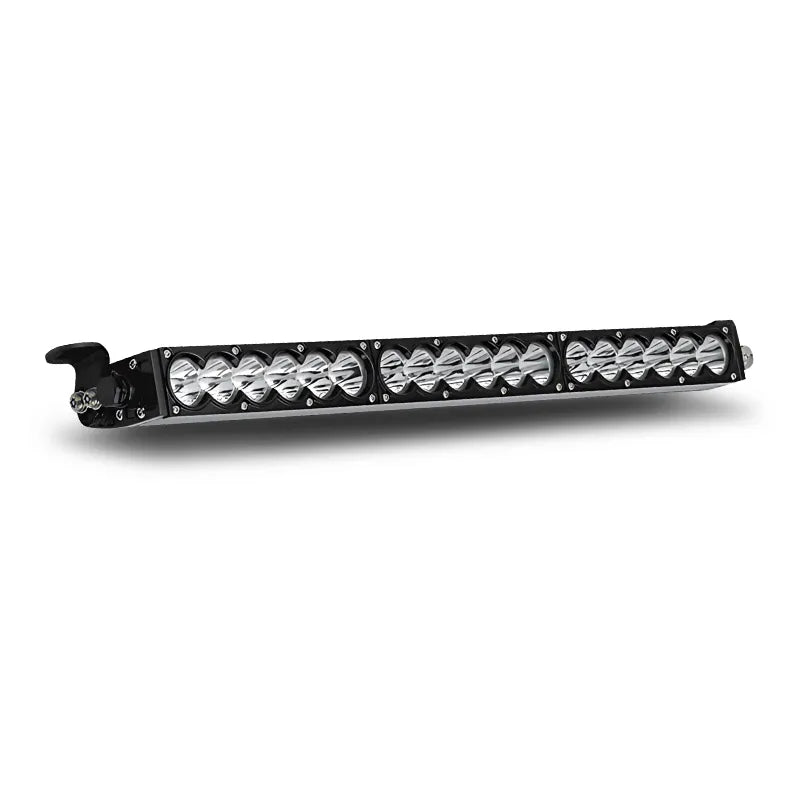

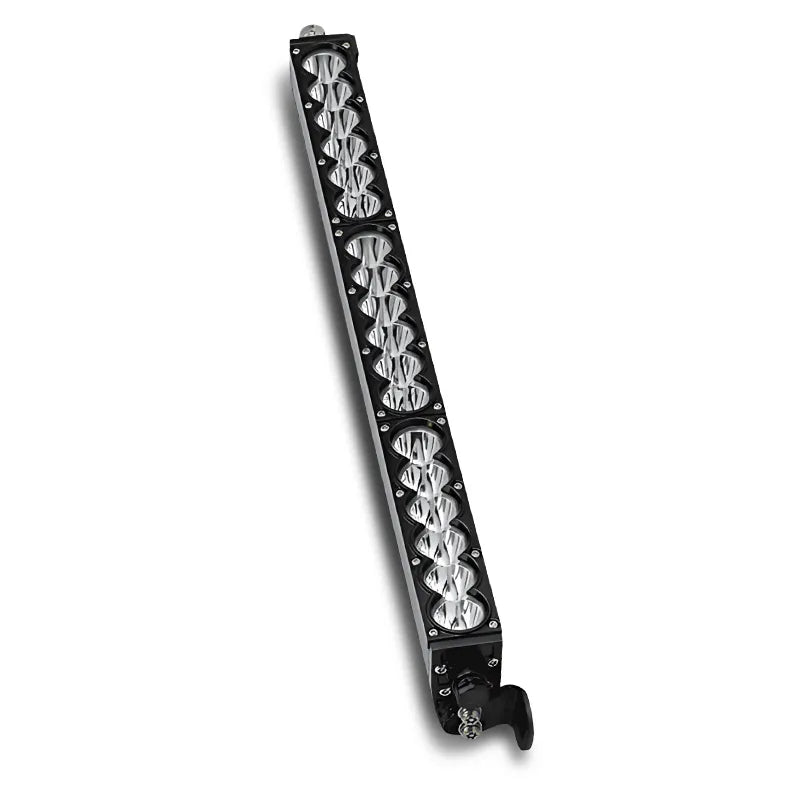

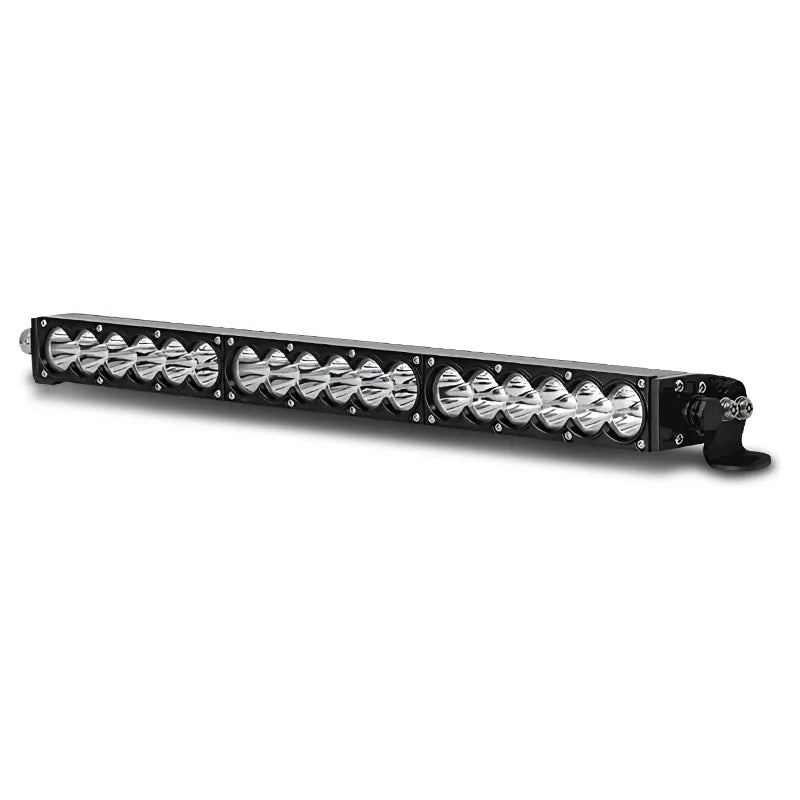

  • 1 x Raptor 125w 20.5-Inch LED Light Bar
  • 1x Raptor 125w 20.5-Inch LED Light Bar with additional bracket

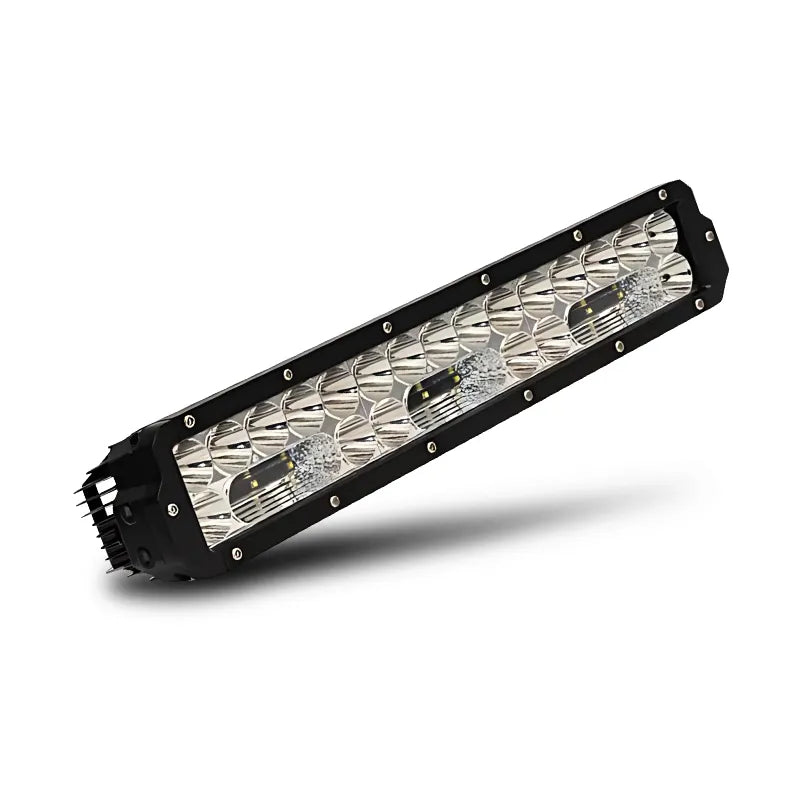

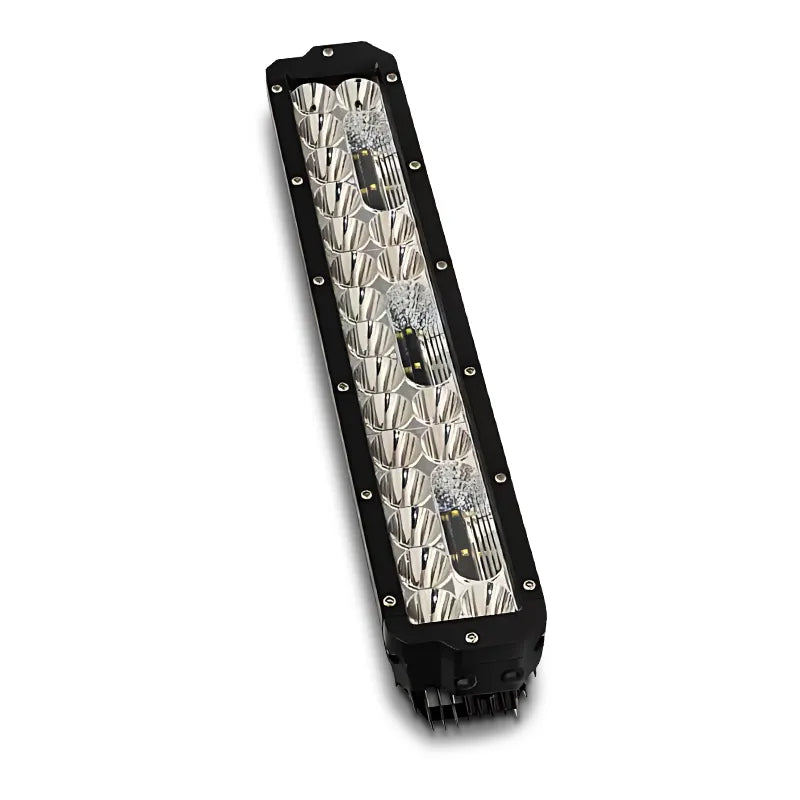

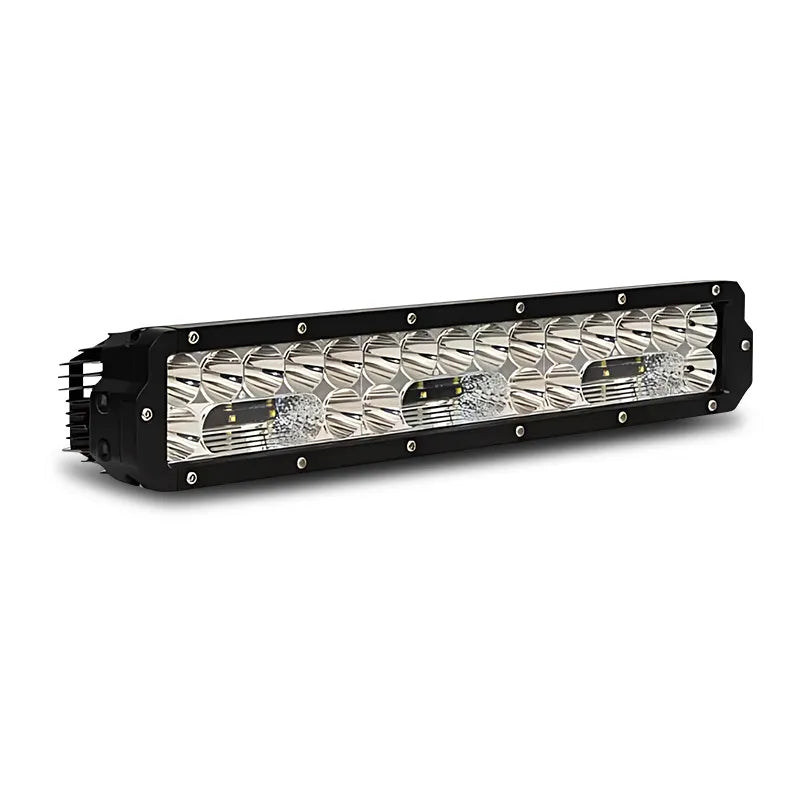

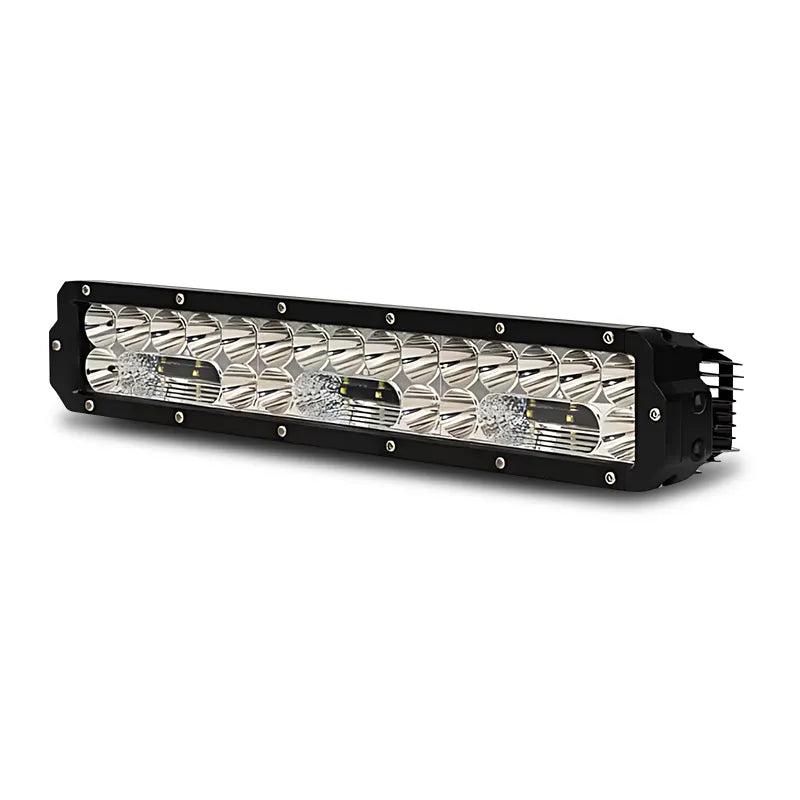

  • 1 x Nitro Maxx 155w 18-Inch LED Light Bar

Ultra Vision UV-IDRG-KIT Features:

  • Designed specifically for the Isuzu D-Max RG 2021-on models
  • No cutting or drilling required
  • No bull bar required
  • Choose from Raptor or Nitro Maxx Light Bar options
  • Brackets powder-coated black for sleek design and rust preservation
  • Designed and made in Australia

Ultra Vision UV-IDRG-KIT Specifications:

Light Bar Specs (1x Light Bar) Raptor 125w Nitro Maxx 155
Wattage 125 Watts 150 Watts
Light Source 18 High Power LEDs 30 x 5w LED's
Light Output – Raw 13,957 Lumens 18,480 Lumens
Light Output – Effective 11,430 Lumens 13,295 Lumens
Voltage 9-36V 9-36V
Current Draw 10A 12A
Operating Temperature -40 to 80 Deg C -40 to 80 Deg C
Waterproof Rating IP67 IP68
Connector Type Plugs 2 Pin heavy duty Deutsch 2 Pin heavy std Deutsch
Housing Aluminium 6063 T5 Aluminium
Lens Construction Polycarbonate Polycarbonate
Brackets Side Mount Brackets Sliding Base / Side Mounts
Colour Temperature 5700K 5700K
Lifespan 50,000 Hours 50,000 Hours
Dimensions 523 x 45 x 73mm 465 x 92 x 84mm
Net Weight 1.7 kg 2.5kg
Beams Available Spot Combo and Widr
Warranty 3 Years 5 Years

What's In The Box:

  • 1x Nitro Maxx or Raptor Light Bar of your choice
  • 1x Wiring harness to suit
  • 1x Purpose-built D-Max Behind-Grille black powder-coated bracket kit
  • 1x Isuzu D-Max high-beam piggyback wiring adaptor
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions
