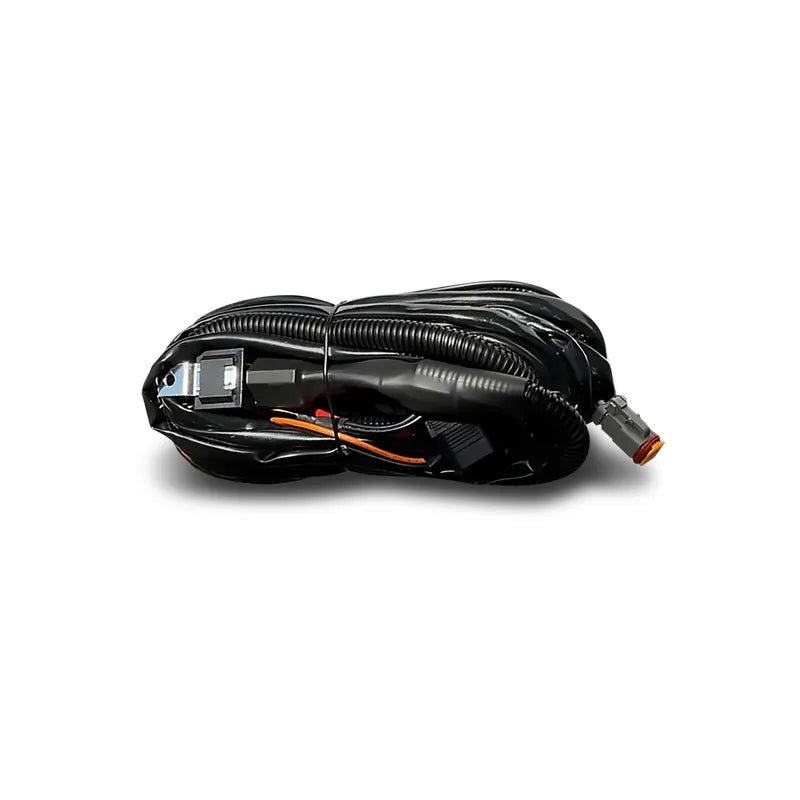

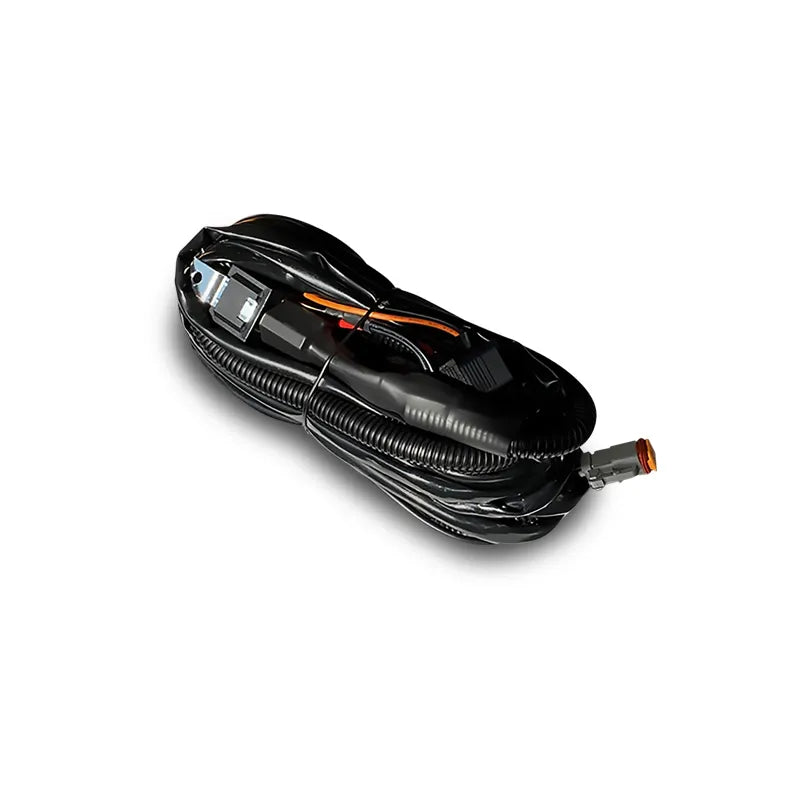

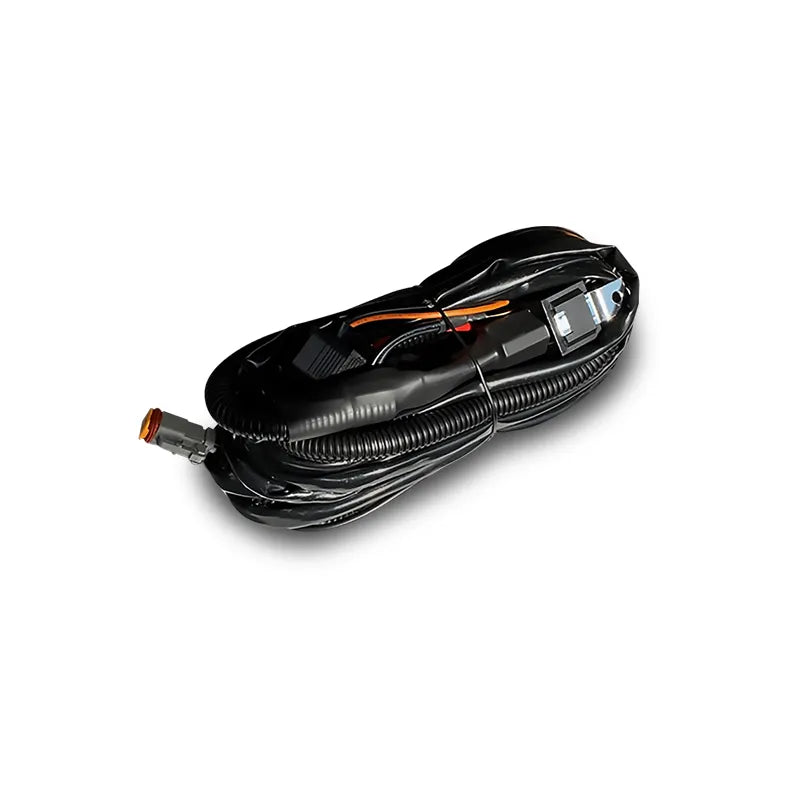

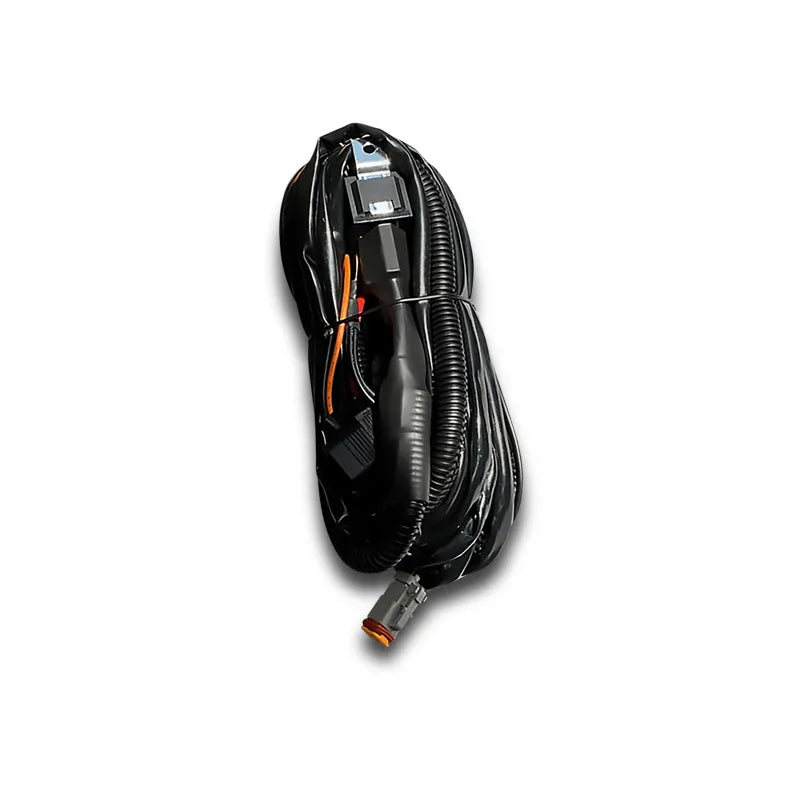

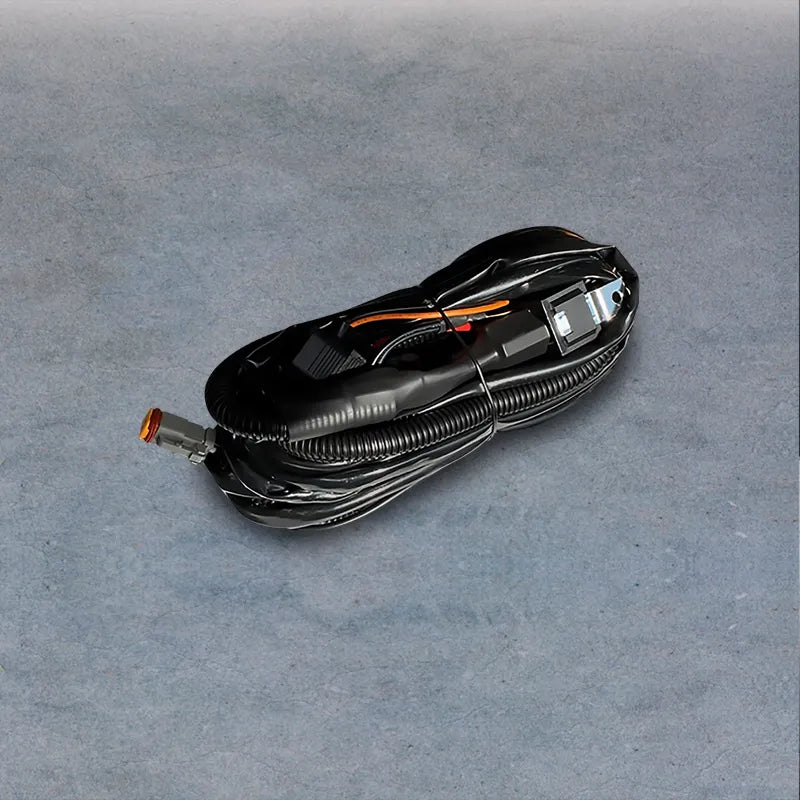

Ultra Vision Lighting DV12HD/3 LED Light Bar Wiring Harness

Wiring Harness for Ultra Vision Nitro Maxx Hi/Lo LED Light Bars Purpose-Built for Dual-Mode Light Bar Installations

Product Overview

The Ultra Vision Lighting DV12HD/3 is a purpose-built wiring harness for the Nitro Maxx Hi/Lo LED light bar range. It is designed to handle the dual-circuit wiring requirements of Hi/Lo LED light bars, which draw power on two separate circuits one for the high beam output and one for the low beam driving output requiring a harness that can manage both independently.

The DV12HD/3 suits all Nitro Maxx Hi/Lo models in the Ultra Vision range.

Note: Full harness specifications including cable length, current rating, relay configuration, switch type, and kit contents are not confirmed in the available supplier data. Confirm these details with Ultra Vision Lighting or your supplier before purchasing.

Features & Benefits

• Suits all Nitro Maxx Hi/Lo LED light bars — purpose-built for the full Ultra Vision Nitro Maxx Hi/Lo range; no model-by-model selection required within that range
• Hi/Lo dual-circuit harness — accommodates the dual power circuit requirements of Hi/Lo light bars, where high and low beam outputs are switched independently
• Ultra Vision specific — designed to match the connector and wiring specification of Ultra Vision Nitro Maxx Hi/Lo light bars

Technical Specs

Compatible With / Goes Well With

• All Ultra Vision Nitro Maxx Hi/Lo LED light bars
• Not confirmed for use with other brands of LED light bars or single-mode (non-Hi/Lo) light bars — confirm with Ultra Vision before use with other products

Weight

Not specified

Frequently Asked Questions

What Ultra Vision Nitro Maxx Hi/Lo light bars does this suit?

The DV12HD/3 is confirmed to suit all models in the Nitro Maxx Hi/Lo range from Ultra Vision Lighting. Confirm the full current list of compatible Nitro Maxx Hi/Lo models with Ultra Vision or your supplier if you have a specific light bar SKU to verify.

What does "Hi/Lo" mean for a light bar wiring harness?

Hi/Lo LED light bars have two independent output modes — a high beam output (maximum intensity) and a low beam or driving output (reduced intensity or spread pattern). This means the light bar draws power through two separate circuits that need to be independently switched. A Hi/Lo wiring harness routes the correct power connections for both circuits, whereas a standard single-output harness would not be appropriate for Hi/Lo bars.

Does this harness include a relay and switch?

Relay, switch, and full kit contents are not confirmed in the available supplier data. LED light bar harnesses of this type typically include a relay and in-cabin switch, but confirm the exact contents of the DV12HD/3 kit with Ultra Vision Lighting or your supplier before purchasing.

Can this harness be used with other brands of LED light bars?

The DV12HD/3 is designed for the Ultra Vision Nitro Maxx Hi/Lo range. Use with other brands is not confirmed — connector types and wiring configurations may vary. Confirm with Ultra Vision before using this harness with a non-Nitro Maxx light bar.

What is the cable length and current rating of this harness?

Cable length and current rating are not confirmed in the available supplier data. Contact Ultra Vision Lighting or your supplier for full electrical specifications before purchasing and installing.
