Ultra Vision BGLB-LC300-165-KIT-CB Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit

SKU: BGLBLC300165KITCB
Price
$1,185
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

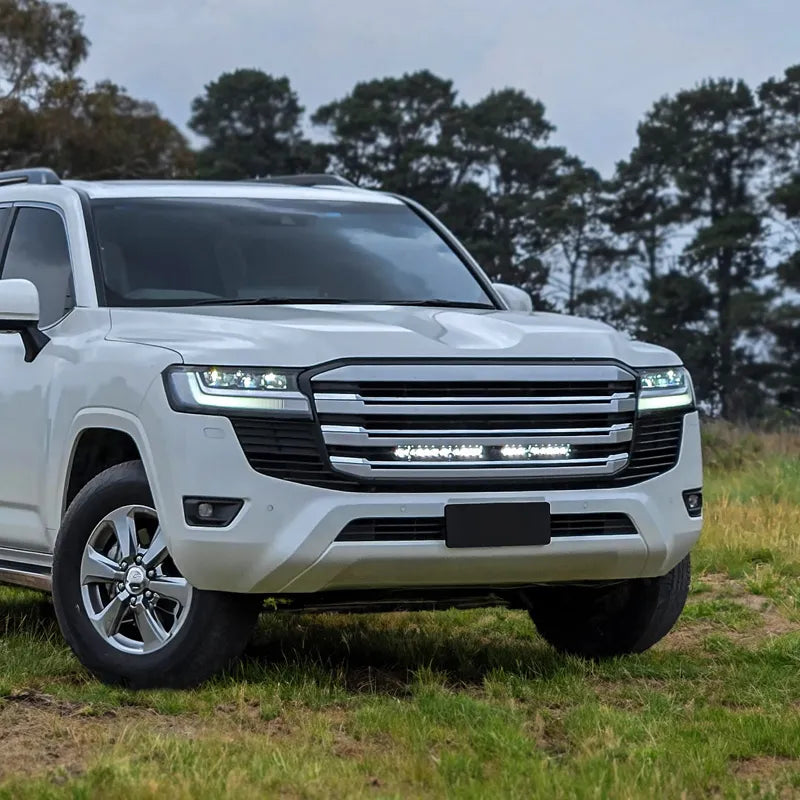

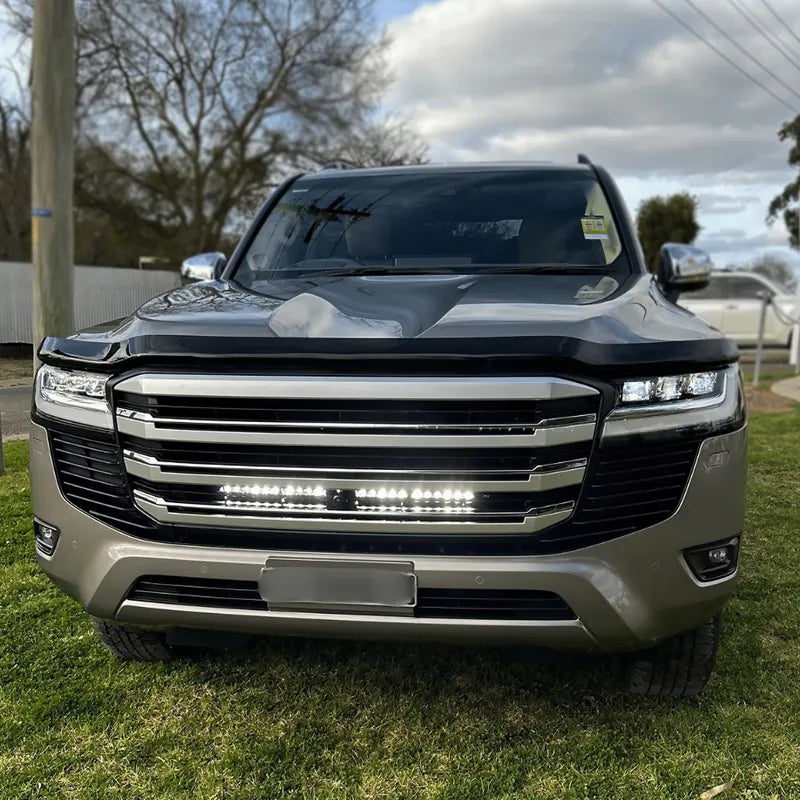

Ultra Vision Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit: No Need to Cut or Drill Into Your Grille

Boost your lighting set-up on your 300 Series Land Cruiser without investing in a bull bar.

Our Behind Grille Light Bar kit is compatible with all 300 series models. The Raptor 165w light bar turns on with the vehicles’ high beam for the best visibility when the sun is down, with an extra 817m of usable lighting distance.

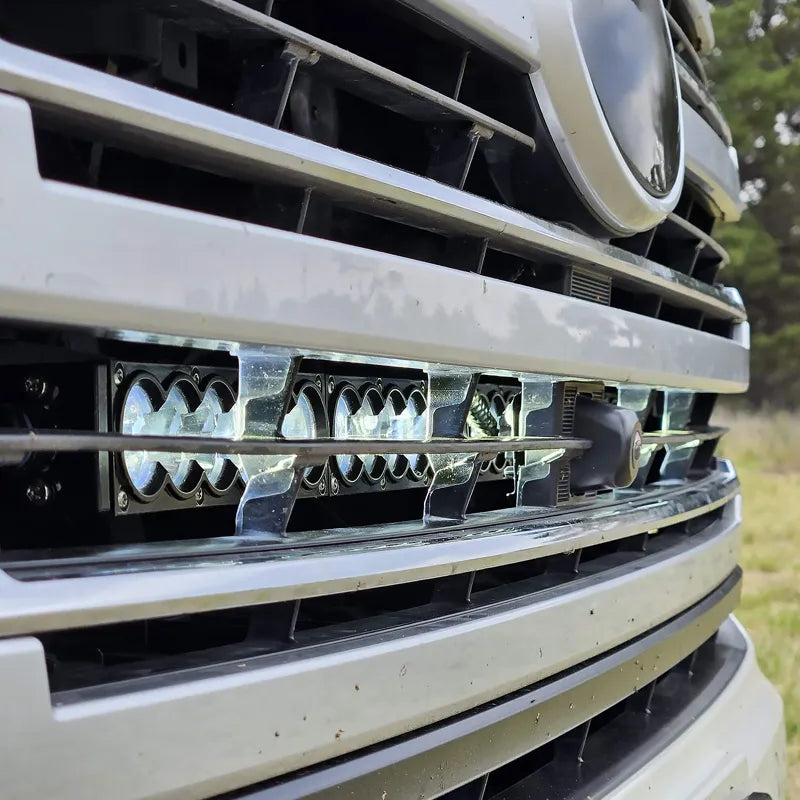

When installing, there is no need to cut or drill into your grille as the bracket system has been designed to mount to existing points behind the grille.

This kit is a great way to reduce impact on the features of the vehicle, as spotlights on a bull bar can affect the radar sensor behind the badge. With this light bar kit, there will be no interference on any safety features.

Ultra Vision BGLB-LC300-165-KIT-CB Features:

  • Designed specifically for the Toyota 300 Series Land Cruiser
  • No bull bar required
  • No cutting or drilling required

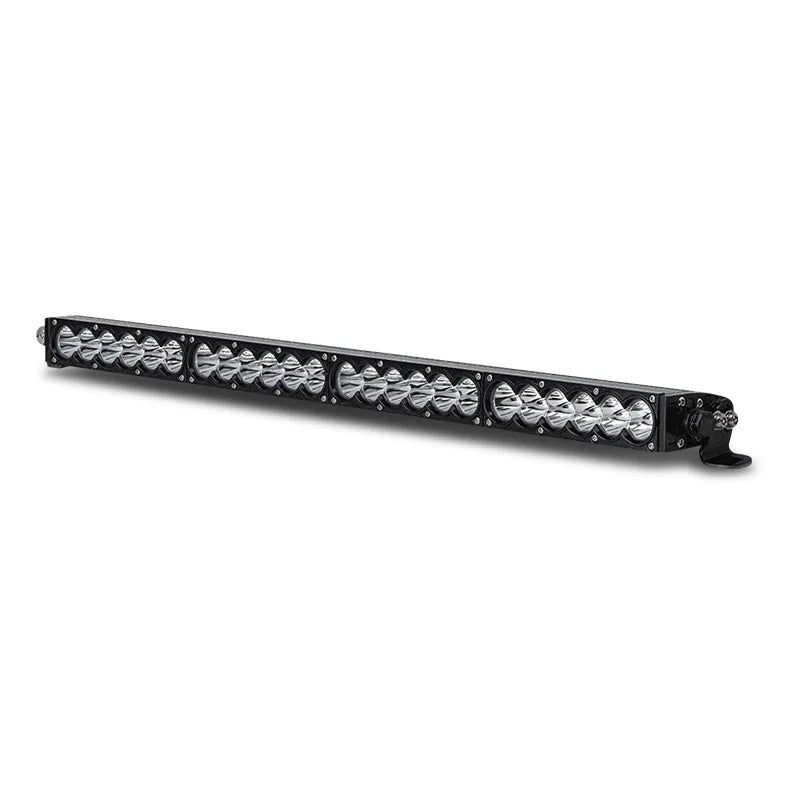

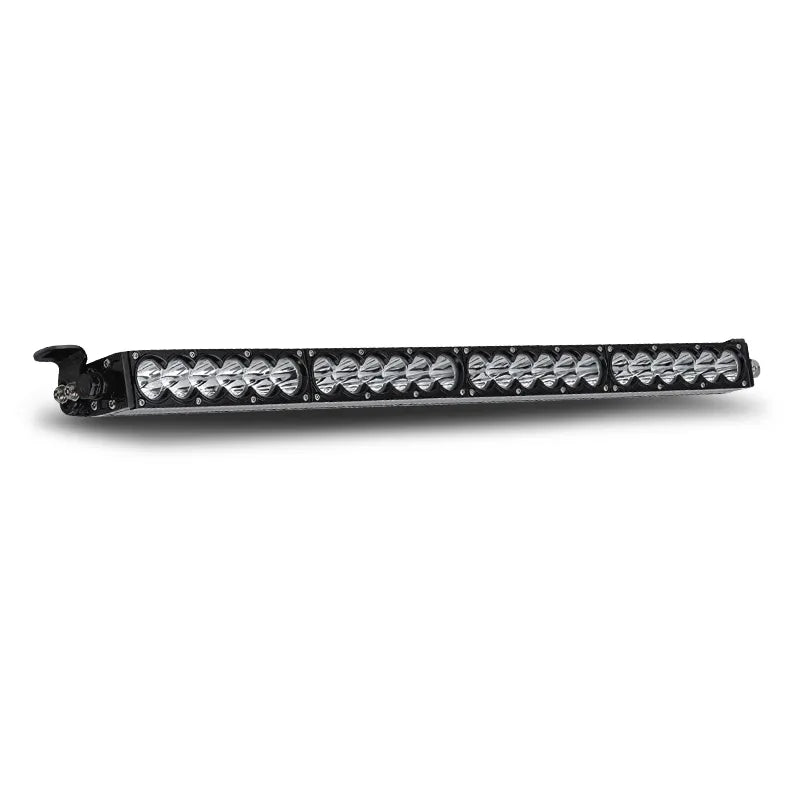

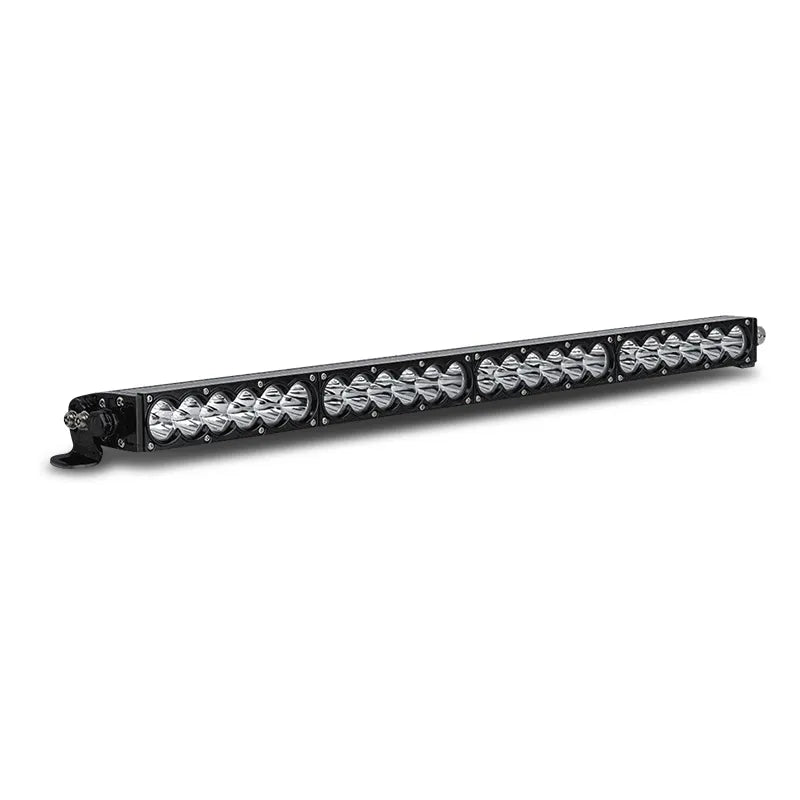

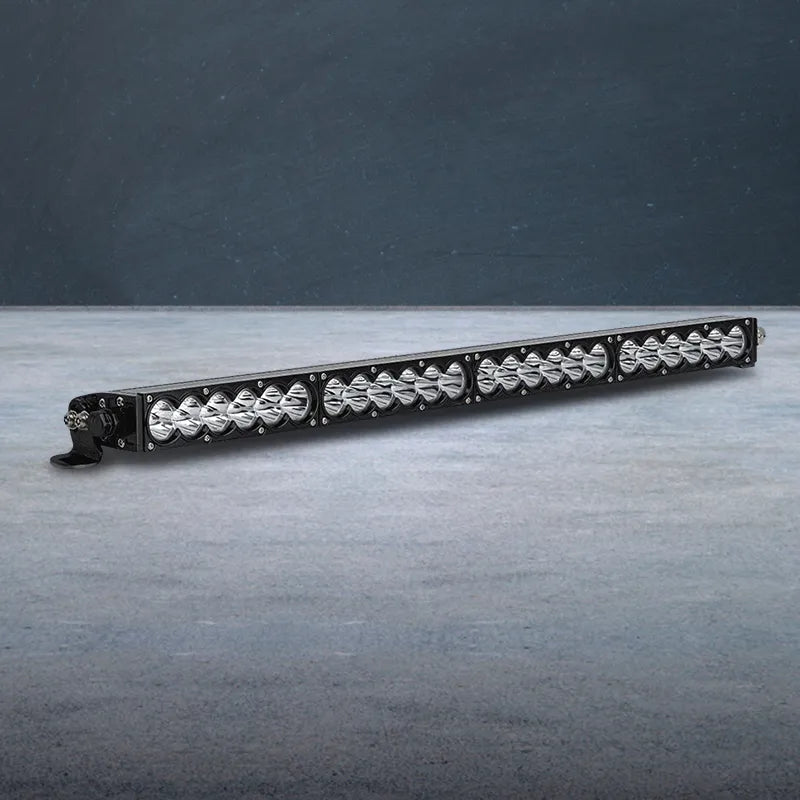

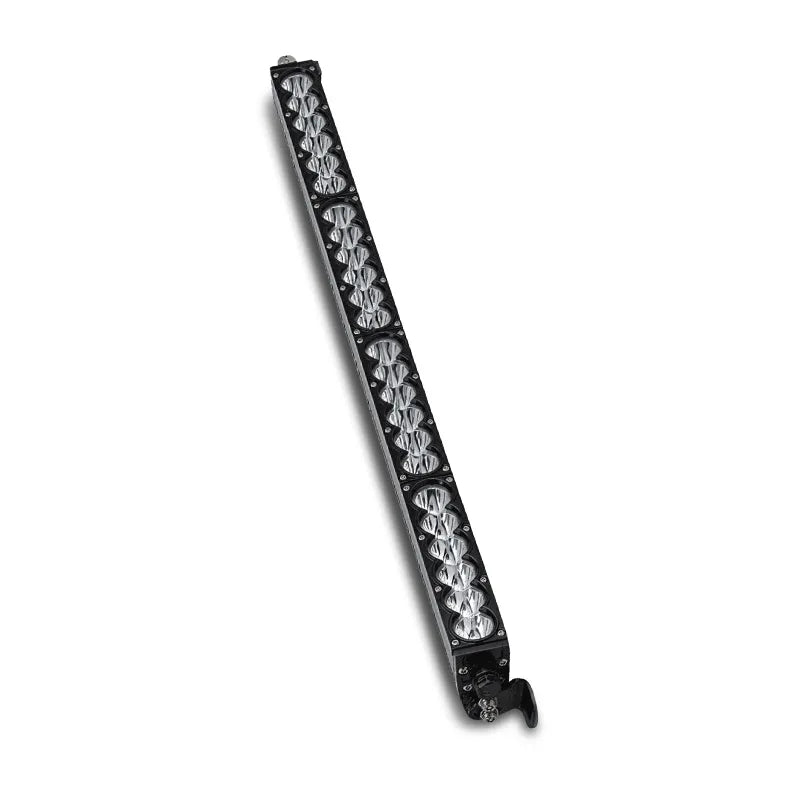

  • Includes 1 x Raptor 165w 26.5-Inch LED Light Bar with 817m beam distance at 1 Lux
  • Brackets powder-coated black for sleek design and rust preservation
  • Designed and made in Australia

Ultra Vision BGLB-LC300-165-KIT-CB Specifications:

  • Wattage: 165 Watts
  • Light Source: 24 High Power LEDs
  • Light Output – Raw: 18,609 Lumens
  • Light Output – Effective: 15,240 Lumens
  • Voltage: 9-36V
  • Current Draw: 13A @ 13.5V
  • Operating Temperature :-40 to 80 Deg C
  • Waterproof Rating: IP67
  • Connector Type: Plug 2 Pin Heavy Duty Deutsch
  • Housing: Aluminium
  • Lens Construction: Polycarbonate
  • Bracket: Stainless Steel powdered-coated black
  • Colour Temperature: 5700K
  • Lifespan: 50,000 Hours
  • Dimensions: 679 x 45 x 73mm
  • Net Weight: 2.3kg
  • Mounting: Suitable Side mount brackets
  • Beams Available: Spot
  • Warranty: 3 Years

What's In The Box:

  • x Raptor 165w 26.5-Inch LED Light Bar in 5700K
  • 1x Wiring harness to suit
  • 1x Purpose-built 300 Series LC behind-grille black powder-coated bracket kit
  • 1x Can Bus high beam module
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts and brackets)
  • Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
