Ultra Vision BGLB-IMUX-125-KIT Behind Grille Light Bar Kit To Suit Isuzu MU-X RG 2021-on

SKU: BGLBIMUX125KIT
Price
$839
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

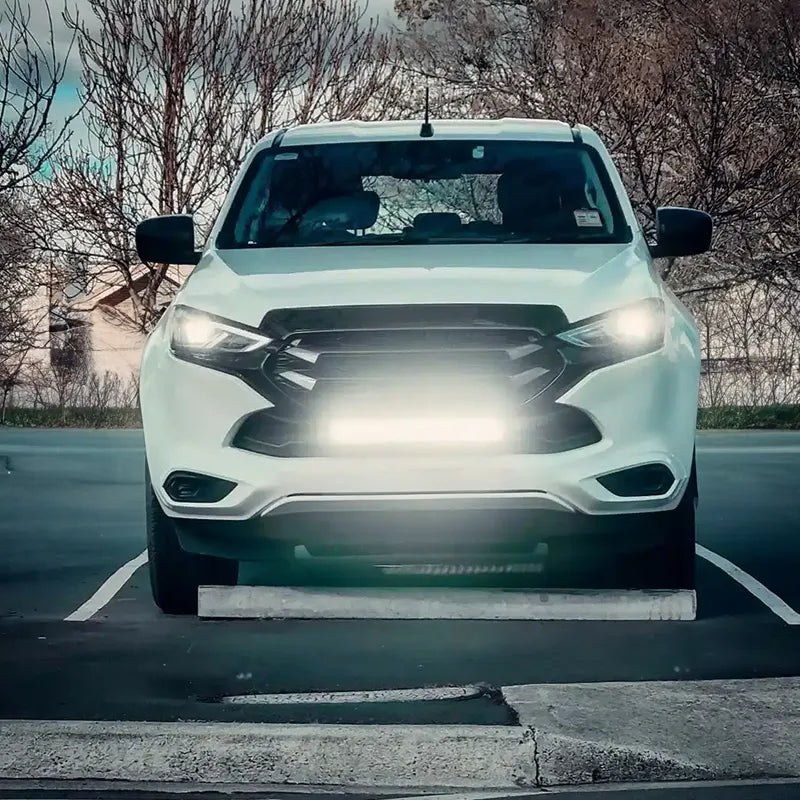

Ultra Vision Behind Grille Light Bar Kit To Suit Isuzu MU-X RG 2021-on: Get the Power of Ultra Vision on Your Isuzu MU-X

With this Behind Grille Light Bar Kit, getting the power of Ultra Vision on your Isuzu MU-X is a smooth and pain free process.

Get everything you need in one kit without any cutting, drilling, or a bull bar! Cleverly designed specifically for the Isuzu MU-X 2021-on, the bumper or grille do not need to be removed for installation.

Only the grille shroud beneath the bonnet needs to be removed temporarily for access to mount the light bar behind.

The purpose-built MU-X light bar brackets mount to existing points on the body, all you will need is a 13mm & 12mm spanner to install.

Ultra Vision BGLB-IMUX-125-KIT Features:

  • Designed specifically for the Isuzu MU-X 2021-on models
  • No cutting or drilling required
  • No bull bar required
  • Includes 1x Raptor 125w LED Light Bar with 708m beam distance at 1 Lux
  • 3-year warranty
  • Brackets powder-coated black for sleek design and rust preservation
  • Designed and made in Australia

Ultra Vision BGLB-IMUX-125-KIT Specifications:

  • Wattage: 125 Watts
  • Light Source: 18 High Power LEDs
  • Light Output – Raw: 13,957 Lumens
  • Light Output – Effective: 11,430 Lumens
  • Voltage: 9-36V
  • Current Draw: 10A @ 13.5V
  • Operating Temp.: -40 to 80 Deg C
  • Waterproof Rating: IP67
  • Connector Type: Plugs 2 Pin Heavy Duty Deutsch
  • Housing: Aluminium
  • Lens: Construction Polycarbonate
  • Bracket Stainless: Steel powder coated black
  • Colour Temperature: 5700K
  • Lifespan: 50,000 Hours
  • Dimensions: 523 x 45 x 73mm
  • Net Weight: 1.7kg
  • Mounting Suitable: Side Mount Brackets
  • Warranty: 3 Years
  • Beam Type: Spot Beam

What's In The Box:

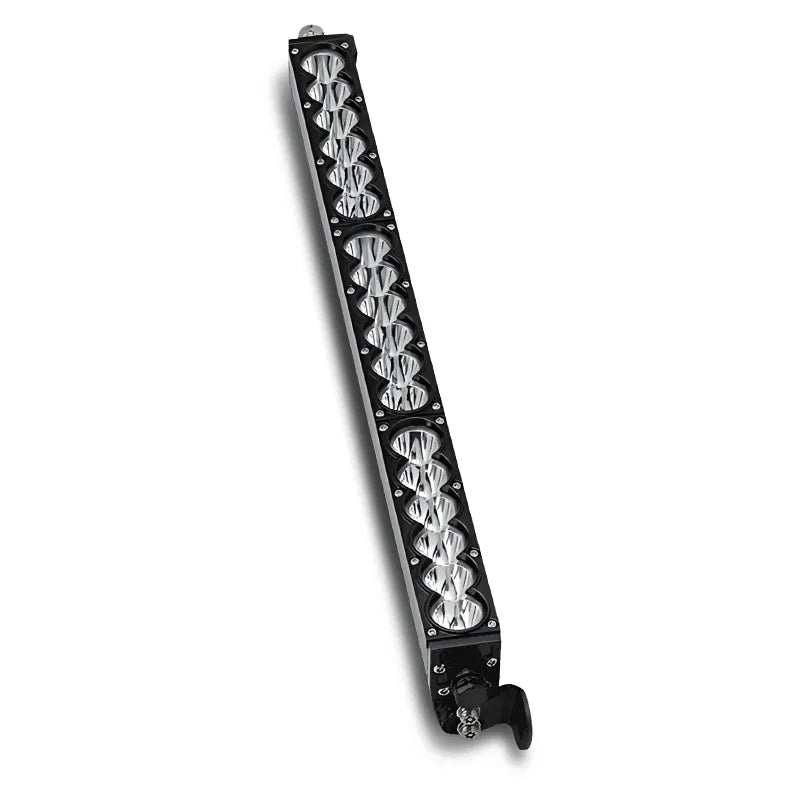

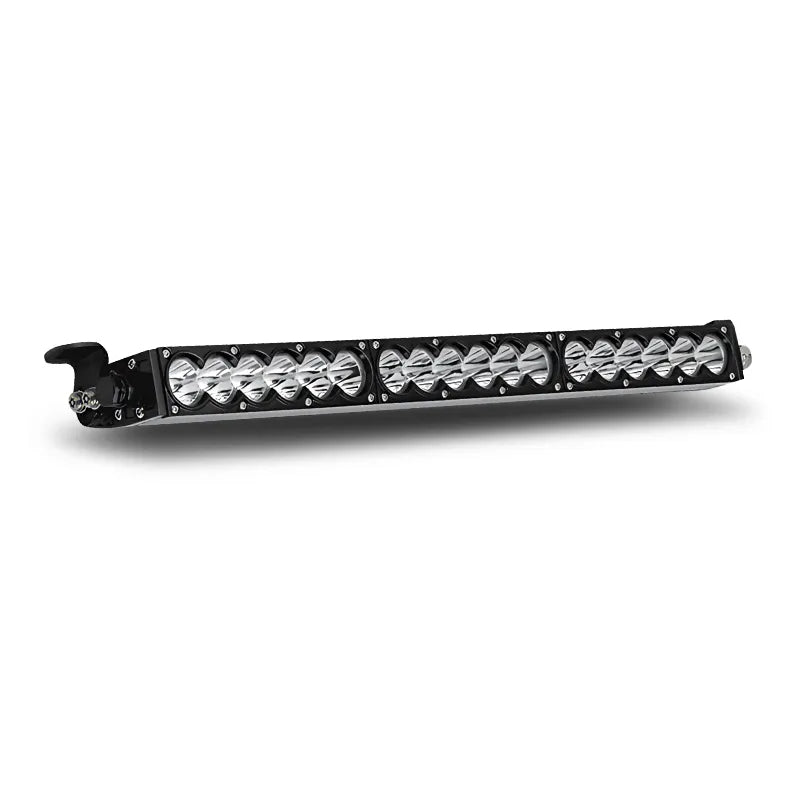

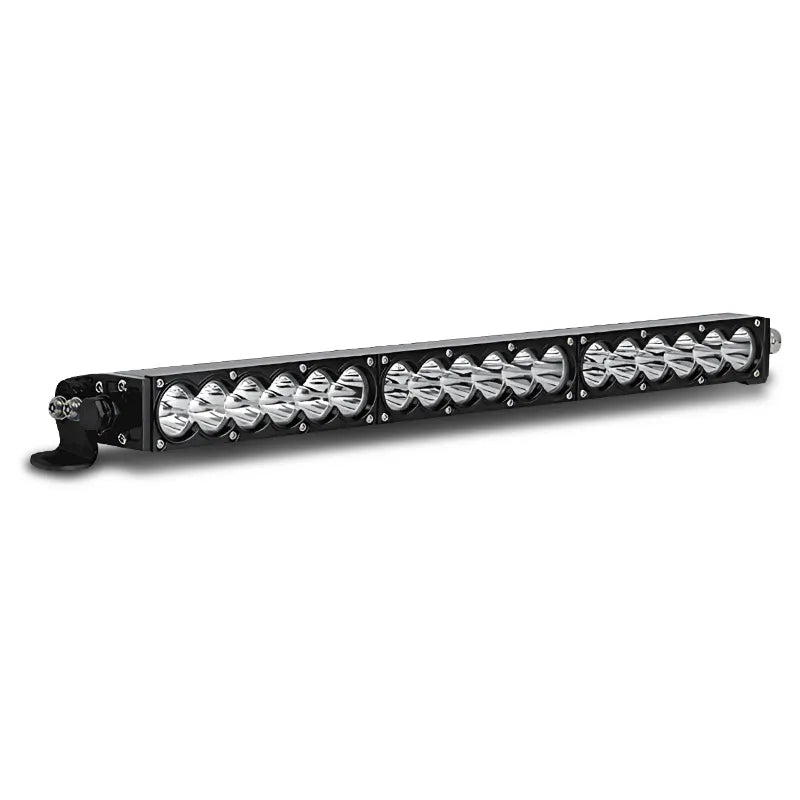

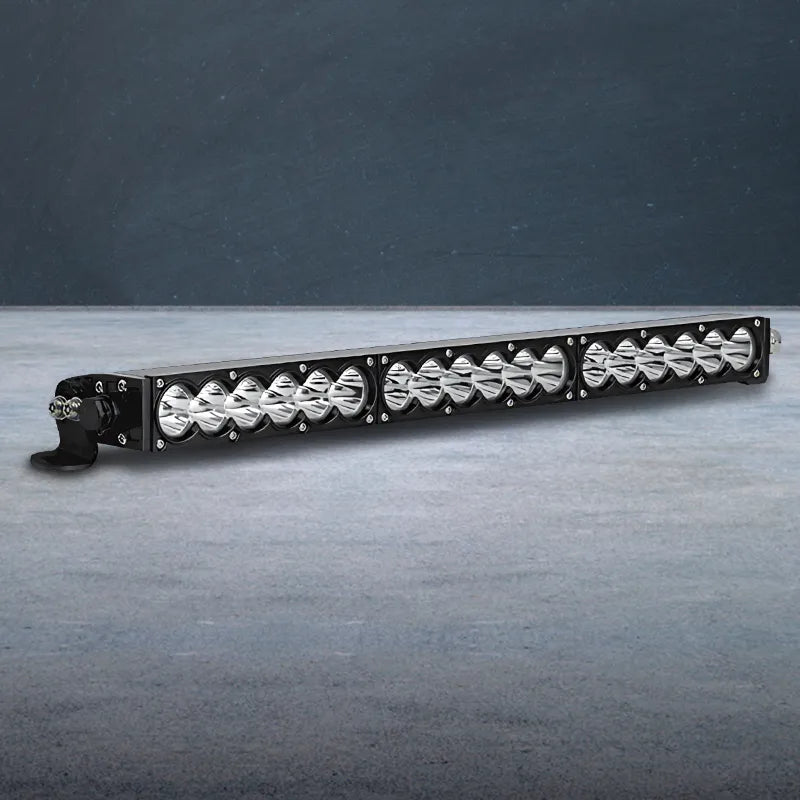

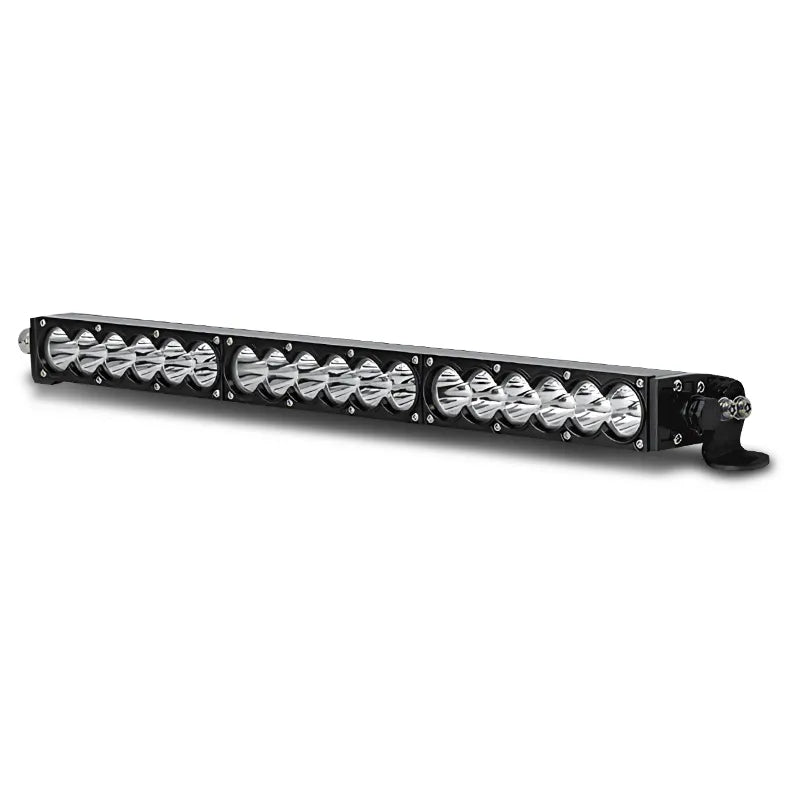

  • 1 x Raptor 125W 20.5-Inch LED Light Bar in 5700k
  • 1x Wiring Harness to suit
  • 1x Purpose-built MU-X behind-grille black powder-coated bracket kit
  • 2x MU-X high-beam plug & play wiring adaptors (1x for models up to July 2021 and 1x for Jan 2022-on models)
  • 1x OEM-style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions

Note: Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
