Product features

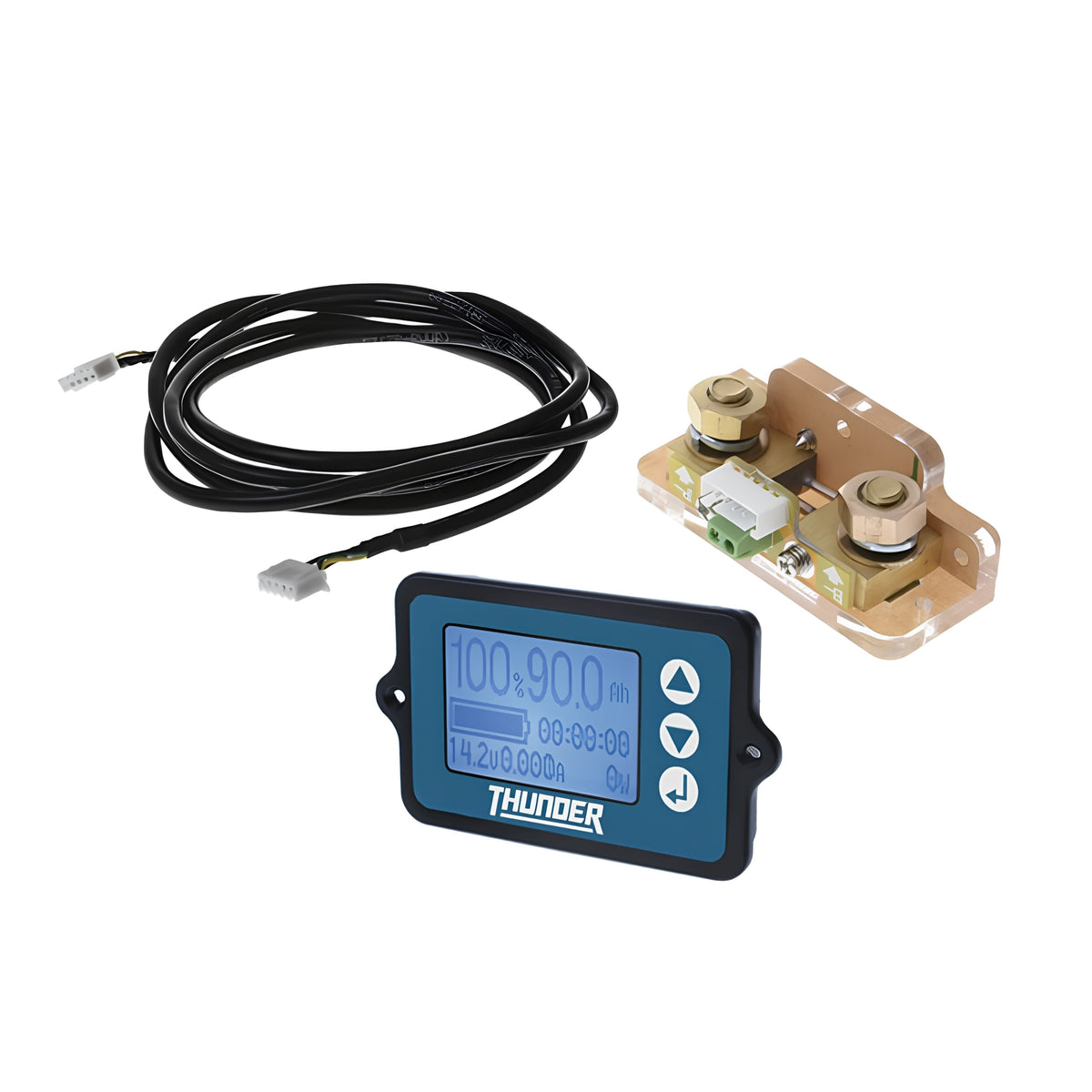

Thunder TDR17012 12V 150A Battery Monitor

A 150A battery monitor from Thunder, the TDR17012 monitors time to empty, battery percentage, current draw, current inwards, and wattage usage on battery banks up to 590Ah.

Product overview

Monitor time to empty, battery percentage, current draw, current inwards, and wattage usage on battery banks up to 590Ah. A 1.5m extension lead is also available separately as the TDR17013.

Features and benefits

Comprehensive battery monitoring: Displays time to empty, battery percentage, current draw, current inwards, and wattage usage from a single unit.

Suits battery banks up to 590Ah: Provides monitoring capacity suited to larger dual and multi-battery installations.

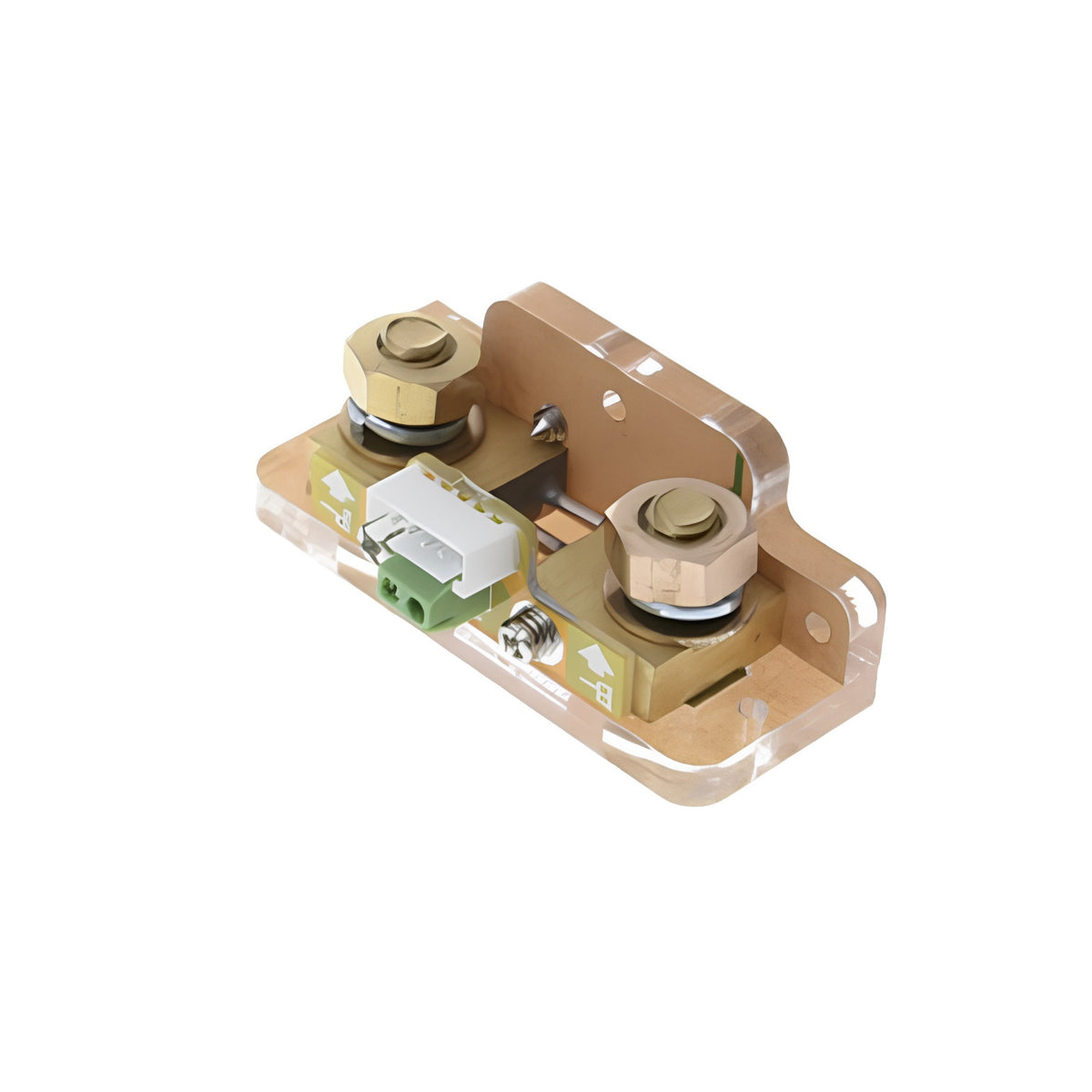

150A shunt operating current: Provides substantial current measurement capacity for demanding electrical systems.

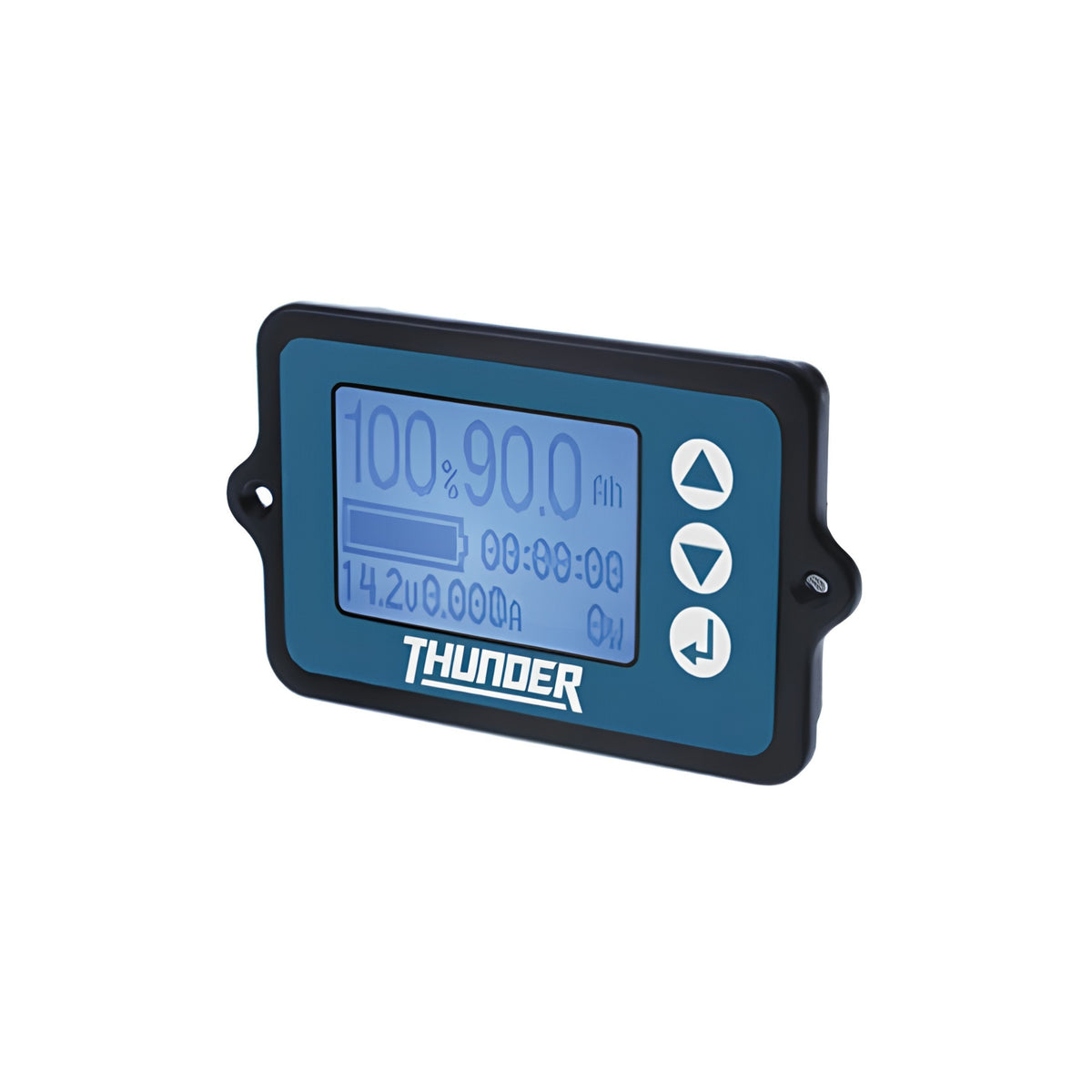

Backlit display: Provides clear visibility of battery status in a range of lighting conditions.

Extension lead available separately: A 1.5m extension lead, TDR17013, is available for installations requiring additional cable length between the monitor and shunt.

Technical specs

Specification Detail
SKU TDR17012
Brand Thunder
Type Battery Monitor
Operating Voltage 8-60VDC
Working Power 8-10mA
Standby Power Consumption 0.5-0.8mA
Voltage Acquisition Accuracy ±1.0%
Current Acquisition Accuracy ±1.0%
Ambient Temperature Range 0-45°C
Backlit Light Current 40-50mA
Battery Capacity Maximum 590Ah
Built-In Current 5-10A
Shunt Operating Current 150A
Outside Unit Dimensions (W x H x D) 66mm x 40mm x 10mm
Display Window Size (W x H) 32mm x 23mm
External Shunt Dimensions (W x H x D) 23mm x 18mm x 5mm

Compatible with

The TDR17012 is compatible with 12V battery banks up to 590Ah. A 1.5m extension lead is available separately as the Thunder TDR17013.

Frequently asked questions

What is the maximum battery capacity the TDR17012 can monitor?
The TDR17012 can monitor battery banks up to a maximum of 590Ah.

What is the shunt operating current of the TDR17012?
The TDR17012 has a shunt operating current of 150A.

What does the TDR17012 display?
The TDR17012 displays time to empty, battery percentage, current draw, current inwards, and wattage usage.

Is an extension lead available for the TDR17012?
Yes. A 1.5m extension lead is available separately as the Thunder TDR17013.

What operating voltage range does the TDR17012 support?
The TDR17012 operates across an 8-60VDC range.
