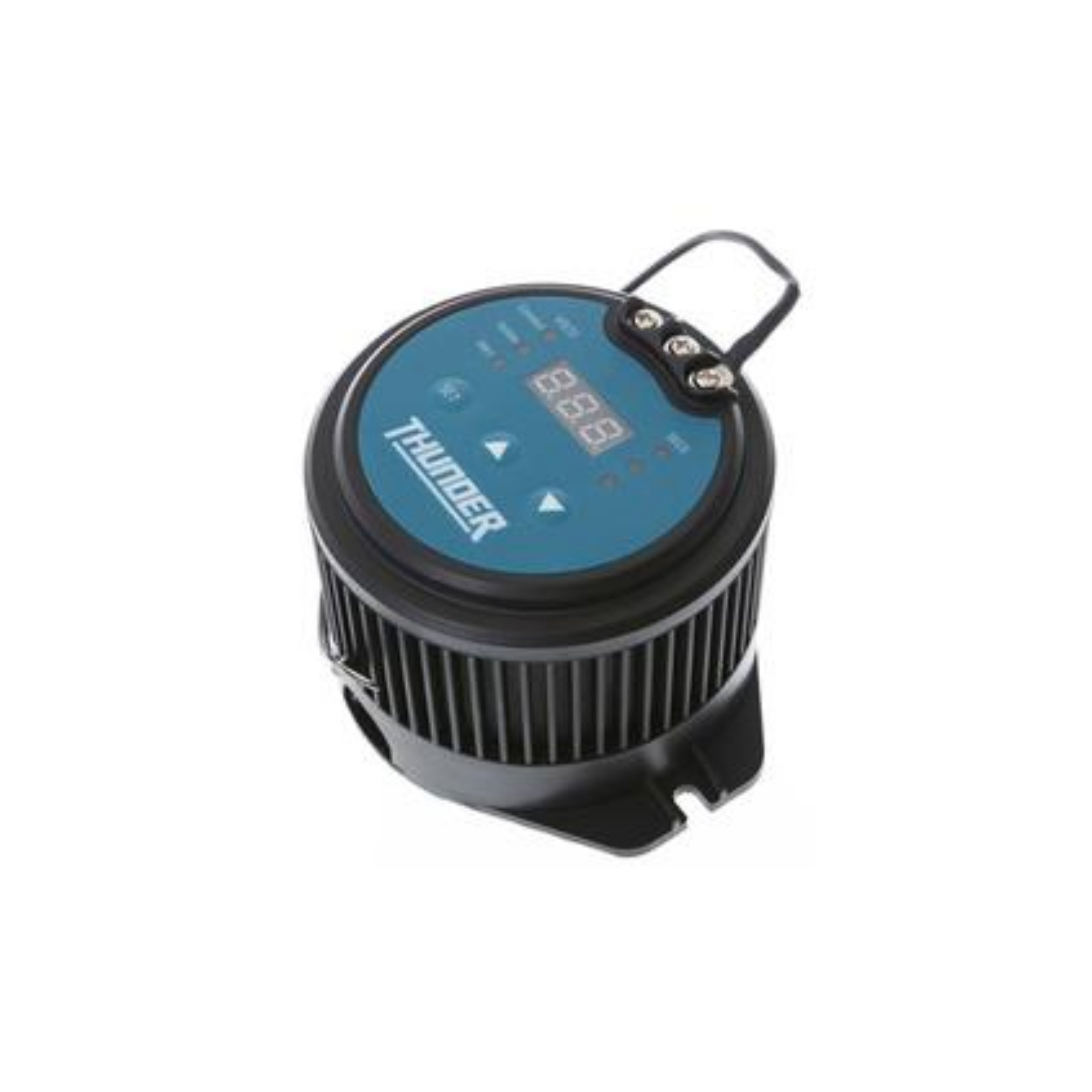

Thunder TDR15100 Programmable Electronic Battery Isolator - 12V
Thunder TDR15100 Programmable Electronic Battery Isolator - 12V
Thunder TDR15100 Programmable Electronic Battery Isolator - 12V
Thunder TDR15100 Programmable Electronic Battery Isolator - 12V
Click to open expanded view
THUNDER logo

Thunder TDR15100 Programmable Electronic Battery Isolator - 12V

SKU: TDR15100
Price
$204
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Thunder TDR15100 Programmable Electronic Battery Isolator - 12V

Thunder TDR15100 Programmable Electronic Battery Isolator - 12V

$204

Product features

Making Adventure More Affordable & Accessible for 4WD Enthusiasts!

Programmable Electronic Battery Isolator
Protect your start battery from excessive discharge and allow your auxiliary battery to supply non-essential loads when you simultaneously charge two batteries from your alternator. Designed for the working adventurer, Thunder products have been tested and developed to handle anything you can throw at them without breaking the bank.

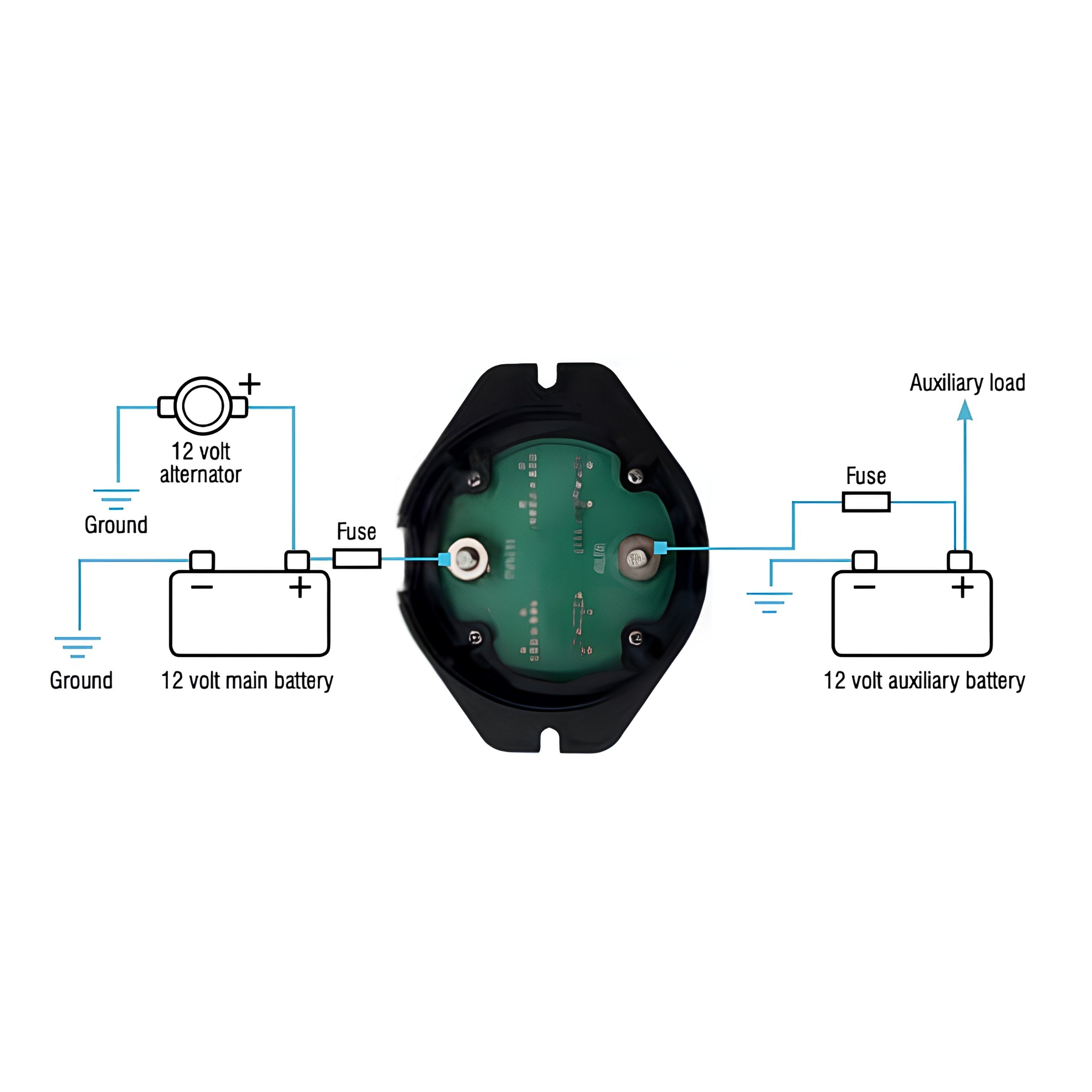

The Thunder Battery Isolator is a user-programmable electronic isolator that will allow the auxiliary battery to be charged using the vehicle’s charging system. The batteries are connected and isolated depending on the levels set by the user.

This means that once the start battery reaches a predetermined voltage (Default is 13.7V), the Thunder Battery Isolator will connect the batteries and the auxiliary battery will start receiving a charge. The batteries will remain connected until the main battery voltage drops below the chosen level (Default is 12.8V).

Features:

  • Fully programmable engage, disengage, alarm voltages and times
  • 100 Amp continuous rated

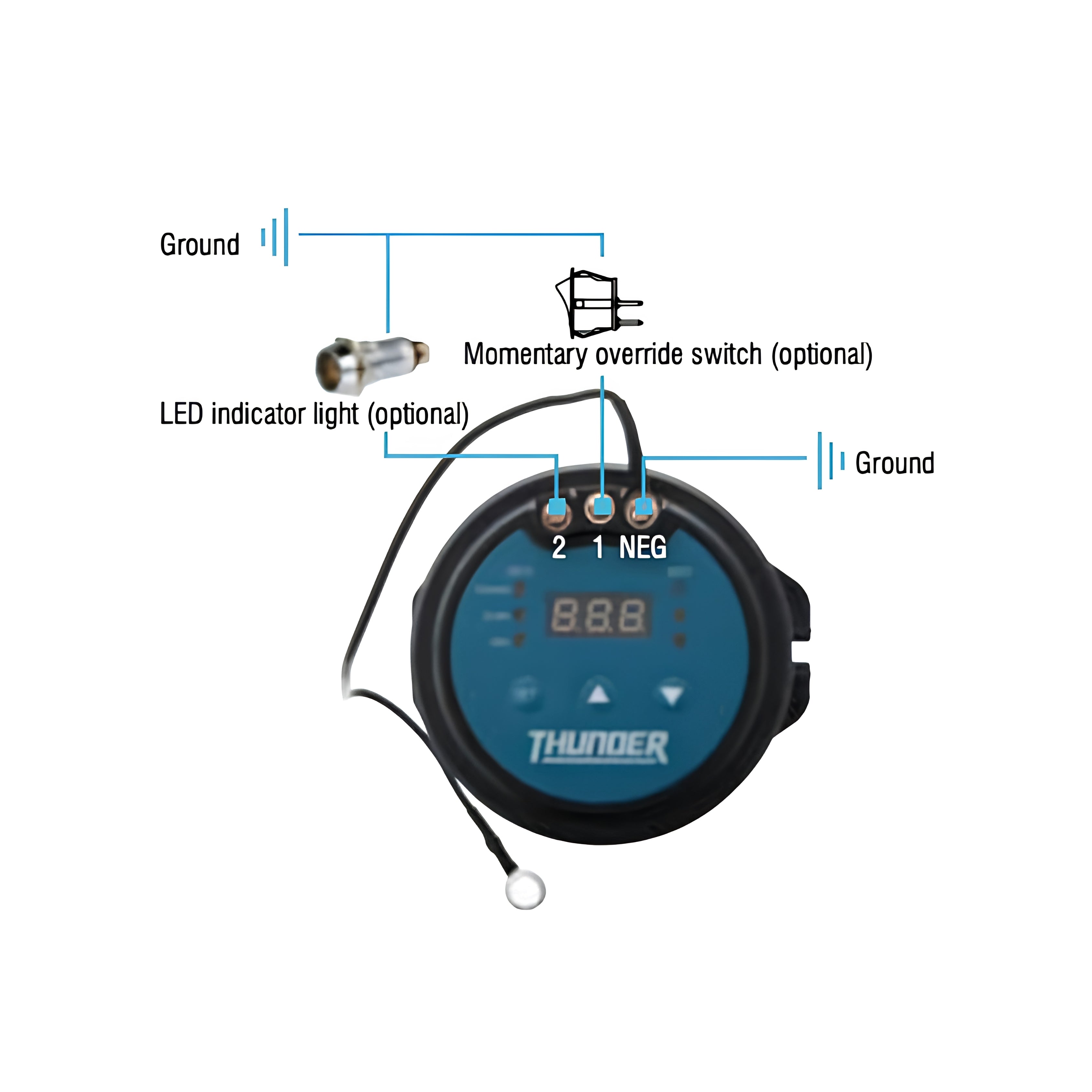

  • Remote monitoring option
  • Jump start function option
  • Will allow reverse charging from auxiliary battery

Specifications:

  • Connect Voltage: 9.2 - 16.0V
  • Isolate Voltage: 9.0 - 15.8V
  • Visual Alarm Voltage: 9.0 - 15.6V
  • Delay: 1-255 Seconds
  • Mount: 100mm (C-C)
  • Maximum Continuous Current: 100 Amps
  • Maximum Inrush Current: 400 Amps
  • Standby Current: 0.04 Amps
  • Maximum Temperature: 80°C
  • Dimensions: 110mm (L) x 90mm (W) x 72mm (H)
