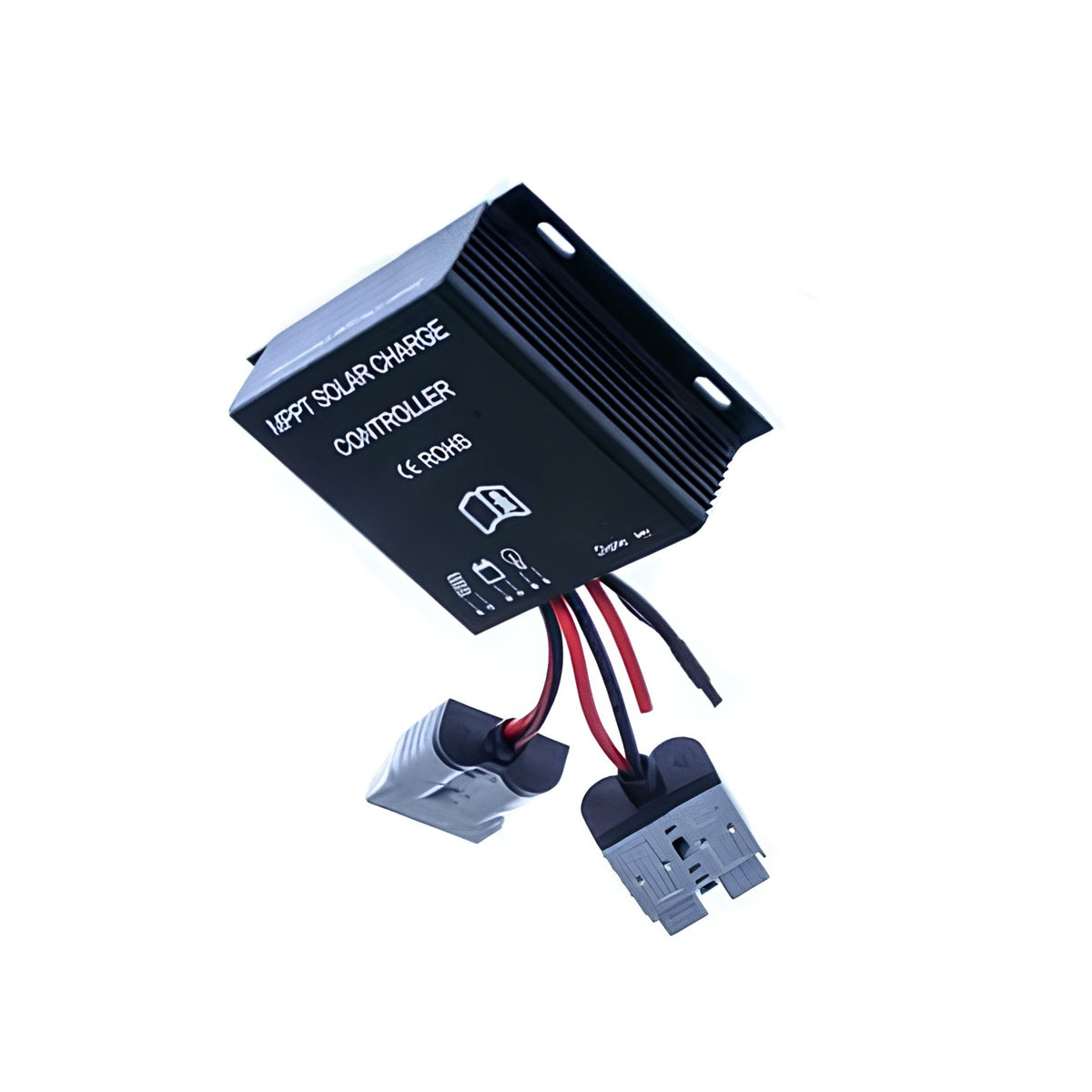

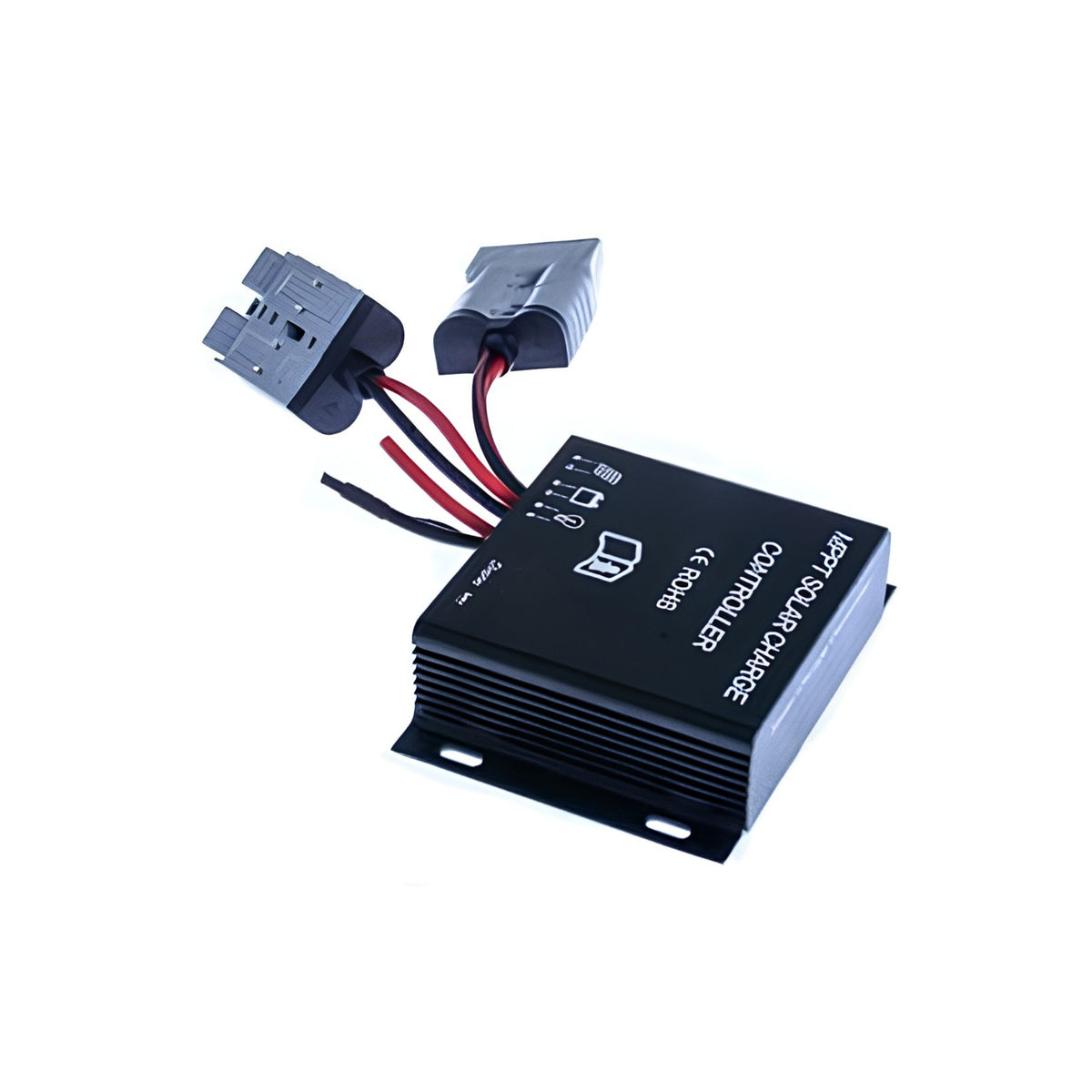

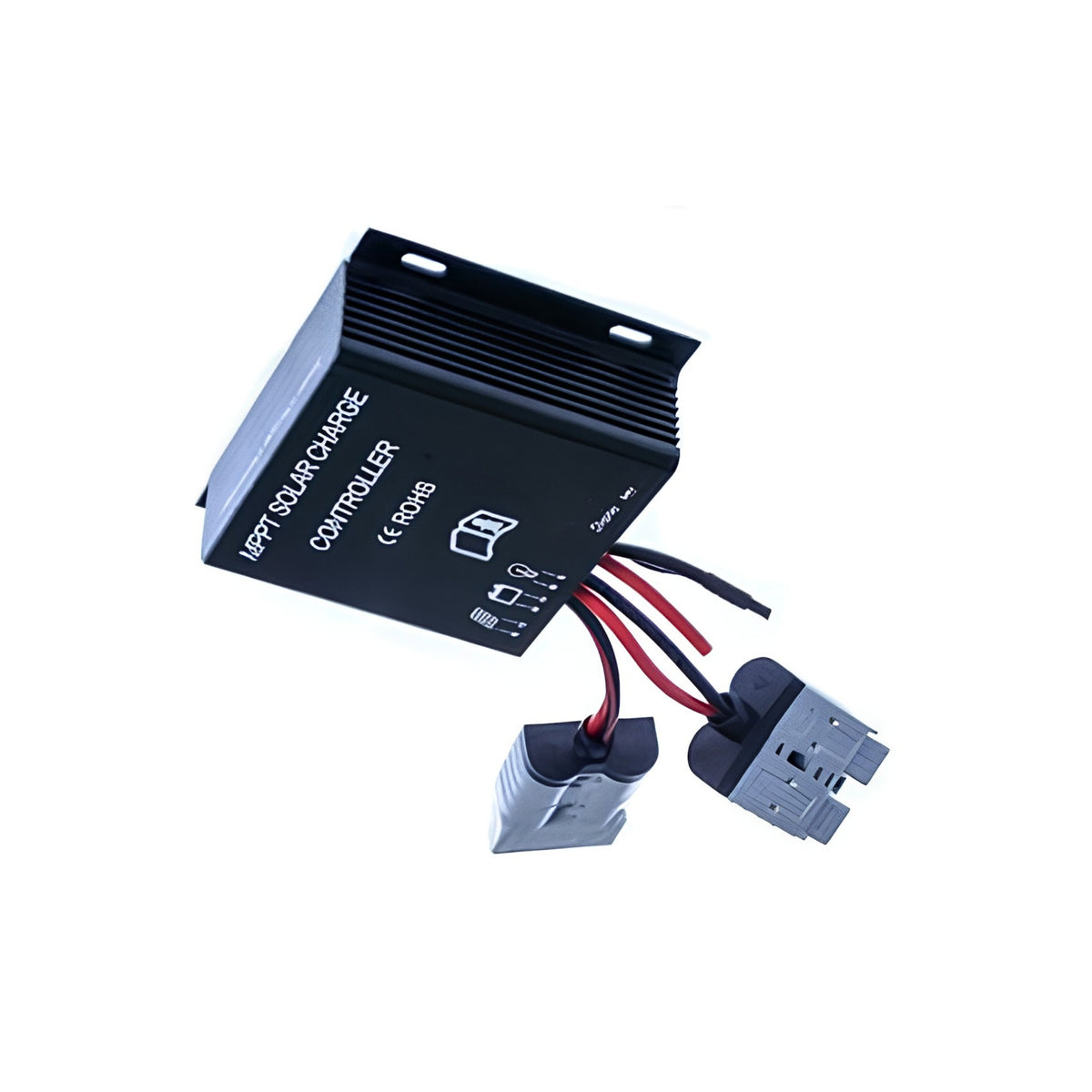

Thunder TDR15009 10 Amp Solar Regulator
Thunder TDR15009 10 Amp Solar Regulator
Thunder TDR15009 10 Amp Solar Regulator
Thunder TDR15009 10 Amp Solar Regulator
Click to open expanded view
THUNDER logo

Discontinued

Thunder TDR15009 10 Amp Solar Regulator

SKU: TDR15009

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Thunder TDR15009 10 Amp MPPT Solar Regulator

A 10 amp waterproof MPPT solar regulator from Thunder, the TDR15009 is suitable for solar panels up to 120 watts, featuring LED indicators and fully automatic operation.

Product overview

Waterproof MPPT regulator, suitable for solar panels up to 120 watts, with LED indicators and fully automatic operation.

Features and benefits

Waterproof MPPT regulation: Provides efficient maximum power point tracking charge regulation in a waterproof housing suited to outdoor and marine installations.

Suitable for solar panels up to 120W: Provides sufficient capacity for smaller portable solar panel setups.

LED indicators: Provides at-a-glance charging status information.

Fully automatic operation: Manages the charging process automatically without requiring manual intervention.

Low no load current: Draws no more than 25mA when there is no load connected, minimising unnecessary battery drain.

Technical specs

Specification Detail
SKU TDR15009
Brand Thunder
Type Solar Regulator
Rated Current 10A
Rated Voltage 12/24V
Open Circuit of Solar Panel <50V
Low Voltage Disconnection 10.6V/21.4V
Float Voltage 13.75V/28V
Low Voltage Reconnection 12.6V/25.2V
No Load Current ≤25mA
Operating Temperature -20°C to 60°C
Storage Temperature -30°C to 70°C
Dimensions (L x W x D) 105mm x 81mm x 29mm
Mounting Hole Spacing 51mm x 95mm
Weight 400g
Battery Type Wet Cell Rechargeable Only

Compatible with

The TDR15009 is compatible with solar panels up to 120 watts and 12V or 24V wet cell rechargeable battery systems.

Frequently asked questions

What is the maximum solar panel wattage the TDR15009 supports?
The TDR15009 is suitable for solar panels up to 120 watts.

What current rating is the TDR15009?
The TDR15009 is rated to 10 amps.

What battery types is the TDR15009 compatible with?
The TDR15009 is compatible with wet cell rechargeable batteries only.

Does the TDR15009 include a display?
The TDR15009 includes LED indicators for charging status rather than an LCD display.

Is the TDR15009 waterproof?
Yes. The TDR15009 features a waterproof housing suited to outdoor and demanding installation environments.
