Thunder TDR15008 30A Solar Regulator with LCD

SKU: TDR15008

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

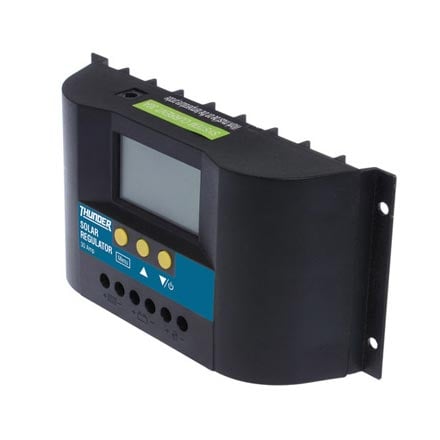

Thunder TDR15008 30 Amp Solar Regulator with LCD Monitor

A 30 amp waterproof PWM solar regulator and battery monitor from Thunder, the TDR15008 is suitable for solar panels up to 360 watts, featuring an LCD monitor, fully automatic operation, and low and high voltage disconnect protection.

Product overview

Waterproof PWM regulator and battery monitor, suitable for solar panels up to 360 watts, with LCD monitor, fully automatic operation, and low and high voltage disconnect.

Features and benefits

Waterproof PWM regulation: Provides reliable pulse width modulation charge regulation in a waterproof housing suited to outdoor and marine installations.

Suitable for solar panels up to 360W: Provides sufficient capacity for a range of solar panel setups, including combinations of multiple folding panels.

LCD monitor: Displays battery and charging status information at a glance.

Fully automatic operation: Manages the charging process automatically without requiring manual intervention.

Low and high voltage disconnect: Protects the connected battery from overcharging and excessive discharge.

Low no load current: Draws no more than 30mA when there is no load connected, minimising unnecessary battery drain.

Technical specs

Specification Detail
SKU TDR15008
Brand Thunder
Type Solar Regulator
Rated Current 30A
Rated Voltage 12/24V
Open Circuit of Solar Panel <50V
Low Voltage Disconnection 10.7V/21.4V
Float Voltage 14V/28V
Low Voltage Reconnection 12.6V/25.2V
No Load Current ≤30mA
Operating Temperature -10°C to 60°C
Storage Temperature -30°C to 70°C
Dimensions (L x W x D) 90mm x 188mm x 48mm
Mounting Hole Spacing 60mm x 178mm
Weight 360g
Battery Type Wet Cell Rechargeable Only

Compatible with

The TDR15008 is compatible with solar panels up to 360 watts and 12V or 24V wet cell rechargeable battery systems.

Frequently asked questions

What is the maximum solar panel wattage the TDR15008 supports?
The TDR15008 is suitable for solar panels up to 360 watts.

What current rating is the TDR15008?
The TDR15008 is rated to 30 amps.

What battery types is the TDR15008 compatible with?
The TDR15008 is compatible with wet cell rechargeable batteries only.

Does the TDR15008 include a display?
Yes. The TDR15008 includes an LCD monitor displaying battery and charging status information.

Is the TDR15008 waterproof?
Yes. The TDR15008 features a waterproof housing suited to outdoor and d
