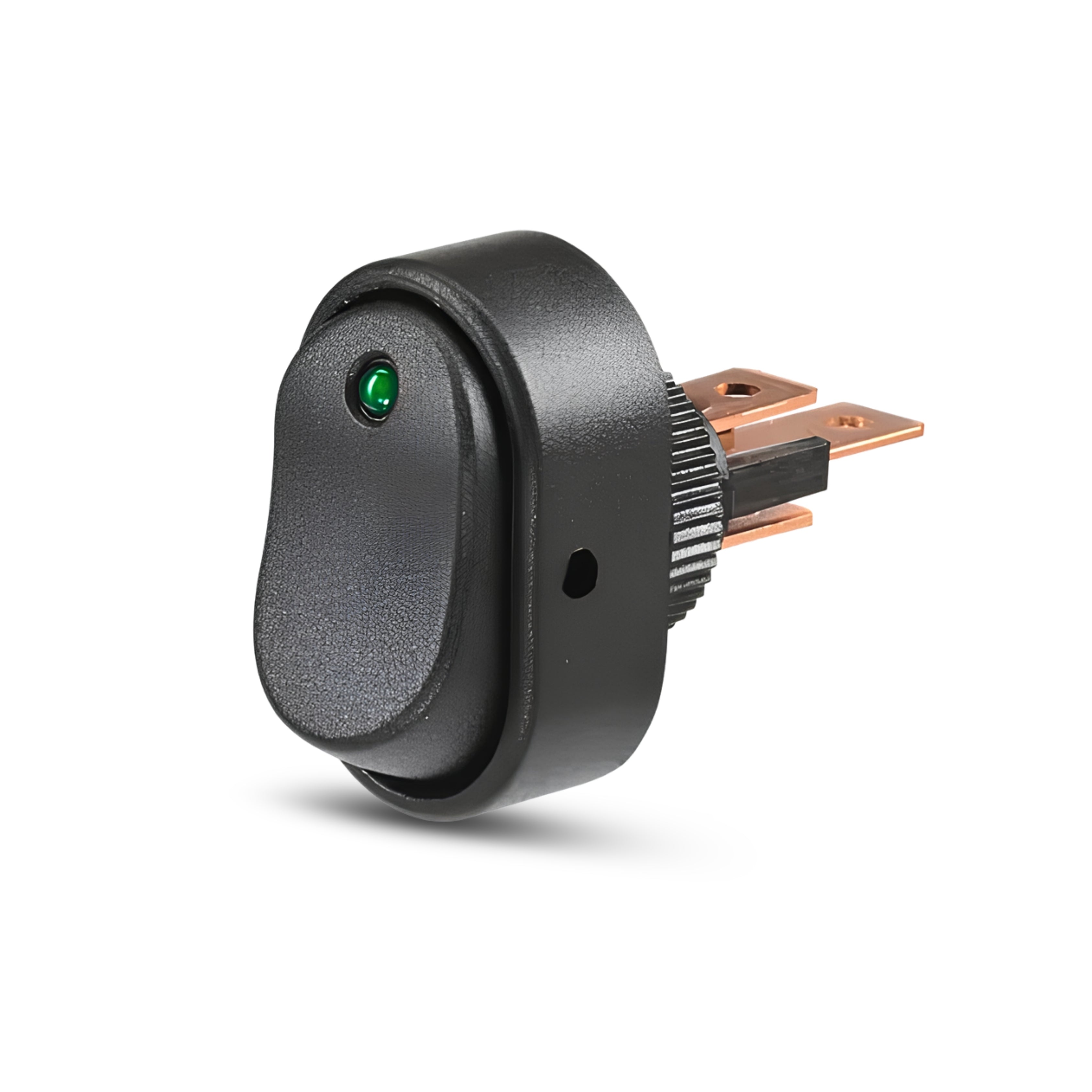

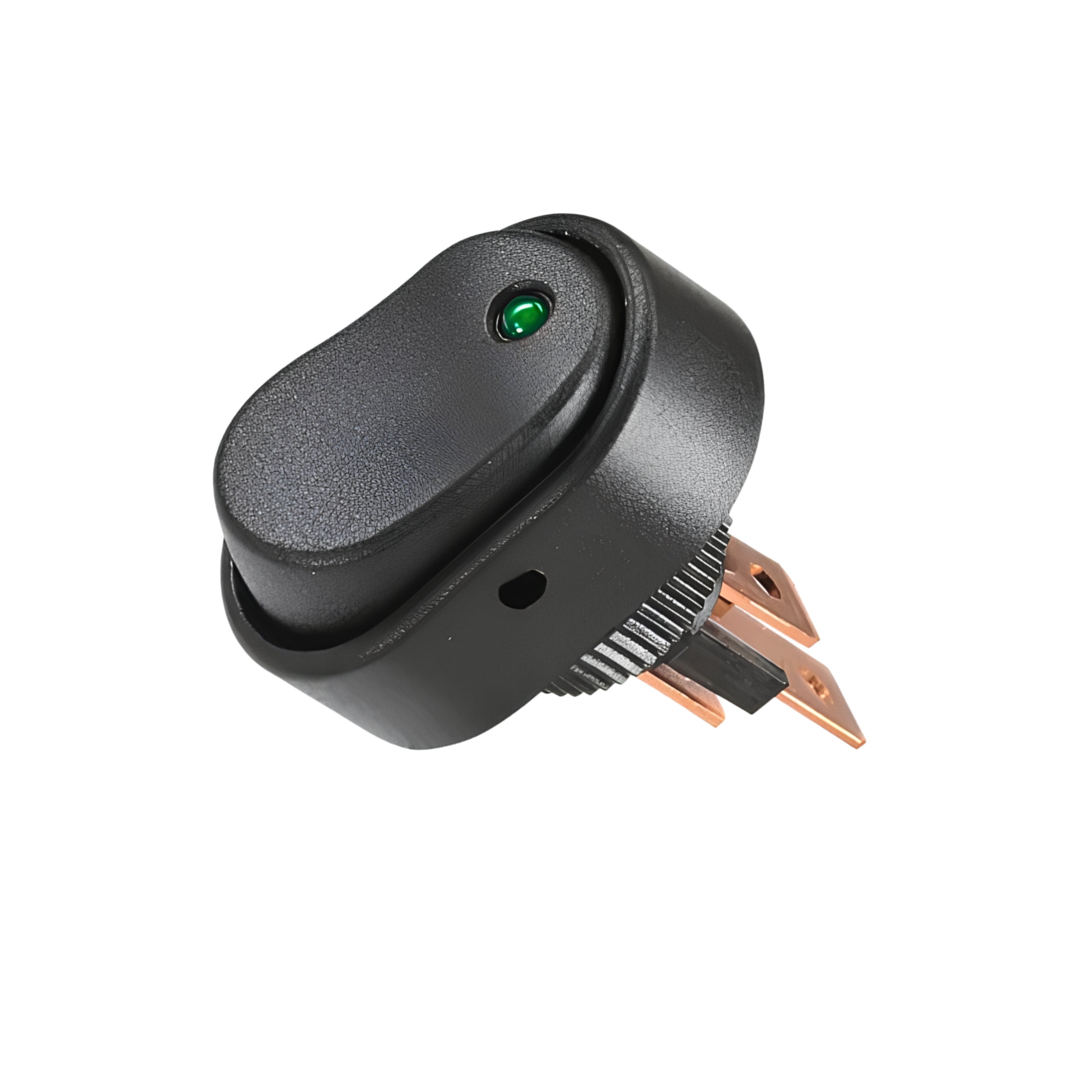

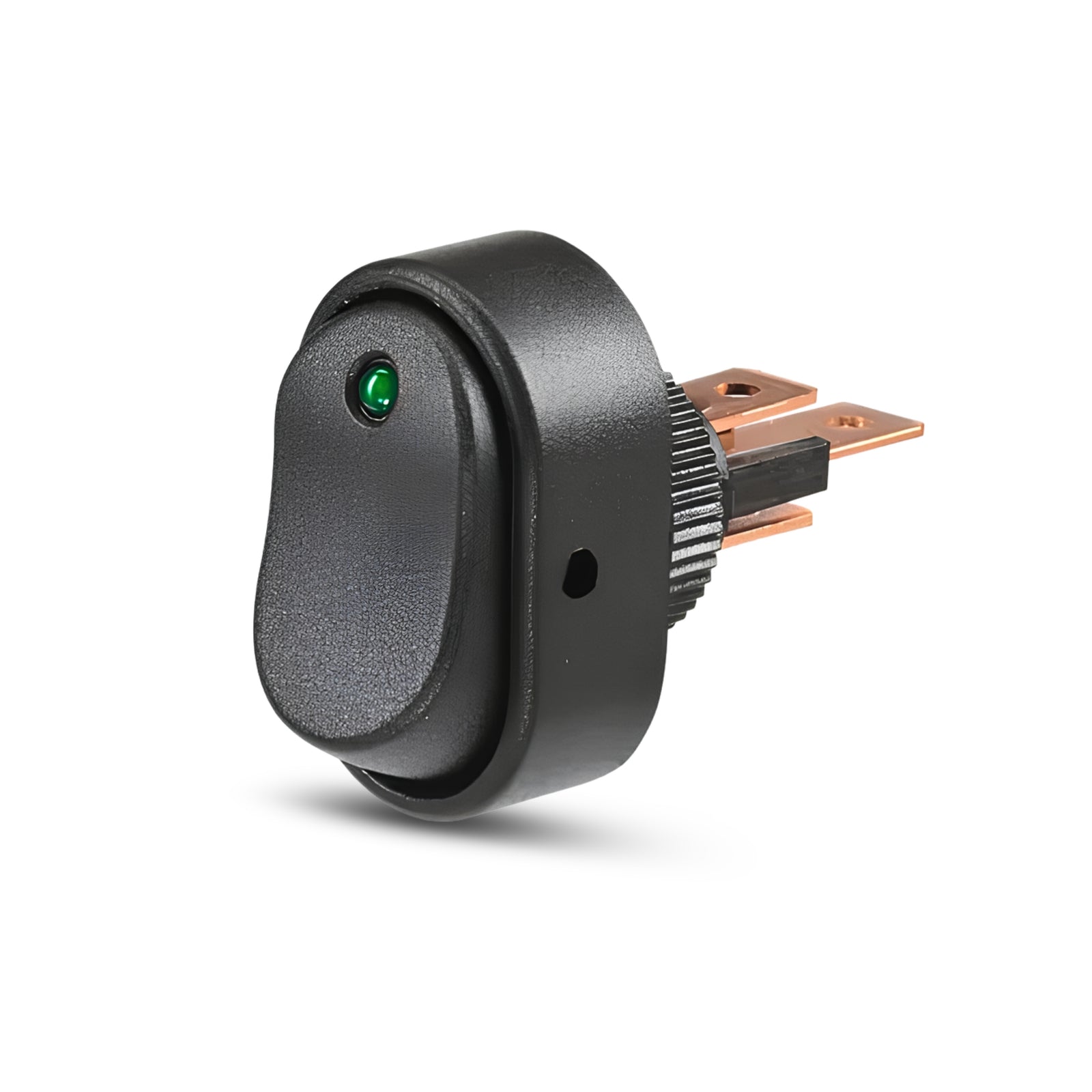

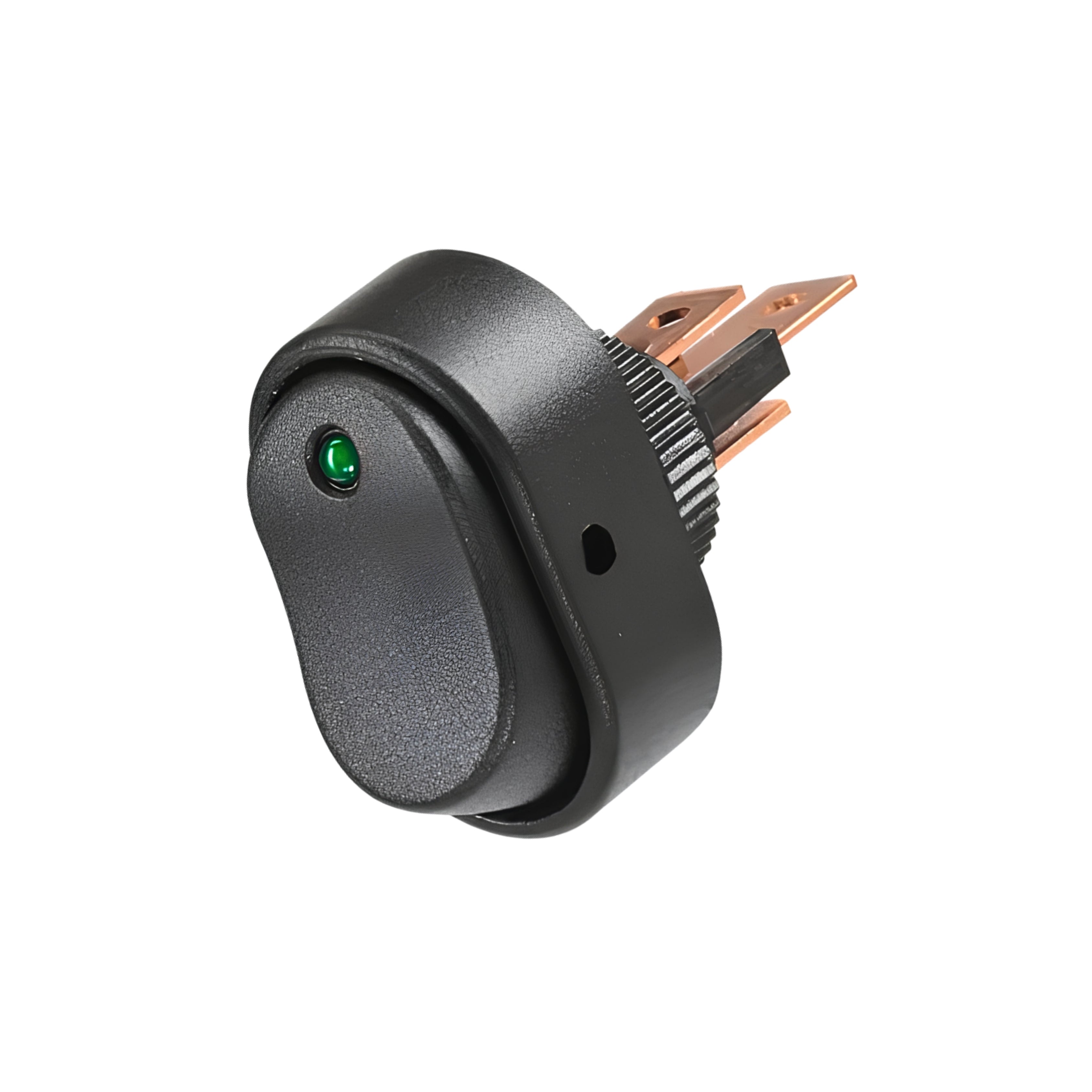

Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated
Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated
Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated
Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated
Click to open expanded view
THUNDER logo

Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated

SKU: TDR11072
Price
$5.51
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia-wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. Where stock allows, in-stock orders are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated

Thunder TDR11072 Rocker Switch On/Off SPST Green Illuminated

$5.51

Product features

Thunder TDR11072 On/Off Rocker Switch Green Illuminated

A 12V on-off SPST rocker switch from Thunder, the TDR11072 features green illumination, rated to 30A with a compact 12mm mounting hole design.

Product overview

Thunder Rocker Switch On/Off SPST Green Illuminated, providing simple on-off switching for a range of 12V accessory control applications with clear green illumination for status identification.

Features and benefits

On-Off SPST switch action: Provides simple single-pole single-throw switching for a range of accessory control applications.

Green illumination: Clearly identifies the switch's on/off status for easy operation, even in low light conditions.

30A rating: Provides substantial current capacity suited to higher load accessory circuits.

Compact 12mm mounting hole: Suited to installations where minimal panel space is available.

3 terminal configuration: Provides standard terminal connections for wiring, including the illumination circuit.

Technical specs

Specification Detail
SKU TDR11072
Brand Thunder
Type Rocker Switch
Voltage 12V
Power Rating 30A
Terminals 3
Switch Action On-Off, SPST
Poles 1
Positions 2
Lamp Colour Green
Mounting Hole 12mm
Switch Type Rocker
Weight 0.01kg
Illumination Illuminated

Compatible with

The TDR11072 is compatible with 12V vehicle electrical systems requiring a compact illuminated on-off rocker switch rated to 30A.

Frequently asked questions

What is the TDR11072 used for?
The TDR11072 is a rocker switch designed for general 12V accessory control applications, using an on-off SPST function with green illumination for status indication.

What voltage does the TDR11072 support?
The TDR11072 supports 12V systems.

What amperage is the TDR11072 rated to?
The TDR11072 is rated to 30A.

What colour does the TDR11072 illuminate?
The TDR11072 features green illumination.

What mounting hole size does the TDR11072 require?
The TDR11072 requires a 12mm mounting hole.
