Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT
Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT
Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT
Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT
Click to open expanded view
THUNDER logo

Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT

SKU: TDR11064
Price
$12
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia-wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. Where stock allows, in-stock orders are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT

Thunder TDR11064 Toggle Switch Mom On - Off - Mom On - SPDT

$12

Product features

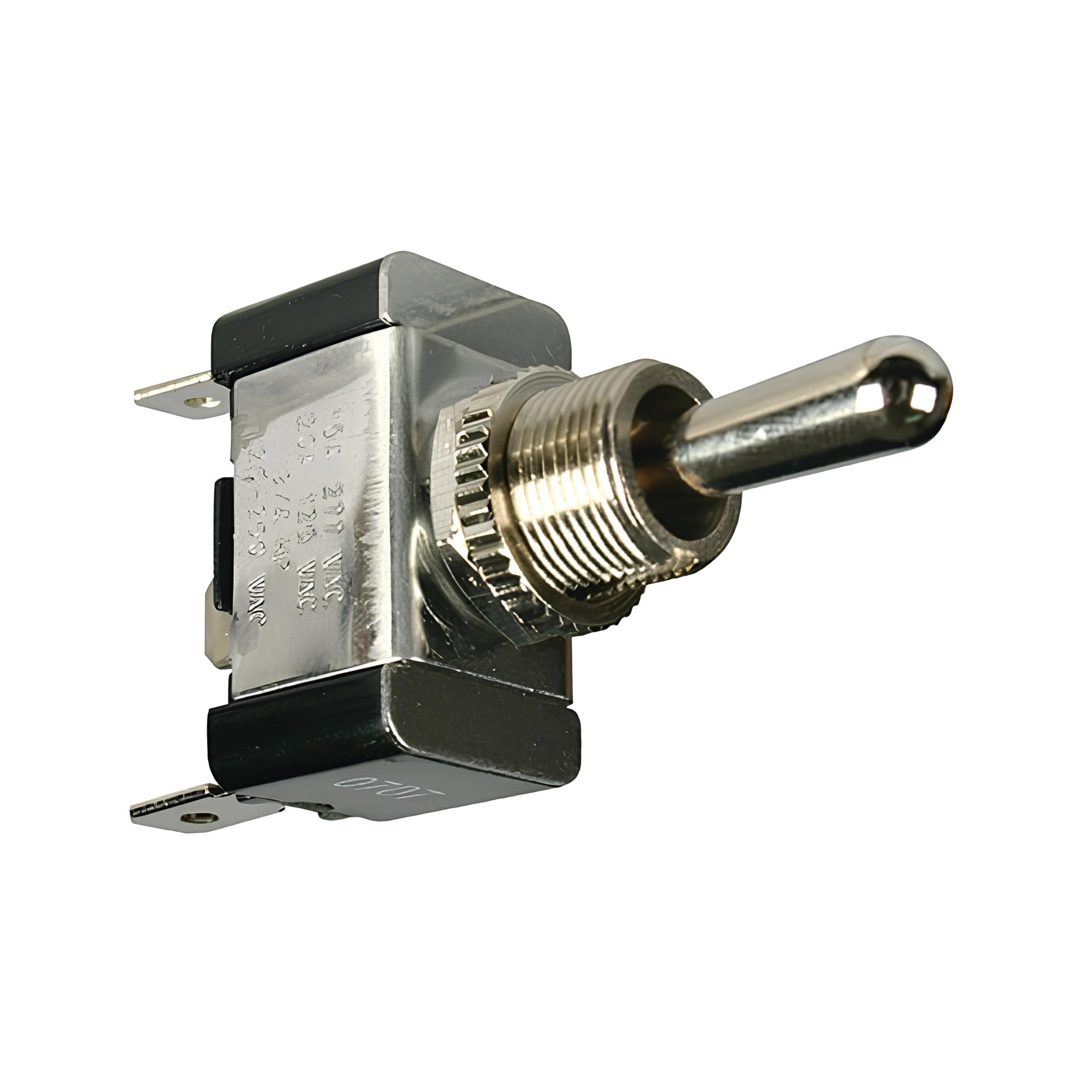

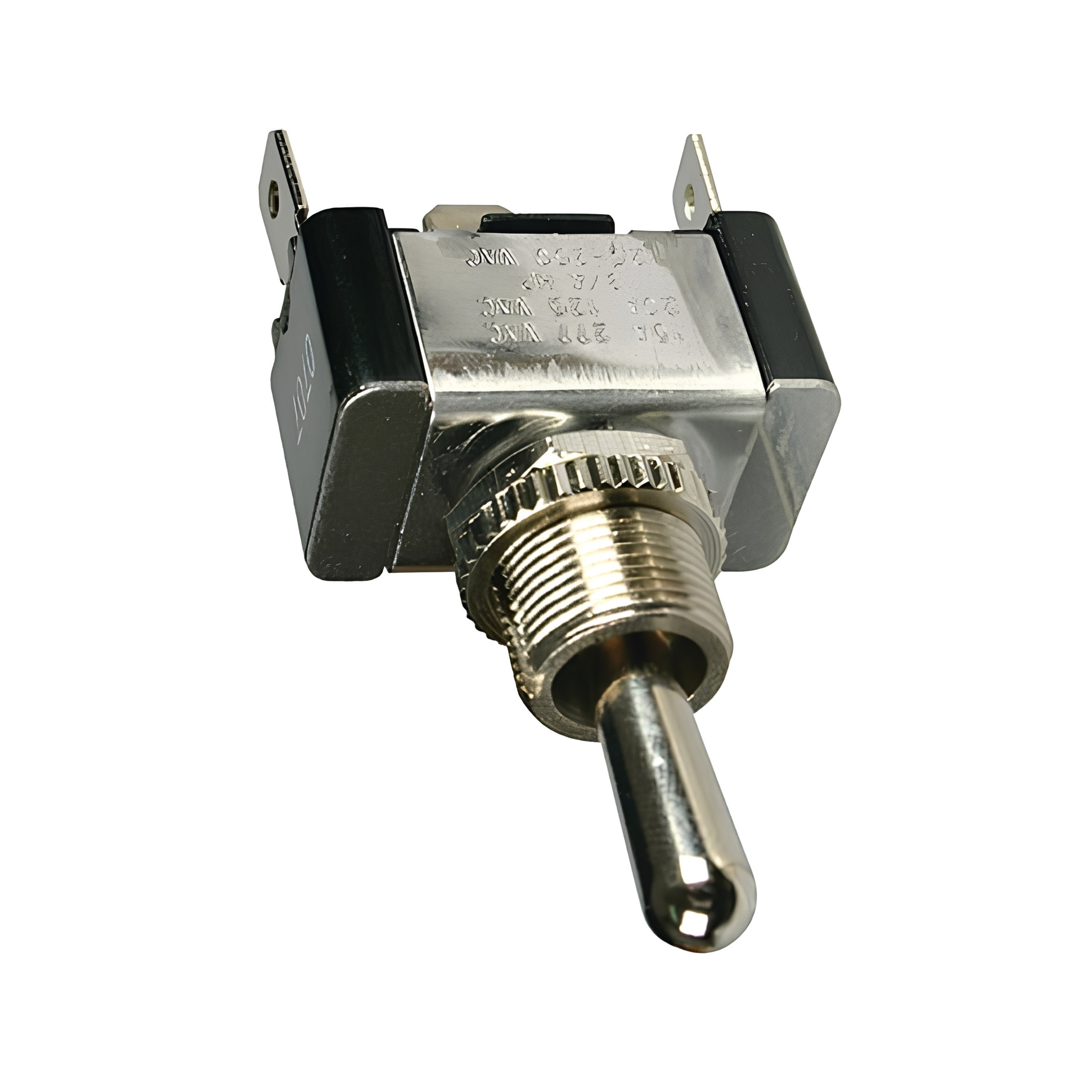

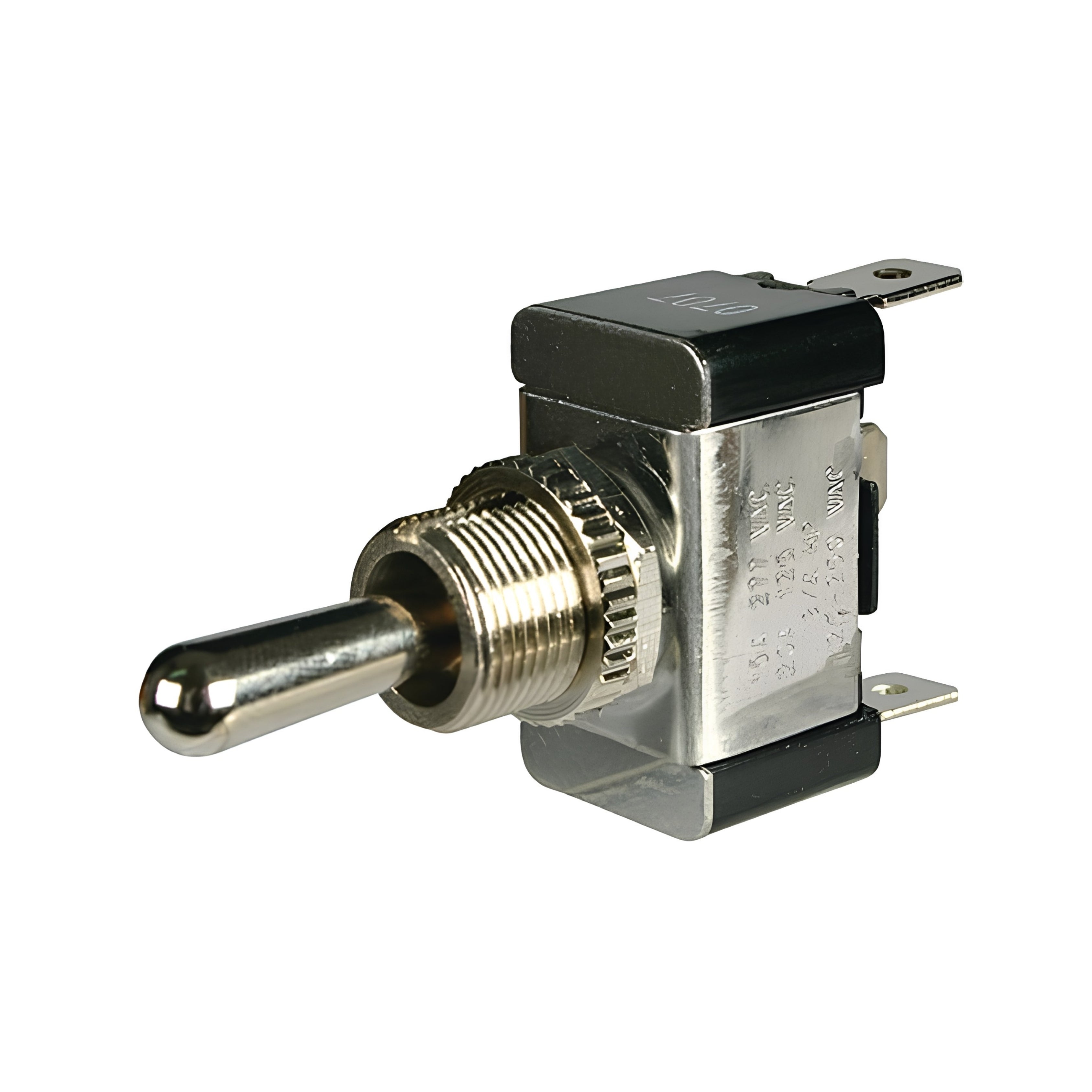

Thunder TDR11064 Toggle Switch Momentary On - Off - Momentary On - SPDT

A 12/24V momentary on-off-momentary on toggle switch from Thunder, the TDR11064 features SPDT switch action, a 20A rating, and 3 blade terminal connections in a compact 12mm mounting hole design.

Product overview

Thunder Toggle Switch Mom On - Off - Mom On - SPDT, providing spring-return momentary action in both directions with a centre off position, suited to applications such as winch or actuator control.

Features and benefits

Momentary On-Off-Momentary On SPDT function: Provides spring-return momentary action in both directions with a centre off position, suited to applications such as winch or actuator control where the switch should only remain active while held.

12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.

20A rating: Provides sufficient current capacity for a range of momentary switching applications.

3 x blade terminals: Provides standard terminal connections for wiring.

Compact 12mm mounting hole: Suited to installations where minimal panel space is available.

Non illuminated: A simple toggle switch design without integrated illumination.

Technical specs

Specification Detail
SKU TDR11064
Brand Thunder
Type Toggle Switch
Voltage 12 or 24V
Power Rating 20A
Terminals 3 (Blade)
Switch Action Momentary On-Off-Momentary On, SPDT
Poles 1
Positions 3
Mounting Hole 12mm
Switch Type Toggle
Weight 0.3kg
Illumination Non Illuminated

Compatible with

The TDR11064 is compatible with 12V and 24V systems requiring a momentary-action toggle switch, such as winch or actuator control applications.

Frequently asked questions

What does momentary on-off-momentary on mean for the TDR11064?
This function means the switch springs back to the centre off position when released in either direction, remaining active only while held, suited to applications such as winch or actuator control.

What voltage does the TDR11064 support?
The TDR11064 supports both 12V and 24V systems.

What amperage is the TDR11064 rated to?
The TDR11064 is rated to 20A.

Does the TDR11064 illuminate?
No. The TDR11064 is a non illuminated toggle switch.

How many terminals does the TDR11064 have?
The TDR11064 has 3 blade terminals.
