Thunder TDR11047 Rocker Switch Off Mom On SPST 12/24V Blue Illuminated (Contacts Rated 20A @ 12V)
Thunder TDR11047 Rocker Switch Off Mom On SPST 12/24V Blue Illuminated (Contacts Rated 20A @ 12V)
Thunder TDR11047 Rocker Switch Off Mom On SPST 12/24V Blue Illuminated (Contacts Rated 20A @ 12V)
Thunder TDR11047 Rocker Switch Off Mom On SPST 12/24V Blue Illuminated (Contacts Rated 20A @ 12V)
Click to open expanded view
THUNDER logo

Thunder TDR11047 Rocker Switch Off Mom On SPST 12/24V Blue Illuminated (Contacts Rated 20A @ 12V)

SKU: TDR11047
Price
$13
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

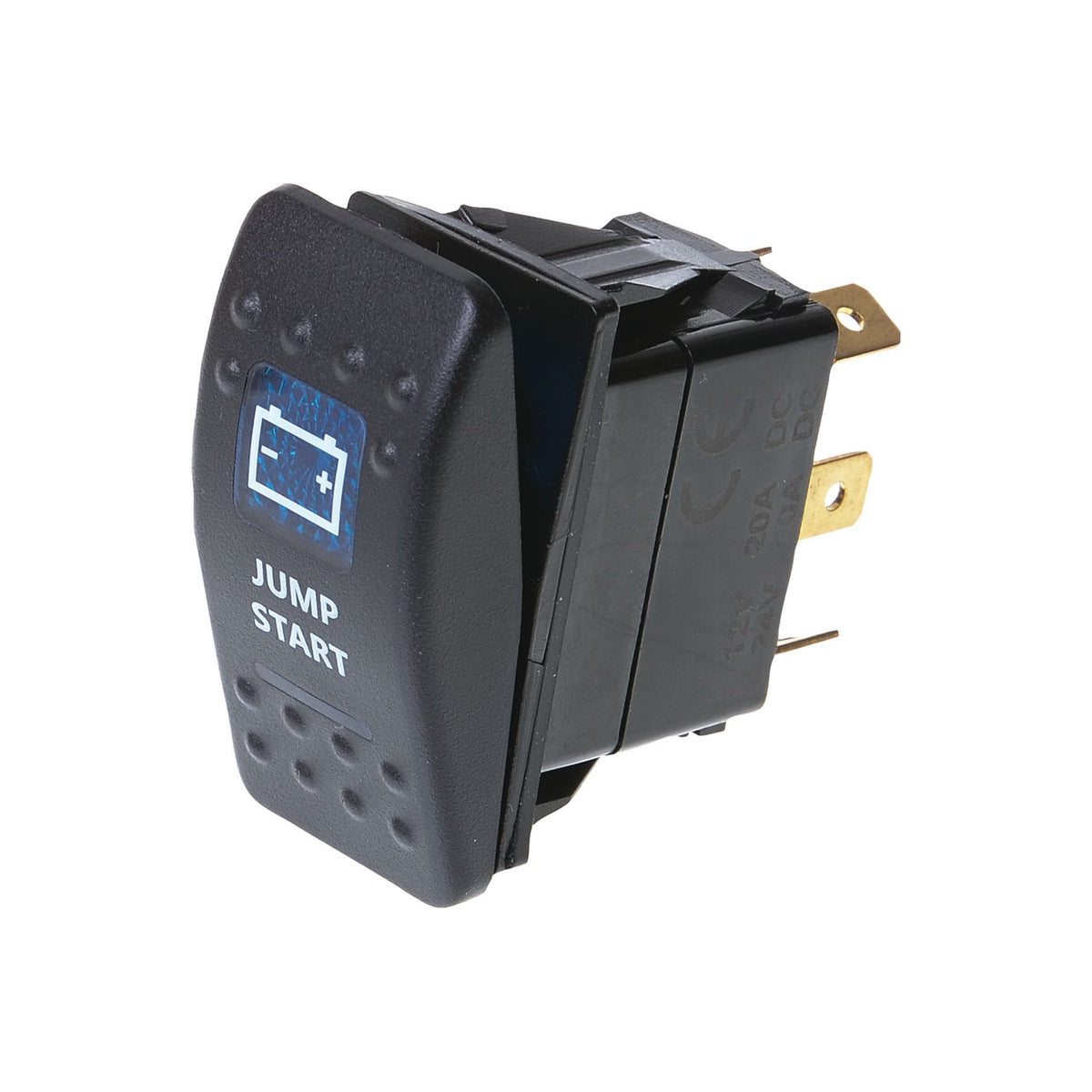

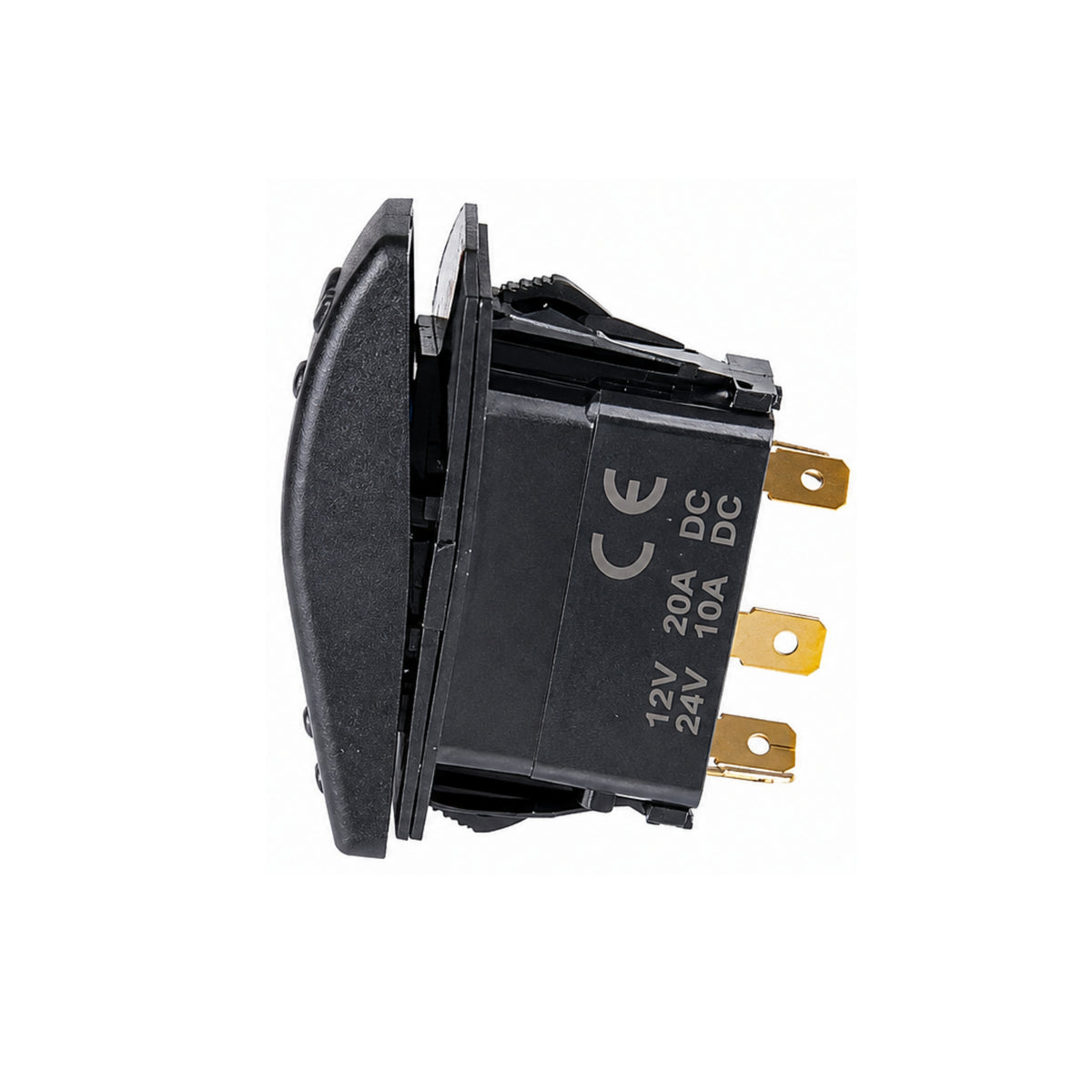

Thunder TDR11047 Off Momentary On Rocker Switch 12/24V Blue Illuminated

A 12/24V off-momentary on rocker switch from Thunder, the TDR11047 features blue LED illumination, a 20A rating, and SPST function, with contacts rated 20A at 12V.

Product overview

Thunder Rocker Switch Off Mom On SPST 12 or 24V Blue Illuminated, with contacts rated 20A at 12V.

Features and benefits

12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.

20A rating at 12V: Provides sufficient current capacity for momentary-action switching applications.

Off-Momentary On SPST function: Provides a spring-return momentary action, suited to applications such as winch control or horn activation where the switch should only remain active while held.

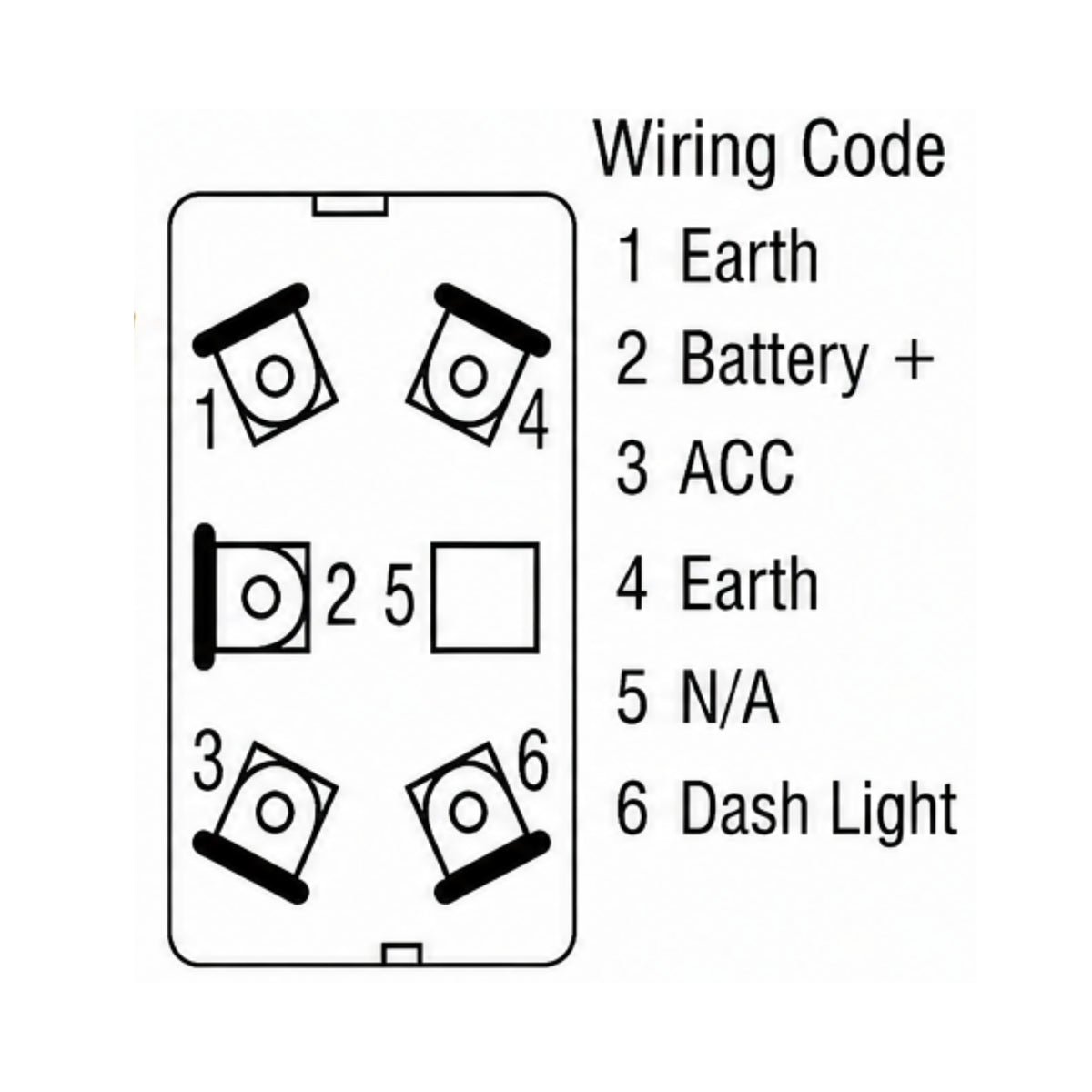

5 x blade terminals: Provides standard terminal connections for wiring.

Blue LED illumination: Clearly identifies the switch for easy operation, even in low light conditions.

Technical specs

Specification Detail
SKU TDR11047
Brand Thunder
Type Rocker Switch
Voltage 12/24V
Power Rating 20A @ 12V
Mounting Hole 20mm x 36mm
Terminals 5 x Blade
Switch Action Off-Momentary On, SPST
Poles 1
Positions 2
Lamp Colour Blue
Switch Type Rocker
Weight 1kg
Illumination Illuminated

Compatible with

The TDR11047 is compatible with 12V and 24V systems requiring a momentary-action rocker switch, such as winch control or similar applications.

Frequently asked questions

What does off-momentary on mean for the TDR11047?
Off-momentary on means the switch returns to the off position automatically when released, remaining active only while held, suited to applications such as winch or horn control.

What voltage does the TDR11047 support?
The TDR11047 supports both 12V and 24V systems.

What amperage is the TDR11047 rated to?
The TDR11047 contacts are rated 20A at 12V.

Does the TDR11047 illuminate?
Yes. The TDR11047 features blue LED illumination for easy identification.

How many terminals does the TDR11047 have?
The TDR11047 has 5 x blade terminals.
