Thunder TDR08120 12/24V 54W 18 LED Driving Light Bar - Single Row

SKU: TDR08120
Price
$225
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Thunder TDR08120 12/24V 54W 18 LED Driving Light Bar - Single Row

Thunder TDR08120 12/24V 54W 18 LED Driving Light Bar - Single Row

$225

Product features

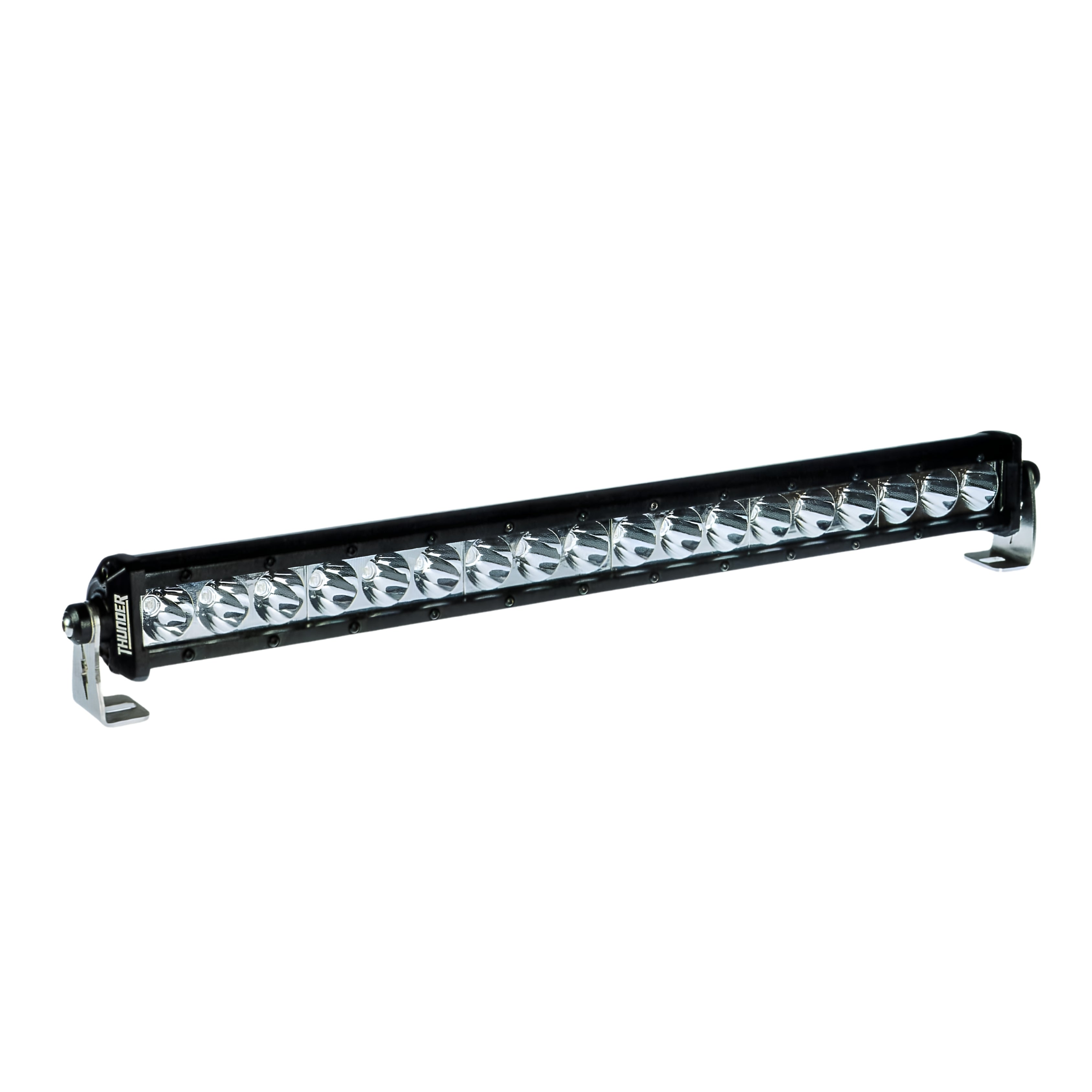

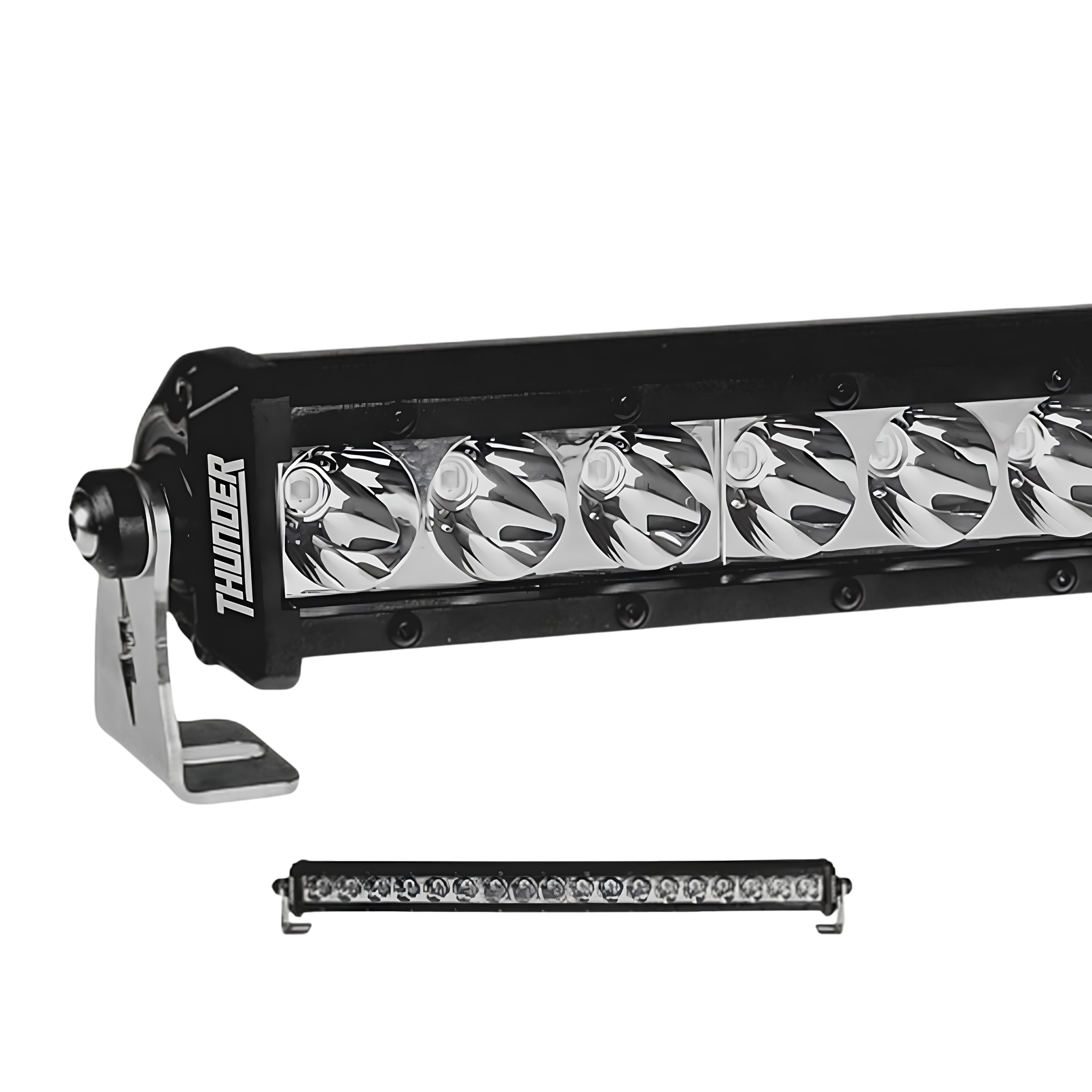

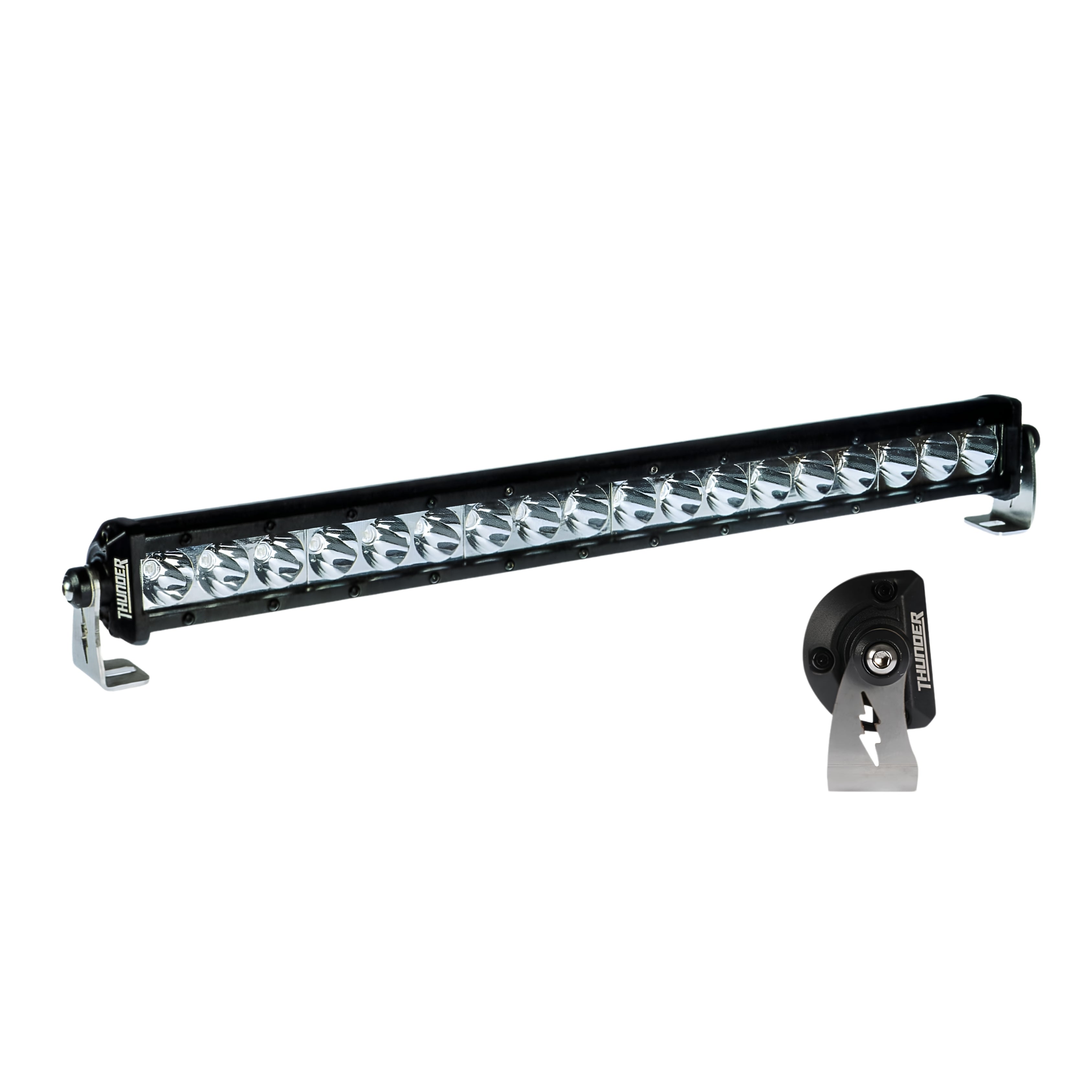

Thunder TDR08120 18 LED Driving Light Bar

A 543mm 18 LED driving light bar from Thunder, the TDR08120 delivers 2,270 effective lumens in a spot beam pattern, IP67 rated with die cast aluminium body and adjustable stainless steel mounting brackets.

Product overview

Includes pre-wired connectors for ease of installation and IP67 rating to survive the elements. Adjustable brackets allow for versatile installation, with optional slide mounts available for a more slimline appearance, sold separately.

Features and benefits

18x 3W Cree LEDs: High quality Cree LEDs deliver strong output and reliable long-term performance.

2,270 effective lumens: Provides strong illumination suited to off-road and driving light bar applications.

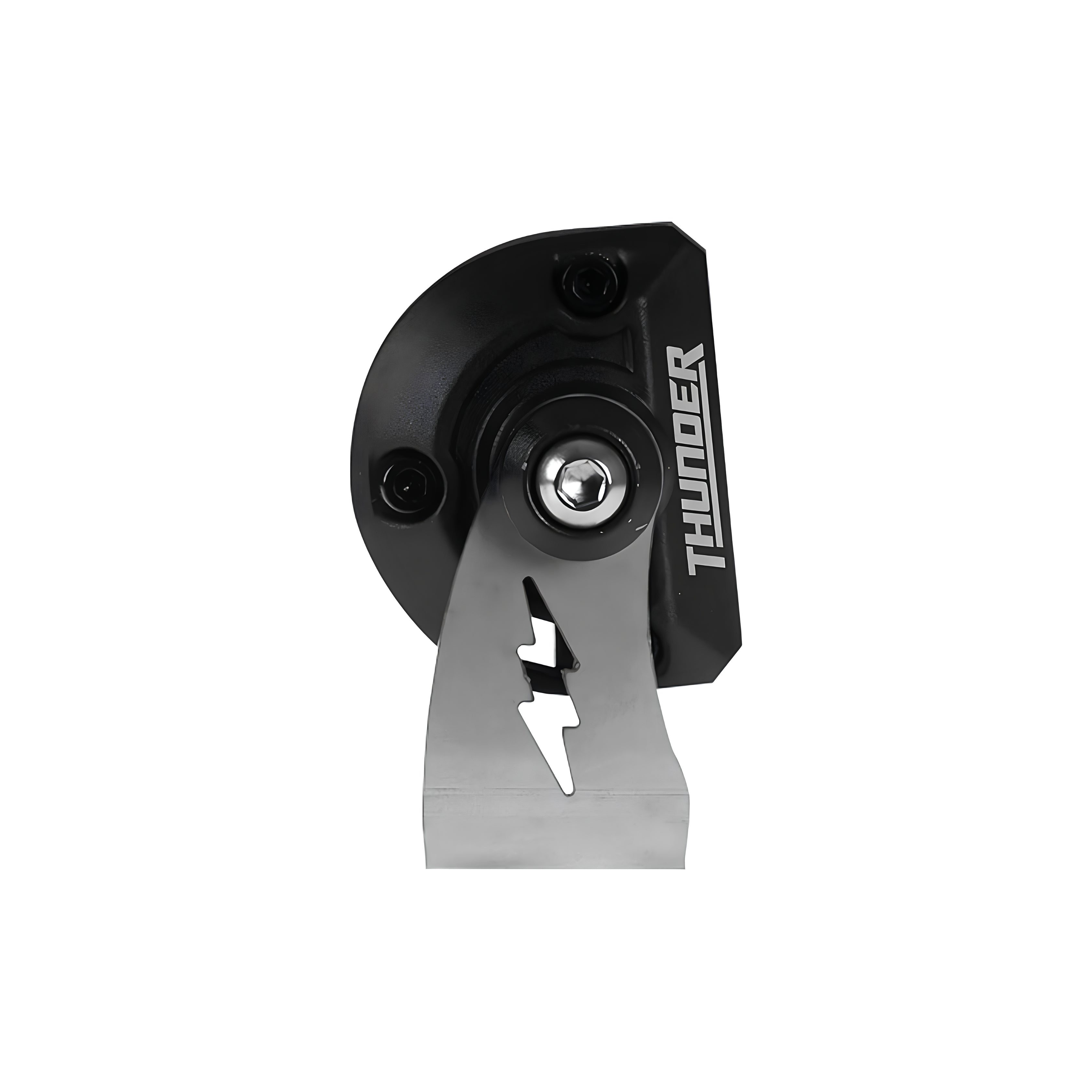

Adjustable mounting brackets: Stainless steel brackets support horizontal or vertical mounting for versatile installation.

Optional slide mounts available: Slide mounts are available separately for a more slimline mounting appearance.

Die cast aluminium housing: Provides durable, corrosion-resistant housing construction.

Polycarbonate lens: Offers impact resistance while maintaining clear light transmission.

IP67 rated: Sealed against dust and water ingress, suited to demanding outdoor and off-road conditions.

Pre-wired connectors included: Simplifies installation with ready-to-connect wiring.

Spot beam pattern: Concentrates light output for maximum distance illumination, suited to highway and open terrain driving.

12-24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.

Technical specs

Specification Detail
SKU TDR08120
Brand Thunder
Type LED Driving Light Bar
LEDs 18x 3W Cree LEDs
Raw Lumens 4,200
Effective Lumens 2,270
Voltage 12-24V
Dimensions (L x H x W) 543mm x 72mm x 44mm
Current Draw 3A @ 12V
Lens Material Polycarbonate
Housing Material Die Cast Aluminium
Mounting Brackets Stainless Steel, Horizontal or Vertical Mount
Beam Pattern Spot Beam
IP Rating IP67

Compatible with

The TDR08120 is compatible with 12V and 24V vehicle electrical systems requiring an off-road spot beam driving light bar. Optional slide mounts are available separately for a slimline mounting appearance.

Frequently asked questions

What is the effective lumen output of the TDR08120?
The TDR08120 delivers 2,270 effective lumens, with 4,200 raw lumens from the LED array.

What voltage does the TDR08120 support?
The TDR08120 suits both 12V and 24V applications.

Is the TDR08120 waterproof?
Yes. The TDR08120 is IP67 rated, sealed against dust and water ingress.

What mounting options does the TDR08120 support?
The TDR08120 includes adjustable stainless steel brackets supporting horizontal or vertical mounting, with optional slide mounts available separately for a slimline appearance.

What beam pattern does the TDR08120 use?
The TDR08120 uses a spot beam pattern, concentrating light output for maximum distance illumination.
