Thunder TDR05224 12 Way Standard Blade Fuse Box With Cover & LED Indicators 30A

SKU: TDR05224
Price
$52
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

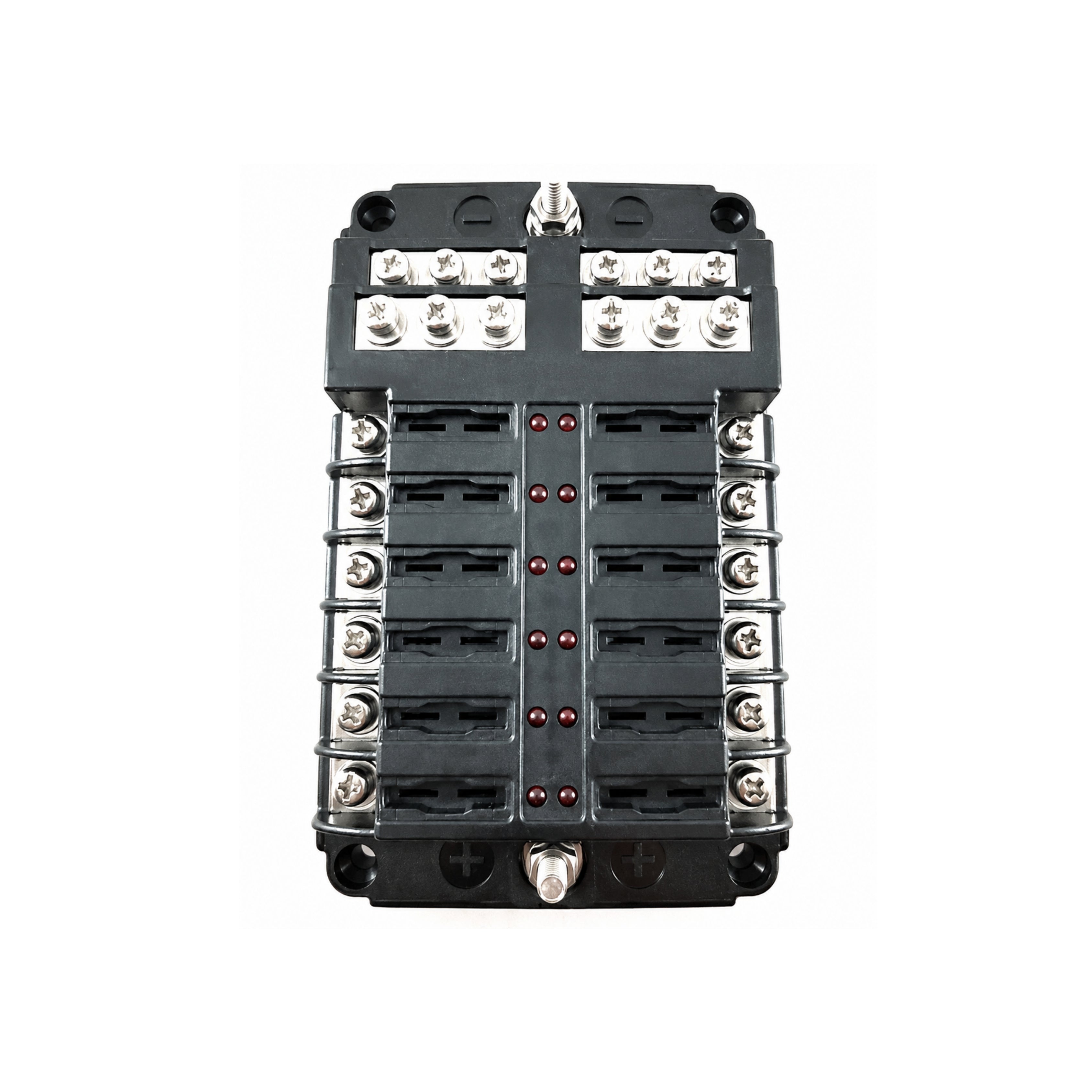

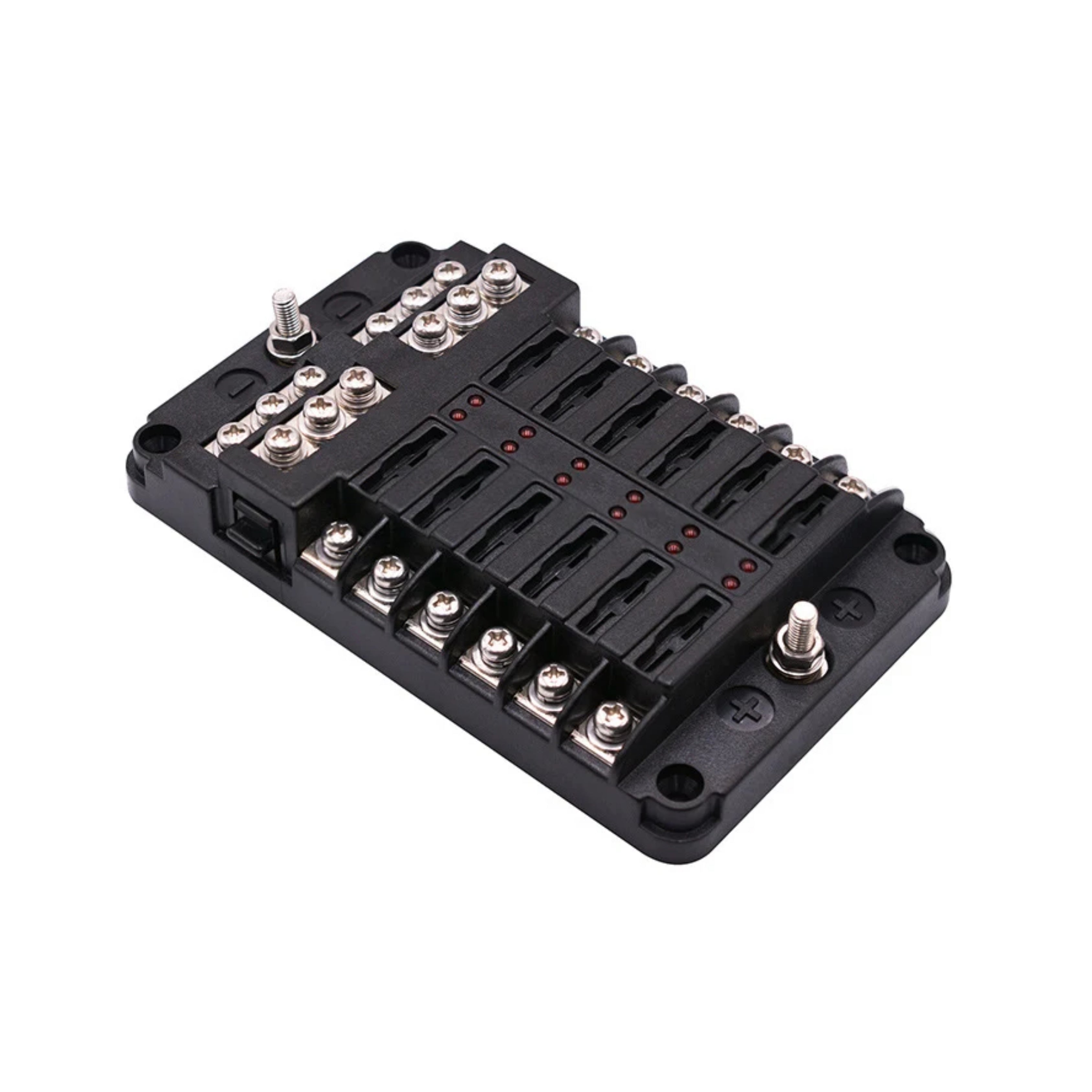

Thunder TDR05224 12 Way Standard Blade Fuse Box with Cover and LED Indicators

A 12 way standard blade fuse box from Thunder, the TDR05224 provides 30A per circuit to a total of 100A, featuring red LED fuse fault indicators and a clear cover with recessed label spaces, backed by a 1-year warranty.

Product overview

Fuses are extremely intuitive and easy to use. Thunder workshop accessories provide you with reliable and hard-wearing products to ensure a perfect connection in your system. The growing range includes cable ties, terminals, circuit breakers, lugs, and more.

Features and benefits

Fuse box with buss bar: Provides a distributed power connection across 12 positive and 12 negative terminals from a single fuse box.

30A per circuit, 100A total: Supports up to 30A per individual circuit, with a maximum total load of 100A across the fuse box.

M5 stainless steel power and negative feed terminals: Provides secure, corrosion-resistant main power and ground connections.

M4 stainless steel terminal screws: Ensures secure, reliable individual circuit connections throughout the fuse box.

Nickel plated copper plates: Provides excellent electrical conductivity with corrosion resistance for long-term reliability.

Red LED indicator when fuse is broken: Quickly identifies a blown fuse without needing to remove and inspect each fuse individually.

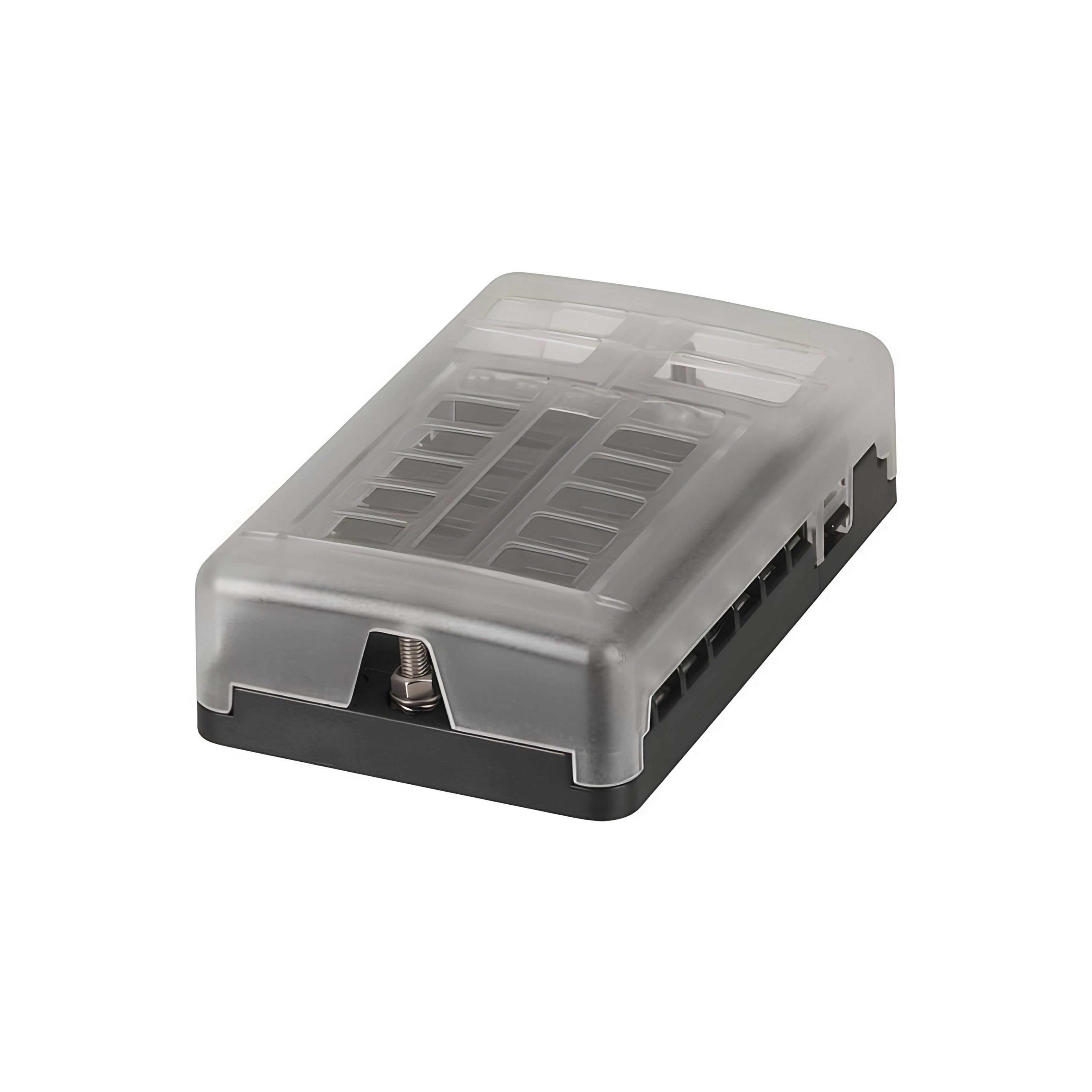

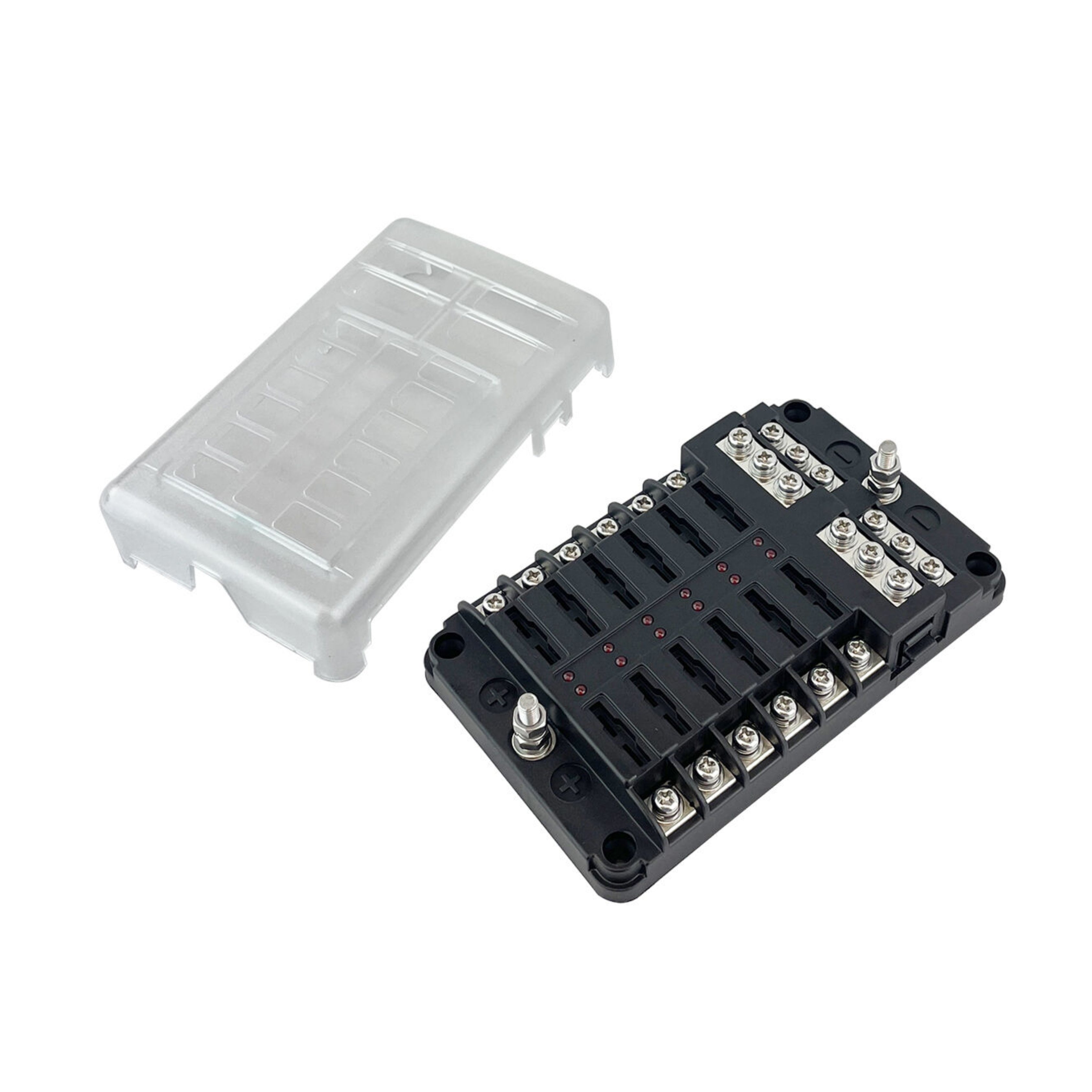

Clear cover with recessed label spaces: Allows each circuit to be clearly labelled while protecting the fuse box internals, with labels included.

Technical specs

Specification Detail
SKU TDR05224
Brand Thunder
Type Standard Blade Fuse Box
Positive Terminals 12
Negative Terminals 12
Max Current Per Circuit 30A
Max Total Current 100A
Power/Negative Terminal Type M5 Stainless Steel
Terminal Screws M4 Stainless Steel
Plate Material Nickel Plated Copper
Fault Indicator Red LED
Cover Clear with Recessed Label Spaces
Warranty 1 Year

Compatible with

The TDR05224 is compatible with 12V vehicle and marine wiring systems using standard blade fuses, requiring up to 12 separate circuits.

Frequently asked questions

How many circuits does the TDR05224 support?
The TDR05224 supports 12 positive and 12 negative terminals, providing up to 12 separate fused circuits.

What is the maximum current rating of the TDR05224?
The TDR05224 supports up to 30A per circuit, with a maximum total current of 100A across the fuse box.

How do I know if a fuse has blown in the TDR05224?
A red LED indicator illuminates when a fuse is broken, allowing quick identification without removing and inspecting each fuse individually.

Does the TDR05224 include labels for each circuit?
Yes. The clear cover includes recessed label spaces with labels provided for identifying each circuit.

What warranty does the TDR05224 come with?
The TDR05224 is backed by a 1-year warranty.
