Thunder TDR02130 30A 8 Stage Pulse Battery Charger

SKU: TDR02130
Regular price
$724
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

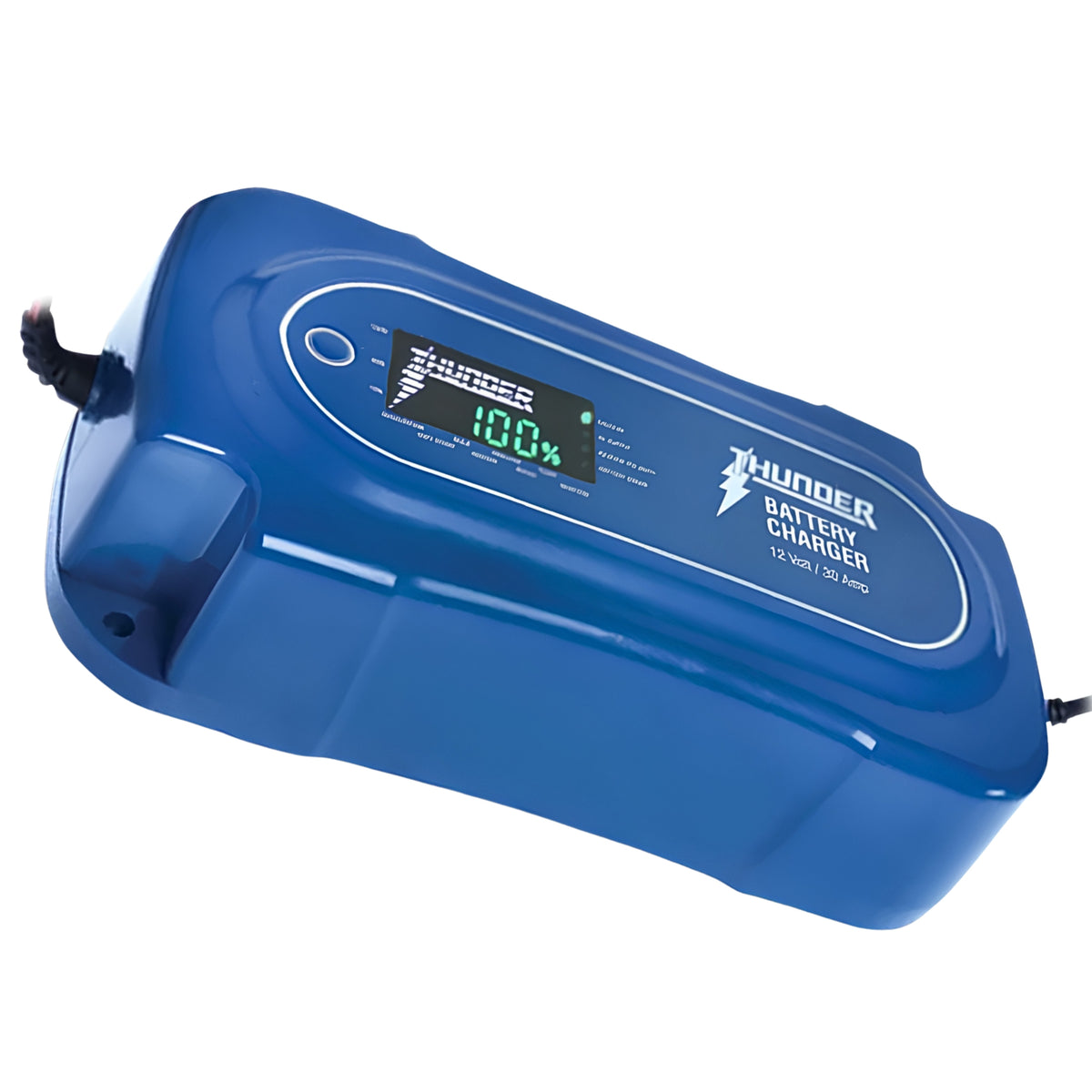

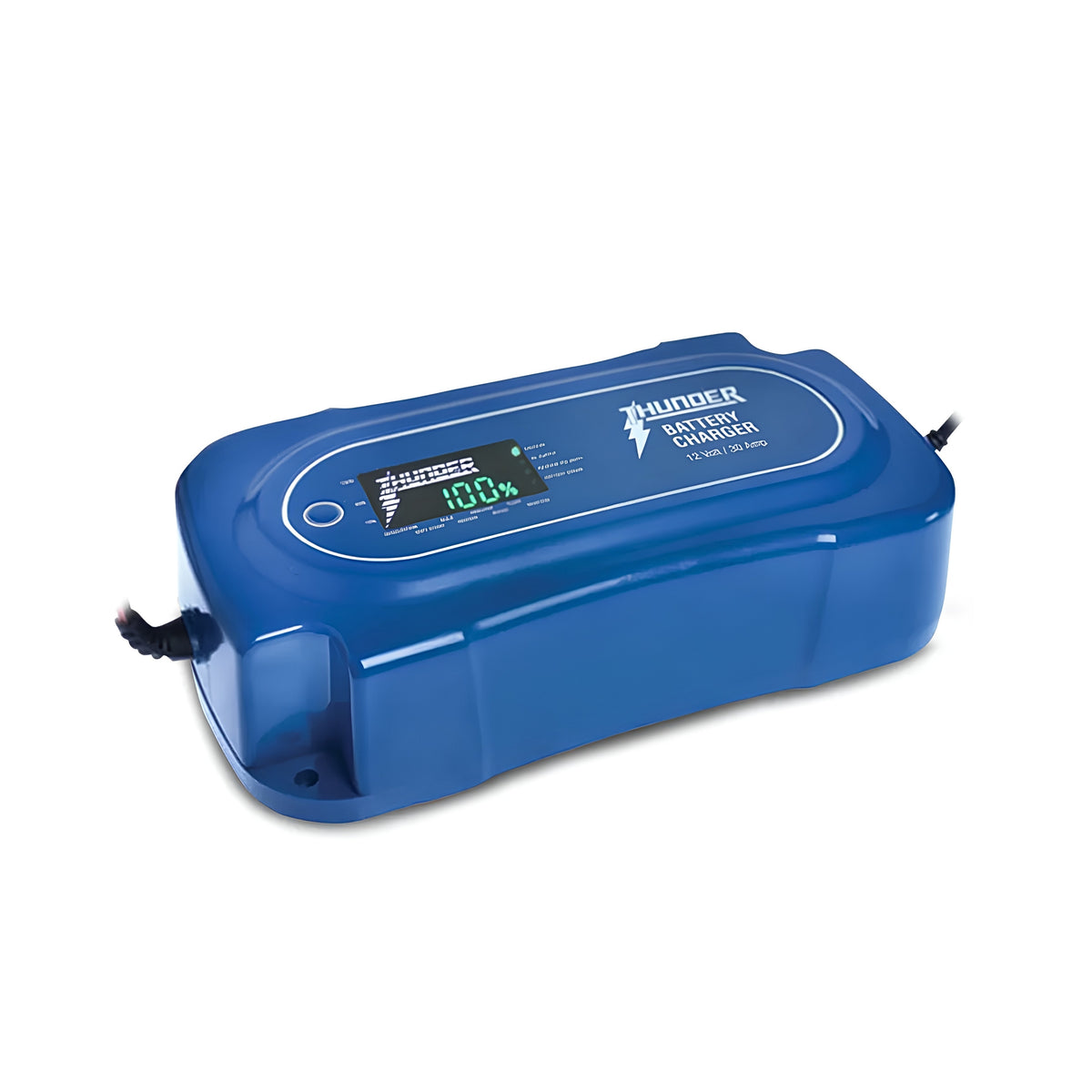

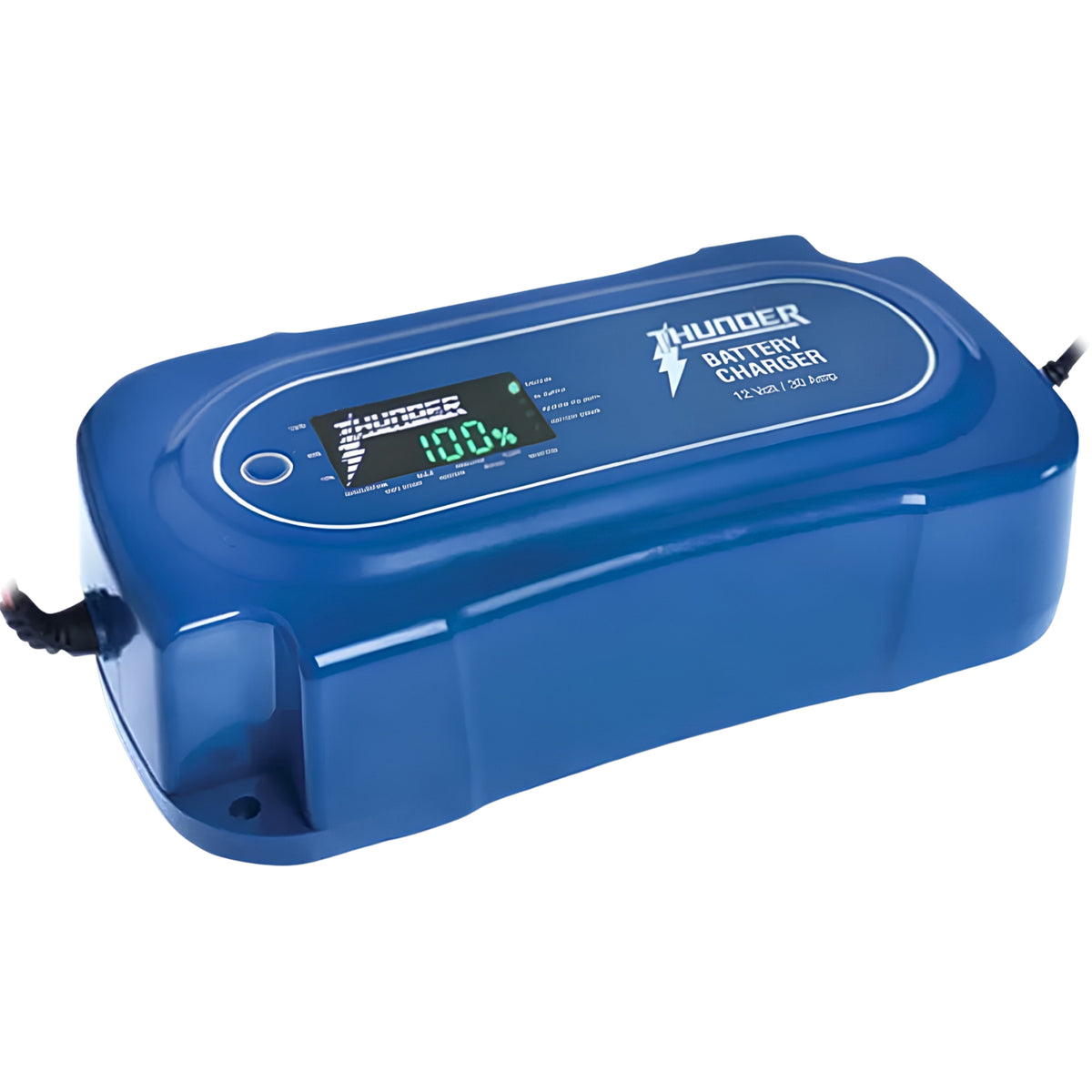

Thunder TDR02130 30 Amp 8 Stage Pulse Battery Charger

A 30 amp 8 stage pulse battery charger from Thunder, the TDR02130 charges 12 volt large vehicles, agricultural equipment, buses, and boats, and includes a 15 amp integrated power supply mode with automatic battery analysis.

Product overview

Charge 12 volt large vehicles, agricultural equipment, buses, and boats. Includes a 15 amp integrated power supply mode. The 8 stage fully automatic system analyses your battery to provide the best state of charge and will identify if the battery needs replacing.

Features and benefits

8 stage fully automatic charging: Analyses your battery to provide the best state of charge and will identify if the battery needs replacing.

15 amp integrated power supply mode: Provides a dedicated power supply function in addition to standard battery charging.

Suited to large vehicles, buses, and boats: Charges 12 volt large vehicles, agricultural equipment, buses, and boats.

Charge stage display: Lights show the stage of charge, allowing you to monitor charging progress at a glance.

Multi safety protection: Includes overcharging, reverse polarity with flashing LED indication, short circuit, and over temperature protection.

Wide operating temperature range: Operates reliably across a -15°C to +50°C temperature range.

Suited to a broad battery range: Ideally suited to batteries rated 40-550Ah or 800-1,000 CCA.

CE, EMC, SAA, and C-Tick approved: Certified to relevant safety and compliance standards.

Technical specs

Specification Detail
SKU TDR02130
Brand Thunder
Type 8 Stage Pulse Battery Charger
Input Voltage 240VAC/50Hz
Maximum Charging Current 30A
Power Supply Mode 15A @ 13.7V
Minimum Start Voltage ≥0V
Operating Temperature -15°C to +50°C
Display Lights Show Stage of Charge
Ideal Battery Rating 40-550Ah, 800-1,000 CCA
Approvals CE, EMC, SAA, C-Tick

Charging voltages

Battery Type Charging Stage Boost Float
Gel 14.3V 14.8V 13.3V
Lead Acid/AGM 14.8V 15.2V 13.7V
Calcium 15.6V 16.2V 13.7V

Compatible with

The TDR02130 is compatible with 12V batteries rated 40-550Ah or 800-1,000 CCA, including Gel, Lead Acid, AGM, and Calcium battery types. Suited to large vehicles, agricultural equipment, buses, and boats.

Frequently asked questions

What battery types is the TDR02130 compatible with?
The TDR02130 is compatible with Gel, Lead Acid, AGM, and Calcium battery types, with charging voltages tailored to each chemistry.

What is the maximum charging current of the TDR02130?
The TDR02130 has a maximum charging current of 30A.

What is the integrated power supply mode on the TDR02130?
The TDR02130 includes a 15 amp integrated power supply mode at 13.7V, providing power supply functionality in addition to standard battery charging.

What battery sizes is the TDR02130 suited to?
The TDR02130 is ideally suited to batteries rated 40-550Ah or 800-1,000 CCA.

Can the TDR02130 identify if my battery needs replacing?
Yes. The 8 stage fully automatic system analyses your battery to provide the best state of charge and will identify if the battery needs replacing.
