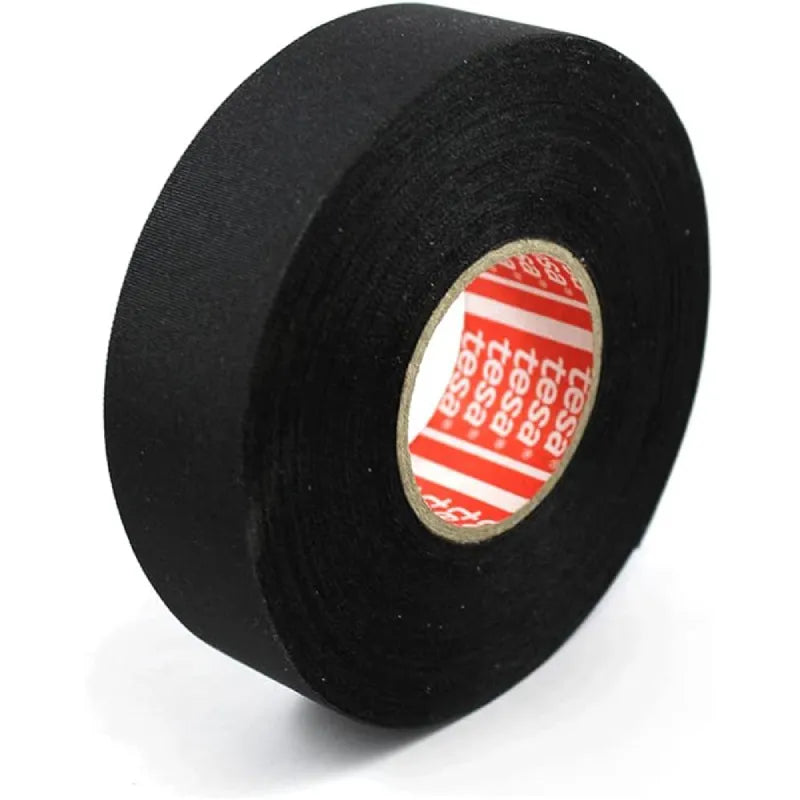

Tesa 51036 19mm x 25-Metre Universal Wire Harness Cloth Tape

Tesa 51036 19mm x 25-Metre Universal Wire Harness Cloth Tape

$15.95

Product features

PET Cloth Wire Harness Tape With Advanced Acrylic Adhesive!

Universal Wire Harness Cloth Tape
The Tesa 51036 is a universal tape for wire harness bundling for exterior body looms and in the engine compartment. It combines important features such as noise dampening, abrasion resistance, and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM. Tesa 51036 is a PET cloth wire harness tape with an advanced acrylic adhesive that is optimized for manual application.

Tesa 51036 Features:

  • Noise Dampening
  • Abrasion Resistant
  • Flexible & Smooth
  • Tear Resistant
  • Stable Unwind Force
  • Age-Resistant
  • Strong Adhesion
  • Hand-Tearable

Tesa 51036 Specifications:

  • Colour: Black
  • Roll Size: 19mm x 25-Metres
  • Pack Size: 1 Roll
  • Packaging: Roll
  • Backing Material: PET Cloth
  • Total Thickness: 260µm
  • Adhesive Type: Advanced Acrylic
  • Steel Adhesion: 5N/cm
  • Elongation At Break: 40%
  • Tensile Strength: 275N/cm
  • Temperature Resistance Min: -40°C
  • Temperature Resistance (3000h): 150°C
  • Abrasion Resistance (10mm Mandrel): Class D (Acc. to LV312)
  • Abrasion Resistance (5mm Mandrel): Class D (Acc. to LV312)
  • Flame Resistance As Composite: Class B (Acc. to LV312)
  • Unwind Force (Roll Width > 9mm): 11N/Roll (30m/min)
  • Noise Damping (Decibel): Class A (Acc. to LV312)
  • Weight: 0.03kg
