Stinger XI326 X3 Series 2 Channel RCA Cable - 6ft (1.8m)

Stinger X3 Series 2-Channel RCA Interconnect 6ft (1.8m). Silver-Plated OFC, Lock Tip Quad-Clamp Connectors, Dual-Layer Mylar and Copper Mesh Shielding, Directional Construction, Body Armor Nylon.

Product Overview

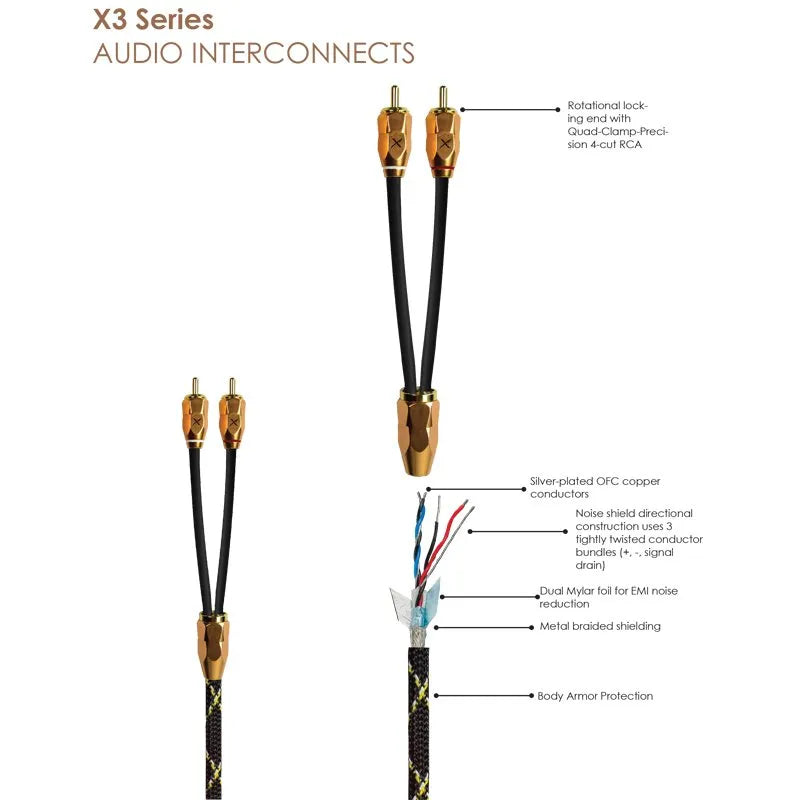

The Stinger XI326 is a 6-foot (1.8m) 2-channel stereo RCA interconnect from the X3 Series Stinger's flagship RCA cable line, designed for competition-level and audiophile car audio installations where signal integrity and shielding quality are critical. The XI326 uses silver-plated pure OFC copper conductors for optimised signal transfer, Lock Tip RCA connectors with Quad-Clamp precision for a secure, rattle-proof connection at both ends, and dual-layer ID (Interference Defense) shielding combining Mylar foil and copper mesh to reject EMI and radiated noise. The directional construction features triple-twisted conductor bundles per channel installed with the arrow indicator pointing toward the destination component creating an inherent noise-cancelling architecture within the cable itself.

The XI326 is protected by Stinger's Body Armor construction high-strength nylon fibre weaving around an ultra-flexible PVC jacket providing resistance to sharp metal edges, abrasion, vibration, and moisture exposure in the automotive environment. C3 (Continuous Connection Construction) technology ensures signal integrity from conductor to connector throughout the cable's length. The XI326 is available in the X3 Series at multiple lengths the 6ft (1.8m) is suited to component-to-component connections within the same equipment bay or short signal runs.

Key Specifications

• Model: XI326
• Brand: Stinger
• Series: X3 Series
• Length: 6ft (1.8m)
• Channels: 2 (stereo)
• Conductor: Silver-plated pure OFC copper
• Connector type: Lock Tip RCA with Quad-Clamp precision
• Shielding: Dual-layer Mylar foil and copper mesh
• Construction: Directional — triple twisted conductor bundles per channel
• Protection: Body Armor — high-strength nylon fibre weaving
• Cable jacket: Ultra-flexible PVC
• Technology: C3 Continuous Connection Construction; ID Interference Defense
• Application: Car audio, marine audio, competition and audiophile installations

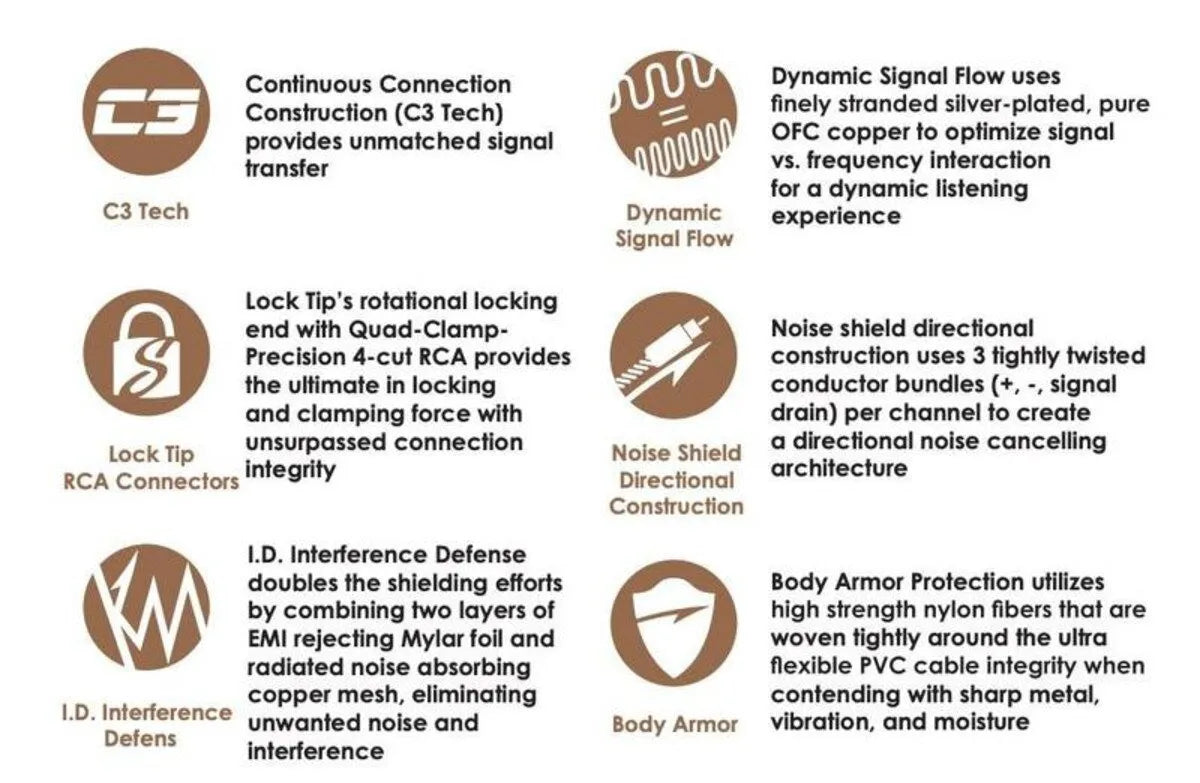

Features & Benefits

• Silver-Plated OFC Copper Conductors Silver plating over pure OFC copper provides low-resistance, high-conductivity signal transfer — optimising dynamic performance in high-resolution car audio systems.
• Lock Tip Quad-Clamp Connectors The Lock Tip rotational locking RCA connectors with Quad-Clamp precision prevent the contact degradation, intermittent connections, and signal loss common with standard push-fit RCA connectors — critical in high-vibration automotive installations.
• Dual-Layer ID Shielding — Mylar Foil and Copper Mesh Two independent shielding layers — inner Mylar foil and outer copper mesh — provide comprehensive rejection of EMI from vehicle alternators, ignition systems, and in-cabin electronics.
• Directional Triple-Twisted Construction Triple-twisted conductor bundles per channel, installed directionally (arrow toward destination), create noise-cancelling signal architecture within the cable. Install with arrows pointing away from the signal source.
• Body Armor Nylon Weave High-strength nylon fibre weaving around the ultra-flexible PVC jacket protects the cable from sharp metal edges, abrasion, and the vibration-intensive automotive environment — ensuring long-term reliability in permanent installations.
• C3 Continuous Connection Construction C3 technology maintains signal integrity from conductor to connector throughout the cable, preventing signal degradation at transition points.

Technical Specs

Compatible With / Goes Well With

• Car audio amplifiers requiring RCA signal input
• Car audio head units with RCA pre-out outputs
• Marine audio amplifiers and head units
• Competition car audio signal chains
• Any standard RCA-equipped source and destination components

Goes well with:

• Stinger X3 Series cables in other lengths for extended or multi-run installations
• Stinger XI3217 — X3 Series 17ft for longer runs in the same system

Frequently Asked Questions

What makes the X3 Series superior to standard RCA cables?

The XI326 combines silver-plated OFC conductors, Lock Tip Quad-Clamp locking connectors, dual-layer Mylar and copper mesh shielding, directional triple-twisted construction, and Body Armor nylon protection — features not found in standard RCA cables and specifically designed to eliminate noise, maintain connection integrity, and resist automotive wear.

Are the Lock Tip connectors compatible with standard RCA jacks?

Yes — Lock Tip connectors are dimensionally compatible with all standard RCA jacks. The Quad-Clamp locking mechanism engages on standard jacks to prevent signal-degrading movement at the connection point.

Is the XI326 directional — does it matter which way I install it?

Yes — the X3 Series uses directional construction. Install the cable with the arrow indicator pointing toward the destination component (away from the signal source) to correctly orient the noise-cancelling conductor architecture.

How does the dual-layer shielding benefit car audio installations?

Vehicle alternators, ignition systems, and other in-cabin electronics radiate EMI that contaminates low-level RCA signals as alternator whine, engine noise, or interference. The Mylar foil inner shield and copper mesh outer shield provide two independent rejection layers — most evident in systems with high-output amplifiers where signal-to-noise ratio is critical.

Is the XI326 suitable for marine audio installations?

Yes — the Body Armor nylon construction and flexible PVC jacket provide moisture and abrasion resistance suited to marine environments. The locking connectors also prevent vibration-induced contact degradation common in marine applications.
