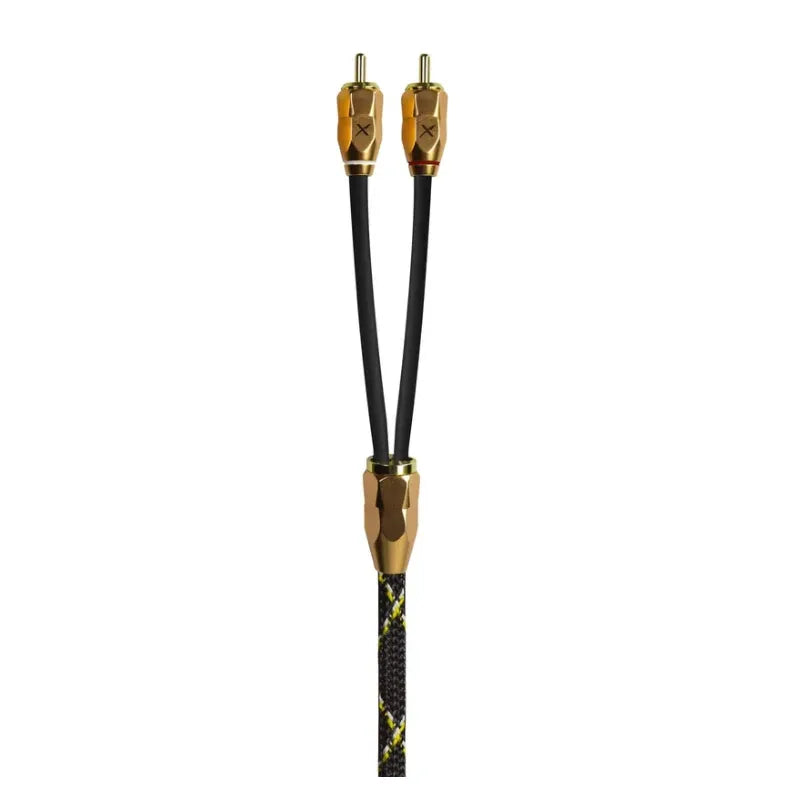

Stinger XI3217 X3 Series 2-Channel RCA Interconnect 17ft

X3 Series Flagship 2-Channel RCA Interconnect 17ft, Silver-Plated Pure OFC, Lock Tip Quad-Clamp Locking Connectors, Dual-Layer I.D. Shielding, C3 Tech, Body Armor Protection.

Product Overview

The Stinger XI3217 is the flagship X3 Series 17-foot (approximately 5.2-metre) 2-channel RCA interconnect positioned above the 8000 Series SI8217 in the Stinger range and engineered for high-performance installations where the signal cable must match the capability of the amplifier it serves. At 17 feet, it covers the full head-unit-to-boot-amplifier run in most vehicles with cable to spare for routing around obstacles.

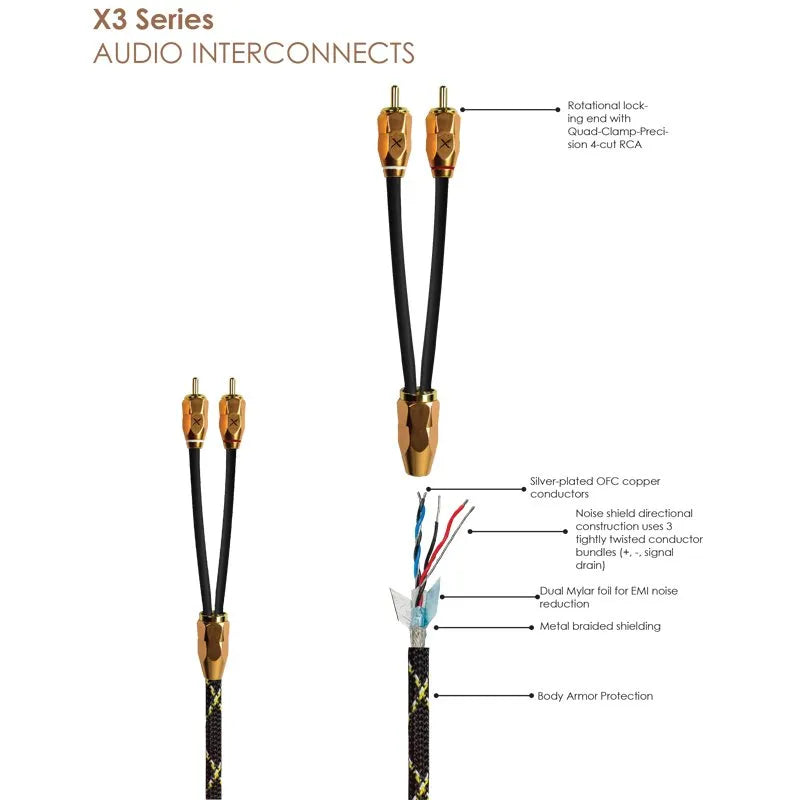

The X3 design addresses every major source of signal degradation in a car audio RCA connection. Silver-plated pure OFC conductors optimise performance across the full audio frequency range. Lock Tip Quad-Clamp locking RCA connectors with a precision 4-cut contact physically lock onto the socket, eliminating the intermittent contact caused by vibration-loosened push-fit connectors. I.D. (Interference Defense) dual-layer shielding combines an inner Mylar foil layer for external EMI rejection with an outer copper mesh layer for conducted noise rejection two separate shielding mechanisms targeting two different noise sources. Directional double twisted-pair construction with three conductors per channel (positive, negative, signal drain) completes the signal path architecture. C3 Tech ensures no breaks or discontinuities throughout the full 17-foot length. Body Armor nylon-woven outer protection covers the flexible PVC inner cable for mechanical durability in installation and beyond.

Key Specifications

• SKU: XI3217
• Series: X3
• Channels: 2
• Length: 17 feet (approximately 5.2 metres)
• Conductor: Silver-plated pure OFC copper, finely stranded
• Conductor construction: Double twisted-pair, directional
• Noise cancellation: Directional twisted-pair architecture
• Shielding: Dual-layer — inner Mylar EMI foil + outer copper mesh
• Connector type: Lock Tip Locking RCA — Quad-Clamp 4-cut
• Construction method: C3 Tech (Continuous Connection Construction)
• Outer protection: Body Armor — nylon-woven over PVC
• Conductors per channel: 3 (positive, negative, signal drain)
• Warranty: Not specified — confirm with Stinger

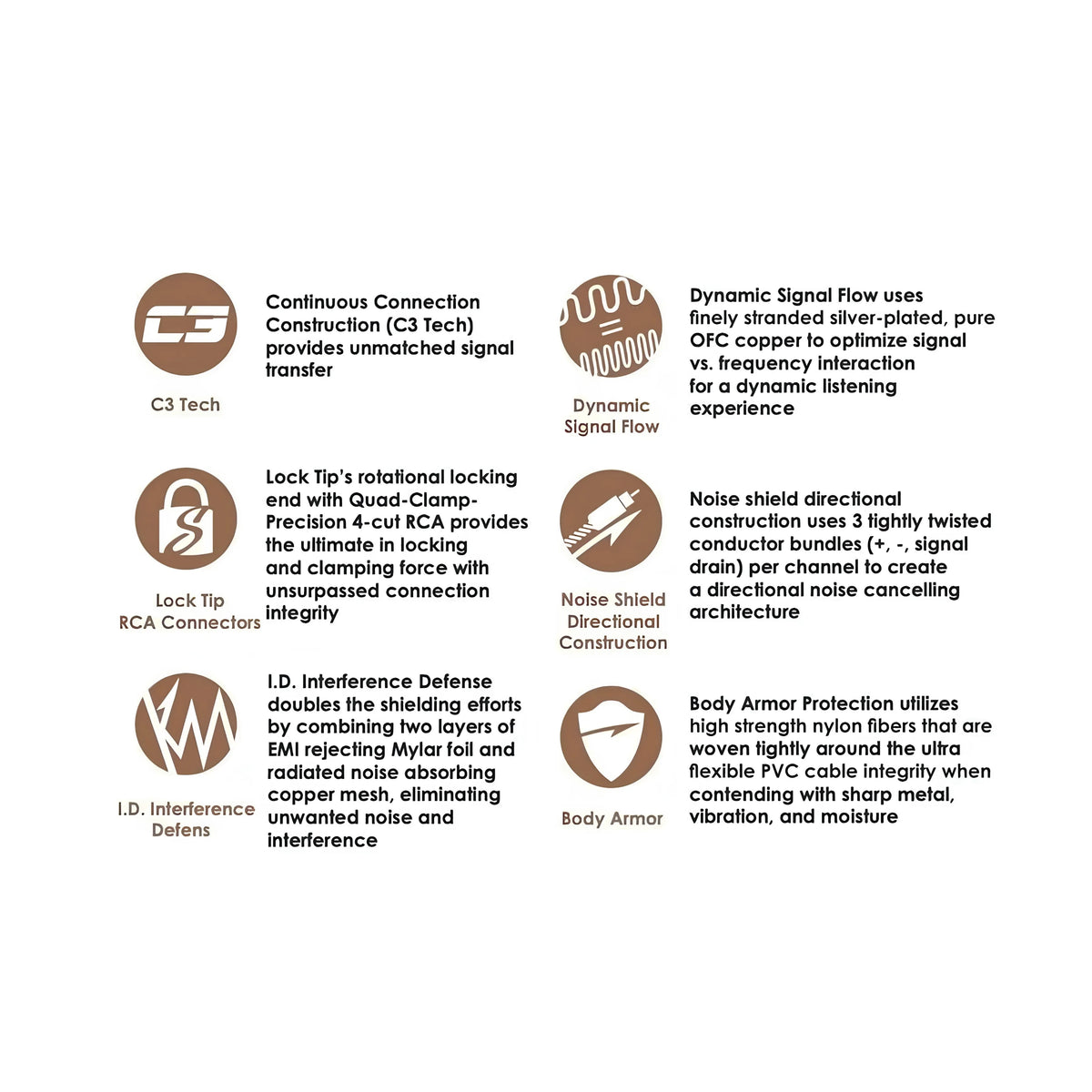

Features & Benefits

• Lock Tip Quad-Clamp 4-Cut Locking RCA Connectors The Lock Tip connector combines a rotational locking end with a precision 4-cut Quad-Clamp contact — physically clamping and locking onto the RCA socket with the highest possible contact force. Standard push-fit connectors rely on friction only and loosen under vibration, introducing intermittent noise and signal dropout. The Lock Tip design eliminates this failure mode entirely — the most common source of noise in car audio signal chains.
• Silver-Plated Pure OFC Conductors Pure OFC (Oxygen-Free Copper) eliminates the oxidation-related signal degradation of standard copper conductors. Silver plating each individual strand further reduces surface resistance — where the majority of high-frequency audio signal travels due to the skin effect — optimising performance across the full 20Hz–20kHz audio spectrum. The combination delivers tight bass response and crystal-clear high-frequency detail over the full 17-foot run.
• I.D. Dual-Layer Interference Defense Shielding Two independent shielding layers target two different noise sources simultaneously. The inner Mylar foil layer rejects radiated electromagnetic interference from external sources — alternators, ignition systems, and mobile devices. The outer copper mesh layer absorbs conducted radiated noise generated within the cable's own conductors. A single-layer shield addresses only one source; the XI3217's dual-layer design addresses both.
• Directional Double Twisted-Pair Construction — Three Conductors per Channel Three conductor bundles per channel — positive, negative, and signal drain — are arranged in a directional double twisted-pair architecture that uses the physics of twisted-pair noise cancellation to reject interference. The directional design means the cable is installed in a specific orientation for maximum noise rejection. Separate signal drain conductor isolates the shield drain from the audio return path.
• C3 Tech — Continuous Connection Construction Stinger's C3 Tech ensures no micro-discontinuities, solder joints, or resistance variations throughout the full 17-foot length — providing consistent signal transfer from source unit to amplifier.
• Body Armor Nylon-Woven Outer Protection High-strength nylon fibres woven over a flexible PVC inner cable provide mechanical protection against the sharp metal edges, vibration fatigue, and moisture ingress encountered during vehicle installation — and throughout the life of the cable in an automotive environment.

Technical Specs

Compatible With / Goes Well With

Suitable for:

• High-performance amplifier installations where signal cable quality must match a premium amplifier's noise floor and dynamic range
• Full-length vehicle runs from dash-mounted head unit to boot-mounted amplifier in most passenger cars, SUVs, and medium-sized vans
• Installations where Lock Tip locking connectors are preferred over standard push-fit for vibration-resistant signal integrity

Pairs well with:

• Rockford Fosgate, Hertz, Morel, and AudioControl premium amplifiers
• Stinger SI8212 (12ft / 3.7m) 8000 Series for shorter runs where the same installation quality is required at a reduced length
• Stinger SI82YF and SI82YM Y-adapters if a consistent Stinger build across all RCA connections is required

Frequently Asked Questions

What is the benefit of silver-plated conductors over standard OFC copper?

Standard OFC copper provides low resistance and solid signal transfer. Silver plating each individual OFC strand reduces surface resistance further — where the majority of high-frequency audio signal travels due to the skin effect. This optimises performance across the full 20Hz–20kHz range, particularly at higher frequencies where signal integrity matters most.

How do the Lock Tip locking RCA connectors differ from standard RCA connectors?

A standard push-fit RCA connector relies on friction to maintain contact — which loosens under vibration and causes intermittent noise or signal dropout. The Lock Tip connector adds a rotational locking mechanism and a Quad-Clamp 4-cut contact that physically clamps onto the RCA socket, maintaining consistent contact force regardless of vibration, temperature cycling, or mechanical stress.

What does dual-layer shielding provide that a single shield does not?

A single shielding layer typically targets either radiated external interference or conducted internal noise. The XI3217's inner Mylar foil layer specifically rejects external EMI from alternators and ignition systems, while the outer copper mesh layer absorbs conducted noise generated within the cable's own conductors — each layer targeting a different noise source for substantially better total rejection than either alone.

What does the directional construction mean, and how do I install it correctly?

The directional twisted-pair architecture cancels noise most effectively when signal flows from source unit to amplifier. Directional markings on the cable indicate the correct orientation. Installing in reverse does not damage the cable but reduces the effectiveness of the noise-cancelling architecture.

Is 17 feet sufficient for most vehicle installations?

At 17 feet (approximately 5.2m), the XI3217 covers the full head-unit-to-boot-amplifier run in most passenger cars, SUVs, and medium-sized vans with cable to spare. For very large vehicles or installations where the routing path adds significantly to the direct distance, measure the intended routing path before purchase.
