Product features

Stinger XFDB108 X-LINK Modular Linkable Fused Distribution Block ANL and MIDI Fuse 0 to 8 Gauge Gold Terminals Brass Power Link Couplers

The Stinger XFDB108 is a linkable fused distribution block from the X-LINK system, starting as a single inline fuse holder and expandable into a multi-circuit fused or unfused distribution block by clicking additional X-LINK blocks together via the included brass Power Link couplers. Accepts 0, 4, and 8 gauge cable. Compatible with ANL and MIDI (Mini ANL) fuses. Gold-finish machined terminals and XFASTEN hardware system. No fuse included available separately. Power Link couplers are not fuses and do not provide overcurrent protection.

Product overview

The XFDB108 provides a modular, expandable approach to high-current power distribution for car audio, 4WD accessory, and air suspension installations. As a single unit it functions as an inline fuse holder. Clicking additional X-LINK blocks together using the brass Power Link couplers builds the configuration into a multi-circuit distribution block or buss bar without additional wiring complexity. Blocks are available separately for expansion.

Cable adaptors are included for 0, 4, and 8 gauge cable on both input and output terminals, covering main power feeds through to accessory runs. Compatibility with both ANL full-size and MIDI/Mini ANL fuse formats covers the most common high-current fuse types used in car audio and 12V accessory builds.

Custom brass Power Link couplers provide high-conductivity, low-resistance links between X-LINK blocks. The XFASTEN hardware system maintains a firm, vibration-resistant grip on cables at the terminal. Gold-finish machined terminals reduce contact resistance for clean current transfer.

No fuse is included. ANL and MIDI fuses must be sourced separately. The included Power Link couplers are not fuses and do not provide overcurrent protection. Always install an appropriate-rated fuse for each connected circuit when using the XFDB108 in a fused configuration.

Features and benefits

Modular linkable design: Starts as a single inline fuse holder and expands into a multi-circuit distribution block or buss bar by clicking additional X-LINK blocks together. No rewiring required.

0, 4, and 8 gauge cable compatibility: Included adaptors cover the full range from main power feeds to accessory runs on both input and output terminals.

ANL and MIDI/Mini ANL fuse compatibility: Accepts both common high-current fuse formats used in car audio and 12V accessory builds.

Custom brass Power Link couplers: High-conductivity, low-resistance links between X-LINK blocks for maximum current transfer.

XFASTEN hardware system: Firm, vibration-resistant cable grip at the terminal beyond the terminal screw alone.

Gold-finish machined terminals: Reduced contact resistance for clean, high-current power transfer.

Fuse not included: ANL and MIDI fuses available separately. Power Link couplers are not fuses.

What's in the box

  • 1x XFDB108 X-LINK Fused Distribution Block
  • 1x MIDI/Mini ANL Sized Power Link Coupler
  • 1x ANL Sized Power Link Coupler
  • Cable Adaptors (0, 4, and 8 gauge)

Fuse not included.

Technical specs

Specification Detail
SKU XFDB108
Brand Stinger
Cable Sizes 0 gauge, 4 gauge, 8 gauge
Fuse Types ANL, MIDI (Mini ANL)
Terminal Finish Gold
Coupler Material Custom brass
XFASTEN Hardware Yes
Linkable Yes, via Power Link couplers
Fuse Included No, available separately
Power Links Included 1x MIDI/Mini ANL, 1x ANL

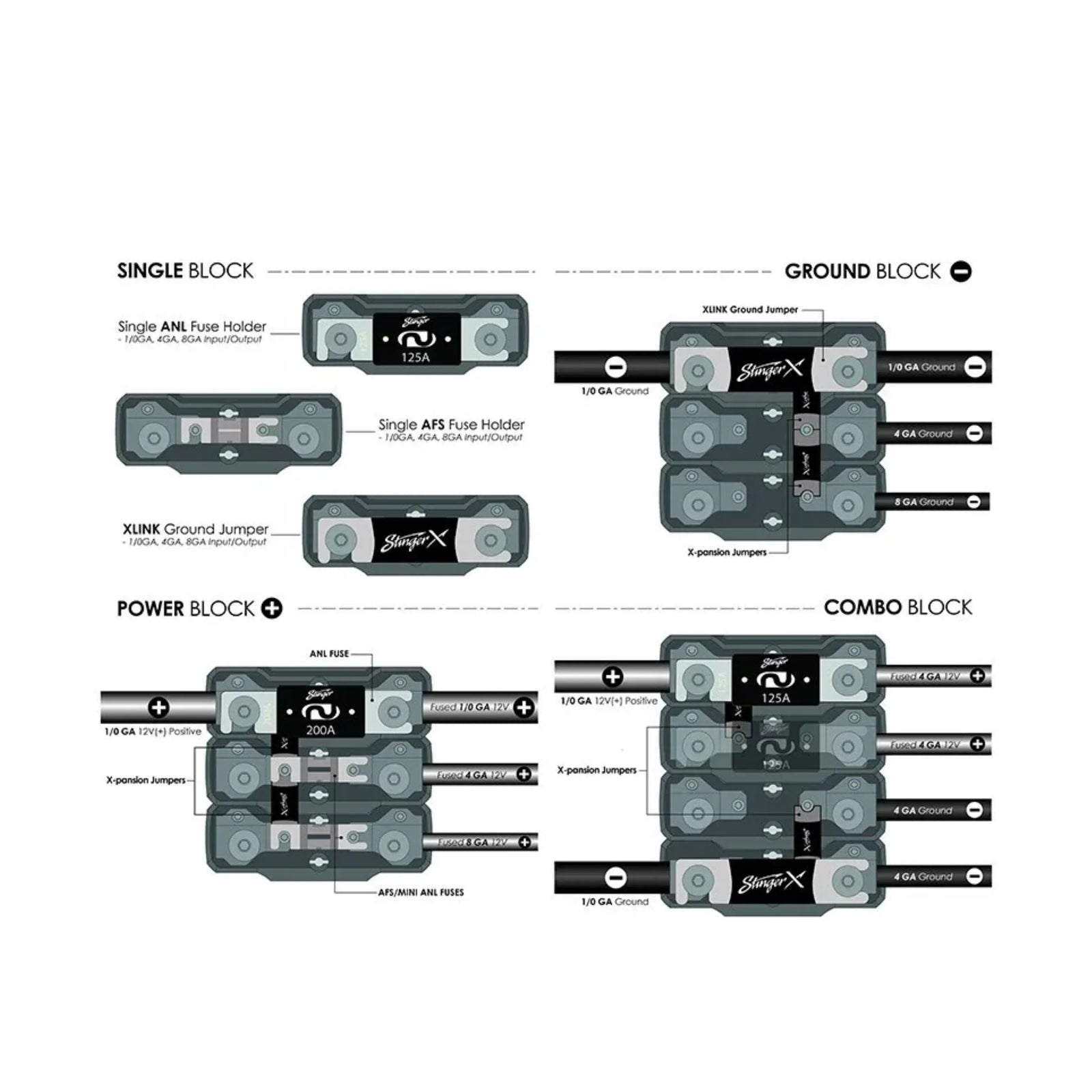

Configurations Inline fuse holder, fused distribution block, non-fused distribution block, power and ground distribution

Frequently asked questions

Does the XFDB108 come with a fuse? No. The XFDB108 accepts ANL and MIDI/Mini ANL fuses, which are available separately. The included Power Link couplers are not fuses and do not provide overcurrent protection.

What cable sizes does the XFDB108 accept? The XFDB108 accepts 0, 4, and 8 gauge cable via the included adaptors on both input and output terminals.

Can I connect multiple X-LINK blocks together? Yes. Additional X-LINK blocks (sold separately) can be clicked together using the brass Power Link couplers to create an expanded distribution block or buss bar without additional wiring complexity.

What fuse types does the XFDB108 accept? The XFDB108 accepts ANL full-size and MIDI/Mini ANL fuses the two most common high-current fuse formats used in car audio and 12V accessory installations.

What are the Power Links included in the box? The XFDB108 includes one MIDI/Mini ANL sized Power Link and one ANL sized Power Link. These are brass couplers used to link X-LINK blocks together. They are not fuses and do not provide overcurrent protection.
